Technical specifications for 6GK5004-1BD00-1AB2
-
Product Model6GK5004-1BD00-1AB2
-
Spare ModelNot available
-
Product ParametersSCALANCE XB004-1 unmanaged Industrial Ethernet switch with 4 RJ45 ports and 1 multimode SC fiber port
-
Tariff Code85176200
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size45 x 87 x 100 mm
-
ManufacturerSiemens
-
Weight0.247 kg
-
Product type designationSCALANCE XB004-1
-
Product familySCALANCE XB-000 unmanaged
-
Switch managementUnmanaged
-
Transmission speeds10 and 100 Mbit/s
-
Copper Ethernet ports4 x RJ45
-
Fiber-optic ports1 x multimode SC
-
Optical transmission100BaseFX
-
Supported topologiesSmall star and line
-
DiagnosticsLED
-
Supply type24 V AC/DC
-
Nominal DC supply24 V DC
-
DC supply range19.2 to 28.8 V
-
AC supply range19.2 to 28.8 V
-
Rated power loss2.64 W
-
Maximum current consumption0.11 A
-
Degree of protectionIP20
-
Mounting options35 mm DIN rail or wall
-
PROFINET conformance classA
Description

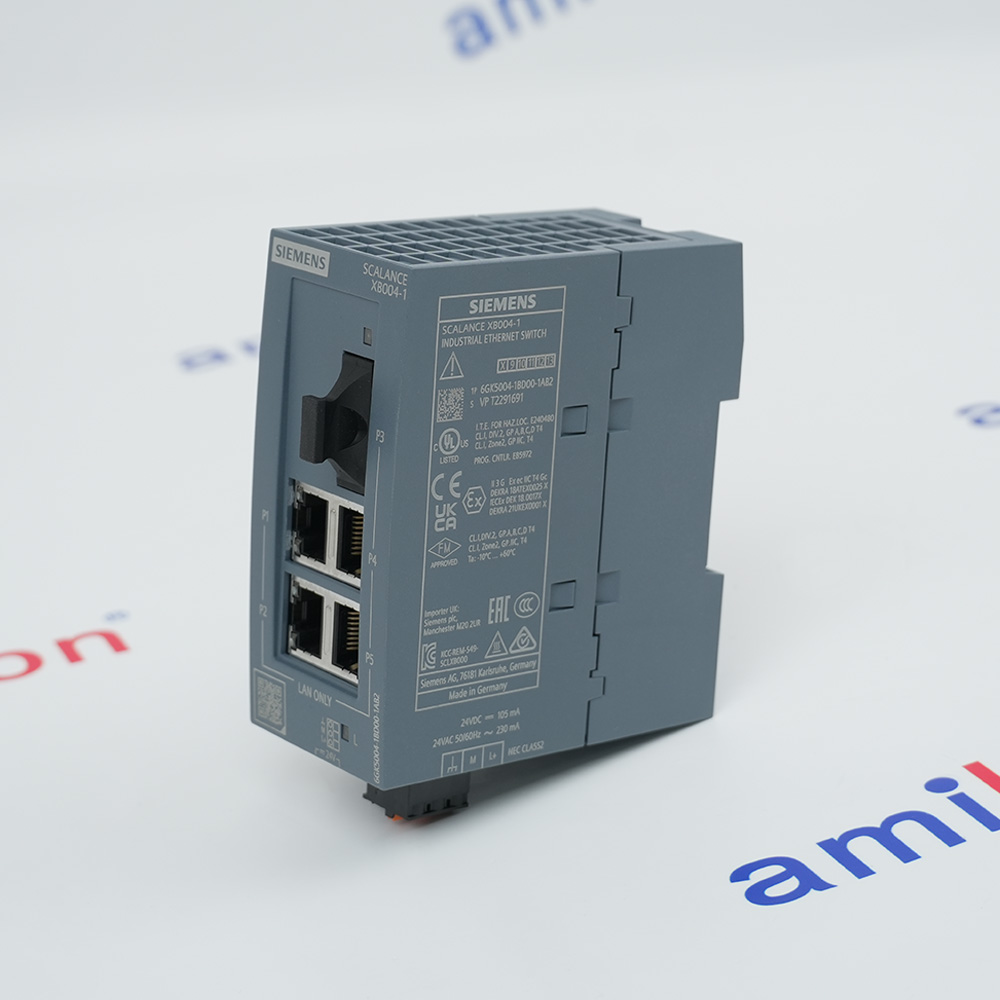

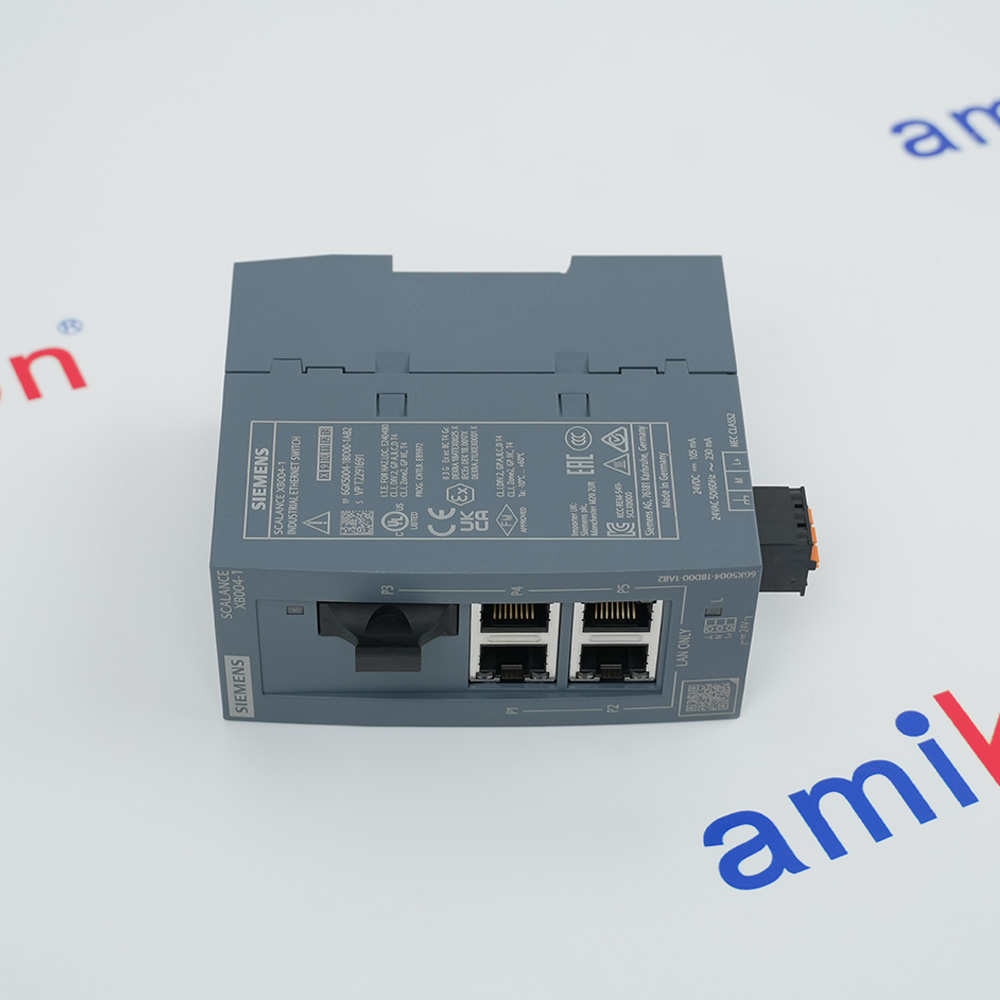

Siemens 6GK5004-1BD00-1AB2 is a SCALANCE XB004-1 unmanaged Industrial Ethernet switch for 10/100 Mbit/s networks.
It provides four 10/100 Mbit/s twisted-pair ports with RJ45 sockets.
One 100 Mbit/s multimode fiber-optic port with an SC socket supports 100BaseFX transmission.
The switch is designed for small star and line topologies and provides LED diagnostics.
It supports a 24 V AC/DC supply, has IP20 protection, and can be mounted on a 35 mm DIN rail or a wall.
Siemens lists the product as PM300 - Active Product. Verify the fiber type, optical budget, port assignments, power supply and cabinet environment before replacement.
Information
Product Information
Key Features
Applications
Engineering & Compatibility
Lifecycle & Replacement
Siemens 6GK5004-1BD00-1AB2 is a SCALANCE XB004-1 unmanaged Industrial Ethernet switch.
It supports 10 and 100 Mbit/s transmission speeds.
Four twisted-pair Ethernet ports use RJ45 sockets.
One multimode fiber-optic port uses an SC socket and 100BaseFX transmission.
The switch supports small star and line topologies with LED diagnostics.
It uses a 24 V AC/DC supply, has IP20 protection and meets PROFINET conformance class A.
SCALANCE XB-000 unmanaged switch.
10 and 100 Mbit/s transmission.
Four RJ45 copper Ethernet ports.
One multimode SC fiber-optic port.
100BaseFX optical transmission.
24 V AC/DC supply and LED diagnostics.
IP20 protection with DIN-rail or wall mounting.
Small Industrial Ethernet star topologies.
Small Industrial Ethernet line topologies.
Mixed copper and multimode fiber network segments.
Four-port RJ45 equipment connections with one 100BaseFX uplink.
Unmanaged PROFINET class A network connections.
Confirm the exact XB004-1 article and the requirement for an unmanaged switch.
Match the four 10/100 Mbit/s RJ45 port assignments to the copper network design.
Verify that the optical link uses multimode fiber, 100BaseFX and an SC connector.
Check the fiber length, optical budget, connector condition and polarity before commissioning.
Provide a 24 V AC/DC supply within the specified range and verify grounding and fuse protection.
Install the switch in an IP20 cabinet environment with suitable temperature and ventilation.
Select 35 mm DIN-rail or wall mounting and allow for the 45 x 100 x 87 mm device size.
Review the topology, PROFINET requirements and current Siemens documentation before replacement.
Siemens lists 6GK5004-1BD00-1AB2 as PM300 - Active Product.
No official successor is listed for this active article.
An exact replacement must provide the same unmanaged switching function and port arrangement.
The four RJ45 ports and one multimode 100BaseFX SC port must be matched.
Power supply, enclosure, mounting, fiber type and network topology must be verified.
AMIKONG can assist with checking availability of the exact article and compatible spare units for the verified network configuration.
Technical notes
Confirm the exact XB004-1 article, unmanaged network design, 10/100 Mbit/s copper links, four RJ45 port assignments, 100BaseFX multimode fiber link and SC connector, optical budget and fiber type, 24 V AC/DC supply, grounding, IP20 cabinet environment, DIN-rail or wall mounting, star or line topology and PROFINET conformance requirements before installation or replacement.
FAQs
-
What is Siemens 6GK5004-1BD00-1AB2?
+It is a SCALANCE XB004-1 unmanaged Industrial Ethernet switch for 10/100 Mbit/s networks. -
Is the SCALANCE XB004-1 a managed switch?
+No. Siemens identifies it as an unmanaged switch. -
Which copper Ethernet ports are provided?
+It provides four 10/100 Mbit/s twisted-pair ports with RJ45 sockets. -
Which fiber-optic port is provided?
+It provides one 100 Mbit/s multimode fiber-optic port using an SC socket and 100BaseFX transmission. -
Which network topologies can it support?
+Siemens identifies it for setting up small star and line topologies. -
What power supply does the switch require?
+It supports 24 V AC/DC power; the DC nominal value is 24 V with a 19.2 to 28.8 V range. -
What are the package dimensions and net weight?
+The package dimensions are 45 x 87 x 100 mm and the net weight is 0.247 kg. -
What must be checked before replacement or installation?
+Confirm the exact article, unmanaged design, copper and fiber port types, multimode fiber and SC connector, optical budget, power supply, grounding, IP20 enclosure and mounting method.
