Technical specifications for 6SE7090-0XX84-0AF0
-
Product Model6SE7090-0XX84-0AF0
-

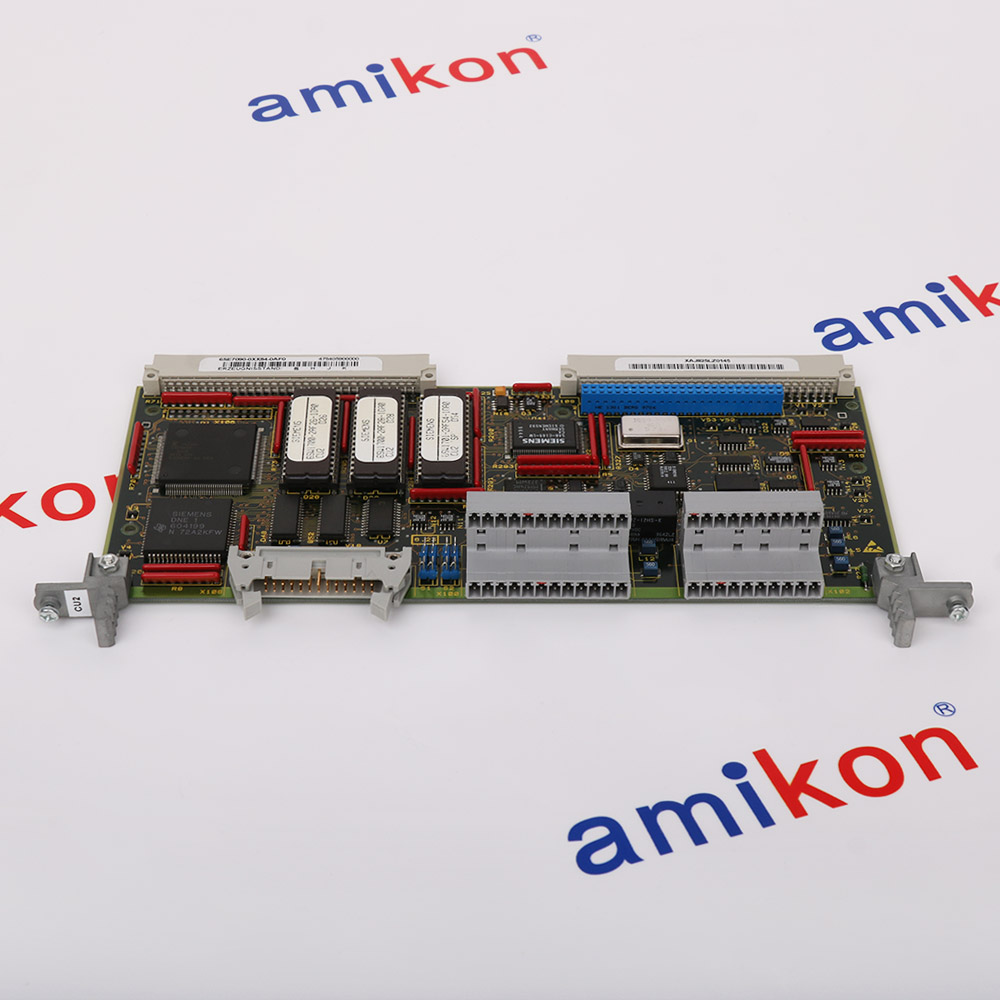

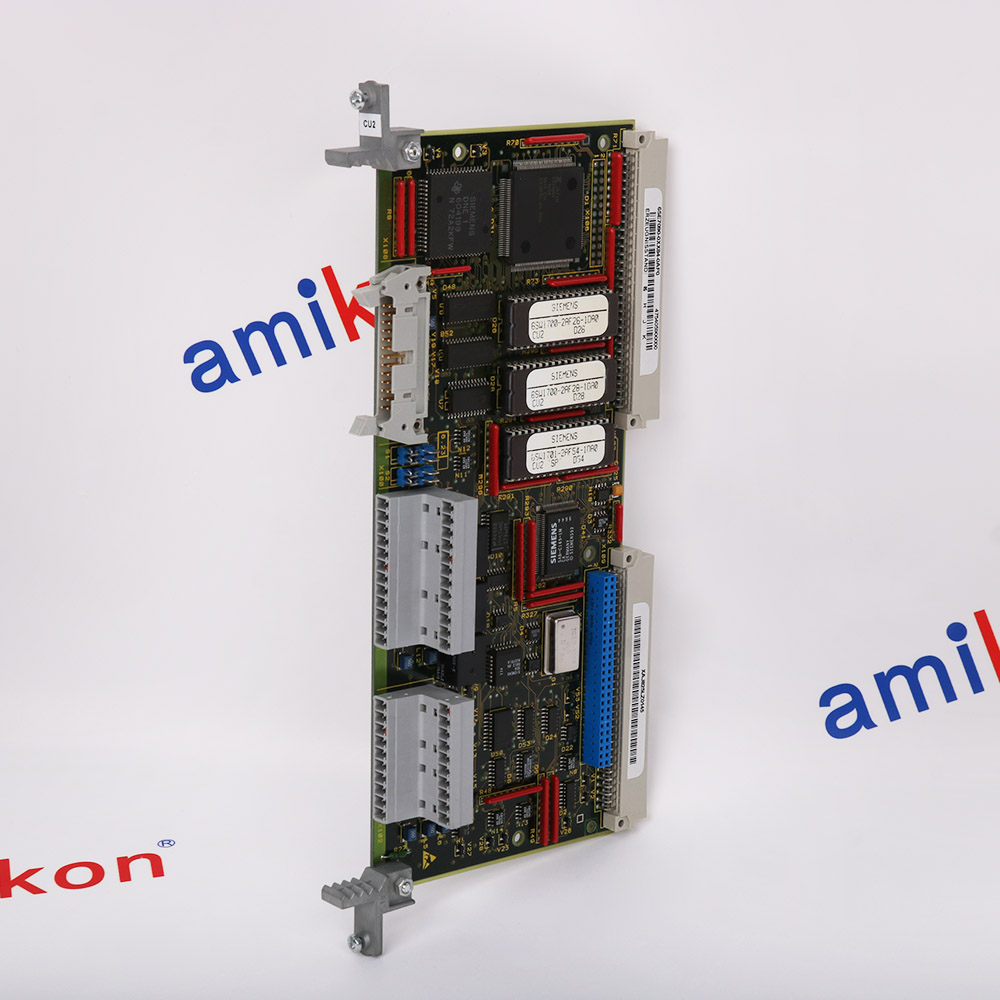

Product ParametersCU2 Open and Closed Loop Control Board (VC)
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.5x12.5x26.2cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
Voltage Input24 V DC
-
Vector ControlClosed-loop
-
V/f ModeOpen-loop
-
Temperature0°C to +55°C (IP20, enclosure-mounted)
-
Binary Inputs9
-
Binary Outputs7
-
Signal "0"-3 V to +5 V
-
Signal "1"+15 V to +30 V
Description
The Siemens 6SE7090-0XX84-0AF0 is a CU2 Open and Closed Loop Control Board (VC) for SIMOVERT MASTERDRIVES Vector Control applications. The 6SE7090-0XX84-0AF0 uses a microprocessor with field-oriented vector control and an extremely fast closed-loop current control, enabling the drive to be precisely adapted to the demanded load torque for extremely high dynamic performance.
The Siemens 6SE7090-0XX84-0AF0 is suitable for induction motors in both single-motor and multi-motor drives. The 6SE7090-0XX84-0AF0 supports applications such as winder drives and rolling mills where high dynamic performance and accuracy are required. For multi-motor drives, the motors within the group must be identical when using the 6SE7090-0XX84-0AF0.
The Siemens 6SE7090-0XX84-0AF0 is suitable for induction motors in both single-motor and multi-motor drives. The 6SE7090-0XX84-0AF0 supports applications such as winder drives and rolling mills where high dynamic performance and accuracy are required. For multi-motor drives, the motors within the group must be identical when using the 6SE7090-0XX84-0AF0.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connection
Features:
- Field-Oriented Vector Control with Fast Closed-Loop Current Control
- Multiple Operating Modes (V/f, Vector Control, Frequency Control)
- 2 Analog Outputs for Actual Value Monitoring
- Multiple Control Interfaces (PMU, Terminal Strip, Serial Interface)
The board integrates two analog inputs configurable for voltage signals (-10 V to +10 V, 0 to 10 V, 2 to 10 V) or current signals (-20 mA to +20 mA, 0 to 20 mA, 4 to 20 mA), with resolutions of 5 mV and 0.01 mA respectively. Two analog outputs provide process value feedback at 8-bit resolution. Nine isolated binary inputs and seven binary outputs handle digital control and status signaling at 24 V DC levels.
The 6SE7090-0XX84-0AF0 SIEMENS Open and Closed Loop Control Board (VC) may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6SE7090-0XX84-0AF0 Open and Closed Loop Control Board (VC) Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A serial RS232 interface enables direct connection to the PMU (Parameterizing and Monitoring Unit) for local operation and commissioning. Optional communication boards (CB1/CB2) extend connectivity to PROFIBUS DP networks for integration into distributed automation architectures. Peer-to-peer communication and USS protocol are supported via the serial interface.
Motor protection functions include I²t overload monitoring, stall detection, and temperature monitoring via PTC, KTY84, or PT100 sensors (with option board). The control board operates in ambient temperatures from 0°C to +50°C without derating and complies with EN 61800-3 EMC standards for industrial environments.
