PRODUCT DESCRIPTION

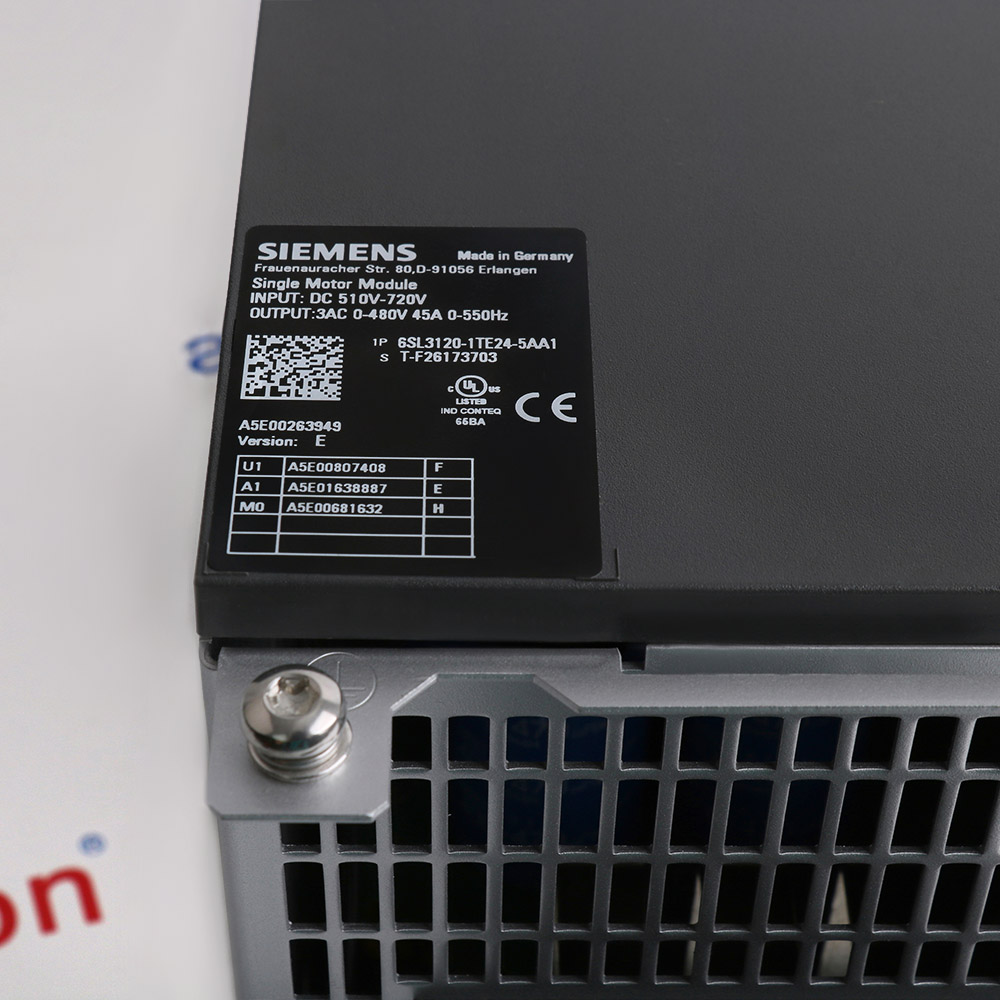

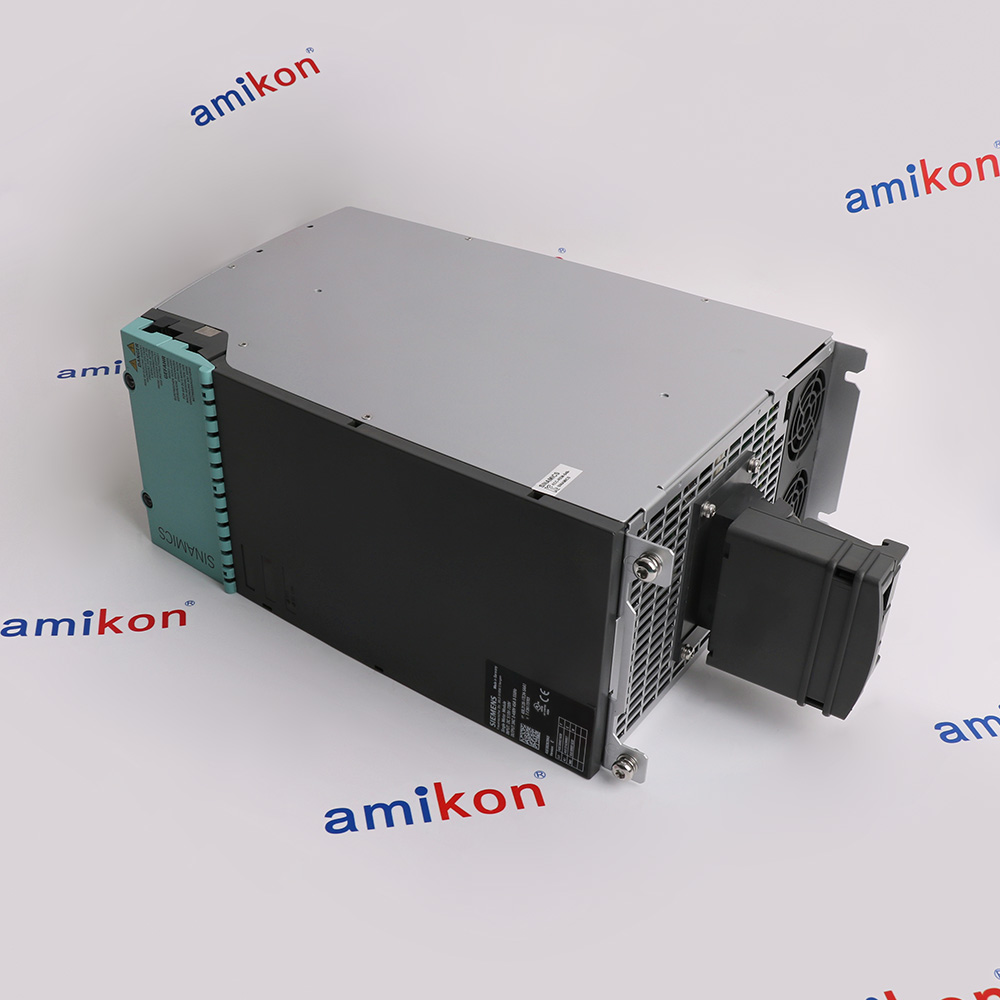

6SL3120-1TE24-5AA1 45 A Single Motor Module
Siemens 6SL3120-1TE24-5AA1 is a 45 A Single Motor Module in booksize format for SINAMICS S120. It converts the shared DC-link supply into controlled motor power within a configured multi-axis or single-axis drive system.
This version uses internal air cooling and a 510–720 V DC link. The Siemens catalog specifies 24 kW at a 600 V DC link, a 45 A rated output and 85 A maximum current; integrated DC-link and 24 V busbars and DRIVE-CLiQ interfaces connect it to the compatible drive arrangement.
This version uses internal air cooling and a 510–720 V DC link. The Siemens catalog specifies 24 kW at a 600 V DC link, a 45 A rated output and 85 A maximum current; integrated DC-link and 24 V busbars and DRIVE-CLiQ interfaces connect it to the compatible drive arrangement.
BEFORE YOU BUY
Confirm the complete 45 a single motor module
ACTUAL APPLICATIONS
Application context for 6SL3120-1TE24-5AA1
6SL3120-1TE24-5AA1 provides motor power conversion in compatible SINAMICS S120 systems. Host applications include industrial manufacturing, packaging and material processing. Motor current, load duty, cooling and the configured Control Unit determine the operating limits.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Assembly
Industrial Product ManufacturingIndustrial Assembly Production -
02 · PACKAGING
Packaging and Consumer Goods Production
Consumer Goods PackagingFood and Beverage Packaging -
03 · MATERIAL PROCESSING
Industrial Material Production and Metal Processing
Industrial Material ProcessingMetal Fabrication and Processing
Technical specifications for 6SL3120-1TE24-5AA1
-
Product Model6SL3120-1TE24-5AA1
-
Product Parameters45 A Single Motor Module
-
In stock3 units
-
ManufacturerSiemens
-
DC-link voltage range510 to 720 V DC
-
Rated output current45 A
-
High-overload base current38 A
-
S6 output current, 40% duty60 A
-
Maximum output current85 A
-
Rated pulse frequency4 kHz
-
Rated power at 600 V DC24 kW
-
Power at base current, 600 V DC21 kW
-
Rated DC-link current54 A
-
DC-link busbar current capacity100 A
-
DC-link capacitance1175 µF
-
Maximum 24 V DC current requirement1.2 A
-
24 V DC busbar current capacity20 A
-
Efficiency0.97
-
Rated internal-air-cooling power loss0.43 kW
View all additional
Alternative Names
6SL3120-1TE24-5AA1
SINAMICS S120 45 A Single Motor Module
45 A Single Motor Module 6SL3120-1TE24-5AA1
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6SL3120-1TE24-5AA1 45 a single motor module
Identify the exact 6SL3120-1TE24-5AA1 Motor Module and compatible S120 Control Unit. Compare the motor, DC-link and load-duty requirements with the 45 A table.
Allocate the 510–720 V DC link, 24 V electronics supply and documented DRIVE-CLiQ connections. Check busbar current, cooling and motor/brake wiring against the Siemens instructions.
Commission the configured motor axis and check current, diagnostics and cooling under the permitted duty. Archive the complete Control Unit and motor parameter set.
Features:
- 45 A axis sizing and 510–720 V DC link
- Integrated DC-link and 24 V supply busbars
- Internal air cooling and motor-duty comparison
The 6SL3120-1TE24-5AA1 45 a single motor module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6SL3120-1TE24-5AA1 45 a single motor module
Match the full AA1 article and internal-air-cooling construction. Later AA-series variants require an explicit compatibility check rather than assumption from the current rating.
Preserve motor, brake, DC-link, 24 V and DRIVE-CLiQ assignments. Follow the drive isolation and DC-link discharge procedure before exchange.
Restore verified parameters after fitting and test the affected axis, brake and diagnostics. Check load current and cooling before returning the machine to production.
Features:
- Exact AA1 Motor Module and cooling version
- Preserved motor, brake and DRIVE-CLiQ connections
- Axis-current and diagnostic acceptance checks
The 6SL3120-1TE24-5AA1 45 a single motor module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Siemens D21.1 2006 English exact-article table
- S6, maximum-current and busbar ratings
- Matched internal-air-cooled module construction
Documentation for the 6SL3120-1TE24-5AA1 45 a single motor module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size15 × 27 × 38cm
-
Shipping weight9.00kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504409999
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6SL3120-1TE24-5AA1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What continuous output current defines 6SL3120-1TE24-5AA1?
The Siemens D21.1 catalog specifies a rated output current of 45 A. -
What DC-link range is listed for this AA1 Motor Module?
The applicable 2006 catalog lists 510–720 V DC. Do not substitute a later module revision table. -
At what link voltage is the 24 kW rating specified?
It is specified at a 600 V DC link; motor nameplate current and operating duty still determine sizing. -
What overload currents are listed for the 45 A version?
The table lists 60 A for S6 duty at 40% and 85 A maximum output current, with a high-overload base current of 38 A. -
Which cooling construction applies to this order code?
6SL3120-1TE24-5AA1 is the internal-air-cooled Single Motor Module. External-air-cooled and varnished versions have different article codes. -
What 24 V DC budget is required by this module?
The catalog lists a maximum 1.2 A electronics-supply requirement. The shared 24 V DC busbar capacity is 20 A. -
What motor-axis ratings are needed to source the AA1 replacement?
Provide 6SL3120-1TE24-5AA1, motor nameplate current, duty requirements, internal-air-cooling arrangement and Control Unit configuration. -
Which Motor Module power and DRIVE-CLiQ interfaces require delivery checks?
Inspect power busbars, motor/brake and DRIVE-CLiQ connectors, cooling construction and the full AA1 marking. Compare the 45 A module with the removed axis assembly.
