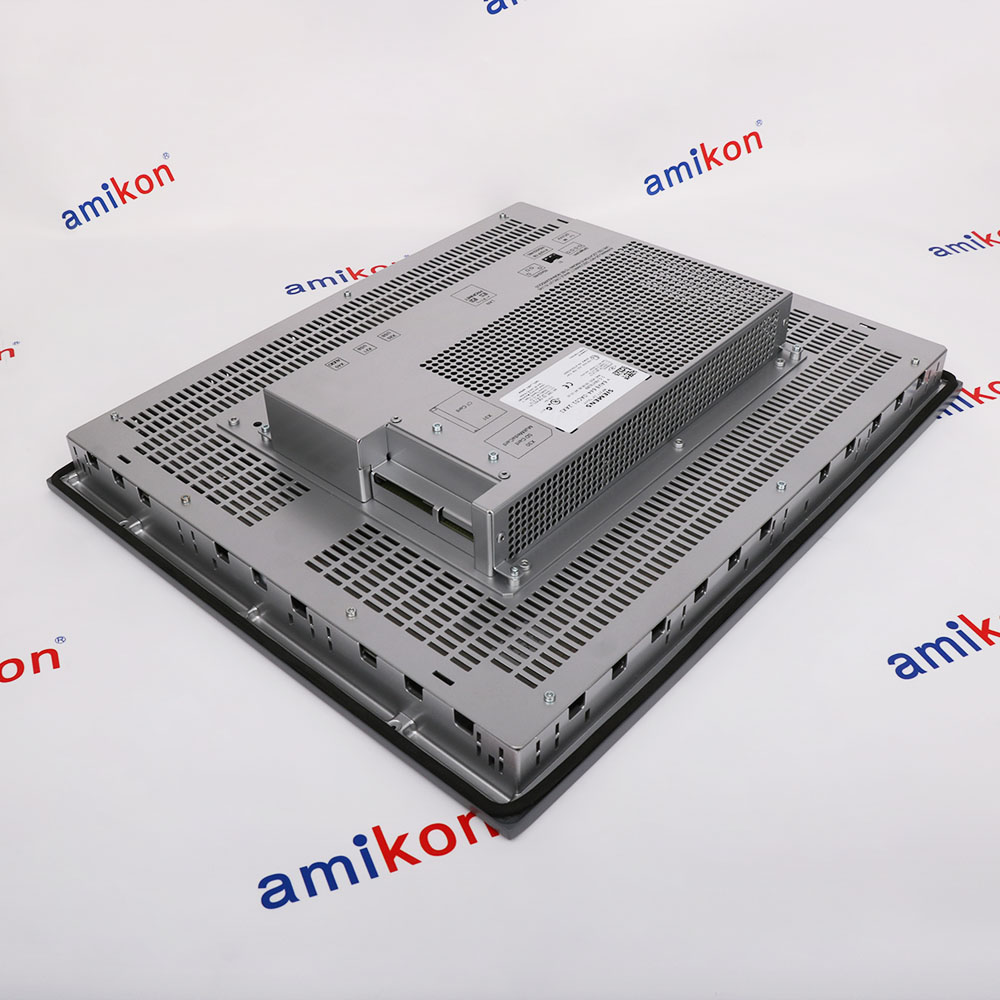

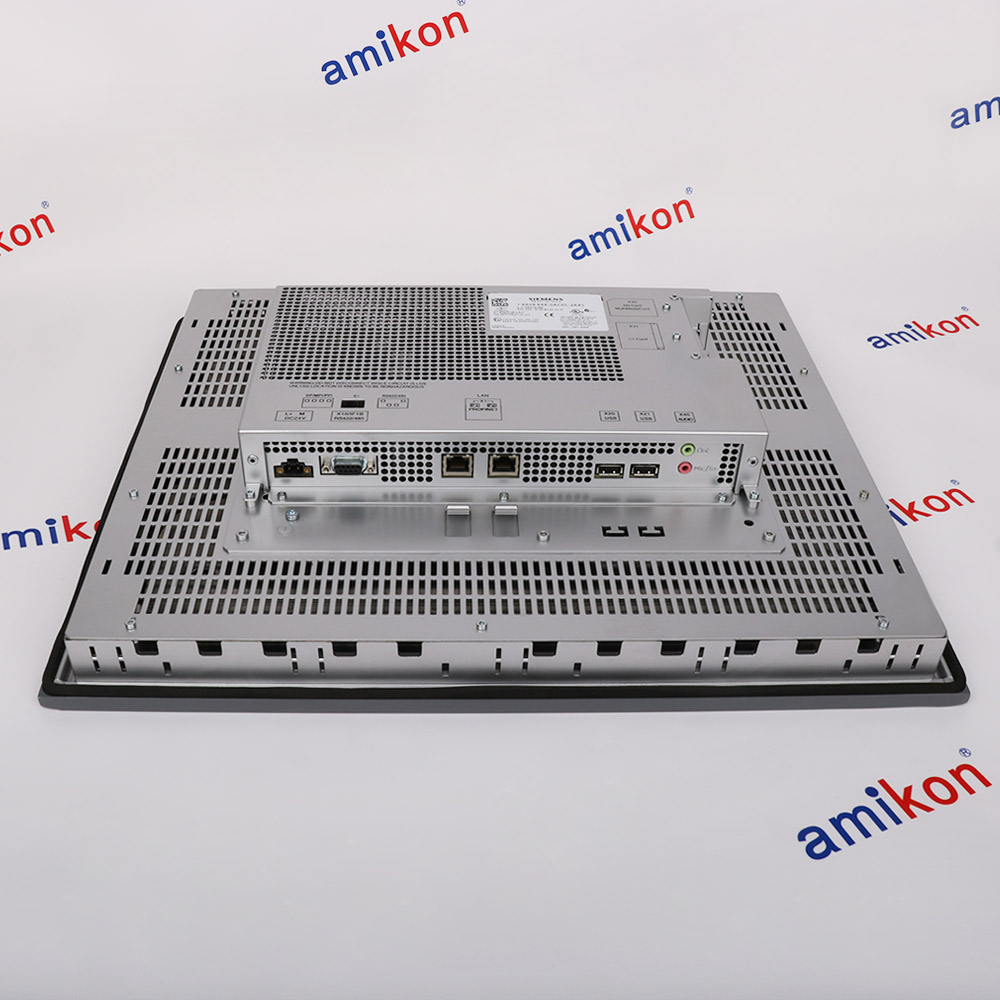

- 6AV6644-0AC01-2AX1
In Stock
Ships by Friday, August 14
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6AV6644-0AC01-2AX1
-
Product Model6AV6644-0AC01-2AX1
-
Product ParametersSIMATIC MP 377 OPERATOR INTERFACE
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size48.3x40x8.8cm
-
ManufacturerSiemens
-
Weight9.05 kg
-
Design of displayTFT
-
Screen diagonal19 in
-
Horizontal image resolution1280 Pixel
-
Vertical image resolution1024 Pixel
-
MTBF backlighting (at 25 °C)50 000 h
-
Control elementsTouch screen
-
Current consumption (rated value)2.5 A
-
Active power input, typ.60 W
-
Memory available for user data12 288 kbyte
Description
The SIEMENS 6AV6644-0AC01-2AX1 is a SIMATIC MP 377 19" Touch MultiPanel for industrial automation applications as a high-performance operator interface. The 6AV6644-0AC01-2AX1 features a 19-inch color TFT display with 65,536 colors and a resolution of 1280 × 1024 pixels, providing ample screen area for complex process visualizations and operator interaction.
The SIEMENS 6AV6644-0AC01-2AX1 is based on Microsoft Windows CE 5.0 operating system, which enables extended multimedia functionality compared to previous devices. The 6AV6644-0AC01-2AX1 supports video playback through integrated Microsoft Media Player, web page display via Internet Explorer 6.0 for Pocket PCs, and document viewing for Word, Excel, and PDF files through Microsoft Wave.
The SIEMENS 6AV6644-0AC01-2AX1 is based on Microsoft Windows CE 5.0 operating system, which enables extended multimedia functionality compared to previous devices. The 6AV6644-0AC01-2AX1 supports video playback through integrated Microsoft Media Player, web page display via Internet Explorer 6.0 for Pocket PCs, and document viewing for Word, Excel, and PDF files through Microsoft Wave.
Information
Overview
Manuals
Application Notes
Product Applications
Panel Insertion & Mounting
Features:
- 19-inch Color TFT Display with 1280 × 1024 Resolution
- Windows CE 5.0 Operating System
- 12 MB User Memory with Remanent Maintenance-Free Message Buffer
- Analog Resistive Touch Screen Operation
- Multiple Communication Interfaces
The MP 377 operates on Microsoft Windows CE 5.0, a lightweight embedded operating system optimized for industrial applications. The device includes 12 MB of user memory for storing configurations, graphics, and data sets. Memory expansion is supported via an integrated CF card slot and an SD/MMC card slot. The Microsoft Media Player is integrated for video playback, and Internet Explorer 6.0 for Pocket PCs is pre-installed for web page display. Word documents, Excel spreadsheets, and PDF documents can be displayed using Microsoft Office Viewers.
The 6AV6644-0AC01-2AX1 Siemens SIMATIC MP 377 19" Touch Multi Panel may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6644-0AC01-2AX1 SIMATIC MP 377 19" Touch Multi Panel Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MP 377 operates from a 24 V DC supply with a permissible range of +19.2 V to +28.8 V DC, drawing a rated current of 2.5 A for a typical power consumption of 60 W. Operating temperature is 0 °C to +50 °C, with storage and transport temperatures from –20 °C to +60 °C. Maximum relative humidity is 90 %. The maximum allowable tilt angle without external ventilation is ±35°.
The device carries CE marking, cULus certification, FM Class I Division 2 approval, ATEX Zone 22 (Ex22) hazardous area certification, and C-Tick compliance. It is suitable for use in industrial environments including manufacturing, pharmaceuticals, and energy sectors.
- Manufacturing/Assembly: Monitors automated lines, tracks production metrics, and manages machine operations
- Pharmaceuticals: Facilitates batch management, process logging, and real-time visualization with strict compliance
- Energy/Water: Monitors power systems and manages utilities to optimize performance and safety
- Process Automation: Interfaces with S7-300/400 PLCs for continuous control of machinery, conveyors, and mixing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cutout Dimensions: The front cutout should be exactly 468.0 mm × 355.0 mm. The panel accommodates mounting depths of approximately 65 mm.
Orientation & Ventilation: The panel is rated for portrait or landscape mounting. If mounted at an inclination angle greater than 35° (up to 90°) without external forced ventilation, ensure the surrounding ambient temperature does not exceed 40°C.
Fastening: Insert the panel squarely into the cutout. Utilize the provided mounting clips to evenly secure the perimeter to the cabinet wall to maintain an IP65 ingress protection seal.
Alternative Names
6AV6644-0AC01-2AXI
6AV6644-0AC0I-2AX1
6AV6644-0ACO1-2AX1
6AV6644-OAC01-2AX1
6AV6644 OAC01 2AX1
6AV6644 OACO1 2AX1
6AV6644 OAC0I 2AX1
6AV6644 OAC01 2AXI
6AV66440AC012AX1
Technical notes
The SIEMENS 6AV6644-0AC01-2AX1 features IP65 protection rating on the front (NEMA 4, NEMA 12) and IP20 on the rear, ensuring reliable operation in demanding industrial environments. The 6AV6644-0AC01-2AX1 operates in a temperature range of 0°C to +50°C with up to 90% relative humidity (non-condensing). The 6AV6644-0AC01-2AX1 has a front dimension of 483 mm × 400 mm and a built-in depth of 75 mm.
FAQs
-
What is 6AV6644-0AC01-2AX1?
+The Siemens SIMATIC HMI 6AV6644-0AC01-2AX1 is a discontinued 19-inch MP 377 Touch Multi Panel. Running on Windows CE 5.0, it was designed for heavy-duty industrial environments. -
What software is required to configure this panel?
+It is configurable using WinCC flexible 2007 (or higher), and can generally be adapted into newer TIA Portal -
How much power does the MP 377 draw?
+It operates on a 24V DC power supply, draws approximately 2.5 amps, and has a power rating of 60 Watts -
How much configuration memory is onboard?
+The platform includes 12 MB of user configuration memory.
