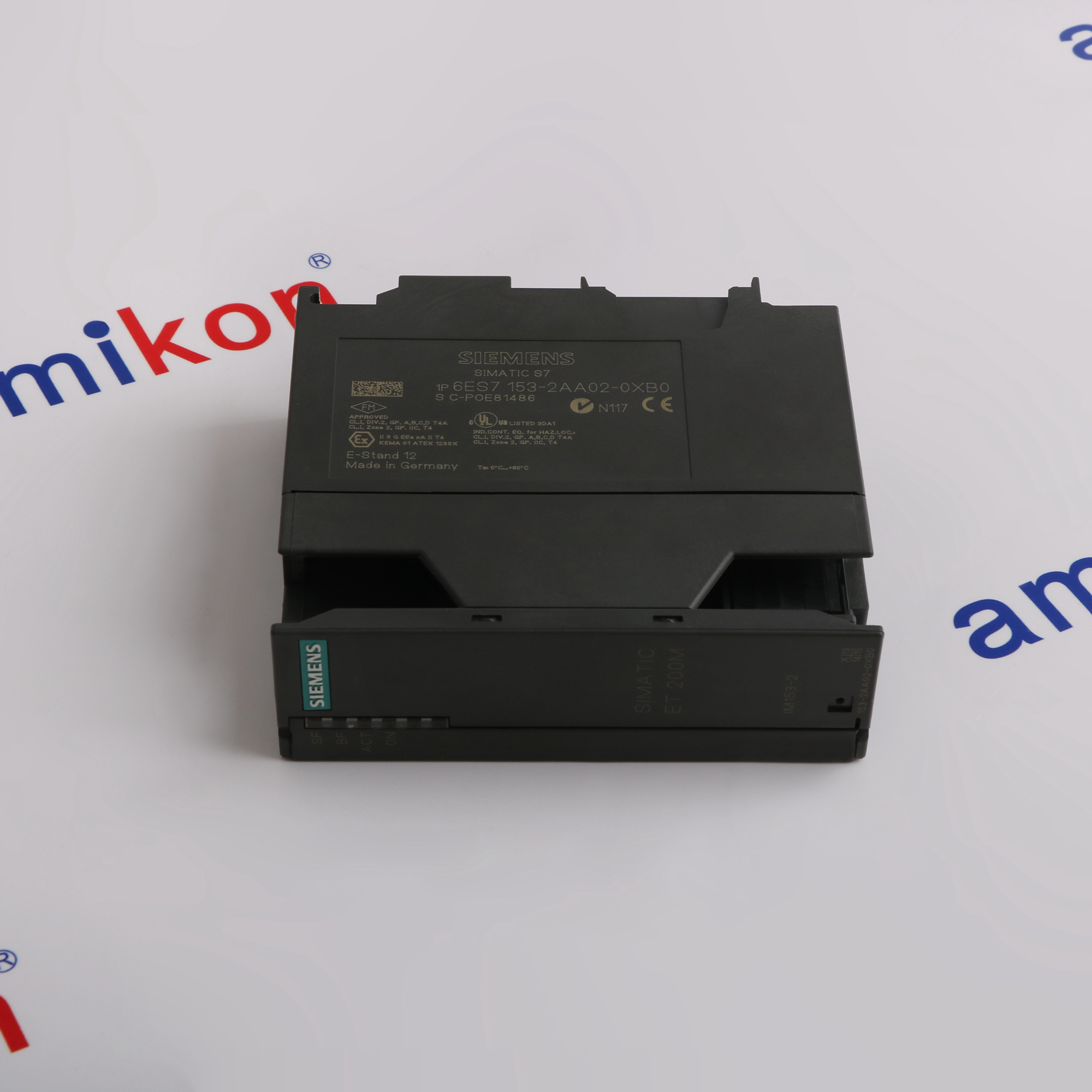

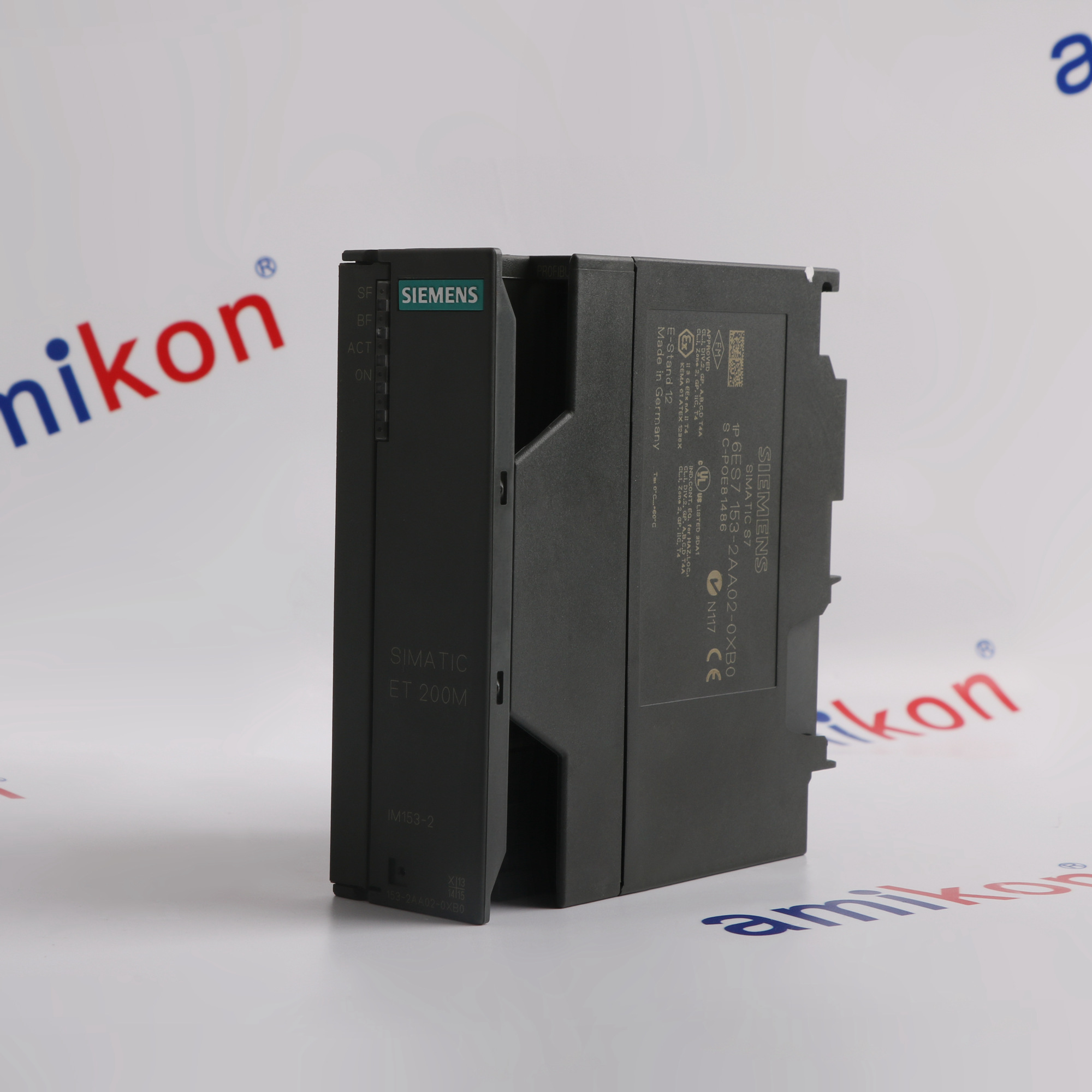

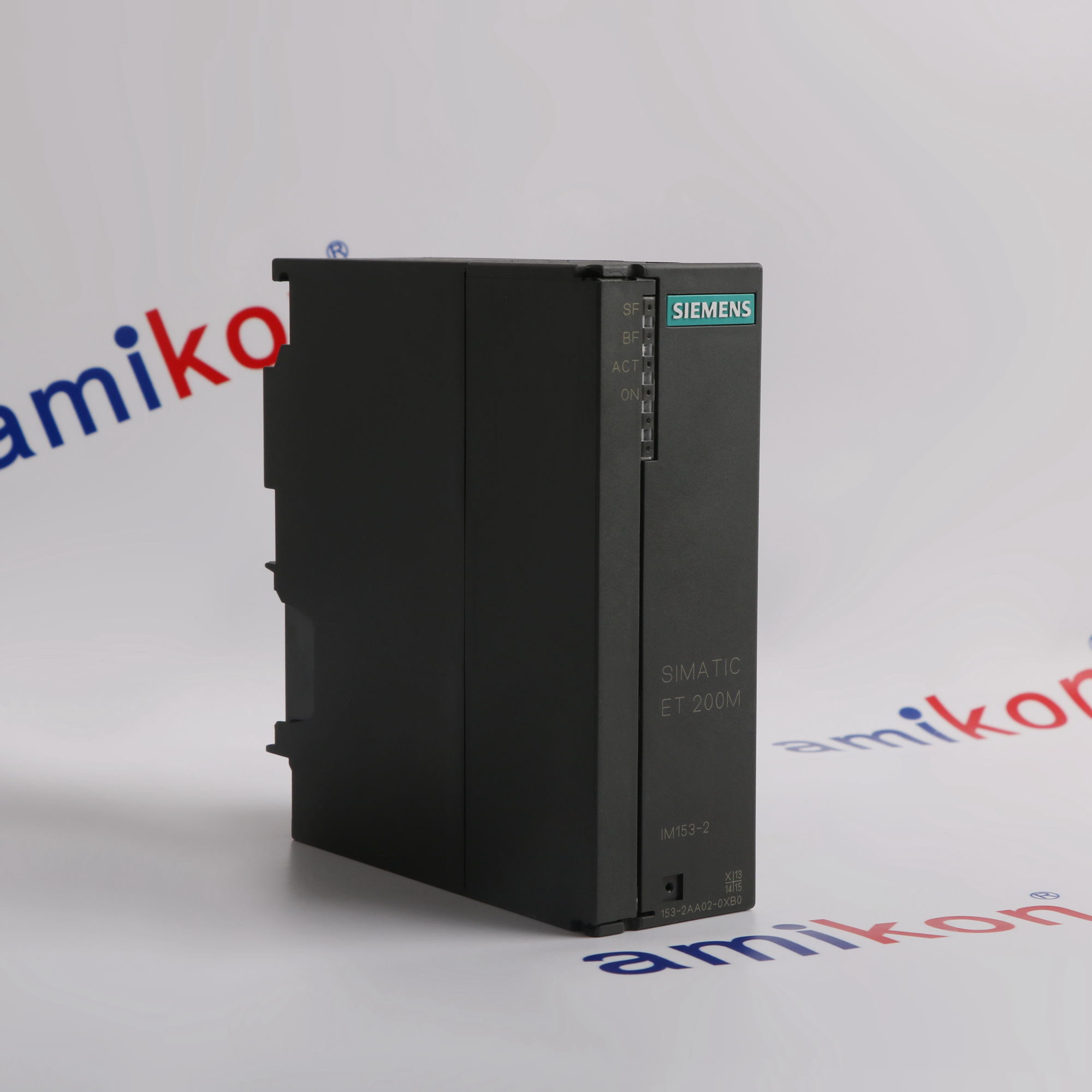

Siemens 6ES7153-2AA02-0XB0
Siemens 6ES7153-2AA02-0XB0
Siemens 6ES7153-2AA02-0XB0
Siemens 6ES7153-2AA02-0XB0
Siemens 6ES7153-2AA02-0XB0
Siemens 6ES7153-2AA02-0XB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Thursday, November 19

6ES7153-2AA02-0XB0

Redundancy-capable PROFIBUS interface module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7153-2AA02-0XB0 Redundancy-capable PROFIBUS interface module

Siemens 6ES7153-2AA02-0XB0 is an IM 153-2 interface for the SIMATIC ET 200M distributed I/O station. It links up to eight S7-300 modules to PROFIBUS DP and provides redundancy and time-stamping capabilities within the documented station configuration. Its input and output address spaces are 128 bytes each.

The interface operates from 24 V DC within 20.4-28.8 V and supplies up to 1 A at 5 V to the backplane. PROFIBUS uses an RS485 9-pin Sub-D socket, supports automatic baud-rate detection up to 12 Mbit/s and permits node addresses from 1 to 125. Time stamps use a 1 ms resolution, with 15 message buffers holding 20 messages each; resolution is separate from the documented accuracy conditions.
ACTUAL APPLICATIONS

Application fields for 6ES7153-2AA02-0XB0

The fields for 6ES7153-2AA02-0XB0 include electricity generation, organic and inorganic chemicals, wastewater and municipal water reuse.
  • 01 · POWER GENERATION

    Conventional and Hydroelectric Power

    Conventional Generation and Electric PowerHydroelectric Power and Renewable Generation
  • 02 · CHEMICALS

    Organic and Inorganic Chemicals

    Organic Chemicals and PetrochemicalsInorganic Chemicals and Specialty Chemicals
  • 03 · WATER & WASTEWATER

    Industrial Wastewater and Municipal Reuse

    Industrial Wastewater and Environmental WaterMunicipal Water Reuse and Public Sanitation

Technical specifications for 6ES7153-2AA02-0XB0

  • Product Model
    6ES7153-2AA02-0XB0
  • Product Parameters
    Redundancy-capable PROFIBUS interface module
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • Nominal supply voltage
    24 V DC
  • Supply operating range
    20.4 to 28.8 V DC, ripple included
  • Maximum supply current
    550 mA at 24 V DC
  • Typical inrush current
    2.5 A
  • Supply interruption bridging
    5 ms
  • Backplane output
    5 V DC, 1 A maximum
  • Typical power loss
    5 W
  • Maximum S7-300 modules
    8 per interface
  • Input address volume
    128 bytes
  • Output address volume
    128 bytes
  • PROFIBUS maximum baud rate
    12 Mbit/s
  • Permitted node addresses
    1 to 125
  • PROFIBUS connector
    9-pin Sub-D socket, RS485
  • Time-stamp resolution
    1 ms
  • Time-stamp message buffering
    15 buffers, 20 messages each
View all additional

Alternative Names

6ES7153-2AA02-0XB0 SIMATIC ET 200M IM 153-2 Redundancy-capable PROFIBUS interface module
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7153-2AA02-0XB0 within SIMATIC ET 200M IM 153-2

Build the ET 200M station with the IM 153-2 variant and the supported S7-300 modules, keeping within the eight-module and 128-byte input/output limits. Confirm active bus modules and the applicable controller arrangement when using redundancy. A redundancy-capable interface alone is not a complete redundant station.
Provide 24 V DC within the specified range and include up to 550 mA interface input demand in the power budget. Set a unique PROFIBUS node address and use a correctly terminated RS485 bus connector. Match the GSD and controller configuration to the IM 153-2AA0x hardware.
Configure time stamping only for supported digital inputs and provide the documented time-synchronization path. The 1 ms time resolution must not be mistaken for unconditional time accuracy. Check communication diagnostics, redundancy behavior and time-stamp message handling after configuration.

Features:

  • Nominal supply voltage: 24 V DC
  • Supply operating range: 20.4 to 28.8 V DC, ripple included
  • SIMATIC ET 200M IM 153-2
Use 6ES7153-2AA02-0XB0 only within the documented SIMATIC ET 200M IM 153-2 arrangement and applicable installation instructions.
INTERCHANGEABILITY

Replace 6ES7153-2AA02-0XB0 within SIMATIC ET 200M IM 153-2

Save the station configuration, PROFIBUS address, GSD selection and redundancy/time-stamp settings before exchanging 6ES7153-2AA02-0XB0. Record the installed modules and bus-module arrangement. Different IM 153 versions can have different expansion limits and firmware requirements.
Use the manufacturer station procedure to isolate or handle the affected station safely. Retain power and PROFIBUS cable labels and inspect the bus connector and mounting contacts. Restore the original address and the supported interface arrangement without assuming automatic substitution of later hardware.
Check controller recognition, module diagnostics and all configured I/O after replacement. Where enabled, test the redundant communication path and time synchronization, then inspect received time-stamp messages. Keep the final hardware configuration and diagnostic result with the station maintenance record.

Features:

  • 6ES7153-2AA02-0XB0 complete order code
  • Time-stamp message buffering: 15 buffers, 20 messages each
  • Retain the documented SIMATIC ET 200M IM 153-2 connection arrangement
Use 6ES7153-2AA02-0XB0 only within the documented SIMATIC ET 200M IM 153-2 arrangement and applicable installation instructions.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Exact-model technical data for 6ES7153-2AA02-0XB0
  • Document applicability checked against the complete identity
  • Directory links by subcategory and brand
Documentation for 6ES7153-2AA02-0XB0 must match the installed product identity and supplied configuration.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Product size
    4.00 x 11.70 x 12.40 cm
    Net weight
    0.25 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7153-2AA02-0XB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • How many S7-300 modules can 6ES7153-2AA02-0XB0 interface?

    6ES7153-2AA02-0XB0 supports up to eight modules per DP slave interface within its documented ET 200M station configuration.
  • What address volume is available through 6ES7153-2AA02-0XB0?

    6ES7153-2AA02-0XB0 provides 128 bytes of input addressing and 128 bytes of output addressing.
  • Which PROFIBUS node addresses are permitted for 6ES7153-2AA02-0XB0?

    6ES7153-2AA02-0XB0 permits node addresses 1 through 125 and automatically detects the configured transmission speed, up to 12 Mbit/s.
  • Is 6ES7153-2AA02-0XB0 one-millisecond resolution also guaranteed clock accuracy?

    No. 6ES7153-2AA02-0XB0 lists 1 ms time resolution separately from accuracy, whose published conditions include 10 ms or 3 ms arrangements.
  • How is 6ES7153-2AA02-0XB0 time-stamp storage organized?

    6ES7153-2AA02-0XB0 has 15 message buffers with 20 messages per buffer. The controller application must handle the configured message transfer.
  • Does installing 6ES7153-2AA02-0XB0 alone provide station redundancy?

    No. 6ES7153-2AA02-0XB0 supports redundancy, but the compatible host, bus modules and station configuration must also implement the documented redundant arrangement.
  • What station details should accompany an 6ES7153-2AA02-0XB0 distributor inquiry?

    Provide the full 6ES7153-2AA02-0XB0 order number, controller and installed module list, plus whether redundancy and time stamping are required. State the quantity separately.
  • Which connection items should an 6ES7153-2AA02-0XB0 quotation identify separately?

    State whether the 6ES7153-2AA02-0XB0 supply includes its PROFIBUS connector, active bus modules or other station hardware; these are not implied by an interface-module order.
