PRODUCT DESCRIPTION

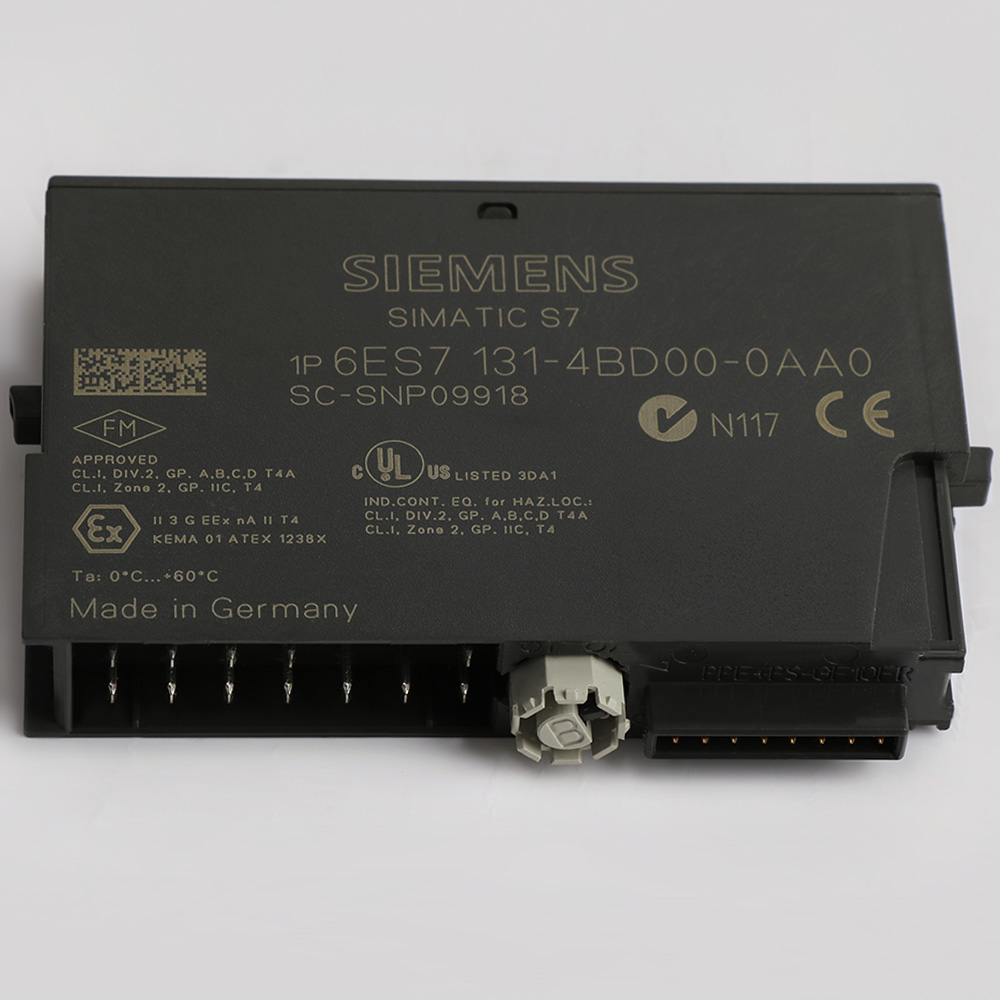

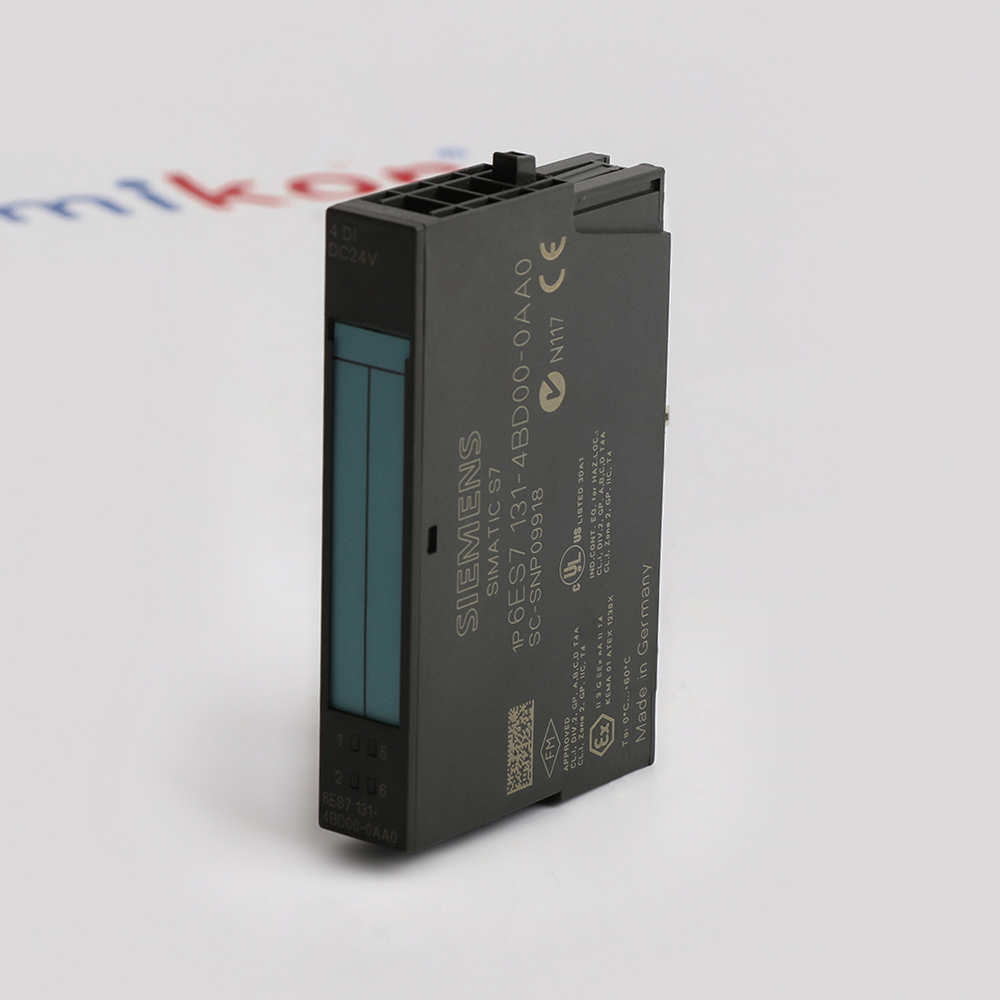

6ES7131-4BD00-0AA0 Four Channel Digital Input
Siemens 6ES7131-4BD00-0AA0 is a 4-channel standard digital input module in the SIMATIC ET 200S distributed I/O range. It acquires discrete sensor and switch signals for compatible industrial automation stations.
The module evaluates 4 standard 24 V DC inputs with a green status indicator for each channel. It receives its supply through an ET 200S power module and connects field sensors through a separate terminal base. Input delays are fixed; this standard execution does not provide channel diagnostics. The article is catalogued in a five-module packing unit.
The module evaluates 4 standard 24 V DC inputs with a green status indicator for each channel. It receives its supply through an ET 200S power module and connects field sensors through a separate terminal base. Input delays are fixed; this standard execution does not provide channel diagnostics. The article is catalogued in a five-module packing unit.
BEFORE YOU BUY
Confirm the complete four channel digital input
ACTUAL APPLICATIONS
Application context for 6ES7131-4BD00-0AA0
6ES7131-4BD00-0AA0 is a four channel digital input for ET 200S 4DI Standard. Its use in compatible automation systems covers chemical processing, pulp and paper, packaging. The connected equipment and electrical ratings determine suitability.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Industrial Material Processing
Industrial Chemical ManufacturingSpecialty Chemical Processing -
02 · PULP & PAPER
Pulp Production and Paper Manufacturing Processes
Pulp Processing and PreparationPaper and Board Production -
03 · PACKAGING
Packaging Manufacturing and Industrial Filling Production
Industrial Packaging ProductionContainer Filling and Sealing
Technical specifications for 6ES7131-4BD00-0AA0
-
Product Model6ES7131-4BD00-0AA0
-
Product ParametersFour Channel Digital Input
-
In stock6 units
-
Estimated Shipping Size2.4x5.5x8.6cm
-
ManufacturerSiemens
-
Weight0.03 kg
-
Digital input count4
-
Nominal supply24 V DC from power module
-
Backplane current10 mA maximum at 3.3 V DC
-
Loaded sensor supply voltageL+ minus 0.5 V minimum
-
Sensor supply current0–500 mA
-
Typical power loss0.7 W
-
Input address allocation4 bits packed, 1 byte unpacked
-
Input zero voltage−30 to +5 V DC
-
Input one voltage15–30 V DC
-
On-state input current7 mA typical at 24 V DC
-
Input response interval2–4.5 ms in both directions, 3 ms typical
-
Maximum shielded cable1000 m
-
Maximum unshielded cable600 m
-
Two-wire sensor quiescent current1.5 mA maximum
-
Isolation test voltage500 V DC
View all additional
Alternative Names
6ES7131-4BD00-0AA0
SIMATIC ET 200S 4DI Standard
Four Channel Digital Input for ET 200S 4DI Standard
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7131-4BD00-0AA0 four channel digital input
Match 6ES7131-4BD00-0AA0 to the accepted SIMATIC ET 200S 4DI Standard configuration and associated parts before integration.
The module evaluates 4 standard 24 V DC inputs with a green status indicator for each channel. It receives its supply through an ET 200S power module and connects field sensors through a separate terminal base. Input delays are fixed; this standard execution does not provide channel diagnostics. The article is catalogued in a five-module packing unit.
Follow the applicable manufacturer instructions for 6ES7131-4BD00-0AA0. Compare connection assignments, retain the accepted wiring record and test the affected signals before returning the equipment to service.
Features:
- Digital input count: 4
- Nominal supply: 24 V DC from power module
- Backplane current: 10 mA maximum at 3.3 V DC
The 6ES7131-4BD00-0AA0 four channel digital input requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7131-4BD00-0AA0 four channel digital input
Confirm the complete 6ES7131-4BD00-0AA0 identity and SIMATIC ET 200S 4DI Standard execution before replacement. Match the documented connection and electrical ratings.
Record the existing four channel digital input connections, companion modules and configuration. Isolate the affected circuits according to the site procedure before removing the installed part.
After fitting 6ES7131-4BD00-0AA0, restore the accepted arrangement and test the affected signals. Retain the component identity and final functional test results with the equipment record.
Features:
- Digital input count: 4
- Nominal supply: 24 V DC from power module
- Backplane current: 10 mA maximum at 3.3 V DC
The 6ES7131-4BD00-0AA0 four channel digital input requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7131-4BD00-0AA0 four channel digital input must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.4 × 5.5 × 8.6cm
-
Shipping weight0.04kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7131-4BD00-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What input count belongs to the earlier BD00 execution?
6ES7131-4BD00-0AA0: digital input count is 4. Apply the documented limits of this execution. -
Where does the BD00 standard input obtain its DC supply?
6ES7131-4BD00-0AA0: nominal supply is 24 V DC from power module. Apply the documented limits of this execution. -
What current is required from the BD00 backplane bus?
6ES7131-4BD00-0AA0: backplane current is 10 mA maximum at 3.3 V DC. Apply the documented limits of this execution. -
How is the BD00 sensor supply voltage specified?
6ES7131-4BD00-0AA0: loaded sensor supply voltage is L+ minus 0.5 V minimum. Apply the documented limits of this execution. -
What current range is available for the BD00 sensor supply?
6ES7131-4BD00-0AA0: sensor supply current is 0–500 mA. Apply the documented limits of this execution. -
What typical loss is documented for the BD00 module?
6ES7131-4BD00-0AA0: typical power loss is 0.7 W. Apply the documented limits of this execution. -
What identifies the earlier four-input spare when requesting a price?
For 6ES7131-4BD00-0AA0, provide the complete article and quantity, the installed SIMATIC ET 200S 4DI Standard identity and a connector photograph. Verify digital input count (4) and nominal supply (24 V DC from power module) against the requested execution. -
Which arrival checks identify the four channel digital input 6ES7131-4BD00-0AA0?
Compare the complete 6ES7131-4BD00-0AA0 label with the ordered SIMATIC ET 200S 4DI Standard execution. Inspect the connectors and enclosure and verify the listed accessories before replacement.
