PRODUCT DESCRIPTION
Ninety-six-kilobyte execution memory for modular S7-300 control

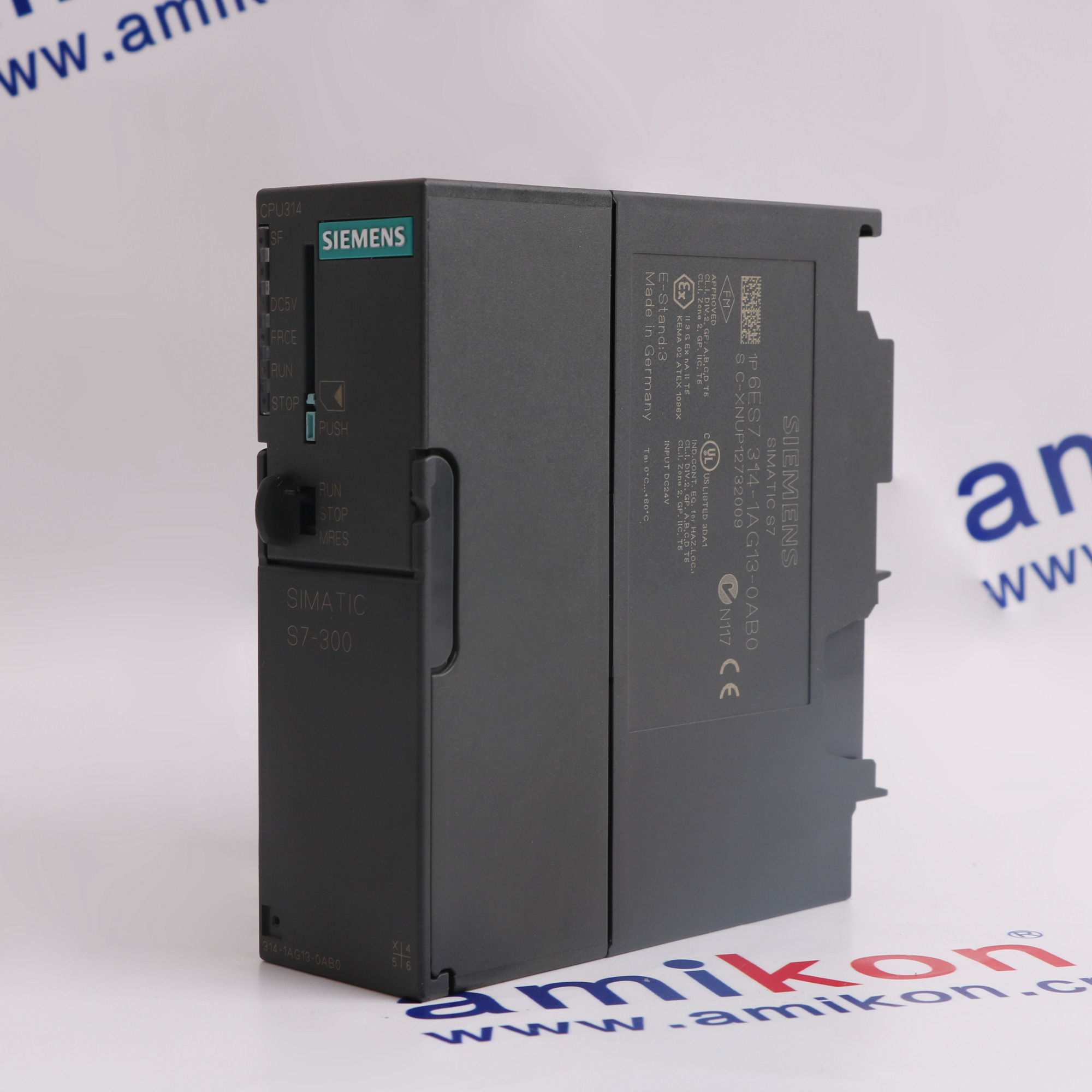

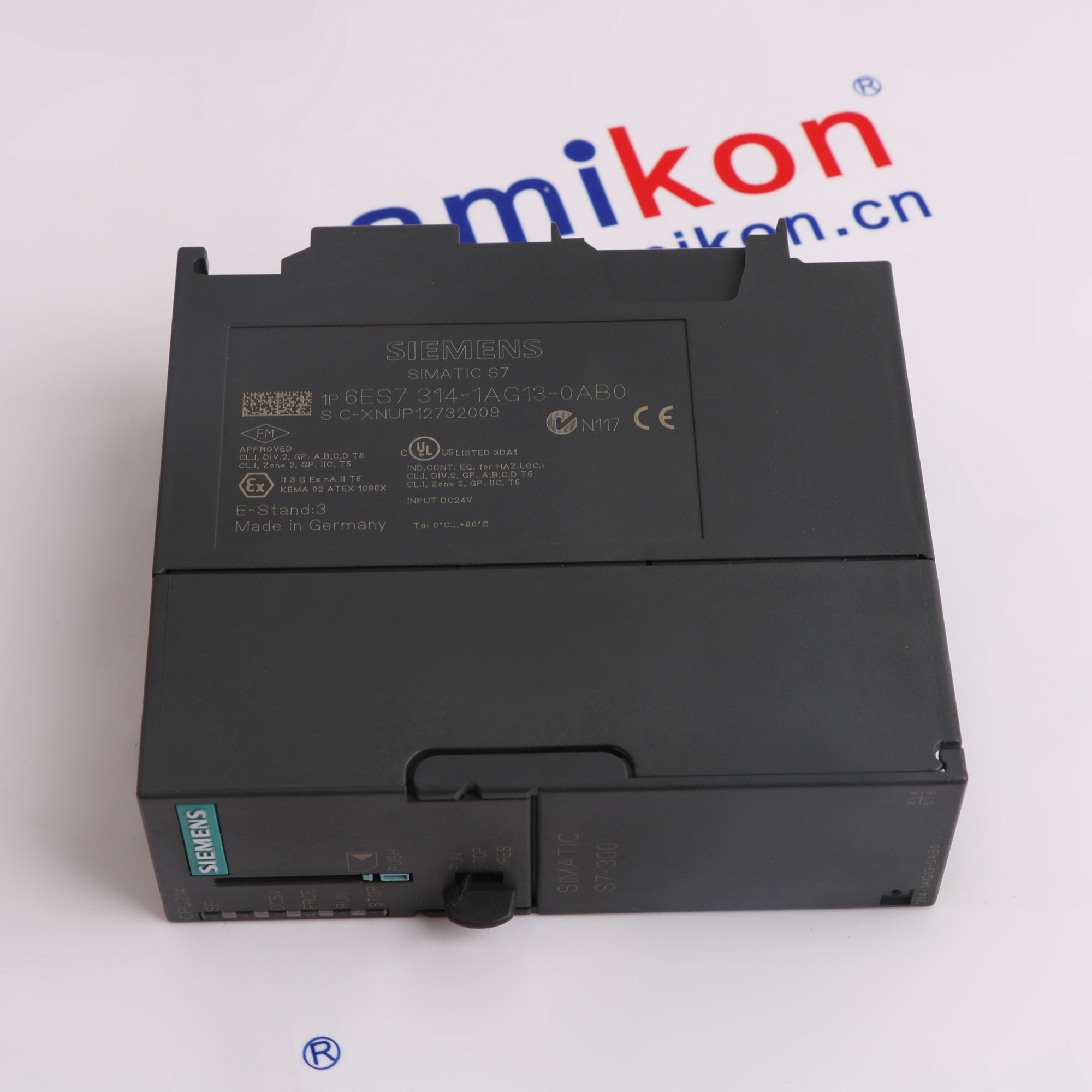

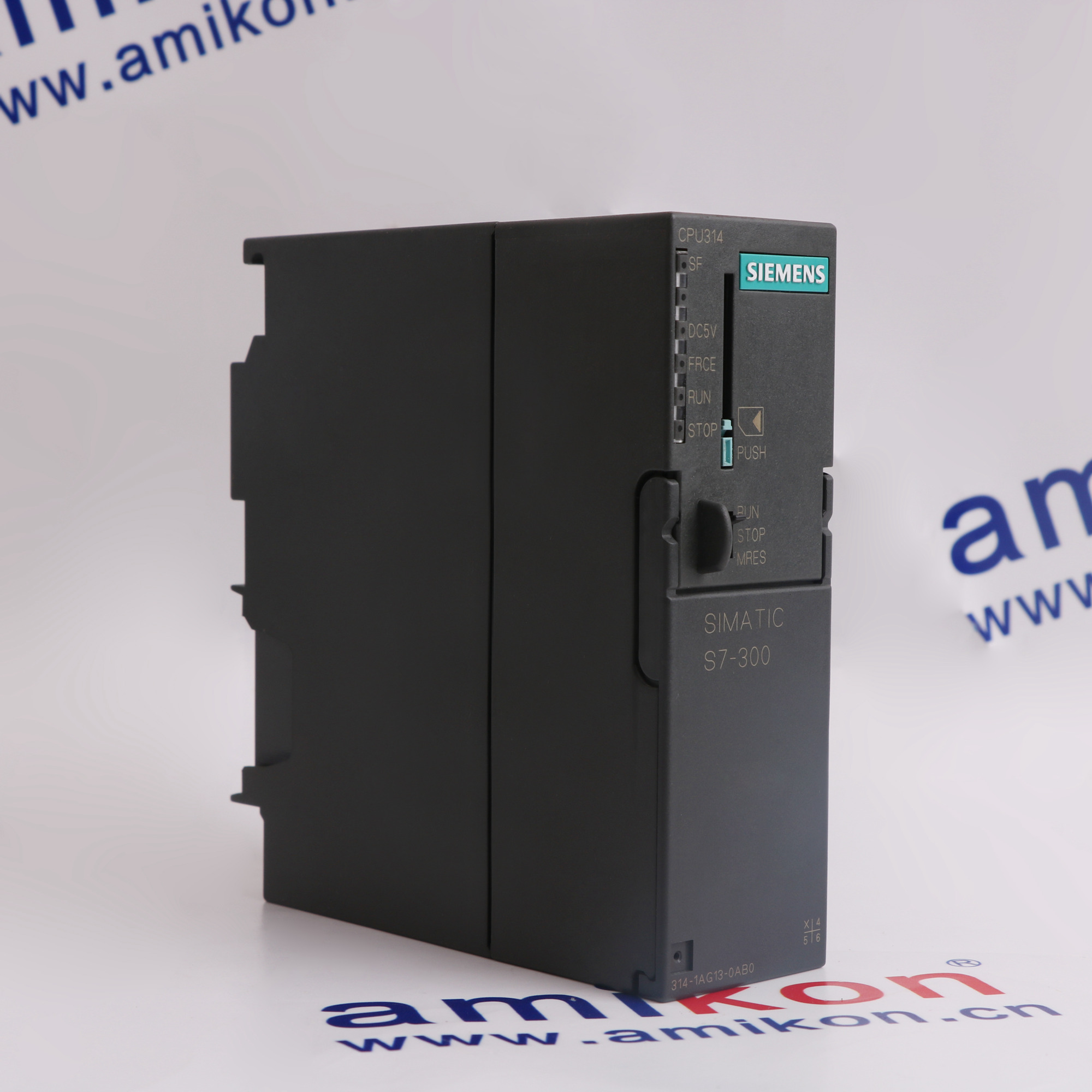

Siemens 6ES7314-1AG13-0AB0 is a SIMATIC S7-300 CPU 314 with 96 KB of integrated working memory and an MPI interface. It uses a SIMATIC Micro Memory Card for load storage and supports maintenance-free, battery-free retention of program and data.
The CPU accommodates compatible modules across four racks and offers a buffered hardware clock, 256 counters and 256 timers. Its MPI communication resource provides twelve connections, while the diagnostic buffer and variable-monitoring functions support examination of program execution and station operating conditions.
The CPU accommodates compatible modules across four racks and offers a buffered hardware clock, 256 counters and 256 timers. Its MPI communication resource provides twelve connections, while the diagnostic buffer and variable-monitoring functions support examination of program execution and station operating conditions.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7314-1AG13-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · TEXTILE MANUFACTURING
Commercial Yarn Production and Textile Fabric Manufacturing
Yarn preparation and fiber processing for commercial textile manufacturing.Production and finishing of fabrics for consumer textile markets. -
02 · WATER & WASTEWATER
Water Supply Services and Municipal Wastewater Treatment
Public drinking water production for municipal and commercial distribution.Wastewater treatment and processing for municipal and industrial services. -
03 · PACKAGING
Food Packaging and Manufactured Goods Packing Operations
Packaging of food and beverage products for consumer markets.Packing manufactured goods for commercial supply and onward distribution.
Technical specifications for 6ES7314-1AG13-0AB0
-
Product Model6ES7314-1AG13-0AB0
-
Product ParametersExpandable MPI Central Processor
-
ManufacturerSiemens
-
Working memory96 KB for program and data; not expandable
-
Retentive data64 KB maximum in total
-
Load memoryRequired plug-in SIMATIC MMC; 8 MB maximum
-
Memory backupMaintenance-free MMC backup without battery
-
Bit-operation processing0.1 microsecond typical
-
S7 counters and timers256 counters and 256 timers
-
I/O address area1 KB inputs and 1 KB outputs
-
Process image128 bytes inputs and 128 bytes outputs
-
Rack configurationFour racks maximum; eight modules per rack
-
Integrated field I/ONo integrated DI, DO, AI or AO channels
-
MPI communicationsNon-isolated RS 485 MPI; 187.5 kbit/s; twelve connections
-
Hardware clockRetentive and synchronizable; six-week backup at 40 degrees C
-
Diagnostic buffer100 entries; not adjustable
-
DC supply24 V nominal; 20.4-28.8 V allowed
-
Typical power loss2.5 W
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SIMATIC S7-300 CPU 314
Modular processing with separately defined retention resources
The AG13 executes the program and data within 96 KB of working memory, while the MMC supplies load storage. The documented 64 KB retention ceiling remains a distinct constraint for retained data.
Compatible modules provide field I/O and other station functions across the supported four-rack arrangement. The configured addresses and process image should be checked against the CPU resource limits.
The integrated MPI function supports programming and the documented communications services through twelve available connections. The buffered clock and diagnostic functions complement operation without implying built-in field channels or Ethernet.
Features:
- 96 KB work-memory resource
- Separate retention budget
- MPI connection allocation
The Siemens 6ES7314-1AG13-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Identify the full AG13 code and the offered unit's firmware before selecting a replacement. The reference data sheet records V2.6, but it is not proof of the installed version of a particular stock unit.
Preserve the existing STEP 7 project and MMC contents. Compare memory usage, retained data, rack expansion, addresses and communication allocations before transferring an existing project.
Check the removable power plug and DC polarity, then follow the applicable installation manual for controlled recommissioning. Current availability, lifecycle dates and automatic substitution by another CPU 314 suffix are not established by the historical data sheet.
Features:
- Exact AG13 identification
- Memory and retention review
- Controlled project transfer
The Siemens 6ES7314-1AG13-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original power-connection drawing with grounding, polarity and initial-start checks
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7314-1AG13-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7314-1AG13-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Are all 96 KB of work memory retentive?
No. Siemens lists 96 KB of working memory but specifies a total retentive-data limit of 64 KB. Working memory and the retained-data budget must therefore be checked separately. -
Does AG13 include Ethernet or a DP interface?
The exact data sheet lists MPI functionality and expressly excludes integrated Ethernet, PROFIBUS DP master and PROFIBUS DP slave functions. Any communication-processor solution requires a separate configuration check. -
Can field signals connect directly to this CPU?
No integrated digital or analog I/O channels are listed. Compatible S7-300 modules provide field I/O within the CPU's permitted rack arrangement and address resources. -
Which engineering software is specified?
The data sheet specifies STEP 7 V5.2 SP1 or higher with a hardware update. Match that requirement to the actual firmware and hardware support used in the saved engineering project. -
What is required before initial energization?
The applicable installation manual calls for the correct MMC and STOP selector position before initial power-on. Verify the documented removable DC plug, L+ and M polarity, and the completed safety checks first. -
Is the listed 280 g a shipping weight?
No. Approximately 280 g is the CPU's own weight, and 40 x 125 x 130 mm is its own size. Neither value establishes the packed dimensions or gross shipping weight.
