PRODUCT DESCRIPTION

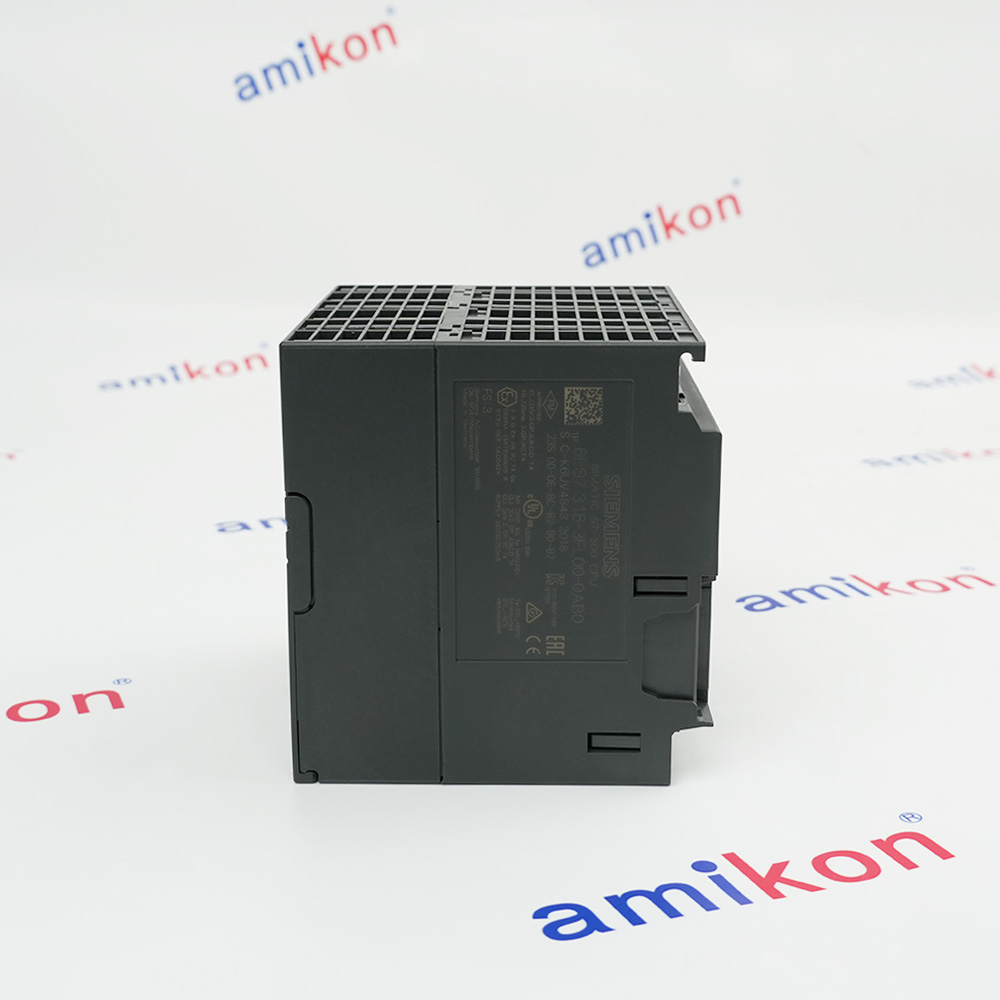

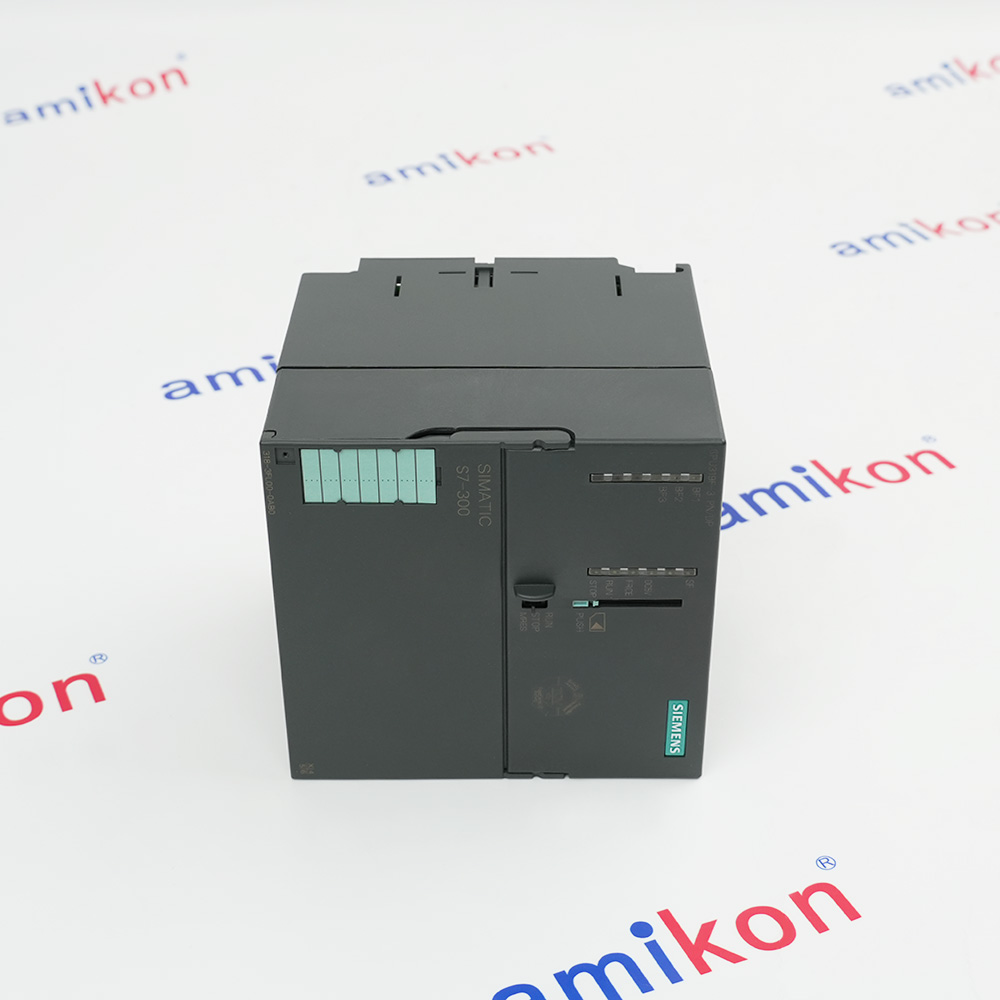

6ES7318-3FL00-0AB0 fail-safe central processing unit
Siemens 6ES7318-3FL00-0AB0 is a fail-safe central processing unit in the SIMATIC automation systems. It is used to perform the assigned signal, control or interface function in the installed equipment.
Its documented configuration includes inrush current, typ of 4 A, external protection for power supply lines (recommendation) of 2 A min, power loss, typ of 14 W, and number of clock memories of 8; 1 memory byte. During operation, the fail-safe central processing unit performs its assigned fail-safe central processing unit function through the documented power, signal and communication interfaces.
Its documented configuration includes inrush current, typ of 4 A, external protection for power supply lines (recommendation) of 2 A min, power loss, typ of 14 W, and number of clock memories of 8; 1 memory byte. During operation, the fail-safe central processing unit performs its assigned fail-safe central processing unit function through the documented power, signal and communication interfaces.
BEFORE YOU BUY
Confirm the complete fail-safe central processing unit
ACTUAL APPLICATIONS
Where 6ES7318-3FL00-0AB0 Fits Across Major Industry Sectors
Uses span automotive, chemicals and cement, subject to verified compatibility, operating conditions and project requirements.
-
01 · AUTOMOTIVE MANUFACTURING
Automotive Electronics Production and Vehicle Component Manufacturing
Automotive electronics manufacturing for vehicle parts and assembly industries.Vehicle component production with traceability across automotive manufacturing processes. -
02 · CHEMICAL PROCESSING
Chemical Manufacturing, Material Separation and Product Purification
Chemical production and reaction processing for industrial material manufacturing.Chemical material separation and purification within industrial production processes. -
03 · CEMENT & BUILDING MATERIALS
Cement Manufacturing, Lime Production and Mineral Processing
Cement manufacturing and mineral processing for construction material production.Industrial lime production and preparation for building material markets.
Technical specifications for 6ES7318-3FL00-0AB0
-
Product Model6ES7318-3FL00-0AB0
-
Product Parametersfail-safe central processing unit
-
In stock1 unit
-
ManufacturerSiemens
-
Inrush current, typ.4 A
-
external protection for power supply lines (recommendation)2 A min.
-
Power loss, typ.14 W
-
Number of clock memories8; 1 memory byte
-
Backup time6 wk; At 40 °C ambient temperature
-
Transmission rate, max.12 Mbit/s
-
User data per address area, max.32 byte
-
automatic detection of transmission rateYes; 10/100 Mbit/s
-
Data length for connection type 01H, max.1 460 byte
-
Data length for connection type 11H, max.8 192 byte
-
Data length per connection, max.1 400 byte
-
Sampling frequency: Sampling time, min.200 ms
-
Transmission frequency: Transmission interval, min.1 ms
-
Current consumption (in no-load operation), typ.400 mA
-
Current consumption (rated value)1 050 mA
View all additional
Alternative Names
6ES7318 3FL00 0AB0
SIMATIC automation systems fail-safe central processing unit
Siemens fail-safe central processing unit
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match 6ES7318-3FL00-0AB0 to the installed SIMATIC automation systems
Siemens 6ES7318-3FL00-0AB0 is a fail-safe central processing unit used in the SIMATIC automation systems. Use 6ES7318-3FL00-0AB0 for cyclic logic, program execution and distributed I/O coordination in the documented SIMATIC automation systems. Preserve the approved hardware configuration and program backup.
Maintain the documented network names, addresses, topology and controller interfaces assigned to 6ES7318-3FL00-0AB0. Validate reachable devices before enabling controlled equipment. Confirm configuration (Manufacturer engineering tool), operating mode (Continuous duty), the exact mechanical position and approved system configuration before connection.
Load the approved project to 6ES7318-3FL00-0AB0, review diagnostics and test interlocks, I/O updates, alarms and commanded sequences before returning the plant section to service. Use qualified personnel, keep the applicable manufacturer instructions at the work location and retain the measured results with the equipment service record.
Features:
- Exact identity: 6ES7318-3FL00-0AB0
- Product class: fail-safe central processing unit
- Family: SIMATIC automation systems
The Siemens 6ES7318-3FL00-0AB0 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete 6ES7318-3FL00-0AB0 identity before exchange
Replace 6ES7318-3FL00-0AB0 only after matching the full article identity, fail-safe central processing unit, protection class (IP20) and documented system role. Confirm that the installed hardware version and controlled configuration agree with the manufacturer record.
Before removal, photograph the product label, mounting position, diagnostic state (Status indicators), cable routing, shields, earth connections and adjacent assemblies. Preserve the approved program, parameter set or network configuration needed for recovery.
After installation, verify commissioning (Controlled functional test) and installation (Rack module). Review diagnostics, test the affected function at a safe operating point and record the final maintenance acceptance evidence.
Features:
- Exact identity: 6ES7318-3FL00-0AB0
- Diagnostic State: Status indicators
- Installation: Rack module
The Siemens 6ES7318-3FL00-0AB0 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for 6ES7318-3FL00-0AB0
- Installation checks matched to SIMATIC automation systems
- Exact Siemens identity required before service
Documentation for Siemens 6ES7318-3FL00-0AB0 must match the installed equipment and complete product identity; confirm manual applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size12.9 × 15.1 × 12.8 cm
-
Shipping weight1.342 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85371091
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7318-3FL00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which rated supply value must match when sourcing 6ES7318-3FL00-0AB0?
6ES7318-3FL00-0AB0 is documented with Rated Supply 24 V DC. Compare this value, the full order number and installed system record before purchase. -
How should engineering verify mounting for 6ES7318-3FL00-0AB0?
Use the manufacturer data and installed configuration to confirm Mounting Control cabinet; retain the checked value in the replacement work pack. -
What does protection class IP20 mean for installing 6ES7318-3FL00-0AB0?
The installation must satisfy Protection Class IP20 together with the documented power, interface, mounting and environmental limits for 6ES7318-3FL00-0AB0. -
Which compatibility records should accompany a distributor quote for 6ES7318-3FL00-0AB0?
Provide the complete model, quantity, nameplate photos, installed SIMATIC automation systems, required interfaces and destination country. Include project or network records when relevant. -
Can 6ES7318-3FL00-0AB0 replace a similar fail-safe central processing unit without configuration changes?
Do not decide by appearance. Match the full order number, hardware or firmware level, System Interface Backplane bus, interfaces and approved project before exchange. -
What should receiving inspection check on 6ES7318-3FL00-0AB0 before installation?
Check the exact label, housing, connectors, terminals, mounting points and supplied accessories. Reject damage, contamination, bent pins or unreadable identification. -
Which connection evidence should maintenance capture before removing 6ES7318-3FL00-0AB0?
Photograph connector keying, cable destinations, port assignments, shields, protective earth and adjacent modules. Save the controlled configuration and current diagnostics. -
What commissioning result confirms 6ES7318-3FL00-0AB0 is ready for service?
Confirm normal diagnostics, communication and affected equipment response, then test the documented fail-safe central processing unit function under controlled conditions and record acceptance.
READY TO VERIFY YOUR PART?
Get a 6ES7318-3FL00-0AB0 quote with price, lead time and revision check.
