Siemens 6ES7331-7NF10-0AB0

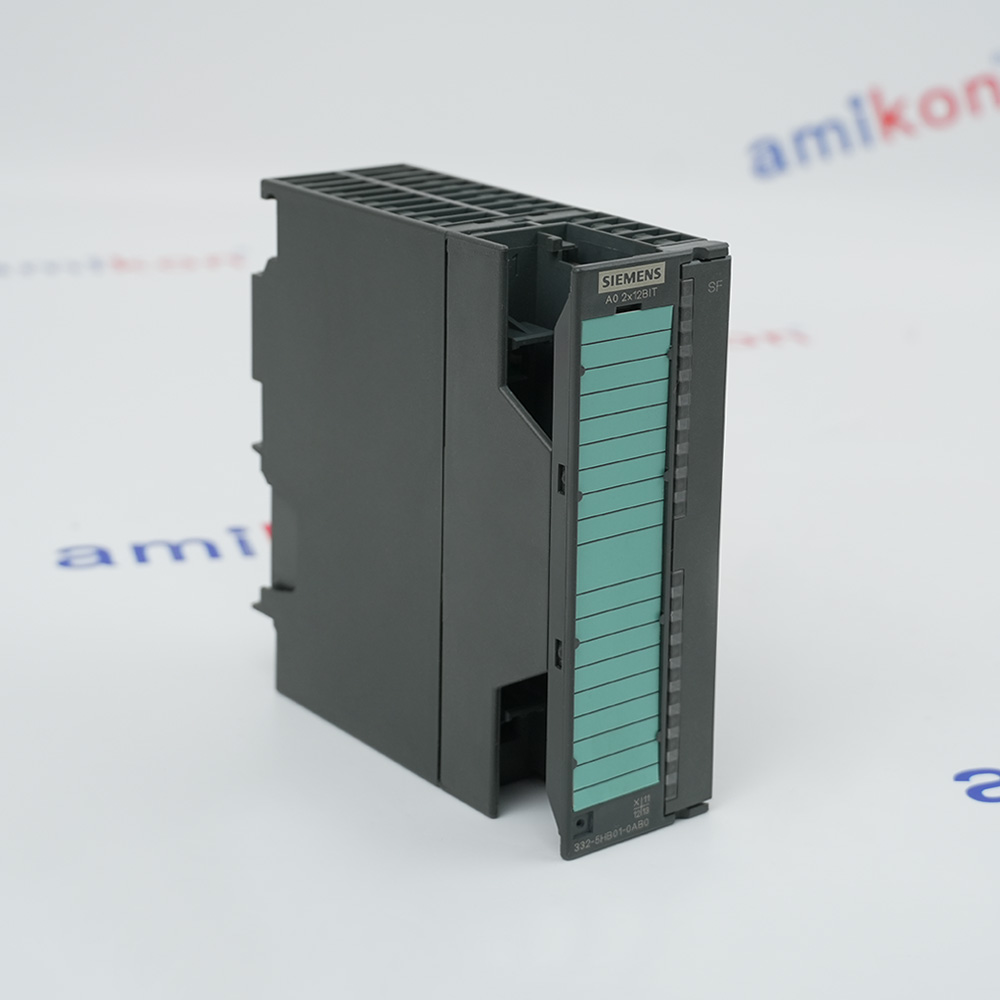

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7331-7NF10-0AB0

Eight-Channel Analog Input Module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

Isolated voltage and current acquisition with sixteen-bit resolution

Siemens 6ES7331-7NF10-0AB0 is an SM 331 analog input module with eight voltage or current inputs for SIMATIC S7-300. Four channel groups provide configurable measuring ranges, while sixteen-bit conversion includes the sign bit and field wiring uses a 40-pin front connector.

The module offers selectable eight-channel and faster four-channel operation, with filtering and conversion timing matched to the selected mode. Parameterizable diagnostics, channel limit monitoring and end-of-cycle interrupts support evaluation of measured signals, while electrical isolation separates the inputs from the backplane.
ACTUAL APPLICATIONS

Where 6ES7331-7NF10-0AB0 Fits Across Industrial Sectors

Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
  • 01 · FOOD & BEVERAGE

    Food Manufacturing and Commercial Beverage Production

    Food processing and preparation for packaged consumer food products.Beverage production and filling for commercial drinks manufacturing operations.
  • 02 · WATER & WASTEWATER

    Drinking Water Supply and Municipal Wastewater Treatment

    Drinking water production and distribution for municipal supply services.Wastewater collection and treatment across municipal and industrial operations.
  • 03 · METALS PRODUCTION

    Metal Rolling and Processing for Industrial Materials

    Metal rolling and processing for industrial manufacturing material production.Aluminum sheet production and finishing for downstream manufacturing industries.

Technical specifications for 6ES7331-7NF10-0AB0

  • Product Model
    6ES7331-7NF10-0AB0
  • Product Parameters
    Eight-Channel Analog Input Module
  • Manufacturer
    Siemens
  • Analog inputs
    8, arranged in four groups of two
  • Signal resolution
    16 bits including sign
  • Voltage measuring ranges
    +/-5 V, +/-10 V, 1 to 5 V
  • Current measuring ranges
    +/-20 mA, 0 to 20 mA, 4 to 20 mA
  • Rated electronics supply
    24 V DC with reverse-polarity protection
  • Maximum supply current
    100 mA from backplane; 200 mA from L+
  • Typical power loss
    3 W
  • Four-channel timing
    10 ms update interval; converted value settles within 80 ms
  • Eight-channel module cycle
    46, 144, 166 or 190 ms, depending on interference suppression
  • Operational error limit
    +/-0.1% of the selected measuring-range end value for voltage and current across the specified temperature range
  • Front connector
    40-pin
  • Shielded signal cable length
    200 m maximum
  • Isolation arrangement
    Two-channel groups; isolated from backplane and electronics supply
  • Isolation test voltage
    500 V AC
  • Interrupt functions
    Configurable limit interrupts on channels 0-7, end-of-cycle interrupt and diagnostic interrupt
View all additional
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SIMATIC S7-300 ANALOG INPUTS

Configurable voltage and current measurement across four channel groups

The module provides eight analog inputs grouped as four pairs. STEP 7 configures voltage or current measurement, range and signal smoothing for the applicable channel group, while limit settings are assigned to individual channels.
Eight-channel operation alternates between each pair of inputs. Four-channel mode instead converts channels 0, 2, 4 and 6 simultaneously, providing a 10 ms update interval with the documented settling period.
ET 200M installations require the interface versions listed in the module manual. Interrupt availability also depends on the master: the documented restrictions for non-S7 DPV0 masters must be considered when configuring hardware and end-of-cycle interrupts.

Features:

  • Voltage and current ranges
  • Selectable channel operating mode
  • Parameterized diagnostics and interrupts
The Siemens 6ES7331-7NF10-0AB0 requires the documented channel arrangement, electrical limits and connector assignment to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

Verify 6ES7331-7NF10-0AB0 against the installed order number and configuration. Other SM 331 analog input modules can differ in sensor types, isolation, connectors and timing, so the shared family name is not sufficient for substitution.
Record the selected channel mode, measuring ranges, filtering, diagnostic settings and interrupt limits before replacing the module. Recheck the 40-pin wiring and external supply arrangement for two-wire current transmitters.
The current indexed Siemens data sheet identifies this order number as a spare part. Retain the documented ET 200M interface restrictions and verify any alternative platform separately; the reviewed evidence does not establish an unrestricted drop-in successor.

Features:

  • Exact order-code match
  • Range and timing configuration
  • Connector and interface checks
The Siemens 6ES7331-7NF10-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Installation reference includes the verified original wiring drawings
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7331-7NF10-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered module and approved project wiring.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    12.80 x 15.20 x 5.20 cm
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7331-7NF10-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Can this module directly measure thermocouples or resistance thermometers?

    No. This order number supports the documented voltage and current ranges; the data sheet does not list direct thermocouple, resistance or resistance-thermometer measurement.
  • What changes when four-channel mode is selected?

    Channels 0, 2, 4 and 6 are converted simultaneously. Their measured values update every 10 ms, with settling to the final value within 80 ms. Eight-channel mode alternates between the two channels in each group.
  • Can a two-wire current transmitter be connected?

    Yes, with a separate transmitter supply and the exact current-input wiring shown in the manufacturer diagram. This is not a statement that the module supplies the two-wire transmitter itself.
  • Does each input have separate electrical isolation?

    No. The module has four groups of two channels. These groups are electrically isolated, and the inputs are also isolated from the backplane and the electronics supply.
  • Which ET 200M interface versions are documented for this module?

    The manual requires IM 153-1 from 6ES7153-1AA03-0XB0 E01, IM 153-2 from 6ES7153-2AA02-0XB0 E05, or IM 153-2 from 6ES7153-2AB01-0XB0 E04. Check the installed interface and master configuration before commissioning.
  • When is wire-break monitoring available?

    The continuity check applies to the 1 to 5 V and 4 to 20 mA ranges when enabled. Siemens notes that detection can take up to two seconds in specified voltage or shunt-jumper fault conditions; diagnostic interrupts also require configuration. During wire-break detection, the measured value can traverse the entire valid range.
