9440/15-01-11
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

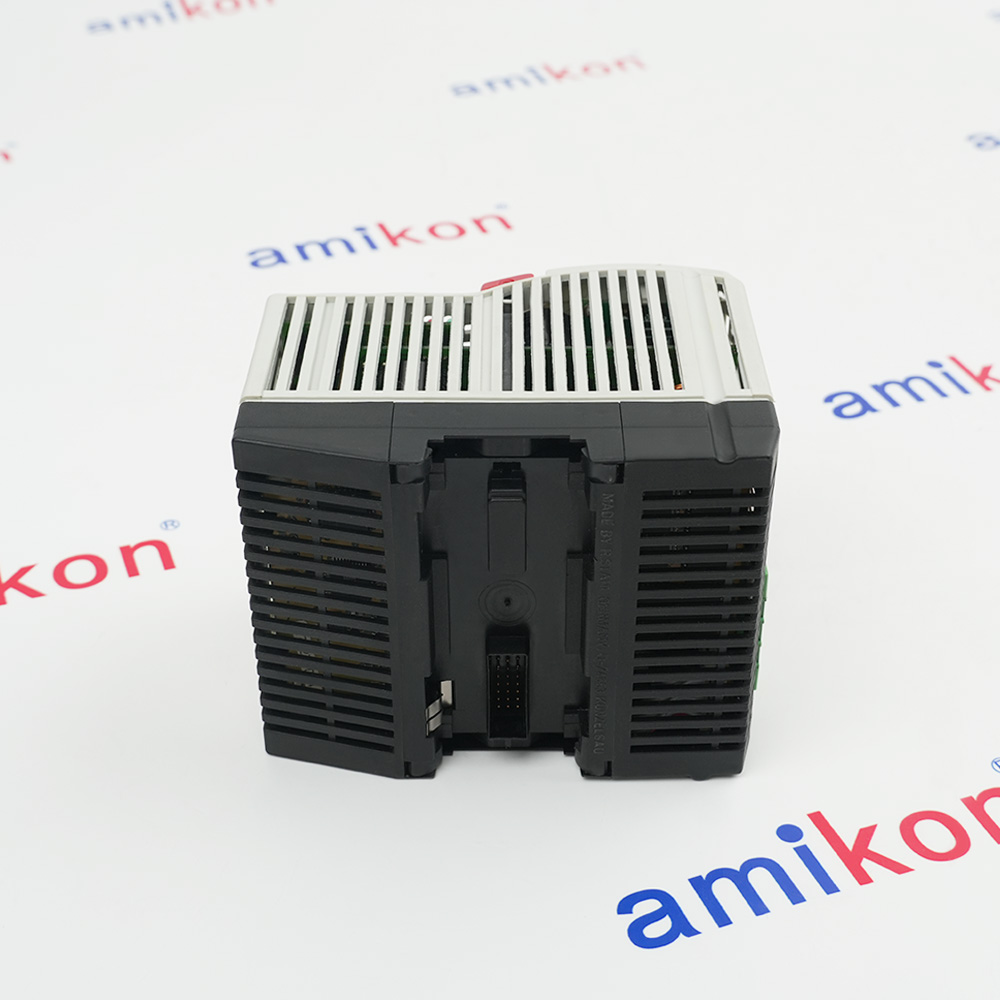

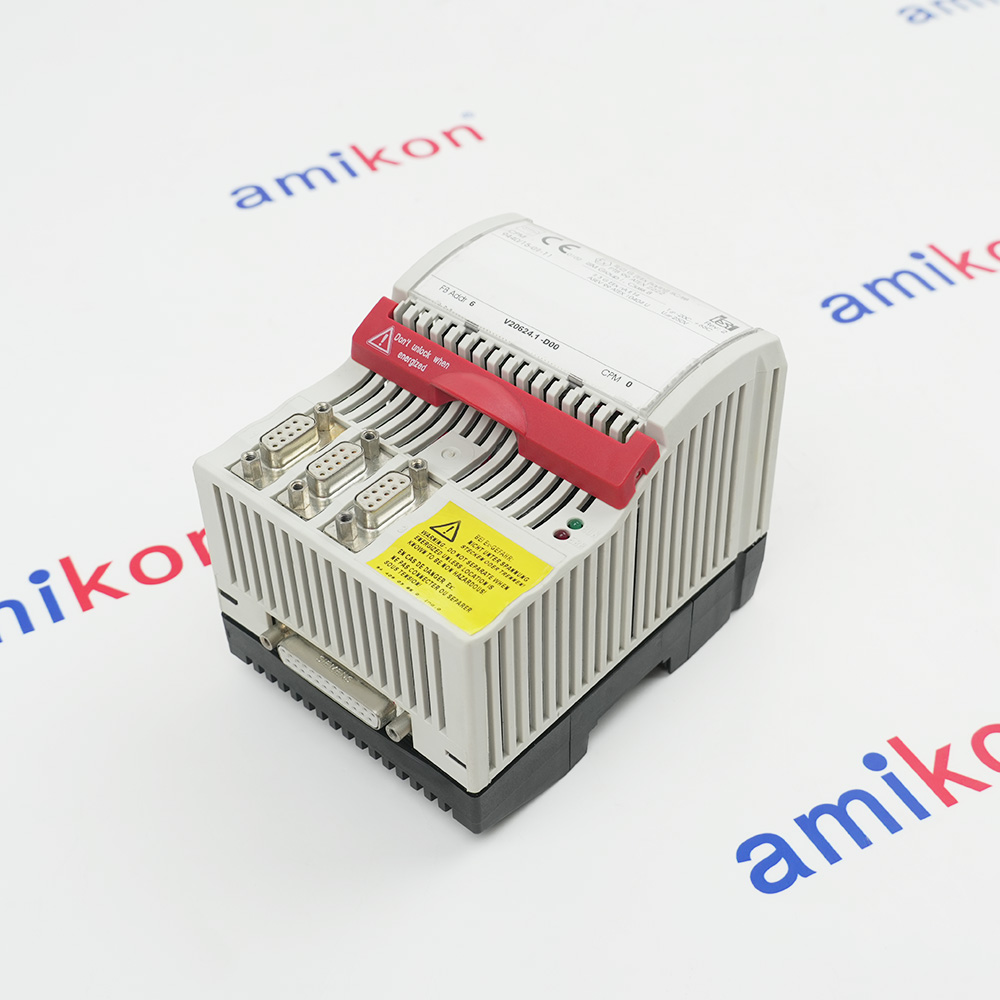

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
REMOTE I/O CPU AND POWER MODULE
5.2AMP
250V
1200M AT 9.6KBIT/S
FOR ZONE 2
5.2AMP
250V
1200M AT 9.6KBIT/S
FOR ZONE 2
Technical specifications for 9440/15-01-11
-
Product Model9440/15-01-11
-
Product ParametersRemote I/O IS1 CPU and Power Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size10x13x10cm
-
ManufacturerStahl
-
Weight0.65 kg
-
Nominal voltage24 V DC
-
Auxiliary power voltage range20 ... 35 V DC
-
Power dissipation (without I/O modules)7.2 W
-
Ambient temperature-20°C ... +65°C
-
Storage temperature-40°C ... +70°C
-
Transmission length/rate service bus RS4851200 m at 9.6 kbit/s
-
Transfer length/rate FO RS485Approx. 2000 m at 1.5 Mbit/s
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What communication protocols does the 9440/15-01-11 module support?+The 9440/15-01-11 supports Profibus DP V0, Profibus DP V1, and Profibus DP V1 HART protocols, communicating with automation systems via an RS-485 interface.
-
In which explosion-proof areas can the 9440/15-01-11 module be installed?+The 9440/15-01-11 is suitable for Zone 2, Zone 21, and Zone 22 (also conforming to Division 2 installation standards), and can be used in the perimeter of flammable gas and dust environments.
-
Can the 9440/15-01-11 module be hot-swapped with I/O modules?+Some models support hot-swapping in Zone 1/Div.1, but for the 9440/15 series in Zone 2, please refer to the manufacturer's installation manual to confirm operating conditions and limitations.
-
Does it support redundancy?+Yes. It supports full system redundancy (using two CPMs) and fieldbus cable redundancy to ensure high availability in process industries. It also supports optical ring topologies
-
What are the main functions of the 9440/15-01-11 module?+It acts as a gateway and power supply, supporting up to 16 IS1+ I/O modules. It handles data exchange via fieldbus and ensures intrinsically safe power for field circuits.
Get a quick price fo 9440/15-01-11
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Local Operation & Configuration
Features:
- Suitable for Profibus DP V0/V1 HART, Modbus RTU
- Supports system redundancy and optical rings
- Integration in plant asset management systems via ServiceBus and FDT/DTM
Series 9440/15 CPU & power modules (CPM) for Zone 2 are used to supply up to 16 IS1+ I/Omodules and field circuits with intrinsically safe power. RS485 with PROFIBUS DP V0/V1 HART isused for communicating with the automation system. The CPMs support system redundancy andoptical rings. A DTM and process bus or ServiceBus are used for asset management integration.
The 9440/15-01-11 STAHL CPU & power module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
STAHL 9440/15-01-11 CPU & power module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The isolation repeater is suitable for Zone 2/Category 2 installation environments and Zone 1/Category 1 fieldbuses using intrinsically safe "Ex op is" fiber optic cables. It is compatible with the 9186 series devices, supports optical loop connections, features comprehensive diagnostic functions and fault information contacts, and is compatible with PROFIBUS DP at speeds up to 1.5 Mbit/s. For more information, please refer to the datasheet for the 9186 series fiber optic fieldbus isolation repeaters.
- Hazardous Area Automation:Zone 2, Zone 21 & Zone 22 environments
- Intrinsically Safe Power Supply:Redundant 24V DC for up to 16 I/O modules & field devices
- Process Communication:PROFIBUS DP, Modbus RTU or HART to PLC/DCS
- System Redundancy:Redundant CPU & power supply for increased reliability
- Asset Management:FDT/DTM integration via ServiceBus for HART device management
- Industrial Environments:Offshore, onshore oil & gas, and chemical plants
- Oil & Gas:Refineries, offshore platforms & LNG tankers with critical space/safety
- Chemical & Pharmaceutical:Batch processing & asset management in hazardous zones
- Manufacturing:Automobile, tobacco & cement with demanding circuit management
- Energy:Photovoltaic, wind power generation & electric power industry
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Menu Navigation: Use the up/down keys to cycle through menu items. Each module on the BusRail appears as a separate menu item.
Fieldbus Address: You can view and set the Fieldbus address directly through the display menu.
Status Monitoring: The LCD displays diagnostic data, input/output values, and error messages (e.g., "IOM no response" or "Hardware failure").
