- 9470/32-16-11
In Stock
Ships by Friday, June 26
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 9470/32-16-11
-
Product Model9470/32-16-11
-
Product ParametersRemote I/O IS1+ Digital input/output module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9.7x12.7x6.2cm
-
ManufacturerStahl
-
Weight0.25 kg
-
Product TypeDigital Input/Output Module
-
SeriesIS1+ Remote I/O System
-
Application AreaZone 1, Zone 2, Division 1, Division 2
-
Hazardous Area InterfaceZone 0, 1, 2, 20, 21, 22
-
Product StatusActive
-
Total Channels16
-
Frequency Inputs8 channels, up to 20 kHz
-
Direction Detection4 channels for rotation direction detection
-
Counter FunctionUp/down counter
-
Counting Range0 to 65535 (UINT16)
-
Supply Voltage (Signal)8.2 V
-
Internal Resistance1 kΩ
Description

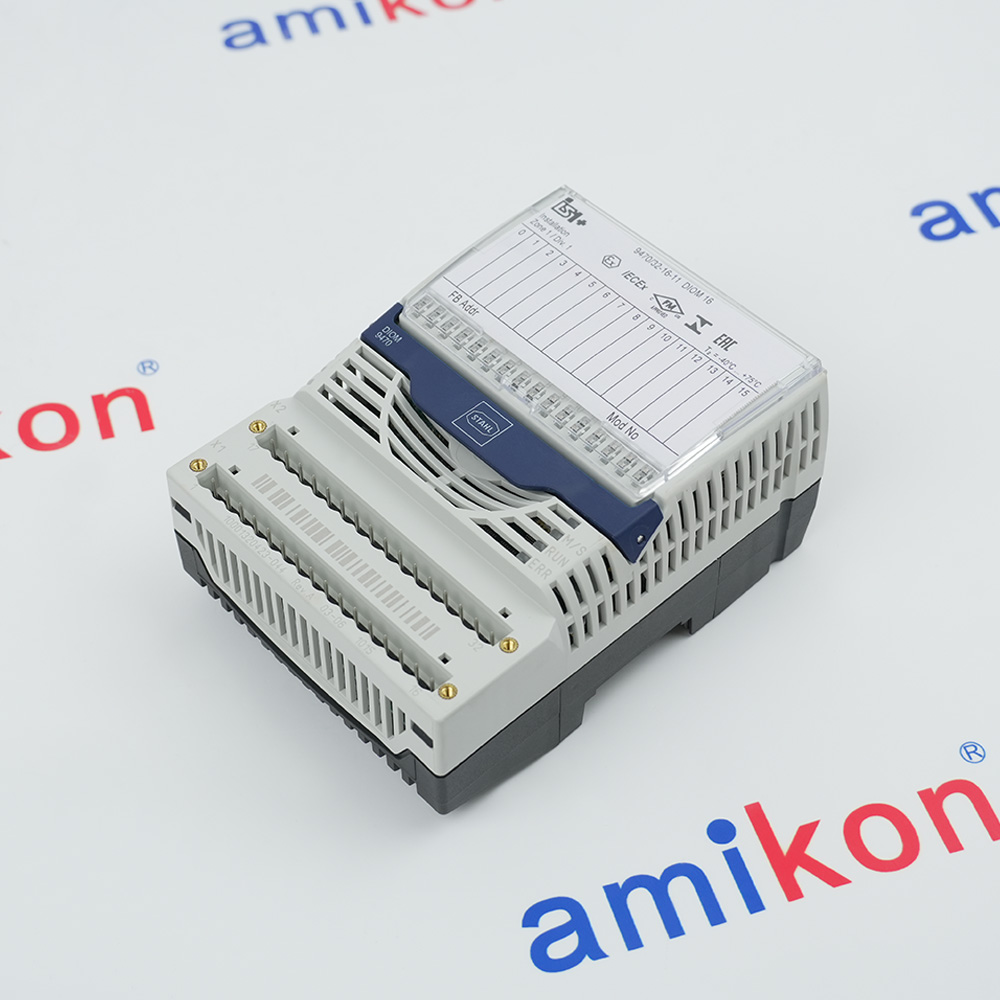

The R. STAHL 9470/32-16-11 Remote I/O IS1+ Digital Input/Output Module is a multifunction intrinsically safe I/O module engineered for hazardous-area automation systems. As part of the IS1+ Remote I/O platform, the module provides sixteen Ex ia IIC channels that can be configured in pairs as digital inputs or outputs, allowing flexible connection of field devices in Zone 1 and Zone 2 environments.
The module supports inputs from NAMUR proximity switches and dry contacts while also providing output capability for indicator lamps and low-power solenoid valves. Advanced signal-processing functions include frequency measurement up to 20 kHz, up/down counter functionality, and rotation-direction detection for rotating equipment. Eight channels can be configured for frequency or counter applications, while four channel pairs support directional sensing.
The module supports inputs from NAMUR proximity switches and dry contacts while also providing output capability for indicator lamps and low-power solenoid valves. Advanced signal-processing functions include frequency measurement up to 20 kHz, up/down counter functionality, and rotation-direction detection for rotating equipment. Eight channels can be configured for frequency or counter applications, while four channel pairs support directional sensing.
Alternative Names
9470-32-16-11
9470/32 16 11
9470/32-16-II
9470/32-I6-11
9470-32-I6-II
947O-32-16-11
947O/32-16-11
9470 32-16-11
947O/32-I6-II
Information
Overview
Manuals
Application Notes
Product Applications
Wiring & Channel Configuration
Features:
- 16 channels configurable in pairs as inputs or outputs
- Remote I/O IS1+ Digital input/output modulefor Zone 1 Ex i
- Hot-swappable in Zone 1
- High-speed frequency input capability
- Compatible with NAMUR proximity switches
STAHL 9470/32-16-11 features intrinsically safe Ex ia IIC inputs and outputs with line fault monitoring and an LED fault and status display for each channel, providing comprehensive diagnostic visibility and ensuring safe operation in potentially explosive atmospheres.
STAHL 9470/32-16-11 supports high-speed frequency applications where eight inputs can be used for frequencies of up to 20 kHz, and four inputs can be used for detecting the direction of rotation, making it suitable for advanced monitoring and control applications in industrial environments.
The 9470/32-16-11 STAHL Remote I/O IS1+ Digital Input/Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
STAHL 9470/32-16-11 Remote I/O IS1+ Digital Input/Output ModuleManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module features 16 channels that can be configured in pairs as either inputs or outputs. When configured as inputs, the channels accept signals from dry contacts and NAMUR proximity switches compliant with EN 60947-5-6. When configured as outputs, the channels drive indicator lamps and low-power solenoid valves. Eight of the input channels support frequency measurement up to 20 kHz, and four channels can detect rotation direction, making the module suitable for turbine monitoring, conveyor tracking, and pump speed supervision applications. The integrated up/down counter operates over a 16-bit counting range from 0 to 65535 with a minimum detectable pulse width of 25 microseconds.
- Industrial Pumps: Centrifugal, positive displacement, and chemical dosing pumps
- Gas & Steam Turbines: Speed monitoring, trip-circuit interface, and auxiliary valve control
- Compressors: Screw, reciprocating, and centrifugal compressors used in gas pipelines
- Electric Motors: Overspeed protection and rotational direction verification
- Industrial Fans & Blowers: Ventilation systems in refineries and extraction plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
I/O Flexibility: The 16 channels can be configured in pairs as either digital inputs (for dry contacts, NAMUR proximity sensors) or outputs (for indicator lamps or low-power solenoid valves) Digital Input Output Module Series 9470/32 - R. STAHL.
Special Functions: Up to 8 channels may be parameterized for frequency/counting applications (up to 20 kHz), and 4 channels can be utilized for rotation direction detection Digital Input Output Module Series 9470/32 - R. STAHL.
Galvanic Isolation: All inputs/outputs are short-circuit proof and galvanically separated from the system Remote I/O IS1+ Digital input/output module for Zone 1 Ex i - R. STAHL.
Technical notes
The 9470/32 digital input/output module for Zone 1 has 16 channels which can be used in pairs forEx i operation as inputs for contacts and NAMUR proximity switches (EN 60947-5-6) or as outputsfor indicator lamps and low-power solenoid valves. Eight inputs can be used for frequencies of upto 20 kHz, and four can be used for detecting the direction of rotation.All inputs/outputs are short-circuit proof and galvanically separated from the system.
FAQs
-
What is the 9470/32-16-11?
+The STAHL 9470/32-16-11 is a 16-channel digital input/output module (DIOM) for the IS1+ Remote I/O system. -
Can the module count frequencies or rotations?
+Yes. Up to 8 inputs can be used for high-speed frequencies (up to 20 kHz). Out of those, 4 can be configured to detect the direction of rotation or act as forward/backward counters. -
Are the channels safe in hazardous areas?
+Yes, all inputs/outputs are intrinsically safe (Ex ia IIC), galvanically separated from the system, and fully short-circuit proof. They feature individual line fault monitoring along with LED error and status displays for each channel. -
Can the module be replaced while the system is live?
+Yes. The module supports full hot-swapping, meaning it can be replaced in Zone 1 / Division 1 hazardous areas without disconnecting the power supply.
