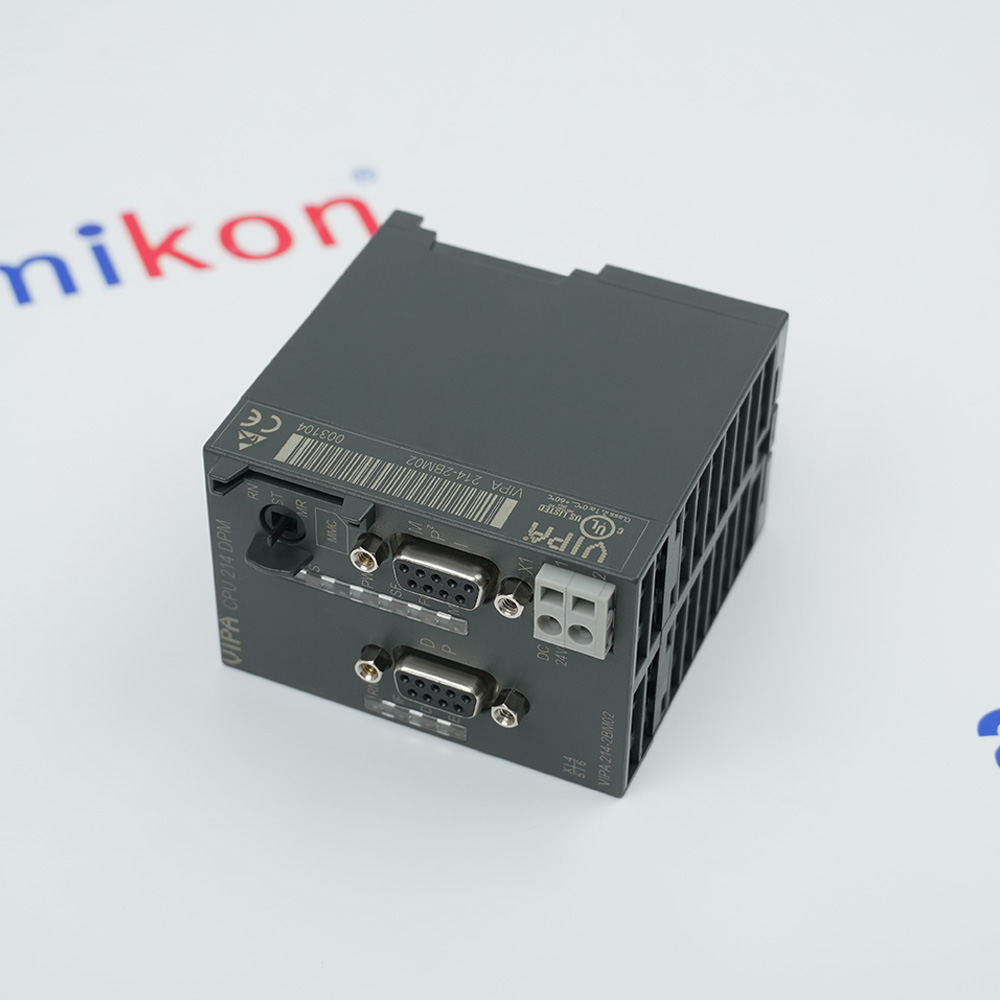

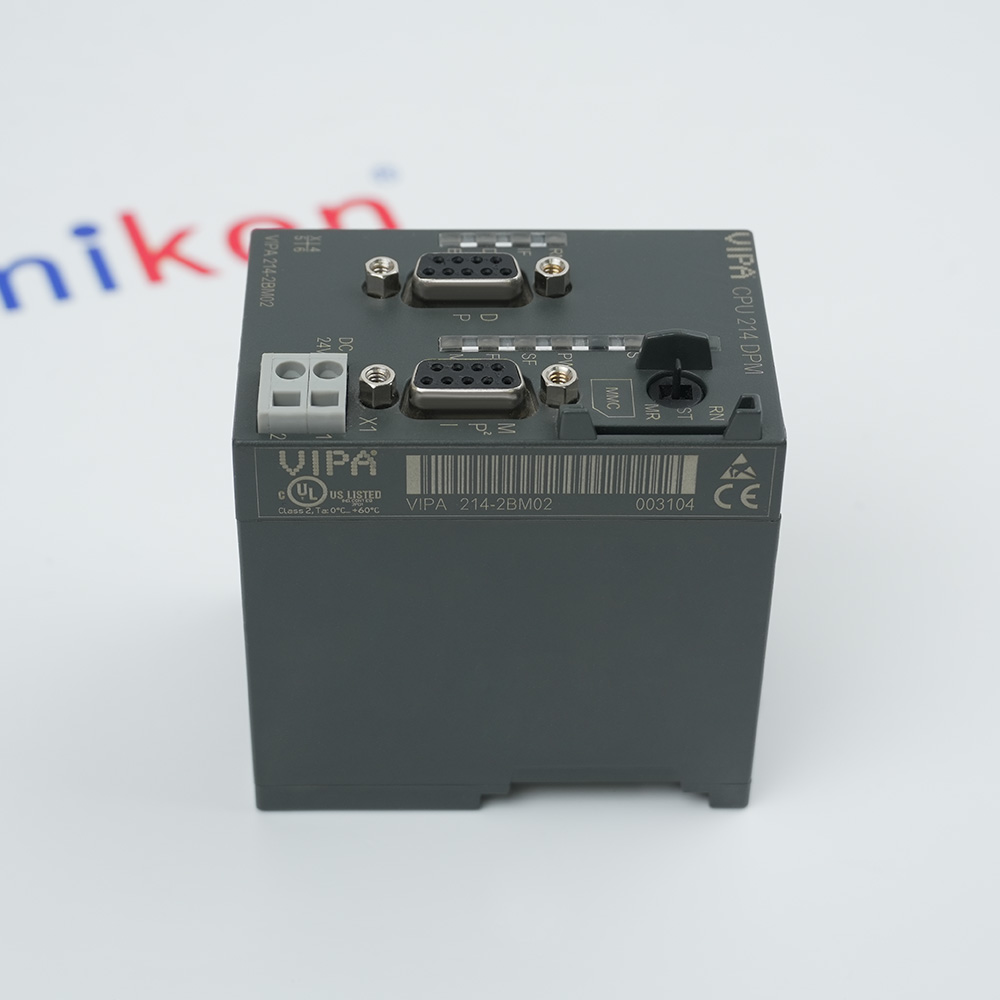

Technical specifications for 214-2BM02
-
Product Model214-2BM02
-
Spare ModelCPU214DPM VIPA214-2BM02
-
Product Parameters200V Compact PLC - CPU Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5x8x7.5cm
-
ManufacturerVIPA
-
Weight0.15 kg
-
Power supplyDC 24V (20.4 ... 28.8V)
-
Current consumptionmax. 1.5A
-
Dissipation powermax. 5W
-
Potential separation≥ 500V AC to fieldbus
-
Connector9pin D-type jack
-
Transfer rate9.6kbit/s up to 12Mbit/s
-
Overall length100m at 12 Mbit/s without repeater
-
max. number of slaves125
-
max. number of input bytes1024
-
max. number of output bytes1024
Description
VIPA 214-2BM02 features 48 kB work memory and 80 kB load memory, providing sufficient capacity for complex control algorithms and process data, while achieving typical execution times of 0.18 μs per Bit and 0.78 μs per Word to ensure fast and responsive automation cycles.
VIPA 214-2BM02 integrates a PROFIBUS-DP Master interface supporting data transmission rates up to 12 MBaud, enabling seamless connection to up to 125 PROFIBUS-DP slave devices and decentralized peripheral modules across the System 200V architecture.
VIPA 214-2BM02 includes an MP2I (MPI) interface that allows direct programming device connection and serial point-to-point communication to a PC, and with VIPA's "green cable" can be directly connected to the RS232 interface without requiring an MPI adapter.
VIPA 214-2BM02 integrates a PROFIBUS-DP Master interface supporting data transmission rates up to 12 MBaud, enabling seamless connection to up to 125 PROFIBUS-DP slave devices and decentralized peripheral modules across the System 200V architecture.
VIPA 214-2BM02 includes an MP2I (MPI) interface that allows direct programming device connection and serial point-to-point communication to a PC, and with VIPA's "green cable" can be directly connected to the RS232 interface without requiring an MPI adapter.
Information
Overview
Manuals
Application Notes
Product Applications
Mounting Procedure
Features:
- Integrated PROFIBUS-DP Master interface
- 48/80 kB work/load memory
- MP2I (MPI) interface
- MMC slot for external memory
This CPU operates on a DC 24 V power supply with a permitted range of 20.4 to 28.8 V. It features reverse polarity protection and draws a rated current of 1.5 A with a maximum backplane bus current drain of 3 A. The power loss is rated at 5 W.
The integrated work memory of 48 KB and load memory of 80 KB provide sufficient capacity for medium-sized automation tasks. An MMC slot supports external memory cards up to 512 MB for expanded program storage. The memory is divided equally between program and data areas. A battery-backed real-time clock maintains time data for a minimum of 30 days, buffered by a vanadium rechargeable lithium battery.
The 214-2BM02 VIPA PROFIBUS CPU may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIPA 214-2BM02 PROFIBUS CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Memory Specifications: Comes with 48kB of work memory and 80kB of load memory. Program code and blocks are stored in the load memory, while relevant running blocks are loaded to the work memory.
PROFIBUS-DP Master: Features a 9-pin D-type jack on the front to interface with a PROFIBUS network. Network topology requires active bus termination at both ends with screened, twisted pair cable.
Operating Modes: Controlled via a built-in switch to toggle between STOP, RUN, and MR (Memory Reset).
Firmware Updates: Firmware can be flashed onto the CPU using the vendor's dedicated Green Cable connected directly to the MP2I jack
- Packaging Machines:High-speed counting, photo-electric & synced packaging
- Material Handling:Decentralized conveyors, sorters & pick-and-place
- Assembly & Processing:PROFIBUS: pneumatic/hydraulic & servomotor coordination
- Water and Wastewater Treatment:Remote pump/valve/meter management
- Chemical & Material Batching:Signal control for mixtures, temps & levels
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Profile Rail: The CPU mounts directly onto a standard 35 mm profile rail.
Bus Connector Setup: Place the backplane bus connector onto the profile rail first. VIPA 200V modules communicate via this isolated bus connector.
Locking the Module: Seat the electronic module firmly into the bus connector mechanism and secure it to the rail.
Alternative Names
2142BM02
214 2BM02
214/2BM02
2I4-2BM02
214-2BMO2
2I4 2BMO2
2I42BMO2
Technical notes
VIPA 214-2BM02 is a CPU 214DPM PLC CPU designed for the VIPA System 200V modular automation platform, operating on DC 24V power supply and delivering centralized as well as decentralized control capabilities for low to medium performance industrial applications.
FAQs
-
What is the 214-2BM02？
+The VIPA 214-2BM02 is a compact, high-performance CPU module from the VIPA USA System 200V range. it features 48kB of work memory, a built-in PROFIBUS-DP master interface, and MP2I programming capabilities -
What are the memory limits of the 214-2BM02?
+The CPU features 48 KB of work memory and 80 KB of load memory. -
Does it support external storage?
+Yes. It includes an MMC (MultiMediaCard) slot for storing user programs, data records, or firmware updates. -
What is the operational voltage?
+The system operates on a standard DC 24 V power supply, which powers both the internal CPU electronics and the connected backplane modules
