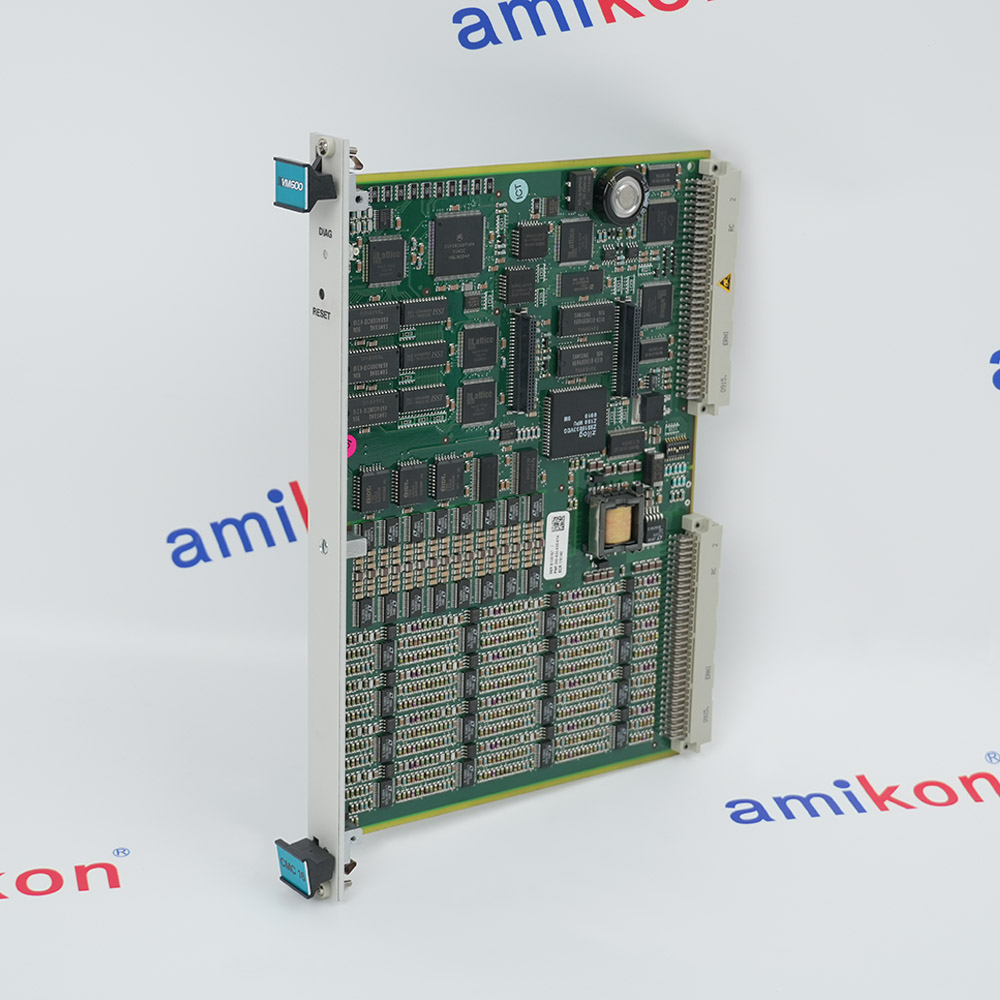

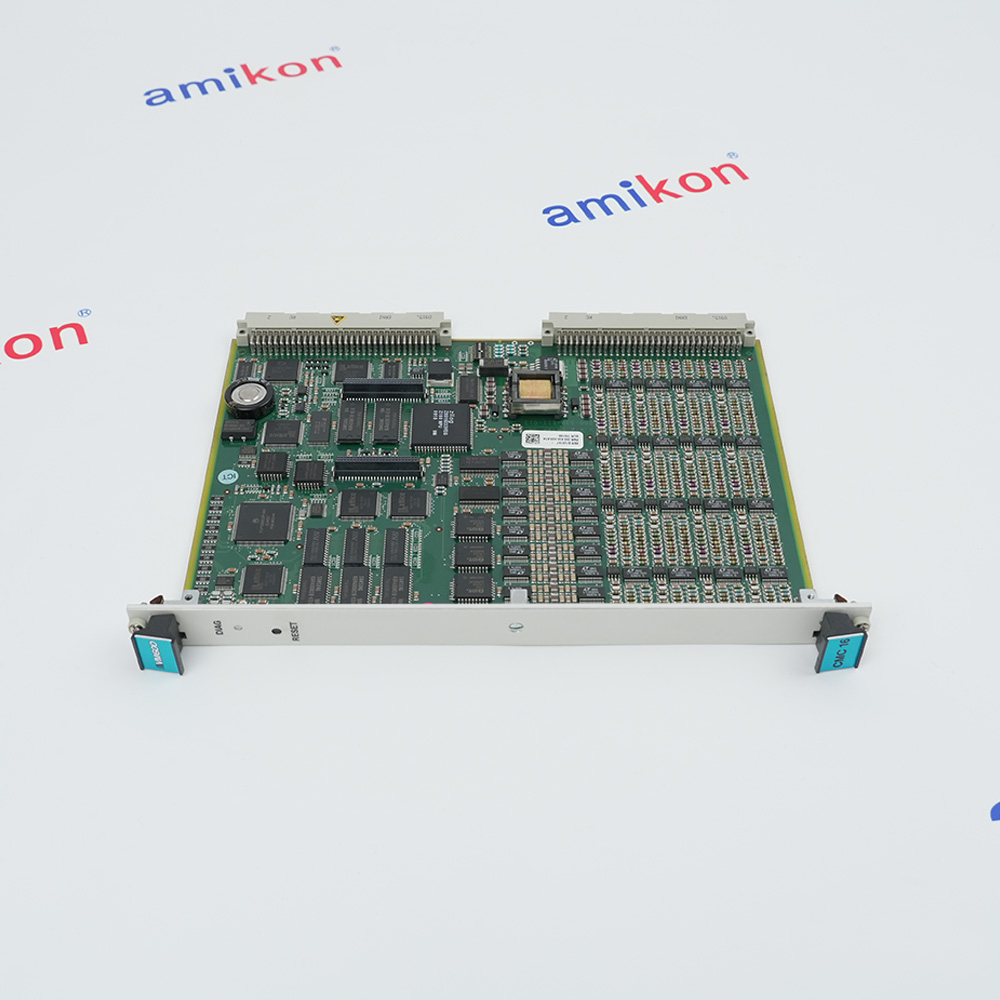

- VM600 CMC16 200-530-025-014
In Stock
Ships by Friday, July 24
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for VM600 CMC16 200-530-025-014
-
Product ModelVM600 CMC16 200-530-025-014
-
Spare Model200-530-025-014
-
Product ParametersIndustrial Control Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x18.6x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.35 kg
-
Triggering methodRising or falling edge
-
Input voltage range1 to 24 V pulse
-
Frequency range0.25 to 10,000 Hz
-
Minimum rise time4 volts/second
-
Minimum pulse duration10 μs
-
Max. common mode voltage50 V
-
Machine speed resolution±1 rev/min
Description
The CMC 16 Condition Monitoring Card is the centralelement in Vibro-Meter’s VM600 series ConditionMonitoring System (CMS).
This intelligent front-end Data Acquisition Unit (DAU)is used in conjunction with the VM600 CMS softwareto acquire, analyse and transmit results to a hostcomputer via the VM600 series CPU M module withEthernet controller or directly via serial links.
The inputs are fully programmable and can acceptsignals representing speed, phase reference,vibration (acceleration, velocity or displacement),dynamic pressure, airgap rotor and pole profile, anydynamic signals or any quasi-static signals. Signalscan be input from adjacent Machinery ProtectionCards (MPC 4) via the VM600 ‘Raw Bus’ and ‘TachoBus’ or externally via the screw terminal connectorson the IOC 16T. The IOC 16T modules also affordsignal conditioning and EMC protection and allowinputs to be routed to the CMC 16, which includes 16programmable tracked anti-aliasing filters, andAnalog-to-Digital Converters (ADC). On-boardprocessors handle all control of acquisition,conversion from time domain to frequency domain(Fast Fourier Transform), band extraction, unitconversion, limit checking, and communication withthe host system
This intelligent front-end Data Acquisition Unit (DAU)is used in conjunction with the VM600 CMS softwareto acquire, analyse and transmit results to a hostcomputer via the VM600 series CPU M module withEthernet controller or directly via serial links.
The inputs are fully programmable and can acceptsignals representing speed, phase reference,vibration (acceleration, velocity or displacement),dynamic pressure, airgap rotor and pole profile, anydynamic signals or any quasi-static signals. Signalscan be input from adjacent Machinery ProtectionCards (MPC 4) via the VM600 ‘Raw Bus’ and ‘TachoBus’ or externally via the screw terminal connectorson the IOC 16T. The IOC 16T modules also affordsignal conditioning and EMC protection and allowinputs to be routed to the CMC 16, which includes 16programmable tracked anti-aliasing filters, andAnalog-to-Digital Converters (ADC). On-boardprocessors handle all control of acquisition,conversion from time domain to frequency domain(Fast Fourier Transform), band extraction, unitconversion, limit checking, and communication withthe host system
Information
Overview
Manuals
Application Notes
Product Applications
Hardware Installation
Features:
- 16 individually configurable dynamic channels
- 16 parallel programmable anti-aliasing filters andADCs
- First 4 channels also configurable as tacho inputs
- Last 12 channels also configurable as processvalues
- VME architecture
- Configurable Synchronous and Asynchronoussampling
- High resolution 3200-line FFT
- 10 fully configurable processed outputs perchannel, which can be either frequency bands ortime-domain based outputs
- 6 configurable alarms per processed output withhysteresis deadbands
- On-board buffer storage
- Status indication by 3-colour LED on front panel
The Vibro-Meter VM600 CMC16 features 16 individually configurable dynamic channels, each equipped with parallel programmable anti-aliasing filters and dedicated 14-bit Analog-to-Digital Converters (ADC). The inputs of the Vibro-Meter VM600 CMC16 are fully programmable and can accept signals representing speed, phase reference, vibration (acceleration, velocity, or displacement), dynamic pressure, airgap rotor and pole profile, any dynamic signals, or any quasi-static signals. Signals can be input from adjacent Machinery Protection Cards (MPC 4) via the VM600 'Raw Bus' and 'Tacho Bus', or externally via the screw terminal connectors on the IOC 16T.
The VM600 CMC16 200-530-025-014 Vibro-Meter Industrial Control Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter VM600 CMC16 200-530-025-014 Industrial Control Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Machine start-ups, shutdowns and overspeeds aredetected from checks of speed reference againstconfigured trigger levels. In Transient Mode, higherdensity logging is available based upon configurabletime and speed intervals. Vibration measurement andlogging is achieved in speed ranges from 15 rev/minto 30,000 rev/min.
The CMC 16 acquires and processes high-resolutiondata captured at scheduled intervals or on alarmdetection (waveforms, spectra and orbits). Spectralresolution, frequency span or order span, windowtype, averaging mode and number of averages arefully configurable. The capacity also exists to triggerextended capture of time-based data over severalminutes using an ‘Oscilloscope Mode’ as this canprovide valuable data, particularly during machinestart-up.
- Packaging and Assembly:Conveyors, sorters & rotary index tables
- Material Handling:Sorting mechanisms & lift controls
- Motion Control:High-speed counters & PTO/PWM for steppers/servos.
- Quality Control:Automated inspection & sensor data processin
- Process Automation:Analog sensors for temp/pressure/flow regulation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety First: Always use an antistatic wrist strap. Electronic circuits must only be handled by their faceplates to avoid electrostatic discharge (ESD).
Module Pairing: The CMC16 is installed in the front of the VM600 rack. The corresponding rear panel/interface module (such as the IOC16T) must be mounted in the rear slot directly behind it.
Backplane Connection: Slide both cards along the rack's guide rails until they mate firmly into the backplane connectors. Tighten the retaining screws securely to ensure proper grounding
Alternative Names
VM600 CMC16 200-530-025-0I4
VM600 CMC16 200-530-025-O14
VM600 CMC16 200-530-O25-014
VM600 CMC16 200-53O-025-014
VM600 CMC16 20O-530-025-014
VM600 CMCI6 200-530-025-014
VM6OO CMC16 200-530-025-014
VM600 CMC16 200 530 025 014
VM600 CMC16 200 530 025 0I4
VM600 CMC16 200 530 025 O14
VM600 CMC16 200 530 O25 014
VM600 CMC16 200 530 0Z5 014
VM600 CMC16 200 53O 025 014
VM600 CMC16 Z00 530 025 014
VM600 CMCI6 200 530 025 014
Technical notes
The 10 available outputs per channel can includeRMS, peak, peak-peak, true peak, true peak-peakvalues, Gap, Smax, or any configurable band basedupon synchronous or asynchronously acquiredspectra. Acceleration (g), velocity (in/sec, mm/sec)and displacement (mil, micron) signals are catered forand can be converted for display to any standard.
Events are generated when values exceed one of the6 configurable limits, exceed rate-of-change alarms ordeviate from stored baselines. However, adaptivemonitoring techniques can also be employed todynamically adjust alarm set points based uponmachine parameters such as speed and load.
FAQs
-
What is VM600 CMC16 200-530-025-014?
+The Vibro-Meter VM600 CMC16 200-530-025-014 is a high-performance Condition Monitoring Card (CMC) used within the VM600 rack-based machinery protection and condition monitoring system. -
What is the CMC16 card used for?
+The CMC16 is used to acquire and analyze dynamic signals (such as vibration) to assess the health of mechanical equipment. It can perform real-time machine data processing, including synchronous and asynchronous sampling, Fast Fourier Transform (FFT) analysis, and alarm monitoring. -
What signal types does the VM600 CMC16 support?
+It natively supports differential signal input and has a built-in sensor power supply, making it suitable for dynamic sensors such as accelerometers and proximity sensors. -
Can the card be hot-swapped?
+Yes, the VM600 CMC16 supports live insertion and removal (hot-swapping) from the VM600 system rack, allowing for maintenance without interrupting the overall system configuration.
