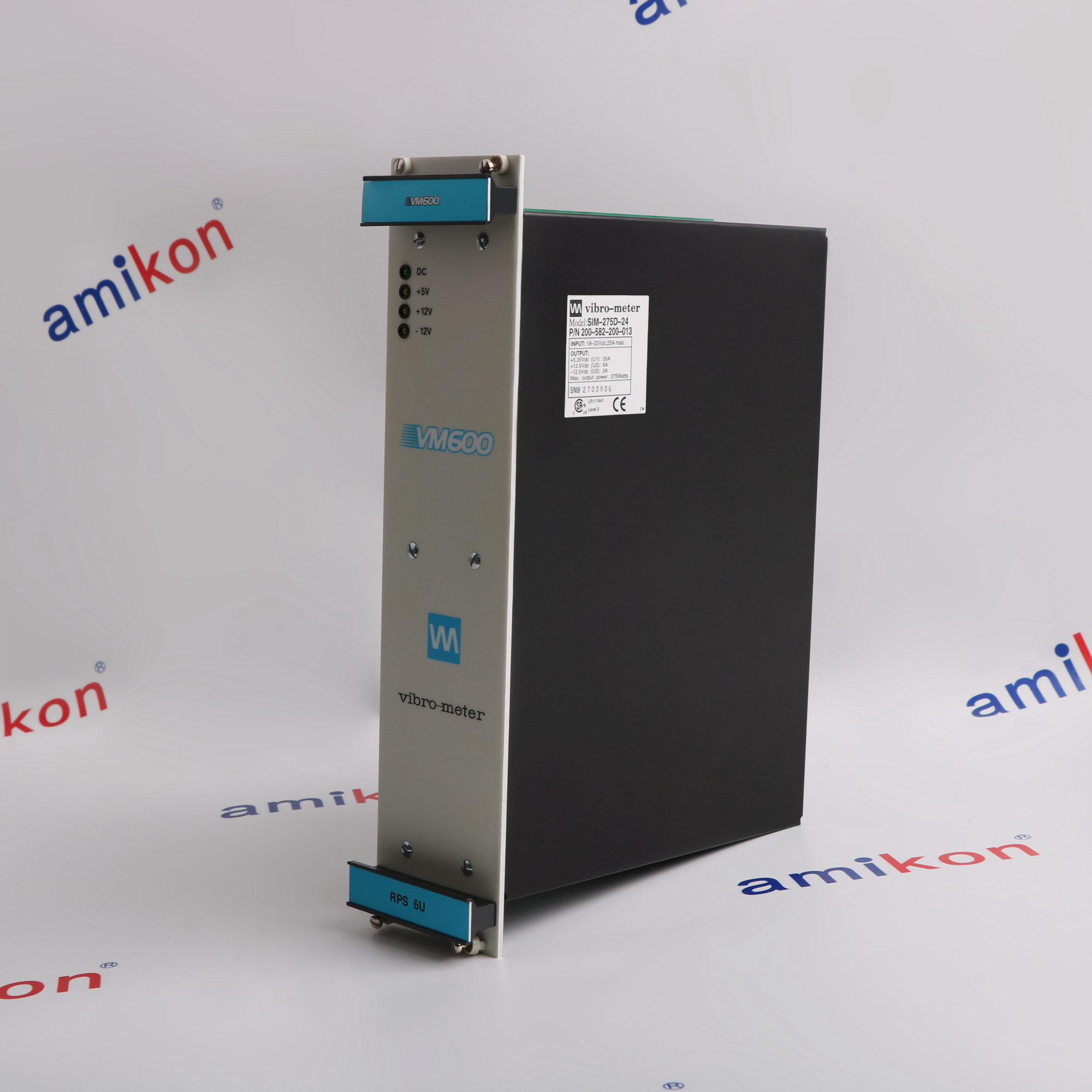

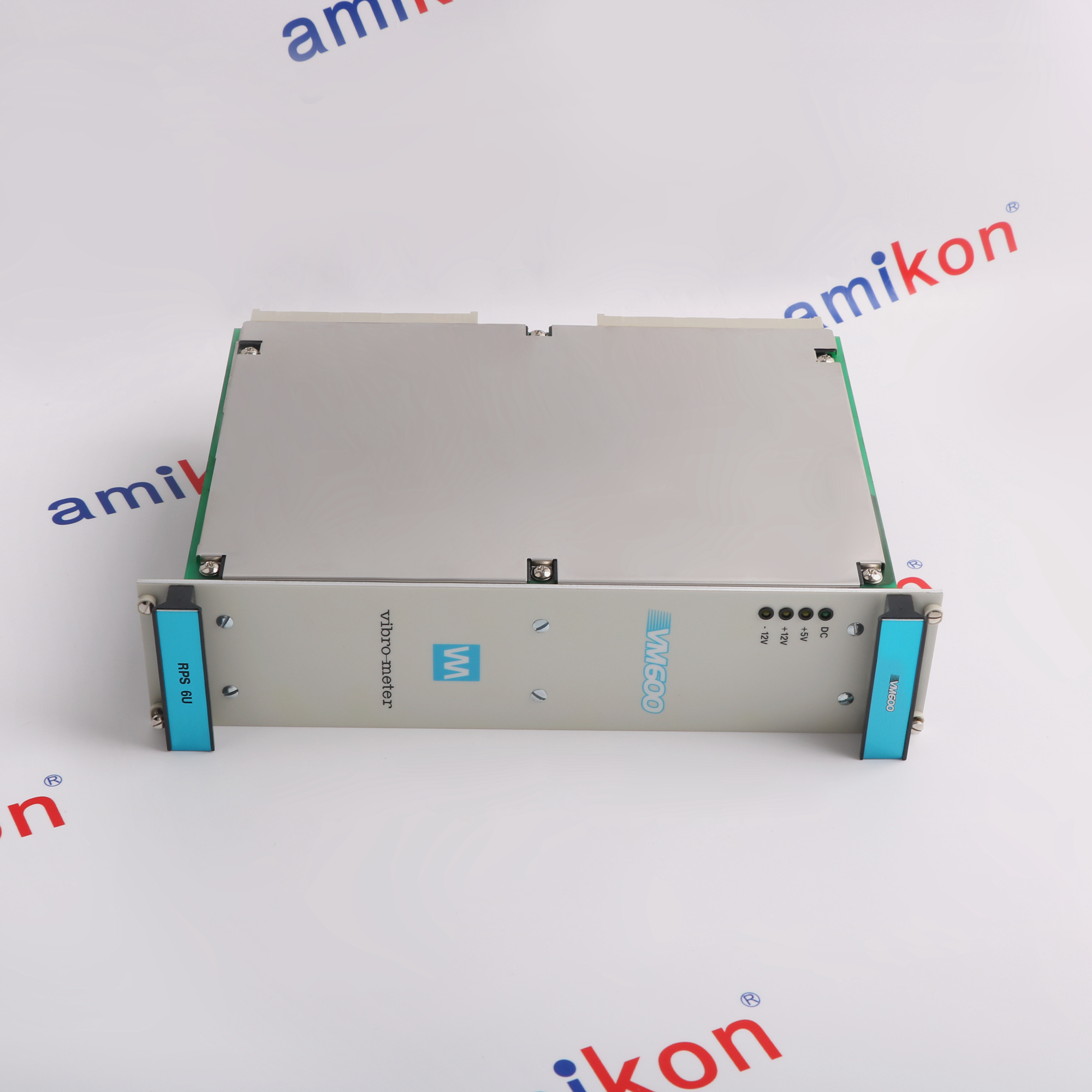

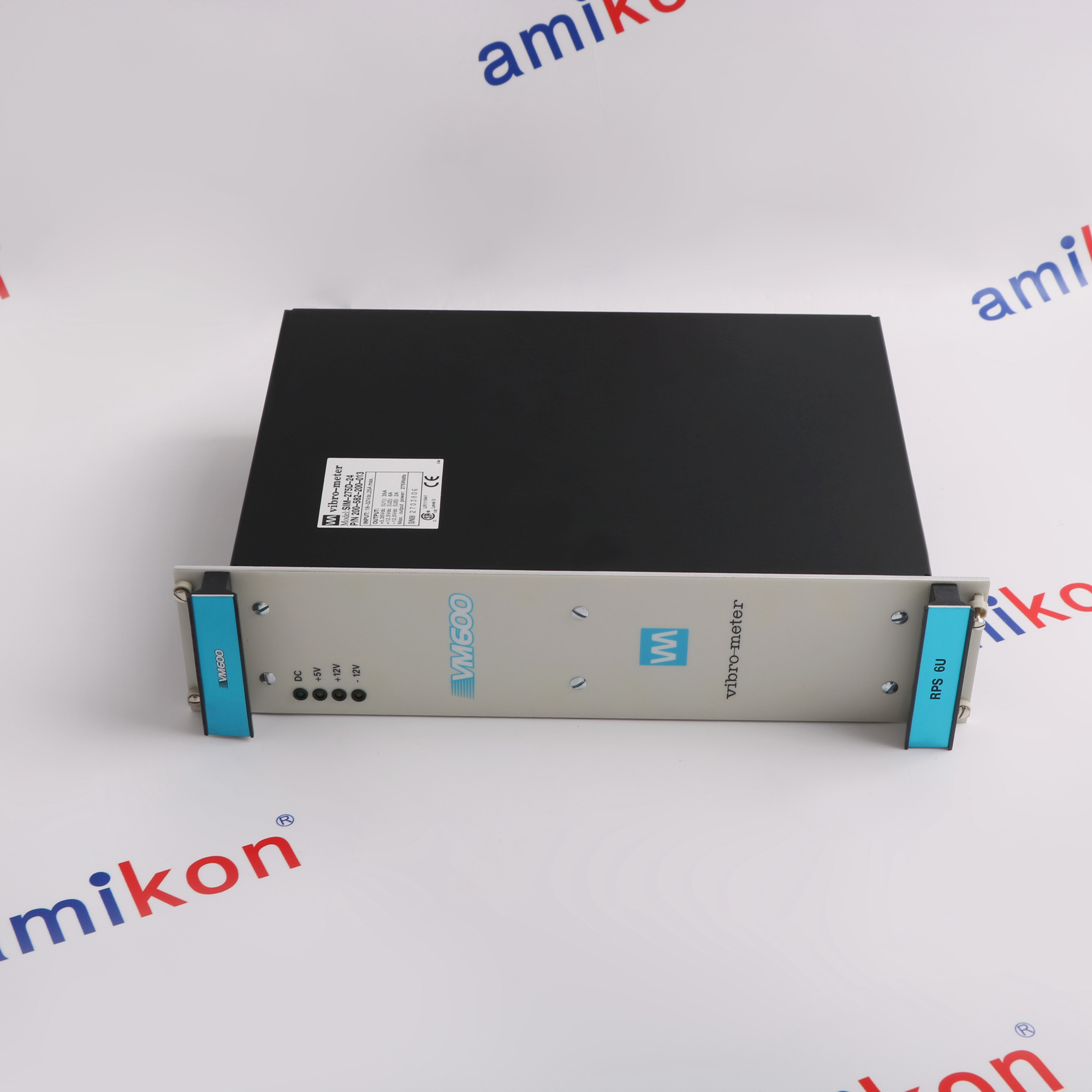

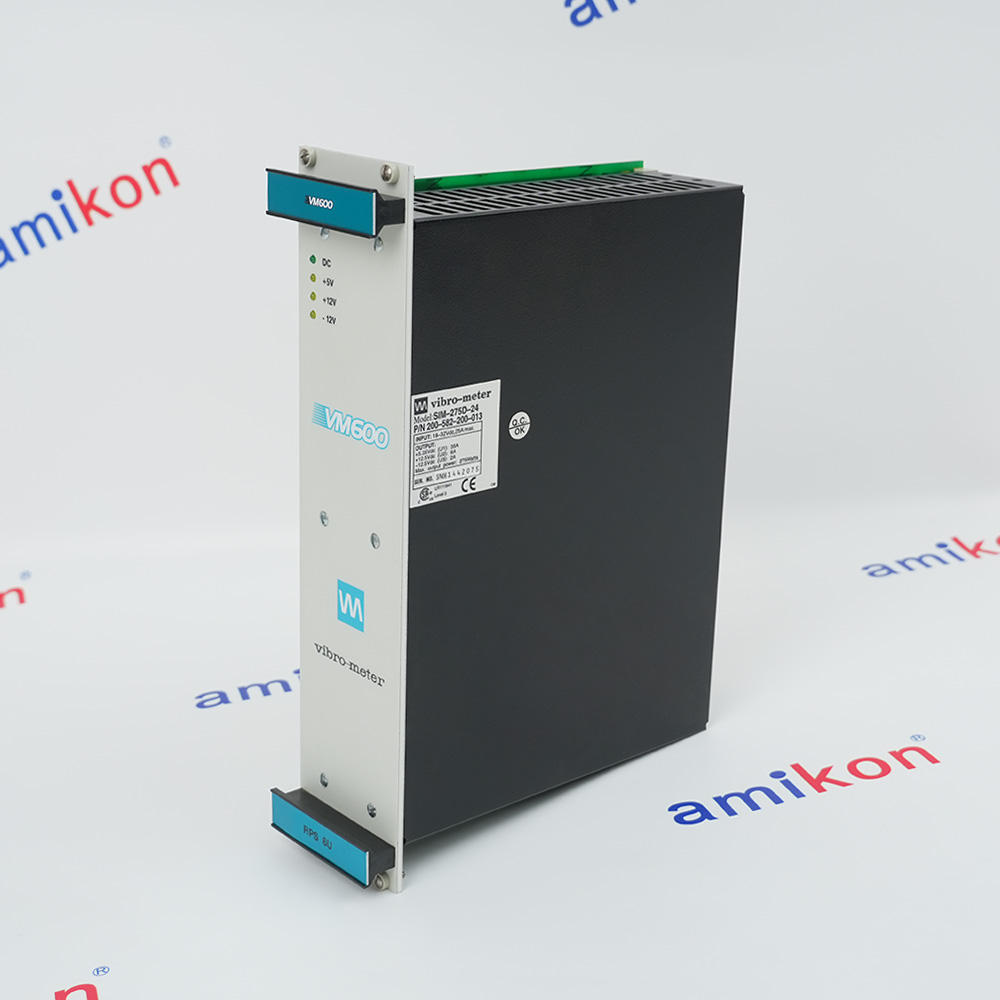

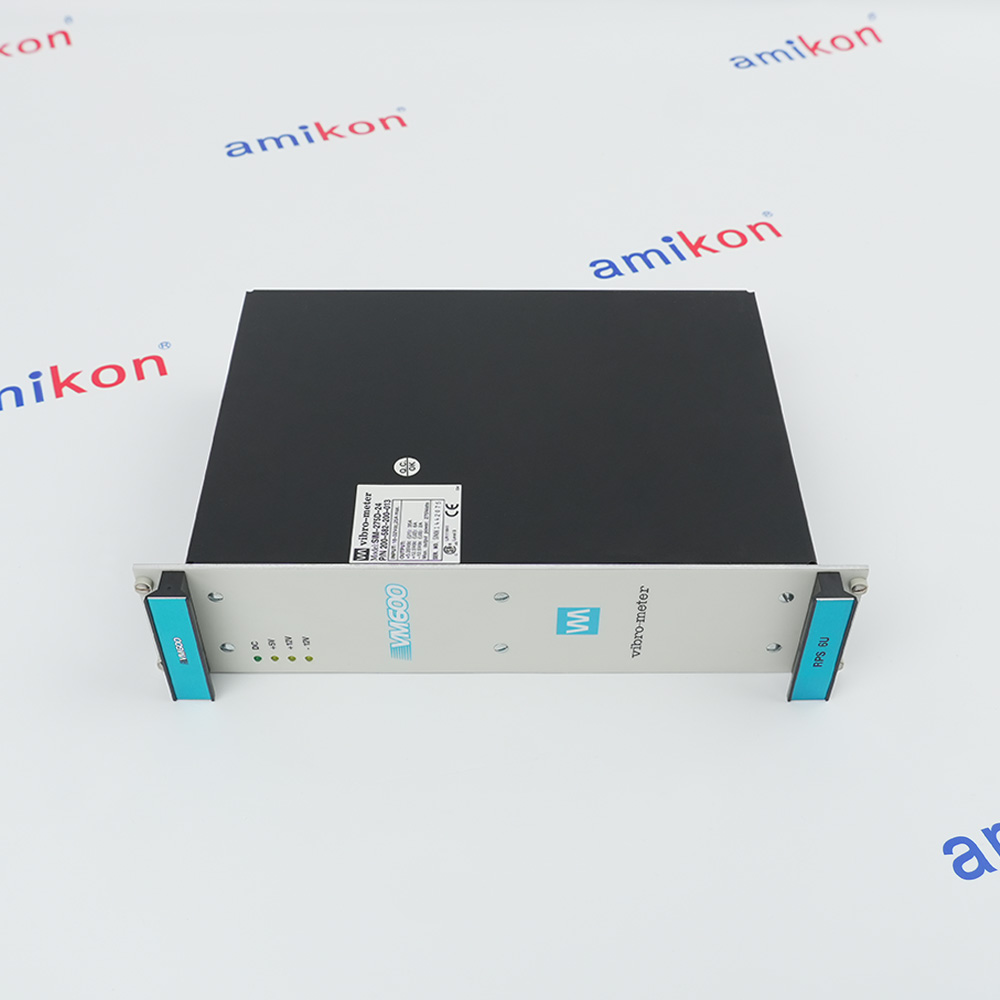

      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Thursday, November 12

      VM600 RPS6U SIM-275D-24 200-582-200-013

      Rack Power Supply Unit

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          VM600 RPS6U SIM-275D-24 200-582-200-013 Rack Power Supply Unit

          Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013 is a DC-input rack power supply for the VM600 monitoring platform. This earlier 300 W version supplies the internal voltage rails used by compatible rack electronics in machinery protection and condition-monitoring installations.

          The power supply accepts a nominal 24 V DC input within an 18–32 V DC range and provides +5 V, +12 V and −12 V outputs. Its regulated outputs include overvoltage and current-limiting protection. The rack can use a second applicable RPS6U supply for redundancy, subject to the documented loading and input arrangement.
          BEFORE YOU BUY

          Confirm the complete rack power supply unit

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for VM600 RPS6U SIM-275D-24 200-582-200-013

          This 24 V DC RPS6U supplies a compatible VM600 rack in power generation, petroleum processing and petrochemical production. The installed monitoring cards determine the measurement functions. Confirm the 300 W supply version, rack loading and DC input arrangement before replacement.
          • 01 · POWER GENERATION

            Power Production and Electricity Generation

            Thermal Power and Steam GenerationHydroelectric Energy and Power Production
          • 02 · OIL & GAS

            Petroleum Production and Gas Processing

            Offshore Oil and Gas ProductionPetroleum Refining and Gas Processing
          • 03 · PETROCHEMICALS

            Petrochemical Manufacture and Process Production

            Petrochemical Production and RefiningIndustrial Chemical and Feedstock Processing

          Technical specifications for VM600 RPS6U SIM-275D-24 200-582-200-013

          • Product Model
            VM600 RPS6U SIM-275D-24 200-582-200-013
          • Spare Model
            VM600 RPS6U SIM-275D-24 200-582-200-013 DC
          • Product Parameters
            Rack Power Supply Unit
          • In stock
            10 units
          • Manufacturer
            Vibro-Meter
          • DC input range
            18–32 V DC; nominal 24 V DC
          • Rated output power
            300 W
          • Positive 5 V output
            +5 V DC; 35 A maximum
          • Positive 12 V output
            +12 V DC; 6 A maximum
          • Negative 12 V output
            −12 V DC; 2 A maximum
          • DC input efficiency
            >70%
          • Output regulation
            ≤±0.2% at full load
          • Output ripple
            ≤50 mV peak-to-peak; 20 MHz bandwidth
          • 5 V overvoltage threshold
            5.9–6.7 V; factory setting
          • Power derating
            1%/℃ from 60 to 70 ℃
          • Operating temperature
            −25–65 ℃
          • Storage temperature
            −40–85 ℃
          • Relative humidity
            ≤95%; noncondensing
          • Vibration withstand
            10–2000 Hz; 5 g; 2 hours per direction
          • Shock withstand
            100 g; 6 ms
          View all additional
          Ask for Quote

          Alternative Names

          VM600 RPS6U SIM-275D-24 200-582-200-013 VM600 RPS6U Rack Power Supply Unit RPS6U 18–32 V DC; nominal 24 V DC dc input range
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate VM600 RPS6U SIM-275D-24 200-582-200-013 rack power supply unit

          Use VM600 RPS6U SIM-275D-24 200-582-200-013 with a compatible VM600 rack and the DC input arrangement specified for this earlier power supply. Its 24 V nominal input must remain within 18–32 V DC.
          Calculate the rack load against the 300 W total output and the separate +5 V, +12 V and −12 V rail limits. Confirm any second-supply redundancy arrangement and apply the documented thermal derating.
          Follow the complete rack hardware instructions for connection and power-up. Verify supply status and the connected monitoring-card indications, then retain the accepted rack power configuration.

          Features:

          • DC input range: 18–32 V DC; nominal 24 V DC
          • Rated output power: 300 W
          • Positive 5 V output: +5 V DC; 35 A maximum
          The VM600 RPS6U SIM-275D-24 200-582-200-013 rack power supply unit requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify VM600 RPS6U SIM-275D-24 200-582-200-013 rack power supply unit

          Match the complete 200-582-200-013 identity and SIM-275D-24 marking. Later RPS6U versions have different published ratings, so a shared rack family name is not sufficient for replacement.
          Record the DC input polarity, rack position and any redundant supply before removal. Inspect the mating connectors and compare the offered supply with the installed revision and rack loading.
          After the approved exchange, verify all three output rails, supply indications and monitoring-card startup. Restore the documented redundancy arrangement and record the final functional acceptance.

          Features:

          • DC input range: 18–32 V DC; nominal 24 V DC
          • Rated output power: 300 W
          • Positive 5 V output: +5 V DC; 35 A maximum
          The VM600 RPS6U SIM-275D-24 200-582-200-013 rack power supply unit requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the VM600 RPS6U SIM-275D-24 200-582-200-013 rack power supply unit must be checked for document applicability before installation or commissioning.

          Also searched as

          VM600 MPC4 200-510-076-114 APF 184 VM600 MPC4 200-510-070-113 VM600 MPC4 200-510-074-113 VM600 IOCN 200-566-101-013

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            6.1 × 19 × 26.1cm
            Shipping weight
            2.25kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            85044099
            Origin
            Switzerland
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about VM600 RPS6U SIM-275D-24 200-582-200-013

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is SIM-275D-24 an AC-input rack supply?

            No. This 200-582-200-013 RPS6U uses a nominal 24 V DC input, with an allowed range of 18–32 V DC.

          • Which output rails power the VM600 electronics?

            This RPS6U provides +5 V, +12 V and −12 V DC rails. Their maximum currents are 35 A, 6 A and 2 A respectively.

          • Does the later 330 W rating apply to this part?

            The applicable version 9 data sheet specifies 300 W for the earlier 200-582-200-01h family containing 200-582-200-013. Do not substitute the later 330 W specification.

          • How does temperature affect available RPS6U power?

            The applicable data sheet states 1% per ℃ derating from 60 to 70 ℃. Respect the separate operating-temperature limit and rack cooling requirements.

          • What DC conversion efficiency is specified?

            For the applicable DC-input RPS6U family, the version 9 data sheet specifies efficiency greater than 70%.

          • Can a second rack supply provide redundancy?

            A VM600 rack can use two applicable RPS6U units for supply redundancy. Loading and power-source arrangements must follow the rack documentation.

          • Which markings should a buyer provide for this DC variant?

            Send photographs showing SIM-275D-24 and the complete 200-582-200-013 identity, plus the rack type and whether the replacement belongs to a redundant pair.

          • What receiving checks distinguish the correct RPS6U version?

            Inspect the DC-input markings, full hardware identity and backplane connectors. Verify that the offered supply matches the earlier 300 W requirement before accepting it for this rack.
