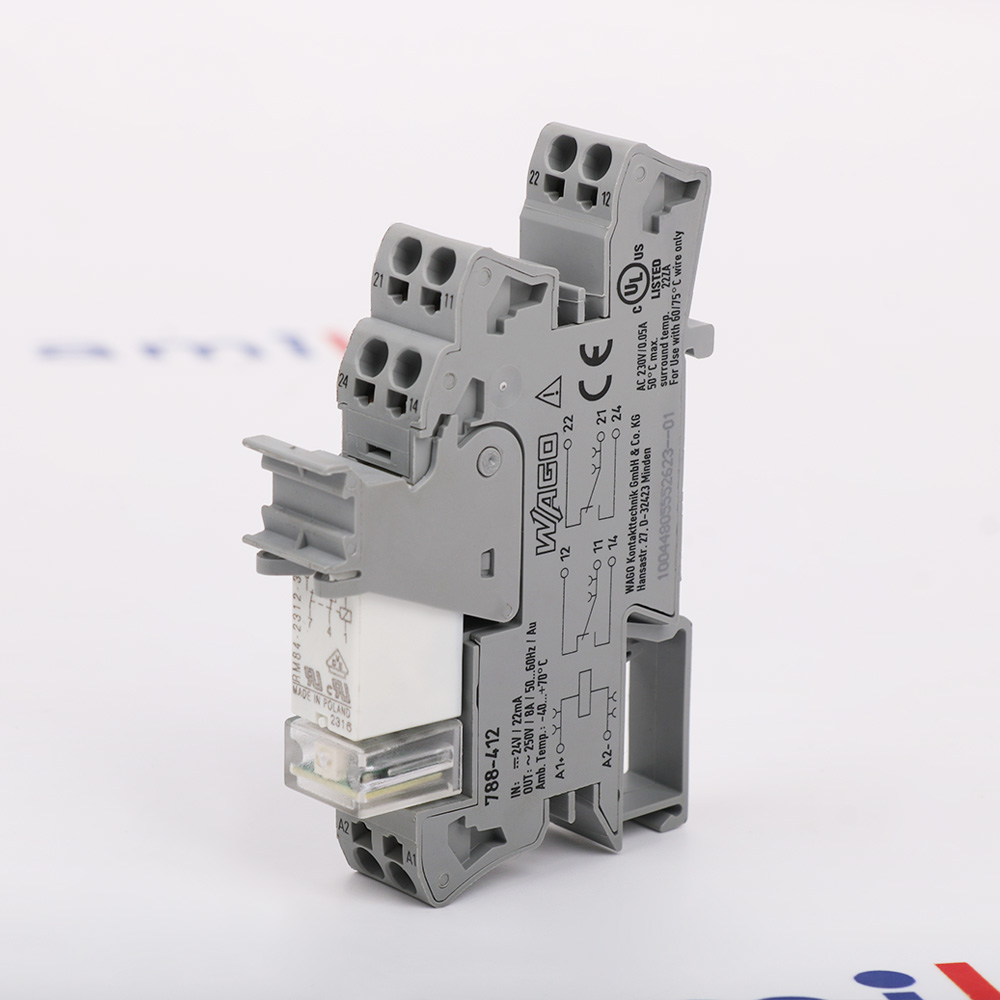

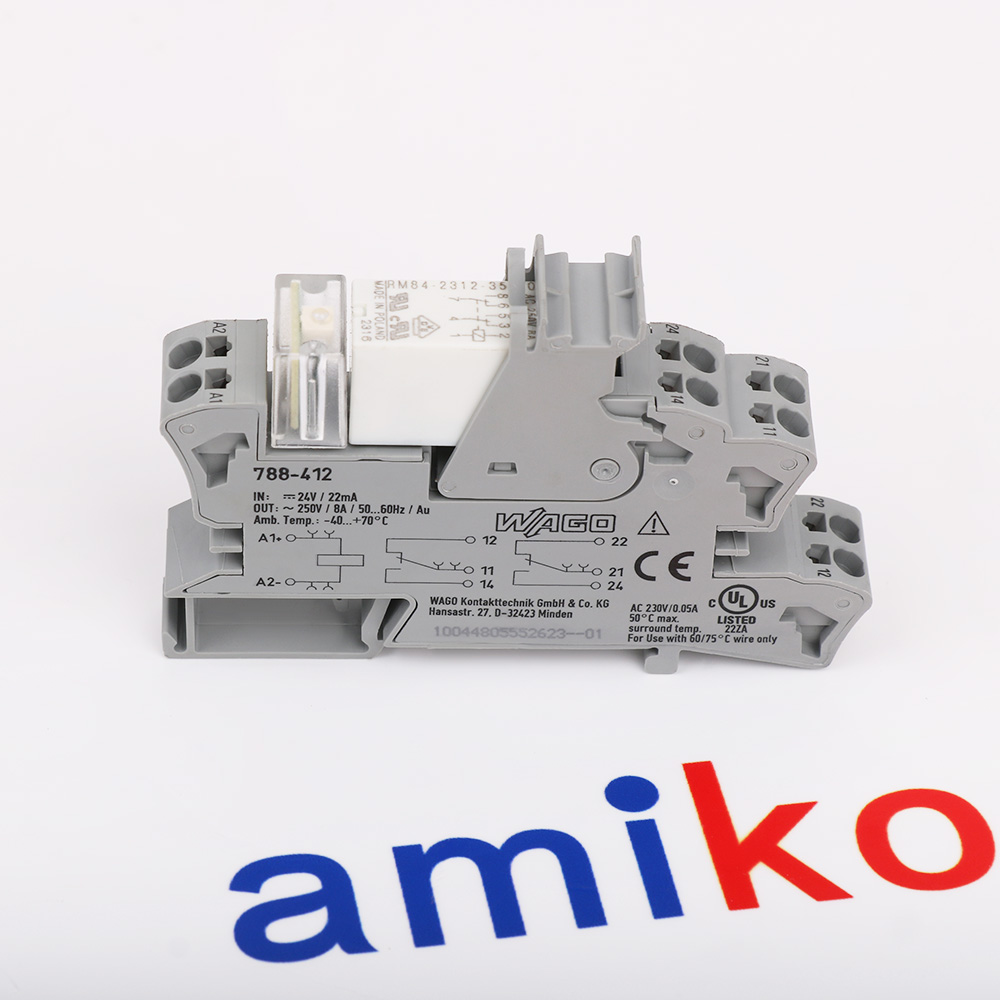

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 788-412
-
Product Model788-412
-
Product ParametersRelay module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size8.5x5.8x1.5cm
-
ManufacturerWago
-
Weight0.05 kg
-
Nominal input voltage UN24 VDC
-
Input voltage range±10 %
-
Nominal input current at UN17 mA
-
Contact material (relay)AgNi + Au
-
Limiting continuous current8 A
-
Switching Voltage, Max250 VAC
-
Switching power (resistive) max.AC 2000 VA; DC (see load limit curve)
-
Switching capacityAC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC
-
Recommended minimum load5 V / 2 mA / 50 mW
-
Pull-in time (typ.)7ms
-
Drop-out time (typ.)3ms
-
Bounce time (typ.)6ms
-
Electrical life (NO; resistive load; 23 °C)100 x 10³ switching operations
-
Mechanical life30 x 10⁶ switching operations
Description
Nominal input voltage
24 VDC
2 changeover contacts
Limiting continuous current
8 A; with gold contacts
Red status indicator
Module width: 15 mm 2,50 mm²
gray
24 VDC
2 changeover contacts
Limiting continuous current
8 A; with gold contacts
Red status indicator
Module width: 15 mm 2,50 mm²
gray
Information
Overview
Manuals
Technical notes
Product Applications
Safety Requirements
Features:
- 24 VDC Nominal Input Voltage
- 2 Changeover Contacts (DPDT)
- 8 A Limiting Continuous Current
- Gold-Plated Contacts
- Red LED Status Indicator
The relay contacts are constructed from silver-nickel (AgNi) material with gold plating, providing superior electrical conductivity and resistance to oxidation. The module supports a limiting continuous current of 8 A per contact, with a maximum switching voltage of 250 VAC. For resistive AC loads, the maximum switching capacity is 2000 VA. The module is also rated for AC-15 loads at 3 A / 250 VAC and DC-13 loads at 2 A / 24 VDC. For low-level switching applications, the recommended minimum load is 5 V / 2 mA / 50 mW.
The 788-412 WAGO Relay module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
WAGO 788-412 Relay module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 788-412 features a red LED status indicator that provides immediate visual feedback on the relay's energized/de-energized state, facilitating quick troubleshooting and maintenance. The module employs WAGO's proven push-in connection technology (CAGE CLAMP®), accommodating solid conductors from 0.34 mm² to 2.5 mm² (22–14 AWG) and stranded conductors of the same range, with a stripping length of 9–10 mm.
With a compact width of only 15 mm, the module is designed for space-efficient installation on standard DIN-35 rails. The enclosure provides IP20 protection. The relay exhibits typical operating characteristics including a pick-up time of approximately 7 ms, a drop-out time of 3 ms, and a bounce time of approximately 6 ms. The electrical service life is rated at 100,000 switching cycles for normally open contacts under resistive load at 23°C, while the mechanical service life reaches 30,000,000 switching cycles. The maximum switching frequency is 10 cycles per minute under load and 1200 cycles per minute without load.
- Control Cabinet Engineering:15mm wide: cleans signals between PLC & field devices
- Factory Automation & Process Technology:Isolates fragile digital outputs from heavy spikes
- Building Automation:HVAC, motors, lighting & heaters
- Heavy Transportation:Vibration-proof: railway & shipbuilding use
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
De-energize Systems: Never work on the module or panel while circuits are energized. Disconnect all power sources prior to installation or maintenance to avoid high-voltage electric shocks.
Mind Thermal Limits: Housing surfaces heat up during normal operation. Allow the module to cool down completely before touching or swapping out the inner pluggable relay.
FAQs
-
What is the WAGO 788-412 ？
+The WAGO 788-412 is a pluggable relay module featuring a 24 VDC coil, dual (DPDT) changeover contacts, and hard gold-plated silver-nickel contacts. -
Does the module include a status indicator?
+Yes, it features a built-in red status LED indicator on the module housing for clear visual diagnostics. -
What wire sizes are compatible?
+It accepts solid or stranded conductors up to 2.50 mm² (22–12 AWG). -
What is the current threshold to protect the gold plating?
+To prevent evaporating the gold layer, do not exceed a switching voltage of 30 VDC or a current of 50 mA. Higher power will burn off the gold, converting it to standard silver-nickel behavior. -
Why does this model have gold contacts?
+Hard gold-plated silver-nickel (AgNi + Au) contacts provide low contact resistance. This makes them ideal for switching low-power, signal-level loads reliably without oxidation.
