PRODUCT DESCRIPTION

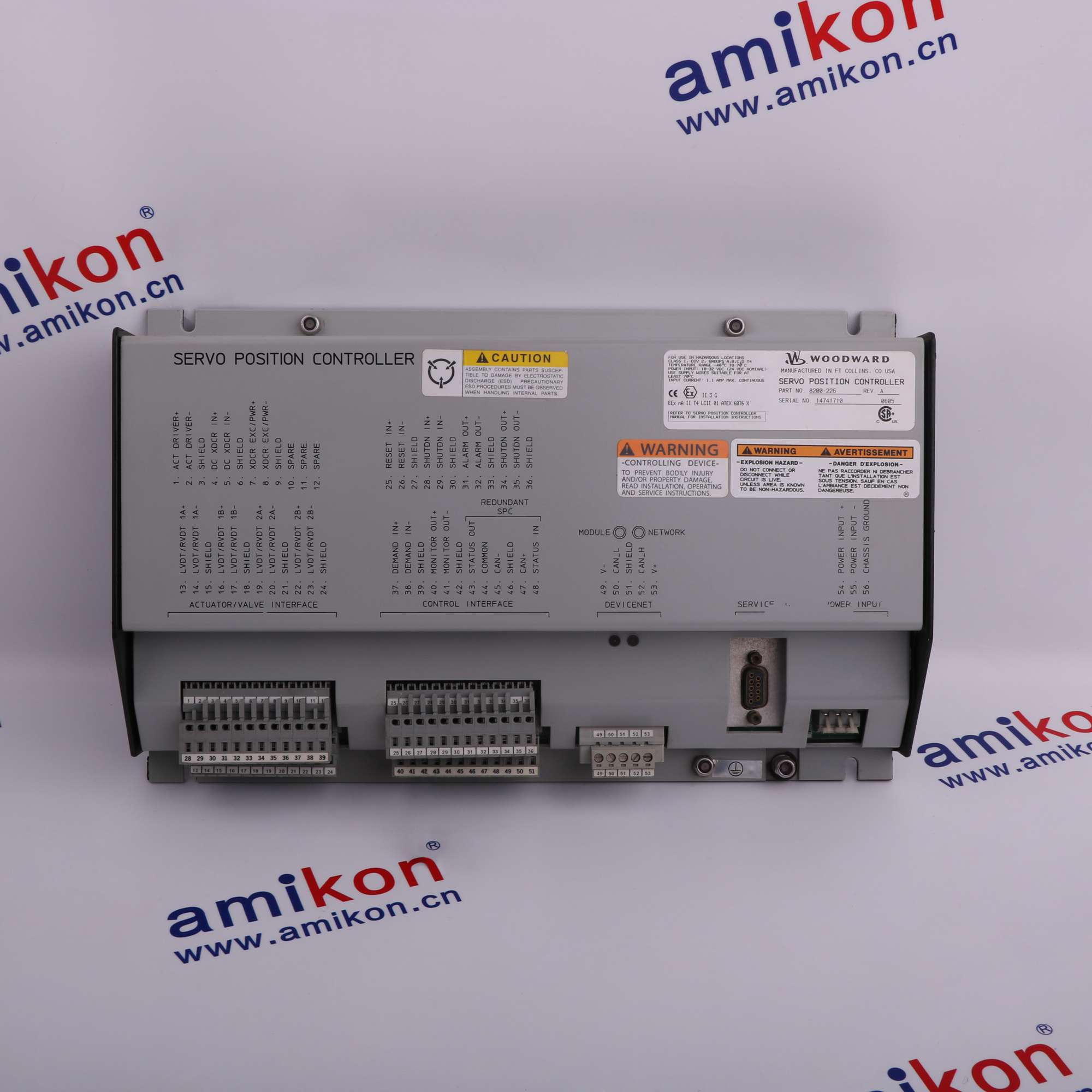

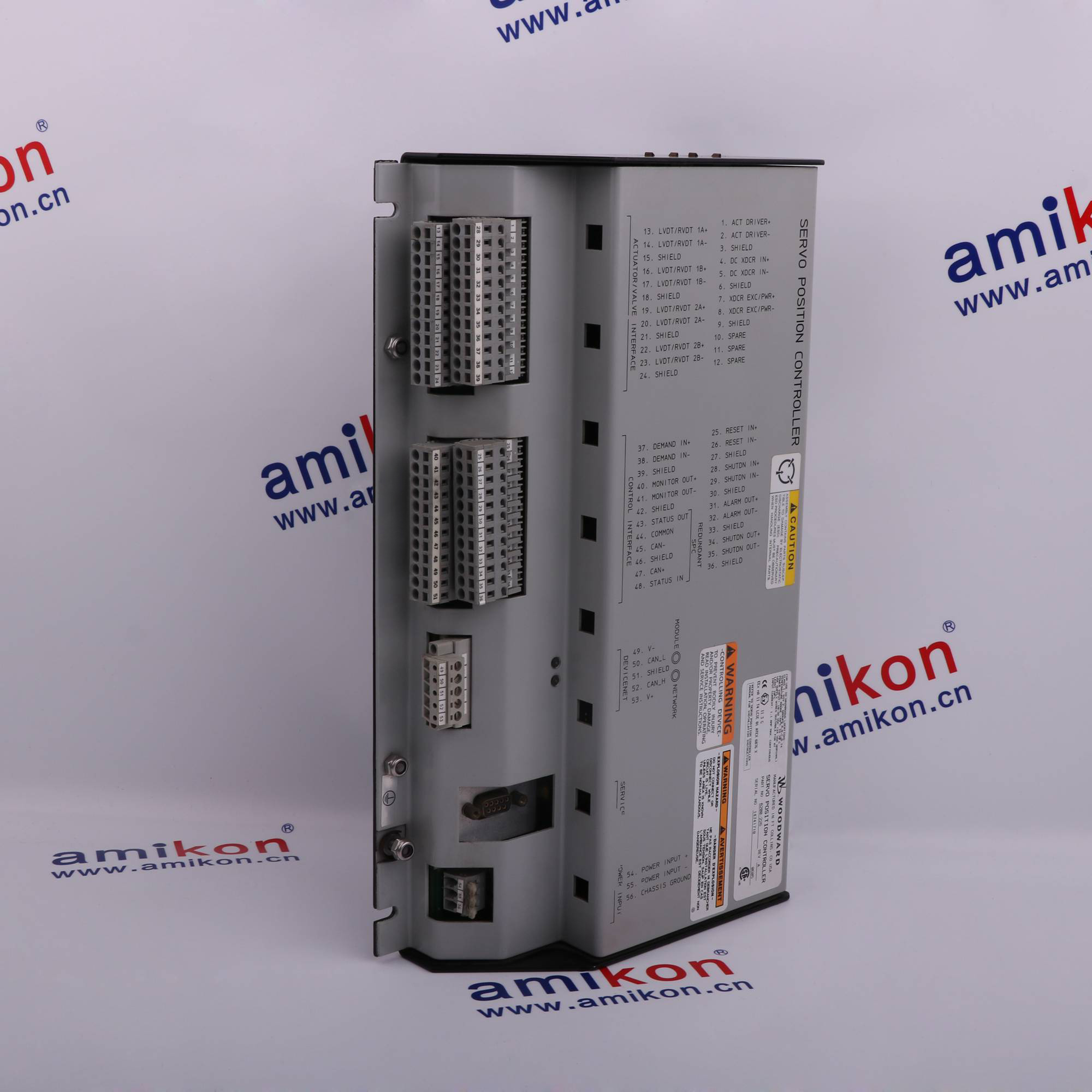

8200-226 Servo Position Controller
Woodward 8200-226 is an SPC servo position controller for an external actuator position loop. The SPC family combines position-demand processing, configurable actuator-drive current and redundant feedback capability. It supports a 4 to 20 mA analog position demand with 200 ohm input impedance and operates from an 18 to 32 V DC supply.
The driver can be configured for several bipolar or unipolar milliampere ranges, with adjustable dither at 25 Hz and 25 percent duty cycle. Two feedback channels accept the documented voltage, current or LVDT/RVDT arrangements. The family specification gives +/-0.25 percent full-scale position-loop accuracy at 25 C, while alarm and shutdown outputs use isolated FET drivers rated up to 500 mA.
The driver can be configured for several bipolar or unipolar milliampere ranges, with adjustable dither at 25 Hz and 25 percent duty cycle. Two feedback channels accept the documented voltage, current or LVDT/RVDT arrangements. The family specification gives +/-0.25 percent full-scale position-loop accuracy at 25 C, while alarm and shutdown outputs use isolated FET drivers rated up to 500 mA.
BEFORE YOU BUY
Confirm the complete 8200-226 identity
ACTUAL APPLICATIONS
Application fields for 8200-226
These broad application fields reflect the documented function and technical characteristics of 8200-226.
-
01 · POWER GENERATION
Thermal Power and Hydroelectric Energy
Thermal power fields and hydroelectric energyConventional electricity fields and renewable energy -
02 · OIL & GAS
Petroleum Resources and Offshore Gas
Conventional petroleum fields and offshore gasNatural gas fields and petroleum condensates -
03 · METALS
Primary Metallurgy and Nonferrous Resources
Primary metallurgy and nonferrous mineral fieldsFerrous metallurgy and specialty mineral fields
Technical specifications for 8200-226
-
Product Model8200-226
-
Product ParametersServo Position Controller
-
In stock1 unit
-
ManufacturerWoodward
-
Supply range18 to 32 V DC
-
Analog position demand4 to 20 mA
-
Demand input impedance200 ohm
-
Bipolar drive ranges+/-10, +/-25, +/-50, +/-100, +/-250 mA
-
Unipolar drive ranges0-25, 0-50, 0-100, 0-250 mA
-
Dither frequency25 Hz
-
Dither duty cycle25%
-
Position feedback channels2
-
Voltage feedback range0 to 12 V DC or 12 to 0 V DC
-
Current feedback range4 to 20 mA or 20 to 4 mA
-
Position-loop accuracy at 25 C+/-0.25% full scale
-
Relay-driver supply18 to 32 V DC
-
Maximum relay-driver current500 mA
-
Relay-driver leakage10 microampere
-
Operating temperature-40 to 70 C
View all additional
Alternative Names
8200-226
Woodward SPC
Servo Position Controller
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 8200-226 within Woodward SPC
Match the actuator demand and drive-current range to the installed SPC configuration. The available bipolar and unipolar ranges are configuration choices, not simultaneous output ratings, and the actual serial protocol version must be identified from the controller configuration.
Connect the position feedback in one of the documented voltage, current or LVDT/RVDT arrangements. The SPC supports two feedback channels, including redundant feedback selection; validate polarity and scaling for each channel before enabling the position loop.
Supply 18 to 32 V DC and keep the alarm/shutdown driver load within 500 mA. The IP20 bulkhead-mounted controller requires an appropriate enclosure and -40 to 70 C environment. Use the wiring diagram and established actuator safety procedure for the complete integration.
Features:
- Supply range: 18 to 32 V DC
- Analog position demand: 4 to 20 mA
- Woodward SPC
Use 8200-226 only within the documented Woodward SPC arrangement and applicable installation instructions.
INTERCHANGEABILITY
Replace 8200-226 within Woodward SPC
Save the installed 8200-226 configuration, actuator drive-current selection, null adjustment and feedback calibration before removal. Identify the actual protocol and demand arrangement instead of assuming that every SPC hardware or firmware version is interchangeable.
Label both feedback channels, actuator-drive leads, shutdown input and alarm wiring. Preserve grounding and the external protection circuit, and isolate the actuator safely before disconnecting any loop wiring.
After replacement, verify feedback scaling, demanded direction, travel response, redundant-input behavior and shutdown action under the approved commissioning procedure. Restore the validated settings before the actuator is permitted to affect the process.
Features:
- 8200-226 complete suffix
- Operating temperature: -40 to 70 C
- Servo-current range and feedback type matched
Use 8200-226 only within the documented Woodward SPC arrangement and applicable installation instructions.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact-model technical data for 8200-226
- Document applicability checked against the complete identity
- Directory links by subcategory and brand
Documentation for 8200-226 must match the installed product identity and supplied configuration.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product size33.00 x 20.30 x 7.60 cm
-
Net weight1.56 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 8200-226
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What analog demand impedance does 8200-226 present?
The SPC specification applicable to 8200-226 gives a 4 to 20 mA demand input with 200 ohm input impedance. -
Are all actuator-current ranges active together on 8200-226?
No. The bipolar and unipolar milliampere ranges for 8200-226 are configurable alternatives selected for the actual actuator. -
What dither frequency is documented for 8200-226?
The SPC driver specification lists 25 Hz dither and 25 percent duty cycle for 8200-226, with adjustable current amplitude. -
Can 8200-226 accept two position feedback signals?
The SPC family applicable to 8200-226 has two position-sensing channels and supports redundant feedback arrangements; configuration and scaling remain essential. -
How much current can the relay drivers of 8200-226 switch?
The isolated FET relay drivers applicable to 8200-226 are rated up to 500 mA over 18 to 32 V DC, with 10 microampere leakage. -
Should a protocol version be inferred from the SPC name of 8200-226?
No. SPC family literature describes protocol alternatives, so the actual 8200-226 configuration and installed interface must be identified before a protocol-equivalent replacement is offered. -
Which actuator details should a distributor request for 8200-226?
Request the complete 8200-226 label, installed configuration, drive-current range, feedback type and required quantity. These details distinguish the appropriate configured spare. -
What should the supplied scope for 8200-226 state?
The quotation for 8200-226 should identify the controller, condition and any explicitly included configuration or connectors. External actuators, cables and commissioning work should not be assumed included.
READY TO VERIFY YOUR PART?
Get a 8200-226 quote with price, lead time and revision check.
Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, drives and servo motors, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
