PRODUCT DESCRIPTION

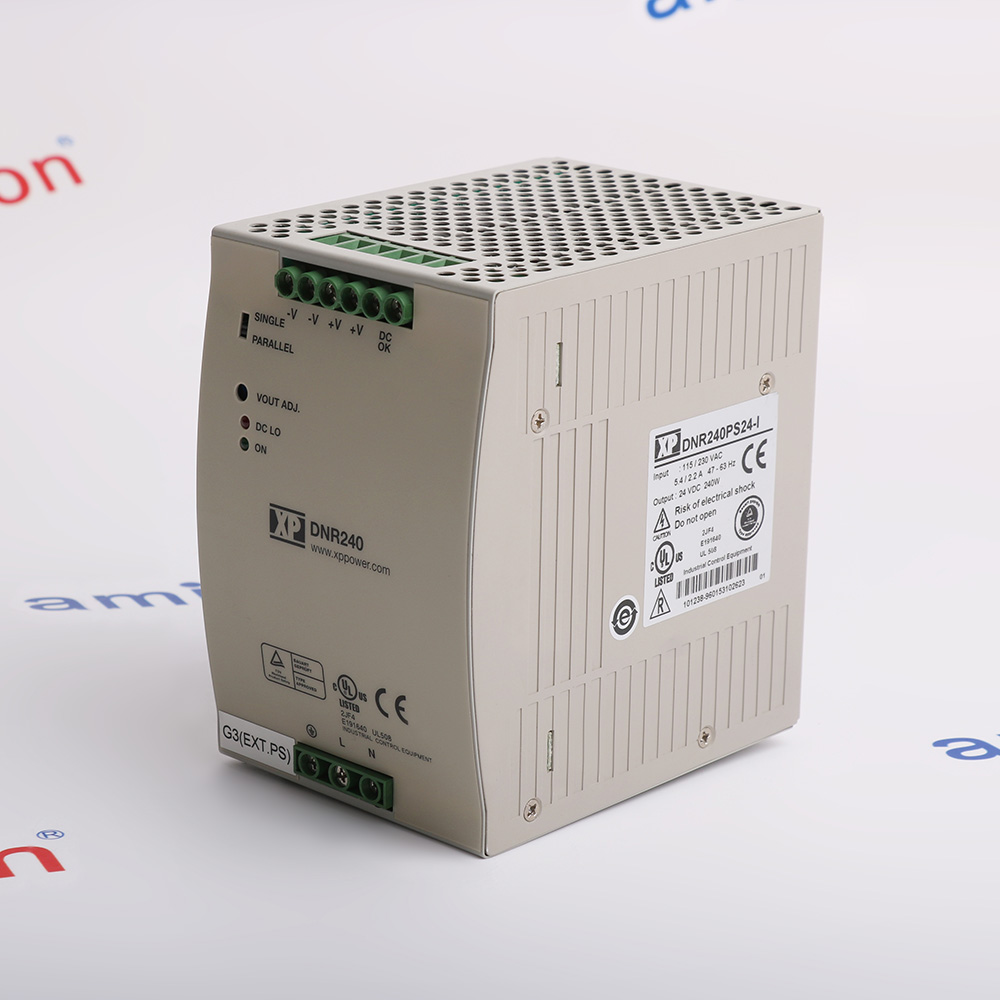

DNR240PS24-I 240 W 24 V DC power supply
XP Power DNR240PS24-I is a single-phase AC-DC power supply in the DNR240 DIN rail range for industrial electronics. It provides a regulated 24 V DC output at up to 10 A, delivering 240 W for compatible automation and control loads.
The convection-cooled supply mounts on TS35 DIN rail and automatically selects its 90 to 132 V or 180 to 264 V AC input range. Output adjustment, DC status indication and the documented parallel-operation arrangement support power distribution requirements. Overload and overvoltage protection provide automatic recovery, while the supply delivers full rated power from −40 to +60 ℃ with derating above +60 ℃.
The convection-cooled supply mounts on TS35 DIN rail and automatically selects its 90 to 132 V or 180 to 264 V AC input range. Output adjustment, DC status indication and the documented parallel-operation arrangement support power distribution requirements. Overload and overvoltage protection provide automatic recovery, while the supply delivers full rated power from −40 to +60 ℃ with derating above +60 ℃.
BEFORE YOU BUY
Confirm the complete 240 w 24 v dc power supply
ACTUAL APPLICATIONS
Application context for DNR240PS24-I
DNR240PS24-I is a 240 W 24 V DC power supply in the DNR240 DIN rail power supplies range. Compatible configurations serve industrial automation, machine building, process industries. Suitability depends on the documented supply, connected loads and controller or machine configuration.
-
01 · INDUSTRIAL AUTOMATION
Industrial Manufacturing and Automated Factory Production
Factory Production AutomationIndustrial Process Monitoring -
02 · MACHINE BUILDING
Machine Building and Production Process Automation
Machine Control EngineeringAutomated Production Machinery -
03 · PROCESS INDUSTRIES
Industrial Process Production and Plant Automation
Process Measurement and ControlContinuous Production Automation
Technical specifications for DNR240PS24-I
-
Product ModelDNR240PS24-I
-
Product Parameters240 W 24 V DC power supply
-
In stock10 units
-
ManufacturerXP Power
-
Rated output power240 W
-
Output voltage24 V DC
-
Output current10 A
-
AC input range90–132 / 180–264 V AC
-
DC input range210–375 V DC
-
Input frequency47–63 Hz
-
Output adjustment22.5–28.5 V
-
Efficiency89% typical
-
Ripple and noise100 mV peak-to-peak
-
Line regulation±0.5% maximum
-
Load regulation±1% maximum
-
Input-output isolation3000 V AC
-
Start-up delay<1 s
-
Operating temperature−40 to +70 ℃; derating above +60 ℃
-
Parallel capacity3 units maximum
View all additional
Alternative Names
DNR240PS24-I
DNR240 DIN rail power supplies 240 W 24 V DC power supply
240 W 24 V DC power supply DNR240PS24-I
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate DNR240PS24-I 240 w 24 v dc power supply
XP Power DNR240PS24-I is a single-phase AC-DC power supply in the DNR240 DIN rail range for industrial electronics. It provides a regulated 24 V DC output at up to 10 A, delivering 240 W for compatible automation and control loads.
Match DNR240PS24-I to the installed DNR240 DIN rail power supplies configuration. Compare the supply, electrical interfaces, connectors and companion equipment with the applicable drawing before reconnecting the article.
Preserve the approved configuration and complete the documented checks for the connected 240 w 24 v dc power supply. Record the verified connections and final operating results with the equipment record.
Features:
- Rated output power: 240 W
- Output voltage: 24 V DC
- Output current: 10 A
The DNR240PS24-I 240 w 24 v dc power supply requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify DNR240PS24-I 240 w 24 v dc power supply
Verify the complete DNR240PS24-I identity and its 240 w 24 v dc power supply role before exchange. Match the installed revision, electrical interfaces and companion hardware; a similar housing does not establish interchangeability.
Record the wiring, grounding, connector allocation and configuration associated with DNR240PS24-I. Isolate the affected equipment according to its applicable instructions before disconnecting the article.
After fitting the verified DNR240PS24-I, restore the approved connections and configuration. Complete the affected signal, communication or power checks and retain the acceptance results for the supplied article.
Features:
- Rated output power: 240 W
- Output voltage: 24 V DC
- Output current: 10 A
The DNR240PS24-I 240 w 24 v dc power supply requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the DNR240PS24-I 240 w 24 v dc power supply must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size14.20 × 12.50 × 8.30 cm
-
Shipping weight1.36kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504401400
-
OriginUnited Kingdom
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about DNR240PS24-I
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the documented role of DNR240PS24-I?
XP Power DNR240PS24-I is a single-phase AC-DC power supply in the DNR240 DIN rail range for industrial electronics. It provides a regulated 24 V DC output at up to 10 A, delivering 240 W for compatible automation and control loads. -
Which interfaces distinguish DNR240PS24-I?
The convection-cooled supply mounts on TS35 DIN rail and automatically selects its 90 to 132 V or 180 to 264 V AC input range. Output adjustment, DC status indication and the documented parallel-operation arrangement support power distribution requirements. Overload and overvoltage protection provide automatic recovery, while the supply delivers full rated power from −40 to +60 ℃ with derating above +60 ℃. -
Which rated output power applies to DNR240PS24-I?
240 W is the supported value for DNR240PS24-I. Preserve the associated electrical and companion-hardware configuration. -
What does output voltage specify for DNR240PS24-I?
24 V DC. This describes the identified 240 w 24 v dc power supply and does not establish ratings for a different article. -
What must be recorded before exchanging DNR240PS24-I?
Record the wiring, grounding, connector allocation and configuration associated with DNR240PS24-I. Isolate the affected equipment according to its applicable instructions before disconnecting the article. -
Which acceptance check follows a DNR240PS24-I replacement?
After fitting the verified DNR240PS24-I, restore the approved connections and configuration. Complete the affected signal, communication or power checks and retain the acceptance results for the supplied article. -
Which identification should accompany a DNR240PS24-I order?
Provide DNR240PS24-I, quantity, installed-equipment identification and connector photographs. State whether the request includes companion hardware or only the 240 w 24 v dc power supply. -
What should be inspected when DNR240PS24-I arrives?
Compare the DNR240PS24-I label, connector arrangement and physical condition with the ordered article. Record any discrepancy before fitting it to the DNR240 DIN rail power supplies equipment.
