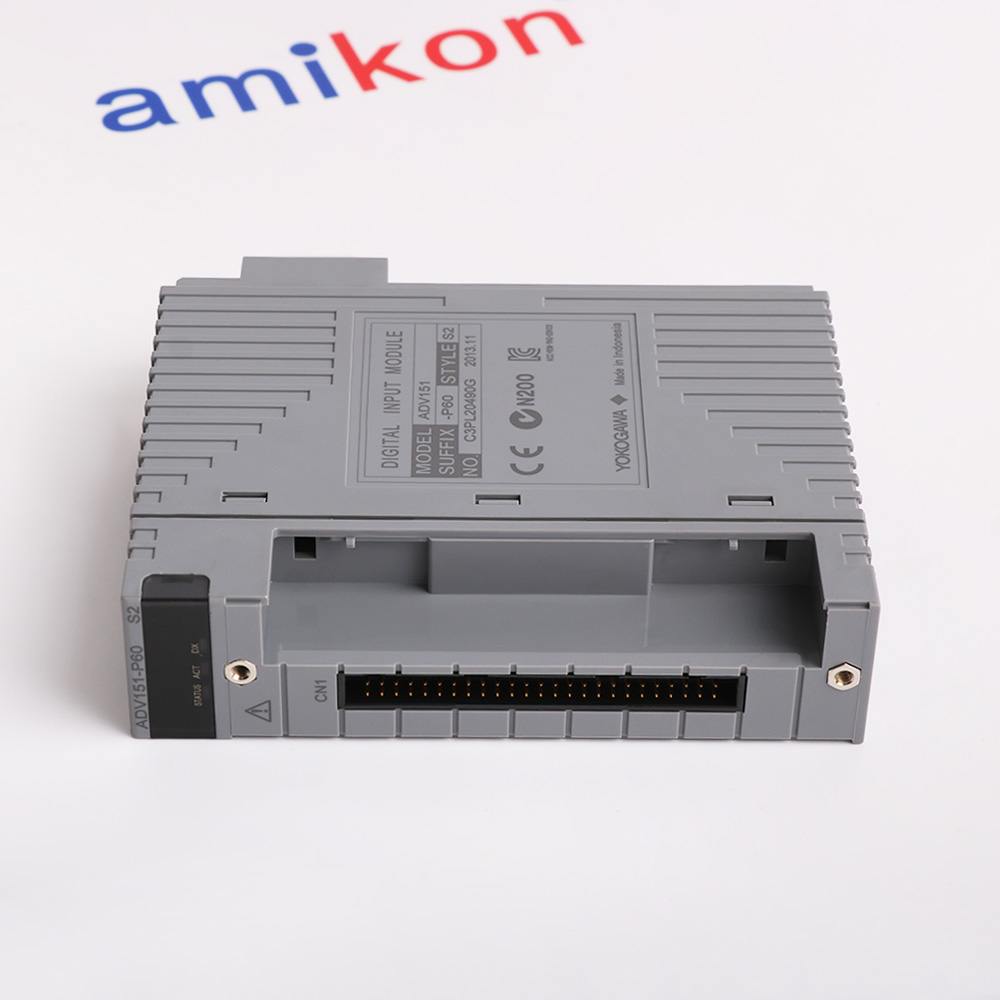

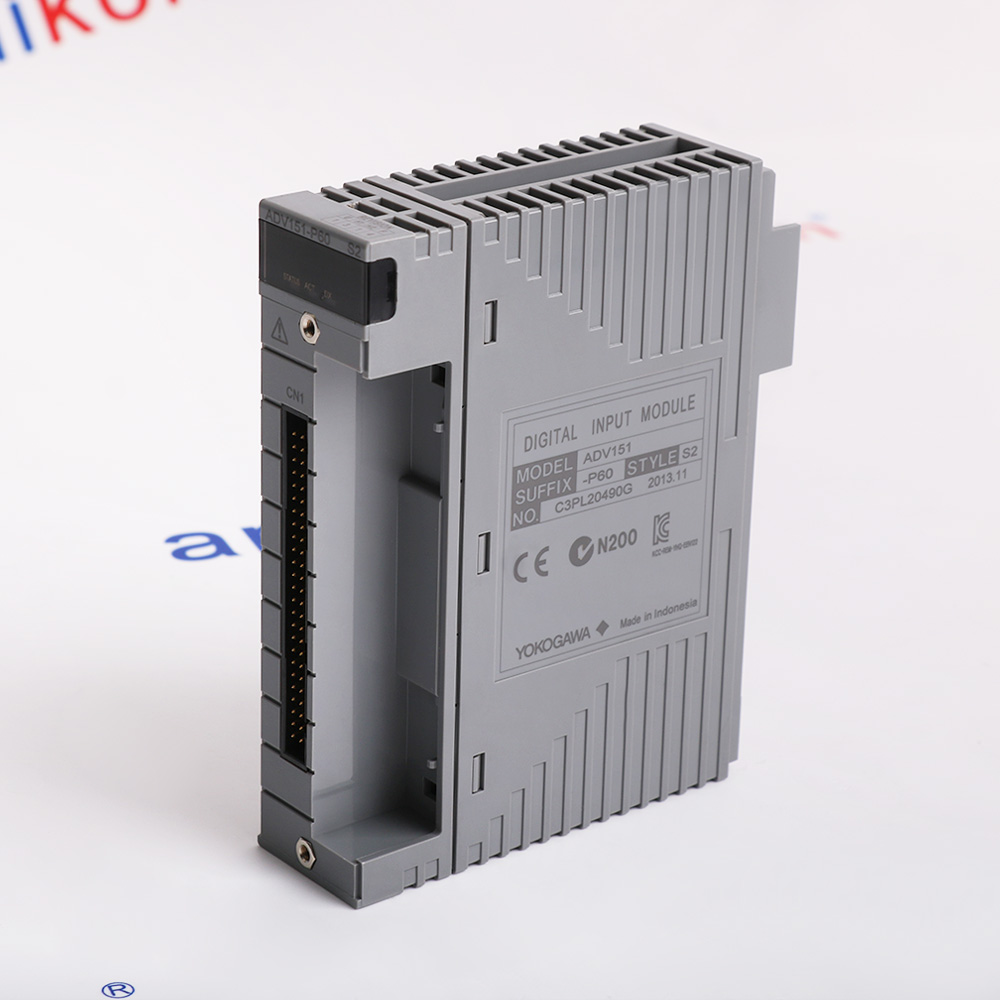

- ADV151-P60 S2
In Stock
Ships by Saturday, July 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for ADV151-P60 S2
-
Product ModelADV151-P60 S2
-
Spare ModelADV151-P60
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x10.6x13cm
-
ManufacturerYokogawa
-
Weight0.25 kg
-
Between input signal and system2 kV AC, For 1 minute
-
Between commons500 V AC, For 1 minute, common every 16-channel
-
Number of input channels64
-
Rated input voltage24 V DC
-
Input ON voltage20 to 26.4 V DC
-
Input OFF voltage5.0 V DC or less
-
Input current2.5 mA±20 % / channel
-
Maximum allowable input voltage30.0 V DC
-
Input response time8 ms or less
-
Minimum ON detection time20 ms
-
Maximum ON/OFF cycle25 Hz
-
Maximum current consumption500 mA (5 V DC)
Description
The Yokogawa ADV151-P60 S2 is a Digital Input Module for the Yokogawa FIO (Field Input/Output) system, providing 32 channels of 24V DC ON/OFF signal acquisition for industrial process control applications. The ADV151-P60 S2 receives digital input signals from field devices and transmits them to the controller for processing, serving as a critical interface between field equipment and the CENTUM VP control system.
The ADV151-P60 S2 can be installed in the ESB Bus Node Unit (ANB10S, ANB10D), the Optical ESB Bus Node Unit (ANB11S, ANB11D), and the Field Control Unit (AFV30S, AFV30D, AFV40S, AFV40D), providing flexible integration options within the Yokogawa distributed control system architecture. The ADV151-P60 S2 can be used in dual redundant configuration, enhancing system availability by providing backup input capability for critical process control applications.
The ADV151-P60 S2 supports two function assignment patterns for channel configuration. Pattern 1 of the ADV151-P60 S2 assigns all 32 channels as Status Input (SI), while Pattern 2 assigns all 32 channels as Pulse Input (PB). This flexibility allows the ADV151-P60 S2 to be configured according to the specific requirements of the application, whether standard digital status monitoring or pulse counting functionality is needed.
The ADV151-P60 S2 can be installed in the ESB Bus Node Unit (ANB10S, ANB10D), the Optical ESB Bus Node Unit (ANB11S, ANB11D), and the Field Control Unit (AFV30S, AFV30D, AFV40S, AFV40D), providing flexible integration options within the Yokogawa distributed control system architecture. The ADV151-P60 S2 can be used in dual redundant configuration, enhancing system availability by providing backup input capability for critical process control applications.
The ADV151-P60 S2 supports two function assignment patterns for channel configuration. Pattern 1 of the ADV151-P60 S2 assigns all 32 channels as Status Input (SI), while Pattern 2 assigns all 32 channels as Pulse Input (PB). This flexibility allows the ADV151-P60 S2 to be configured according to the specific requirements of the application, whether standard digital status monitoring or pulse counting functionality is needed.
Alternative Names
ADV151-P60 SZ
ADV151-P6O S2
ADV15I-P60 S2
ADVI51-P60 S2
AOV151-P60 S2
ADV151-P60-S2
ADV151-P60-SZ
ADV151-P6O-S2
ADV15I-P60-S2
ADVI51-P60-S2
ADV151 P60 S2
Information
Overview
Manuals
Application Notes
Product Applications
Wiring Guidelines
Features:
- 32-Channel 24V DC Digital Input Module
- Dual Redundant Configuration Capability
- Compatible with ESB Bus Node Units and Field Control Units
- Two Function Assignment Patterns (Pattern 1: SI, Pattern 2: PB)
- 500V AC Withstanding Voltage
The Yokogawa ADV151-P60 S2 Digital Input Module is suitable for Yokogawa CENTUM CS and CENTUM VP distributed control systems, and can be installed in FIO architectures including ESB Bus Node Units and Field Control Units. The ADV151-P60 S2 receives 24 V DC ON/OFF signals, detects field device status changes, and provides electrically isolated input processing for industrial automation applications.
The ADV151-P60 S2 Yokogawa Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV151-P60 S2 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ADV151-P60 S2 includes pushbutton input functionality (suffix code -P), which detects and counts edge transitions from pushbutton or momentary contact inputs. The minimum ON detection time is 20 ms for pushbutton inputs, with a maximum ON/OFF cycle rate of 25 Hz. The input response time for standard status inputs is 8 ms or less, ensuring rapid detection of field device state changes.
The module features LED status display indicators (suffix code 6) that provide visual ON/OFF status for each input channel, facilitating troubleshooting and system monitoring without requiring software interrogation.
Electrical isolation is provided at 2 kV AC between input signals and the system for 1 minute, and 500 V AC between common terminals for every 16 channels. The module consumes a maximum of 500 mA at 5 V DC from the system backplane.
- Oil & Gas: Monitors valve positions, pump statuses, and safety shutdown switches
- Chemical Plants: Captures discrete signals from pressure/temperature switches in reactors/vessels
- Power Generation: Monitors emergency stops, breaker statuses, and turbine interlocks
- Manufacturing/Water: Controls filtration systems and tracks conveyor line sensors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety First: Disconnect the power supply to all relevant circuits before wiring to prevent short circuits and live-wiring damage.
Dedicated Cables: Use Yokogawa’s dedicated cables (e.g., AKB331 Cable for 32-point connections).
Polarity: All connected voltage input signals must share the same polarity per common group (grouped every 16 channels).
Verification: Double-check channel mapping sequences against your system configuration to avoid signal acquisition errors
Technical notes
The ADV151-P60 S2 features compact dimensions of 32.8mm width, 107.5mm depth, and 130mm height, enabling high-density mounting in the Yokogawa I/O chassis. The ADV151-P60 S2 is designed for reliable operation in industrial environments and conforms to applicable standards for industrial control equipment. The ADV151 is part of the comprehensive Yokogawa digital I/O module family that includes the ADV161 (64-channel digital input), ADV551 (32-channel digital output), and ADV561 (64-channel digital output) modules, providing scalable solutions for diverse I/O requirements.
FAQs
-
What is the ADV151-P60 S?
+The Yokogawa ADV151-P60 S2 is a 32-channel, 24 V DC isolated digital input module. -
What is the difference between the ADV151-P60 and older models?
+The current ADV151-P60/D5A00 module serves as a direct, upgraded replacement for legacy models such as the ADV151-P10/D5A00-S2 -
What signal types does it support?
+This module handles both standard dry contact inputs and 24 V DC voltage signals commonly emitted by industrial field devices. -
What isolation protection does it offer?
+It provides a high level of electrical safety with 2 kV AC withstanding voltage between the input signal lines and the internal system logic, preventing field spikes from damaging the control backplane.
