PRODUCT DESCRIPTION

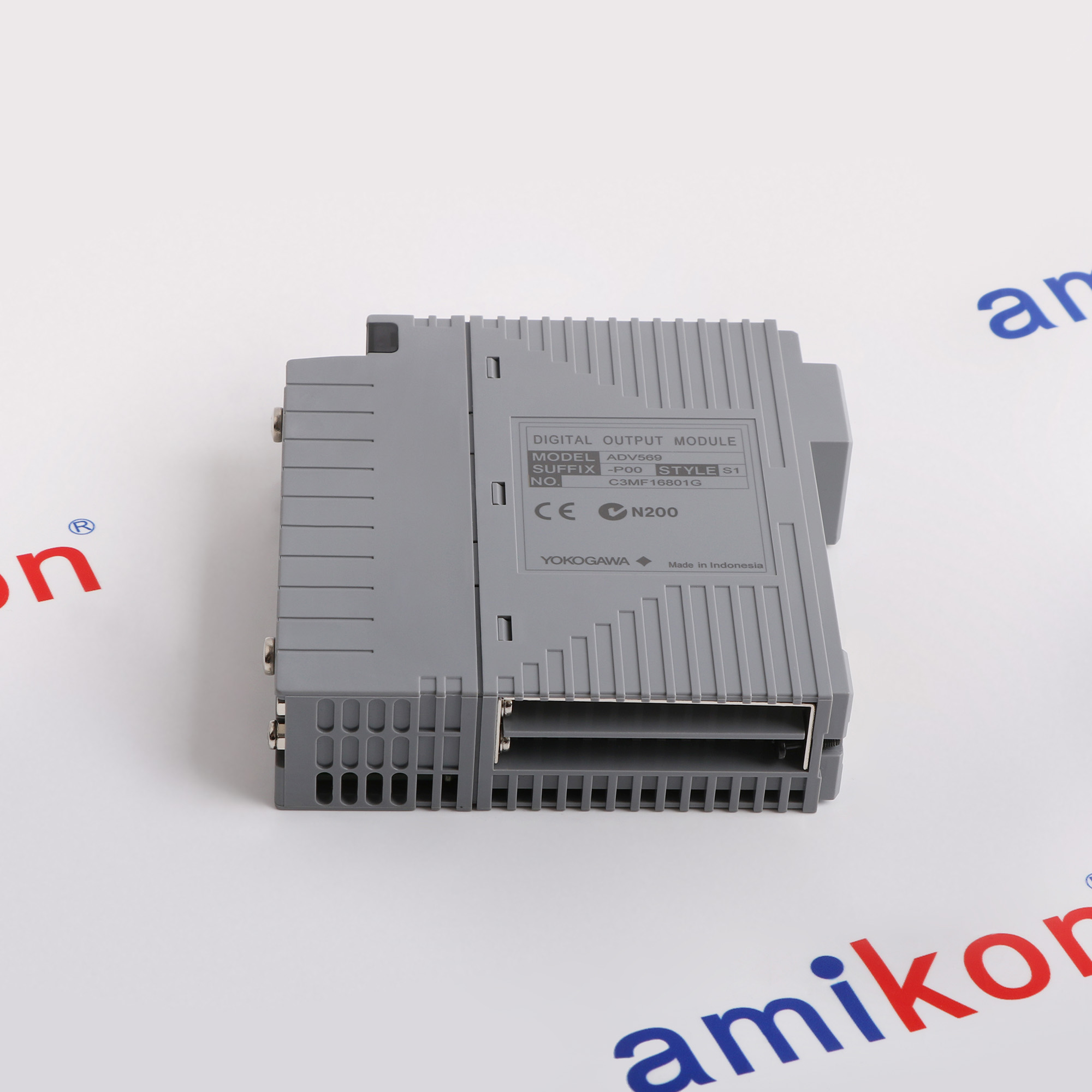

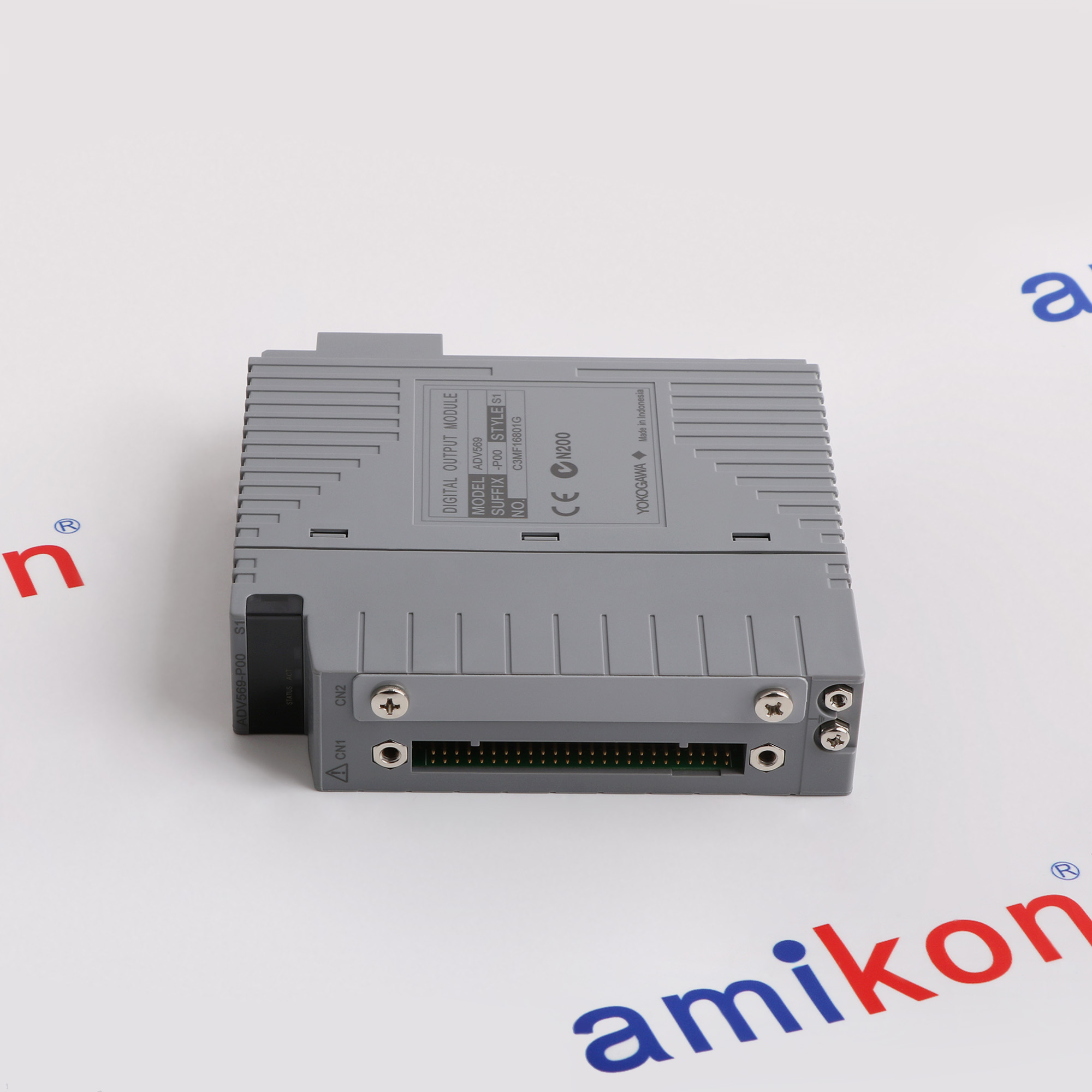

ADV569-P00 S1 Digital Transistor Output Module
Yokogawa ADV569-P00 S1 is a digital transistor output module in the CENTUM FIO range. It supplies transistor contact outputs to the documented CENTUM-ST-compatible FIO arrangement. The P00 suffix selects pulse/time-proportioning functions and the basic environment execution.
The module provides 64 outputs with a common every 16 channels. Each output is rated up to 30 V DC and 100 mA. Status output, one-shot pulse width and time-proportioning output are available through the configured point modes. Use the KS9 cable and follow the inductive-load protection requirements.
The module provides 64 outputs with a common every 16 channels. Each output is rated up to 30 V DC and 100 mA. Status output, one-shot pulse width and time-proportioning output are available through the configured point modes. Use the KS9 cable and follow the inductive-load protection requirements.
BEFORE YOU BUY
Confirm the complete digital transistor output module
ACTUAL APPLICATIONS
Application context for ADV569-P00 S1
ADV569-P00 S1 is a digital transistor output module in the CENTUM FIO range. It serves oil & gas, chemical processing, power generation. Suitability depends on the selected process, electrical ratings and installed configuration.
-
01 · OIL & GAS
Oil Refining and Natural Gas Production
Petroleum Refining and ProcessingNatural Gas Processing Production -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Petrochemical Production
Industrial Chemical ManufacturingPetrochemical Processing and Production -
03 · POWER GENERATION
Electric Power Generation and Energy Production
Thermal Power GenerationBiomass Energy and Cogeneration
Technical specifications for ADV569-P00 S1
-
Product ModelADV569-P00 S1
-
Product ParametersDigital Transistor Output Module
-
In stock5 units
-
ManufacturerYokogawa
-
Output point count64
-
Common groupingEvery 16 channels
-
Load contact voltage30 V DC maximum
-
Load contact current100 mA per channel maximum
-
Status output response16 ms maximum
-
Pulse width range8 ms to 7200 s
-
Pulse width resolution8 ms, up to 1 ms ON/OFF delay
-
Maximum 5 V consumption800 mA
-
External signal cableKS9
-
Legacy signal interfaceCENTUM-ST ST7 compatible
-
Output circuitTransistor contact
-
Pulse function executionPulse width and time-proportioning output
View all additional
