PRODUCT DESCRIPTION

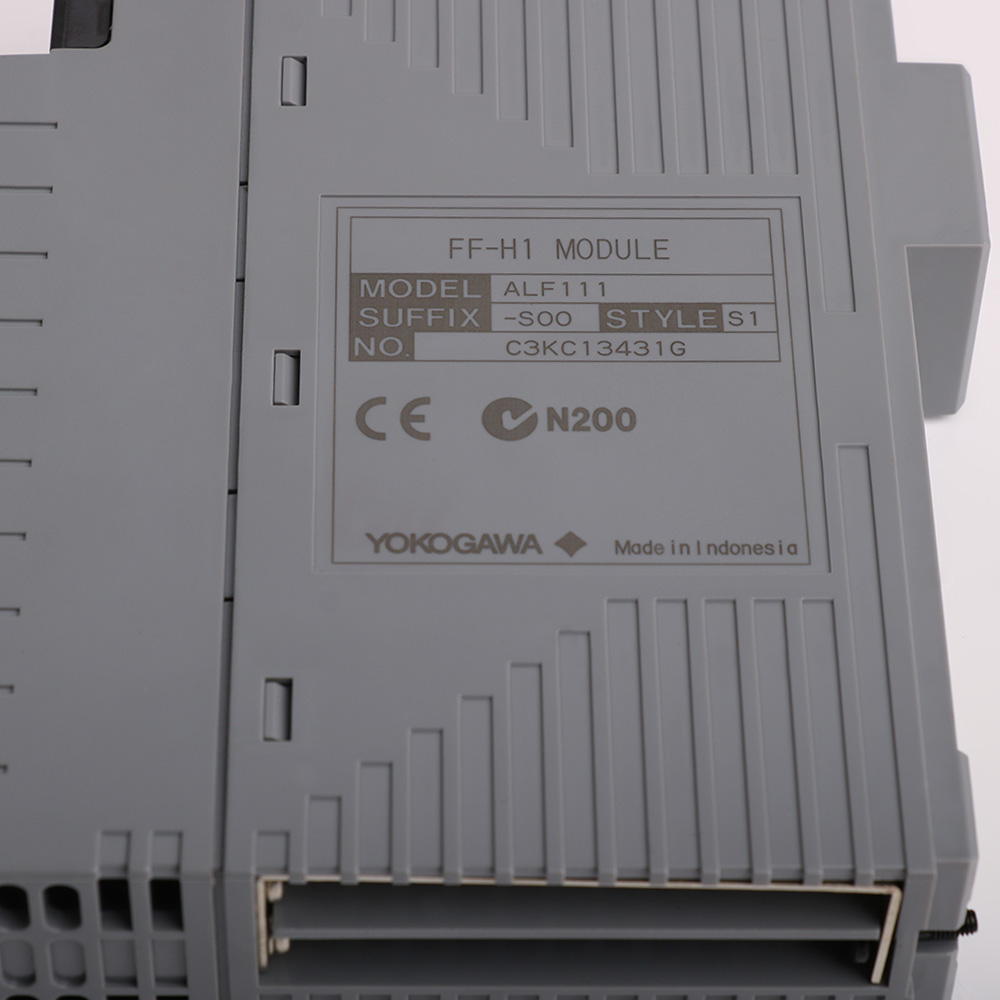

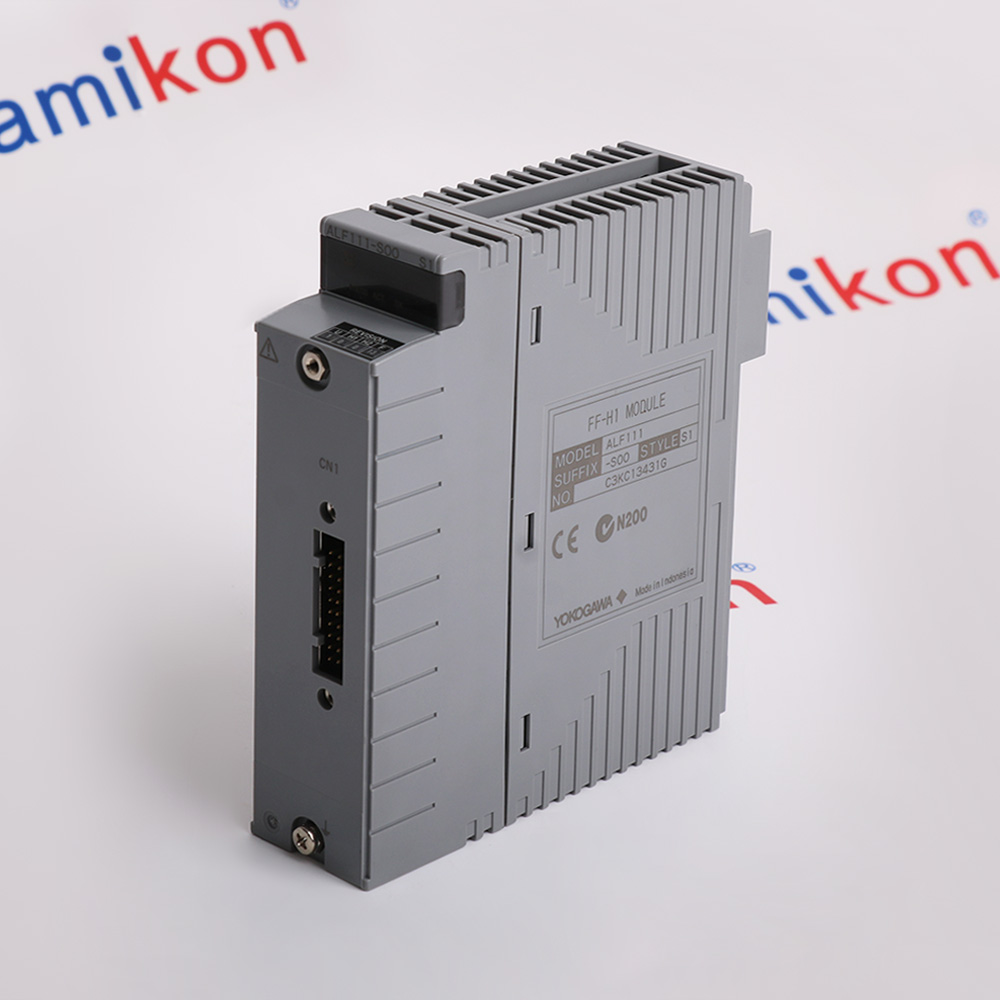

ALF111-S00 S1 FOUNDATION Fieldbus Communication Module
Yokogawa ALF111-S00 S1 is the ALF111 FOUNDATION Fieldbus communication module for compatible CENTUM field control stations. It connects configured H1 fieldbus segments to the station process-control project.
The module provides four H1 ports at 31.25 kbit/s, with pressure-clamp connections and selectable built-in terminators. Two adjacent modules can form the documented redundant arrangement. Segment loading, device capacity and function-block allocation must follow the applicable station and fieldbus design.
The module provides four H1 ports at 31.25 kbit/s, with pressure-clamp connections and selectable built-in terminators. Two adjacent modules can form the documented redundant arrangement. Segment loading, device capacity and function-block allocation must follow the applicable station and fieldbus design.
BEFORE YOU BUY
Confirm the complete foundation fieldbus communication module
ACTUAL APPLICATIONS
Application context for ALF111-S00 S1
ALF111-S00 S1 is a foundation fieldbus communication module associated with CENTUM FOUNDATION Fieldbus ALF111. Relevant industry settings include chemical processing, oil and gas, pharmaceutical production. Compatibility depends on the installed hardware, connected circuits and documented configuration.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Continuous Process Production
Industrial Chemical Process ControlPetrochemical Processing and Production -
02 · OIL & GAS
Oil and Natural Gas Production
Oil Exploration and ProductionNatural Gas Processing Production -
03 · PHARMACEUTICAL PRODUCTION
Pharmaceutical Manufacturing and Batch Production
Pharmaceutical Batch Process ControlFormulation Production and Processing
Technical specifications for ALF111-S00 S1
-
Product ModelALF111-S00 S1
-
Spare ModelALF111-S00
-
Product ParametersFOUNDATION Fieldbus Communication Module
-
In stock5 units
-
ManufacturerYokogawa
-
H1 communication port allocation4 ports, 1 segment per port
-
H1 transmission rate31.25 kbit/s
-
Control I/O points per segment48 maximum
-
Devices per single segment32 maximum including ALF111
-
Field devices per redundant segment30 maximum
-
Maximum module consumption0.5 A
-
Insulation withstand1500 V AC for 1 minute, field/system and between ports
-
Maximum function blocks per module100 FF faceplate blocks
-
Maximum modules per FCS64 modules or 32 redundant pairs
-
High-speed I/O per ER-bus segment6 points
-
Redundant module allocation2 adjacent ALF111 modules
-
Terminal arrangementPressure-clamp terminals; switchable built-in terminators
-
FCS faceplate block capacity1500 general-purpose or 1000 batch database blocks
-
Capability file specificationFOUNDATION Fieldbus Common File Format FS1.5
-
H1 electrical signallingLow-speed voltage mode
View all additional
Alternative Names
ALF111-S00 S1
CENTUM ALF111 FOUNDATION Fieldbus module
Four-port H1 communication interface
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate ALF111-S00 S1 foundation fieldbus communication module
Match ALF111-S00 S1 to the installed CENTUM FOUNDATION Fieldbus ALF111 hardware and project. Confirm the connector layout, supplied revision and required companion parts before selecting this foundation fieldbus communication module.
The module provides four H1 ports at 31.25 kbit/s, with pressure-clamp connections and selectable built-in terminators. Two adjacent modules can form the documented redundant arrangement. Segment loading, device capacity and function-block allocation must follow the applicable station and fieldbus design.
Use the applicable controlled documentation and accepted project records for ALF111-S00 S1. Check the affected connections and validate the configured function before returning the equipment to service.
Features:
- H1 communication port allocation: 4 ports, 1 segment per port
- H1 transmission rate: 31.25 kbit/s
- Control I/O points per segment: 48 maximum
The ALF111-S00 S1 foundation fieldbus communication module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify ALF111-S00 S1 foundation fieldbus communication module
Identify the complete ALF111-S00 S1 article before exchange. Compare its label, connector arrangement and installed CENTUM FOUNDATION Fieldbus ALF111 role; a similar housing or related part number does not establish interchangeability.
Record the foundation fieldbus communication module connections and the accepted project settings. Isolate the affected circuits under the site procedure and preserve the associated wiring and configuration records.
After fitting the verified ALF111-S00 S1, restore the accepted configuration and check the affected functions. Retain the supplied-part identity and final test record for the CENTUM FOUNDATION Fieldbus ALF111 equipment.
Features:
- H1 communication port allocation: 4 ports, 1 segment per port
- H1 transmission rate: 31.25 kbit/s
- Control I/O points per segment: 48 maximum
The ALF111-S00 S1 foundation fieldbus communication module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ALF111-S00 S1 foundation fieldbus communication module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.2 × 12.4 × 13cm
-
Shipping weight0.35kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginJapan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about ALF111-S00 S1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How are the ALF111 H1 ports arranged?
The applicable documentation lists 4 ports, 1 segment per port for h1 communication port allocation. Check this value against the installed ALF111-S00 S1 configuration. -
What transmission rate is used by FOUNDATION Fieldbus H1?
The applicable documentation lists 31.25 kbit/s for h1 transmission rate. Check this value against the installed ALF111-S00 S1 configuration. -
How many control I/O points can an ALF111 segment support?
The applicable documentation lists 48 maximum for control i/o points per segment. Check this value against the installed ALF111-S00 S1 configuration. -
Does the single-segment device limit include ALF111 itself?
The applicable documentation lists 32 maximum including ALF111 for devices per single segment. Check this value against the installed ALF111-S00 S1 configuration. -
How many field devices are allowed with redundant ALF111 modules?
The applicable documentation lists 30 maximum for field devices per redundant segment. Check this value against the installed ALF111-S00 S1 configuration. -
What module consumption must the CENTUM supply allow?
The applicable documentation lists 0.5 A for maximum module consumption. Check this value against the installed ALF111-S00 S1 configuration. -
What fieldbus design information supports ordering an ALF111 spare?
Provide the complete ALF111-S00 S1 label, field-control-station identity and whether the installed arrangement uses single or redundant modules. -
Which ALF111 connections need incoming inspection?
Inspect the four H1 connection positions, removable terminal arrangement and exact suffix against the order and installed CENTUM configuration.
