Technical specifications for ATK4A-00 S1
-
Product ModelATK4A-00 S1
-
Spare ModelATK4A-00
-
Product Parameters16-Channel KS Cable Interface Adapter
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x3.5x11.3cm
-
ManufacturerYokogawa
-
Weight0.05 kg
-
Connection TypeKS Cable Interface
-
Number of Channels16 Channels
-
System CompatibilityCENTUM VP
Description

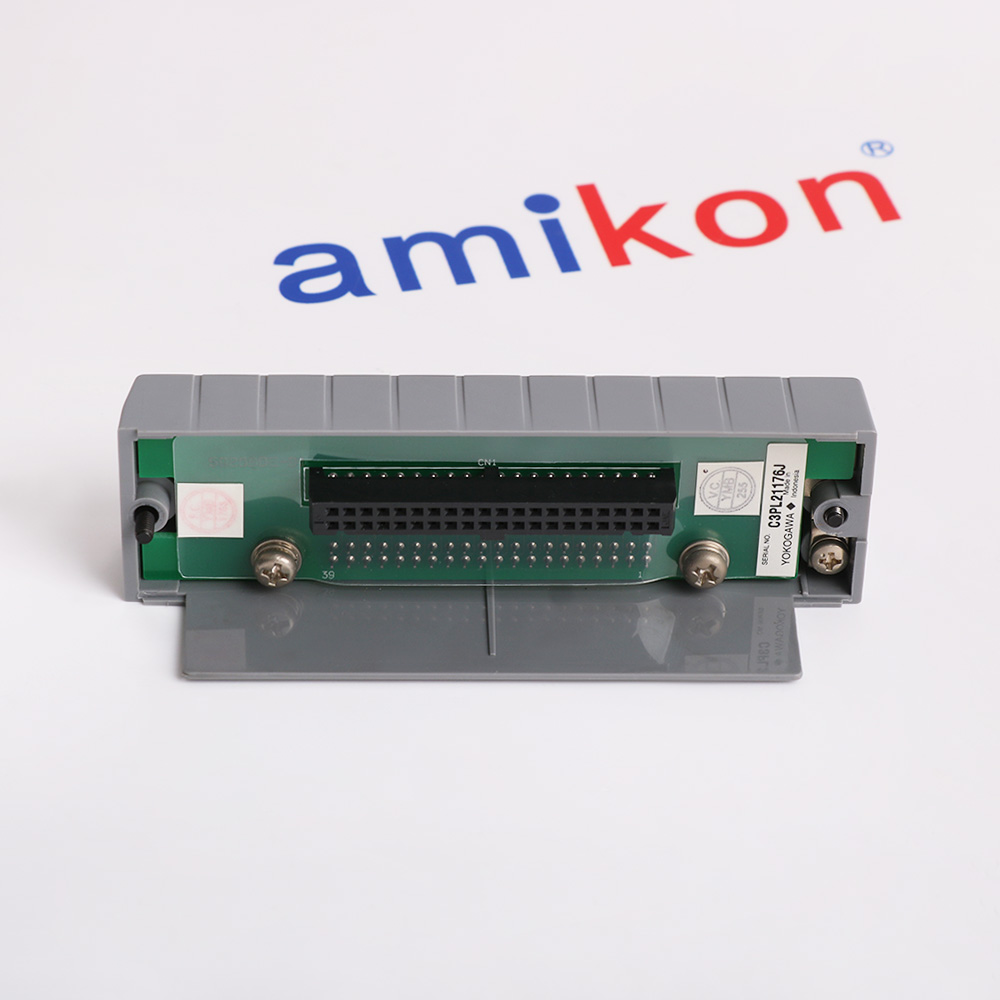

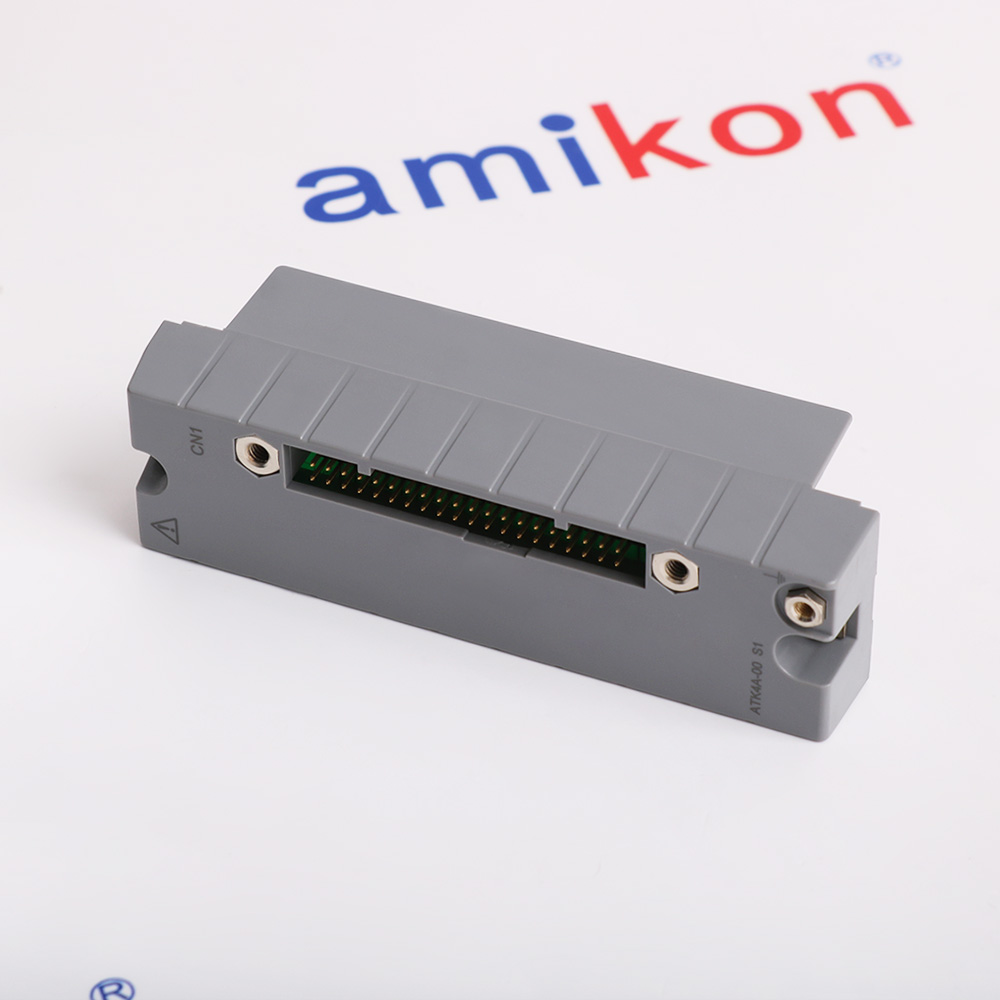

The Yokogawa ATK4A-00 S1 is a KS Cable Interface Adapter (Connection Adapter) used with Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). It provides the interface between FIO (Field I/O) modules and external terminal boards by converting the I/O module connector interface into a standard KS cable connection. The adapter is installed directly onto compatible I/O modules and allows connection to remote terminal boards through Yokogawa KS-series cables.
The ATK4A-00 S1 is mainly used with Yokogawa analog I/O modules, providing a convenient connection method for field wiring expansion. It supports 16-channel analog signal connections and is compatible with terminal boards such as AEA4D through KS1 cables. The S1 suffix indicates the module includes the ISA Standard G3 conformal coating option, providing additional protection for industrial environments with corrosive gases and contaminants.
The ATK4A-00 S1 is mainly used with Yokogawa analog I/O modules, providing a convenient connection method for field wiring expansion. It supports 16-channel analog signal connections and is compatible with terminal boards such as AEA4D through KS1 cables. The S1 suffix indicates the module includes the ISA Standard G3 conformal coating option, providing additional protection for industrial environments with corrosive gases and contaminants.
Alternative Names
ATK4A-00 SI
ATK4A-0O S1
ATK4A-O0 S1
ATK4A 00 S1
ATK4A 00 SI
ATK4A 0O S1
ATK4A O0 S1
Information
Overview
Manuals
Application Notes
Product Applications
Physical Insertion
Features:
- Terminal Block for FIO I/O Modules
- MIL Connector (CN1) on Front Plate
- Compact Mechanical Dimensions
- CENTUM System Integration
ATK4A has a compact mechanical design with external dimensions of 32.6 mm in width, 114 mm in height, and 36.2 mm in depth, making ATK4A suitable for space-constrained control cabinet installations. The nominal tolerances for ATK4A dimensions follow Yokogawa's standard specifications, with a nominal tolerance of ±0.8 mm for reference dimensions over 0.5 mm and equal to or less than 120 mm.
The ATK4A-00 S1 Yokogawa Connection Adapter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ATK4A-00 S1 Connection Adapter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ATK4A-00 S1 provides 16 channels for connecting KS cables to Yokogawa I/O modules such as AAI141, AAV141, AAV142, AAI143, and AAI543. The ATK4A-00 S1 supports both KS1 and KS2 cable standards, ensuring compatibility with a wide range of Yokogawa analog input and output modules. The ATK4A-00 S1 connects to the AEA4D terminal board via KS cable, facilitating fast and secure wiring in industrial control cabinets.
For signal compatibility, the ATK4A-00 S1 accommodates 4 to 20 mA DC current signals and 1 to 5 V DC voltage signals. The ATK4A-00 S1 supports both 2-wire and 4-wire transmitter connections, with transmitter power supply capability of 14.8 V or more at 20 mA (current limited to 27 mA). The ATK4A-00 S1 achieves high measurement accuracy of ±16 µA for 4-20 mA signals and ±4 mV for 1-5 V signals, with a data update period of 10 ms for responsive real-time control.
- Power Generation: Boiler controls, turbine tracking, and grid synchronization
- Chemical/Petrochemical: Manages distillation columns, mixing loops, and temperature regulation
- Oil/Gas Infrastructure: Regulates pipeline pressures, tank farms, and flow controls in non-hazardous areas
- Water/Wastewater: Manages pumping stations, filtration, and chemical dosing systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Module Mounting: The ATK4A-00 S1 interfaces directly with compatible analog I/O modules (such as the AAI135-S00 S2, AAI141, or AAI835 series) using a 40-pin connector.
Orientation: Align the 40-pin header on the adapter with the mating connector on the front of the corresponding I/O card, ensuring the pins are perfectly straight before applying gentle, even pressure until it locks securely into place.
IP Rating: The adapter is built for industrial enclosures with an IP54 protection level, designed to operate in environments ranging from -10° C to +60° C.
Technical notes
ATK4A is for seamless integration within the CENTUM system architecture, ensuring full compatibility with Yokogawa FIO I/O modules. When specifying ATK4A, users should refer to the FIO System Overview (GS 33J60A10-01EN) for the combination of connecting cable and terminal block requirements. ATK4A complies with applicable standards as part of the CENTUM system, with detailed conformity information available in the CENTUM VP System Overview documentation.
FAQs
-
What is the primary function of the ATK4A-00 S1?
+It mounts directly to the front of Yokogawa FIO (Field network I/O) modules. It converts the high-density connector of the I/O module into a 40-pin MIL connector interface, enabling plug-and-play connections via KS1 or KS2 cables to remote terminal boards. -
How many channels does the adapter support?
+The Yokogawa ATK4A-00 S1 is a 16-channel interface adapter designed to handle up to 16 analog or digital signals between the field and the DCS -
Which Yokogawa systems are compatible?
+It is primarily used with the CENTUM VP and CENTUM CS 3000 DCS, often paired with analog input/output modules. -
What is the primary function of the ATK4A-00 S1?
+It converts the high-density connector of Yokogawa FIO (Field network I/O) modules into a 40-pin MIL connector, allowing for simple connection to standard KS cables.
