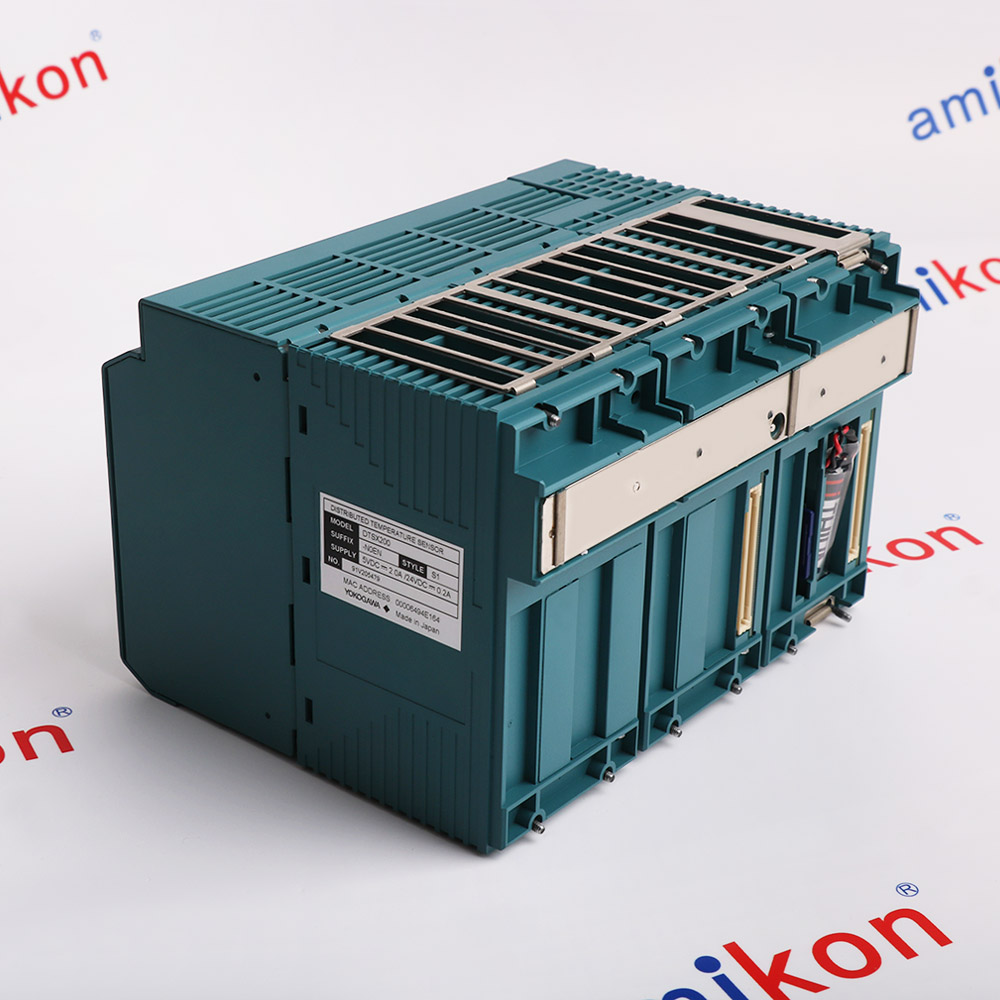

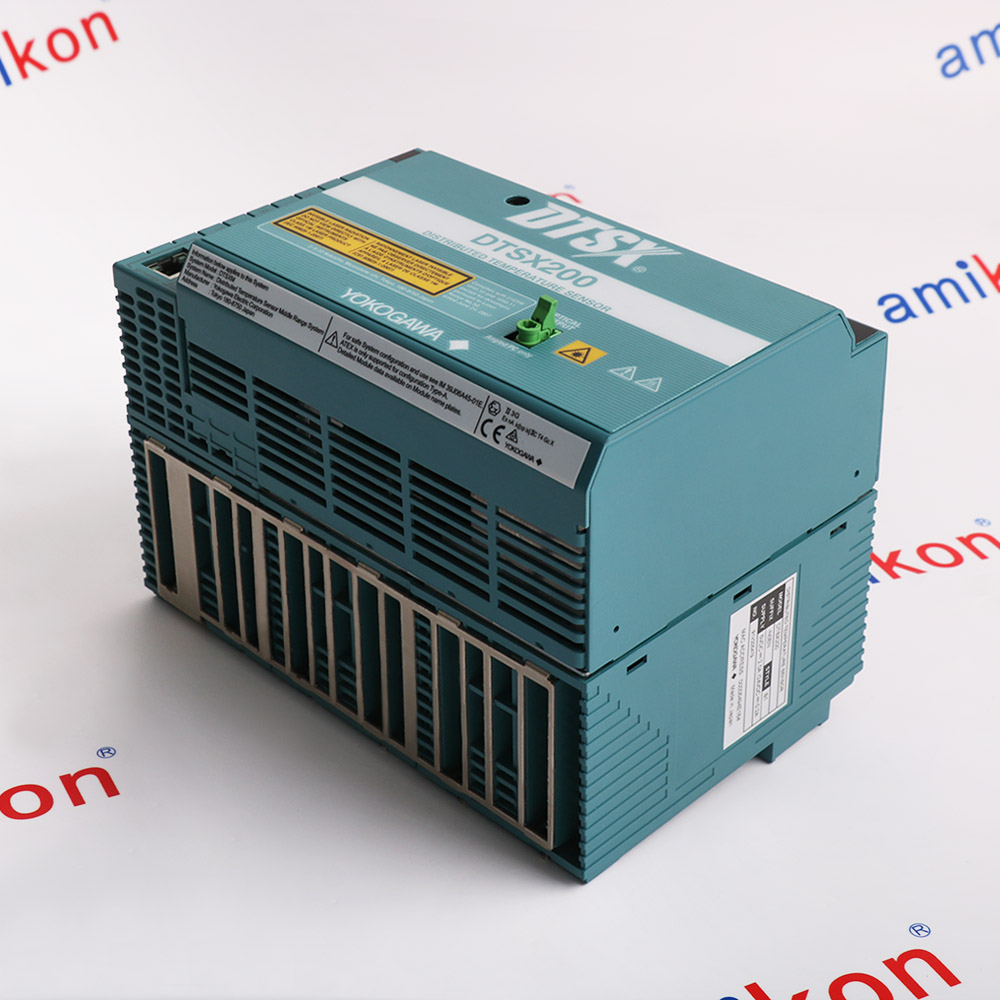

- DTSX200-N0EN S1
In Stock
Ships by Thursday, August 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DTSX200-N0EN S1
-
Product ModelDTSX200-N0EN S1
-
Spare ModelDTSX200-N0EN
-
Product ParametersDistributed fiber temperature sensor
-
Tariff Code9025199090
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size19.7 x 17.2 x 13.2 cm
-
ManufacturerYokogawa
-
Weight2.3 kg
-
Product familyDTSX200
-
Sensing methodDistributed Raman measurement
-
Measurement distance1 to 6 km selectable
-
Sampling resolution10 cm to 1 m
-
Spatial resolution1 m (10 to 90%)
-
Sensing fiber50/125 micrometer GI
-
Optical connectorE2000/APC
-
Serial communication3 RS-232C RJ45 ports
-
Ethernet interface10BASE-T / 100BASE-TX
-
Operating consumption10 W
Description
Yokogawa DTSX200-N0EN S1 is a modular distributed temperature sensing unit that measures temperature continuously along an optical fiber. The system supports selectable measurement distances from 1 km to 6 km, sampling resolutions from 10 cm to 1 m, an E2000/APC optical connector, and integration with supervisory or process-control systems through serial and Ethernet communication.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- DTSX200 distributed fiber-optic temperature sensing
- Selectable measurement distance up to 6 km
- 10 cm to 1 m sampling resolution
- E2000/APC connection for 50/125 micrometer GI fiber
- Serial Modbus and Ethernet system integration
The unit integrates with control and supervisory systems through serial and Ethernet communications. Correct fiber calibration, optical connector maintenance, approved power modules, software configuration, and environmental protection are essential for reliable measurement.
DTSX200-N0EN S1 Yokogawa: Verify sensing-fiber calibration, E2000/APC connector cleanliness, laser-safety procedures, power configuration, network settings, and environmental limits against the controlled Yokogawa documentation before commissioning.
Yokogawa DTSX200-N0EN S1 Distributed Temperature Sensor Manuals, Datasheets, Official Documents, Links
- Preview Data Sheet PDF
- Preview Manufacturer's Manual PDF
- View Yokogawa Sensor Products
- View All Yokogawa Products
Important Notice: Amikon PDF documents are independent reference materials prepared from verified Yokogawa sources. Use the current controlled Yokogawa documentation for installation, optical-fiber selection, calibration, configuration, laser safety, and commissioning. Accessories, sensing fiber, optical switches, power modules, software, licenses, and certificates are not included unless listed in the stock item description.
- Power-cable overheating monitoring
- Pipeline leak detection
- Conveyor-belt fire detection
- Furnace thermal-condition monitoring
- Process-vessel and storage-tank temperature profiling
Yokogawa DTSX200-N0EN S1 is intended for compatible DTSX200 modular assemblies using 50/125 micrometer graded-index sensing fiber, an E2000/APC optical connection, approved power modules, and supported serial or Ethernet communication interfaces.
Compatibility requires verification of the sensing-fiber type and calibration, optical connector, measurement distance, sampling resolution, optional DTOS optical-switch configuration, DTAP software support, power-module selection, firmware, network protocol, and environmental classification. Do not substitute a different DTSX model or connector configuration without checking the complete Yokogawa model code.
Yokogawa product lifecycle and service status can change by model suffix, hardware revision, software release, and market. Confirm current availability, supported DTAP software, applicable certificates, spare-part strategy, and migration guidance for DTSX200-N0EN S1 directly with Yokogawa before planning a new installation.
For replacement, preserve the E2000/APC optical interface, sensing-fiber calibration, selected measurement range, sampling and spatial resolution, power-module configuration, optical-switch channel mapping, communication settings, network security, and installation environment. Back up configuration and measurement data and revalidate the complete temperature profile after commissioning.
Alternative Names
Yokogawa DTSX200-N0EN
DTSX200 distributed temperature sensor
DTSX200 fiber optic temperature system
Technical notes
Calibrate the sensing fiber before measurement, keep the E2000/APC connector clean, observe laser-safety procedures, and verify power, grounding, communication, environmental, and module configuration requirements in the controlled Yokogawa documentation.
FAQs
-
What does DTSX200-N0EN S1 measure?
+It measures distributed temperature continuously along a compatible optical sensing fiber. -
What measurement distances are supported?
+The DTSX200 supports selectable measurement-distance ranges of 1 km, 2 km, 3 km, 4 km, or 6 km. -
Which optical connector is used?
+The DTSX200-N0EN configuration uses an E2000/APC optical connector with compatible 50/125 micrometer graded-index fiber. -
How does DTSX200 communicate with control systems?
+It provides serial Modbus communication and an Ethernet interface for supported control, monitoring, and data functions. -
Can multiple sensing fibers be connected?
+Optional DTOS optical switch modules provide 2, 4, or 16 optical channels when the system design requires multiple sensing fibers. -
What must be checked before commissioning?
+Verify fiber calibration, connector cleanliness, laser safety, power-module selection, network settings, environmental limits, and the approved Yokogawa configuration.
