Technical specifications for EC401-50 S3
-
Product ModelEC401-50 S3
-
Spare ModelEC401-50
-
Product ParametersESB Bus Coupler Module
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x12.8x13cm
-
ManufacturerYokogawa
-
Weight0.2 kg
-
Operating Voltage24 V DC
-
Operating Temperature-40°C to +85°C (-40°F to +185°F)
-
Humidity5–95% RH (non-condensing)
-
Number of connectable unitsMax. 9 units
-
Transmission speed128 Mbps
-
Transmission distanceMax. 10 m
-
Current consumption0.5 A
Description

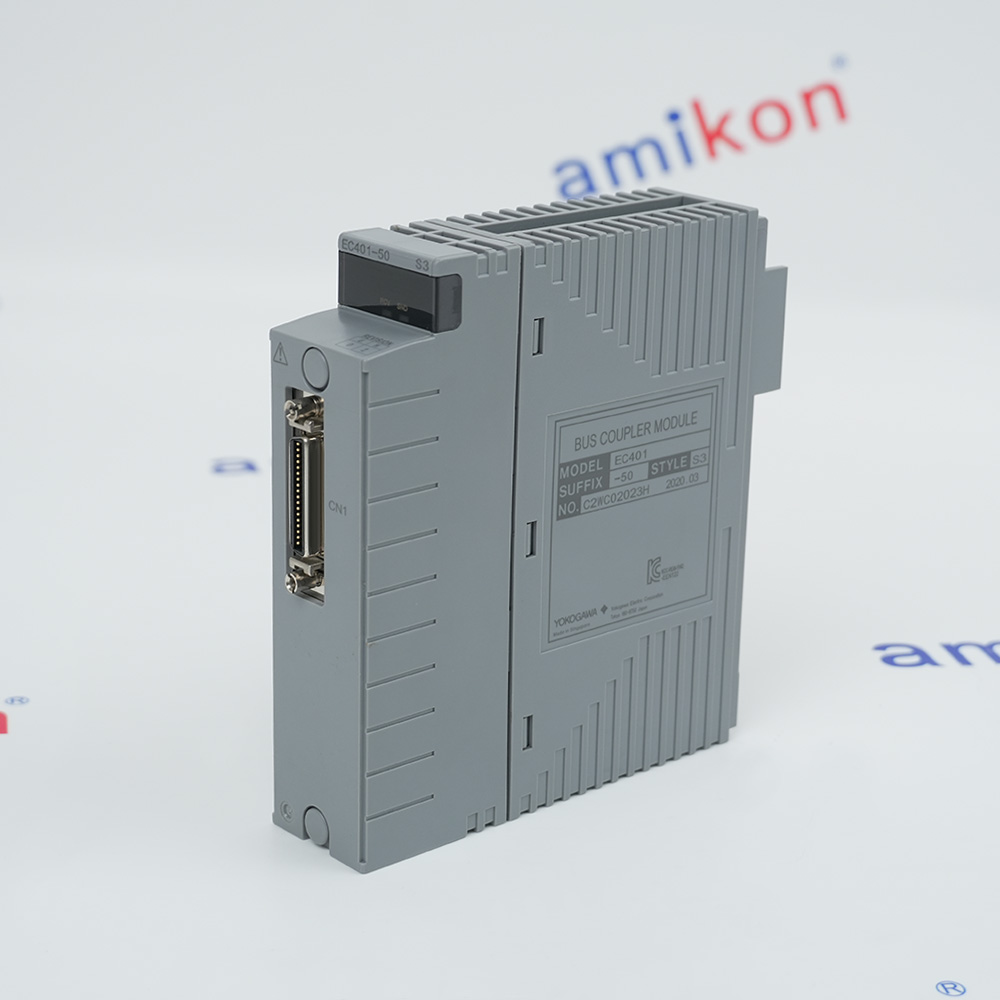

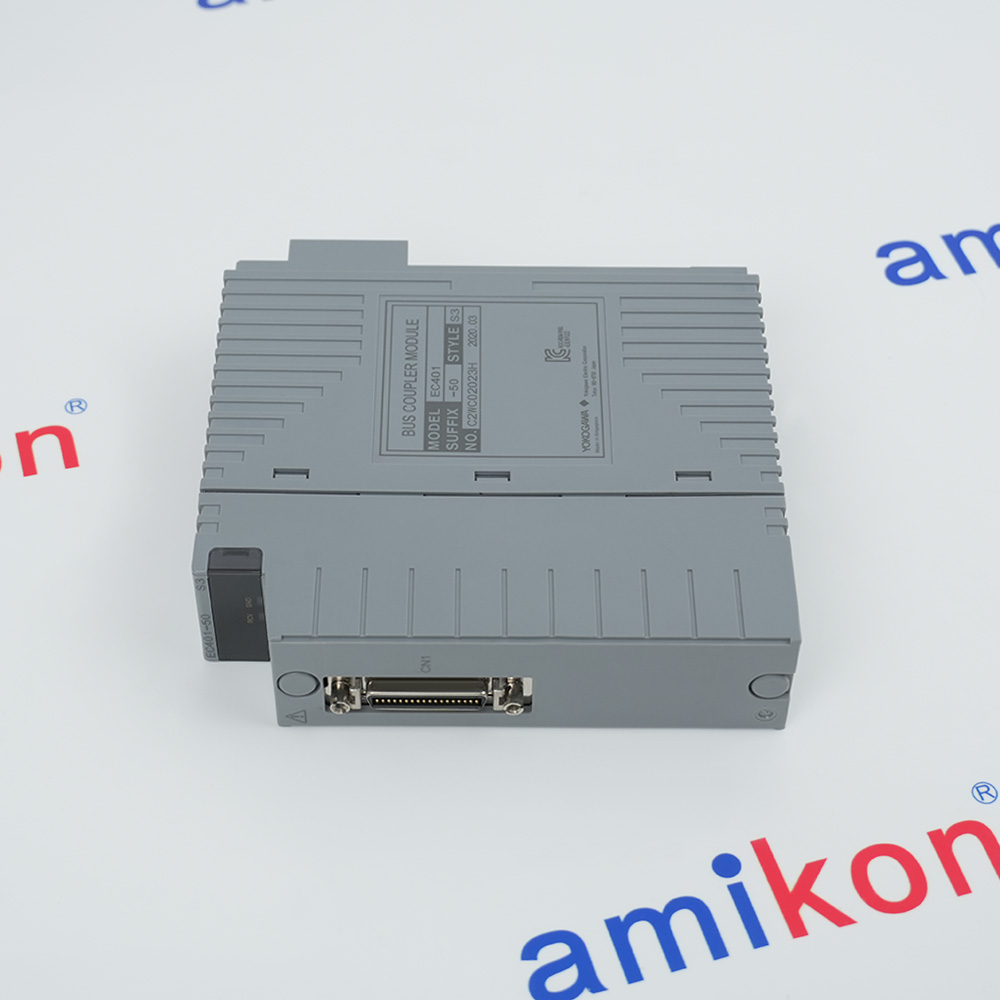

The Yokogawa EC401-50 S3 ESB Bus Coupler Module is a communication interface module used within the CENTUM VP and CENTUM CS 3000 Distributed Control System (DCS) platforms. Its primary function is to connect the Field Control Unit (FCU) with ESB Bus Node Units, enabling high-speed and reliable transfer of I/O data across the field network.
Operating at a transmission speed of 128 Mbps, the module supports up to nine node units and provides deterministic communication for process automation applications. The EC401-50 S3 supports both single-bus and dual-redundant bus architectures, allowing users to implement high-availability control systems with automatic redundancy.
Operating at a transmission speed of 128 Mbps, the module supports up to nine node units and provides deterministic communication for process automation applications. The EC401-50 S3 supports both single-bus and dual-redundant bus architectures, allowing users to implement high-availability control systems with automatic redundancy.
Alternative Names
EC401-50-S3
EC401-5O S3
EC40I-50 S3
EC4O1-50 S3
EC4O1-5O S3
EC4OO-5O S3
EC401-5O-S3
EC40I-5O-S3
EC4OI-5O-S3
Information
Overview
Manuals
Application Notes
Product Applications
Slot Assignment & Placement
Features:
- ESB Bus Coupler Module
- Standard type with no explosion protection
The EC401-50 S3 Yokogawa ESB Bus Coupler Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa EC401-50 S3 ESB Bus Coupler Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The EC401 supports connection of up to 9 units, with the number of ANB10S, ANB10D, ANT401, ANT411, and ANT421 that can be connected limited to 9 units. The EC401 supports dual-redundant ESB bus configuration when two modules are installed in the Field Control Unit, enhancing system reliability and availability. The EC401 supports a maximum transmission distance of 10m between the Field Control Unit and connected Node Units.
- Energy & Power: Managing turbine control systems, boiler automation, and substation equipment
- Oil & Gas: Controlling extraction pumps, refining compressors, and safety instrumented systems
- Chemical & Petrochemical: Managing complex reactor sequences and distillation columns
- Water & Wastewater: Controlling large-scale pumping stations and treatment machinery
- Marine: Used in shipboard control systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Single (Non-Redundant) Configuration: Install one EC401-50 S3 in Slot 7. Slot 8 must be covered with a dummy module or left empty depending on the specific FCU model.Dual-Redundant Configuration: Install two identical EC401-50 S3 modules in both Slot 7 and Slot 8.Processor Compatibility: Ensure the module is Style S3 or later if it is being paired with the CP471 Processor Module.
Technical notes
The module is commonly deployed in large-scale process industries where uninterrupted communication between controllers and field I/O stations is essential. Typical installations include oil and gas production facilities, petrochemical complexes, power generation plants, chemical processing units, LNG terminals, offshore platforms, and water treatment facilities.
FAQs
-
What is the EC401-50 S3?
+The Yokogawa EC401-50 S3 is an Extended SB (ESB) Bus Coupler Module designed for Yokogawa CENTUM VP and ProSafe-RS Distributed Control Systems (DCS). -
What processor modules is the EC401-50 S3 compatible with?
+The S3 style code of the EC401 is specifically required if you are combining it with the CP471 processor module. -
How many units can be connected to the EC401?
+A single EC401 module can support up to 9 units (e.g., ANB10S, ANB10D, ANT401, ANT411, and ANT421). -
What is the significance of
+Only style code S3 or later can be combined with the CP471 processor module. It is also required for certain SEM (Sequence of Events Manager) functions.
