PRODUCT DESCRIPTION

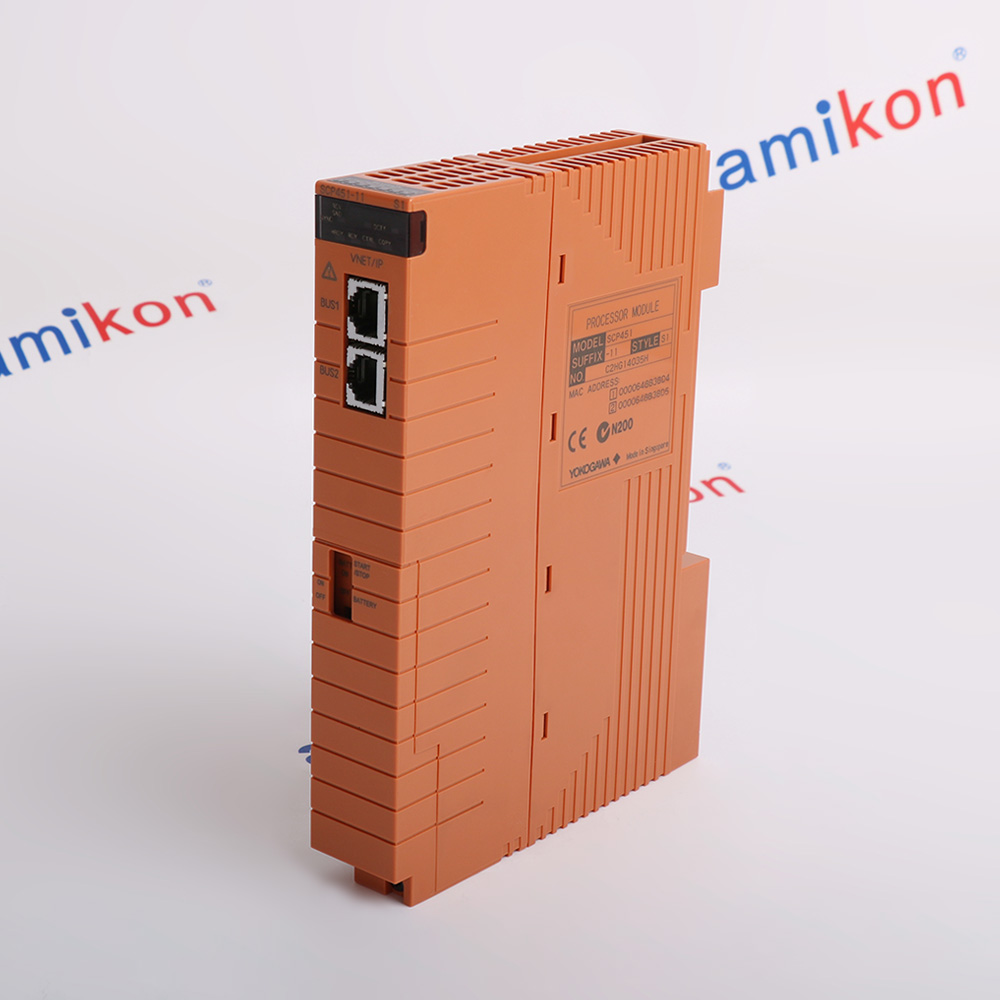

SCP451-11 S1 Safety control processor module
Yokogawa SCP451-11 S1 is a processor module in the ProSafe-RS safety instrumented system family for SSC50S/SSC50D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
BEFORE YOU BUY
Confirm the complete safety control processor module
ACTUAL APPLICATIONS
Application context for SCP451-11 S1
SCP451-11 S1 is a ProSafe-RS processor for SSC50 safety control units. It executes configured safety logic for oil and gas, chemical processing and electricity generation. Its suitability depends on the approved station hardware, field I/O, processor style and software configuration.
-
01 · OIL & GAS
Oil and Natural Gas Production and Processing
Oil Production and ProcessingNatural Gas Liquefaction -
02 · CHEMICAL & PETROCHEMICAL
Chemical Manufacturing and Petrochemical Refining
Industrial Chemical ProductionPetrochemical Processing and Refining -
03 · POWER GENERATION
Electric Power Generation and Heat Production
Thermal Electric Power GenerationIndustrial Heat and Power
Technical specifications for SCP451-11 S1
-
Product ModelSCP451-11 S1
-
Spare ModelSCP451-11
-
Product ParametersSafety control processor module
-
In stock4 units
-
ManufacturerYokogawa
-
Processor architectureMIPS R5000
-
Main memory capacity32 MB
-
Control network ports2 Vnet/IP
-
Network speed100 Mbps
-
Ethernet transmission modeFull duplex
-
Ethernet physical interface100BASE-TX
-
Network connectorRJ45
-
Network cable categoryCAT5e or higher
-
Controller-to-switch distance100 m maximum
-
Front configuration switch6-bit DIP
-
Status indicator bank8 numbered LEDs
-
Battery packS9185FA
-
Battery chemistryLithium
-
Battery replacement interval3 years at average ambient ≤30 ℃; 18 months at ≤40 ℃; 9 months at ≤50 ℃
-
ESB interfacesDual redundant
View all additional
Alternative Names
SCP451-11 S1
ProSafe-RS SCP451 processor
SSC50 safety controller CPU
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SCP451-11 S1 safety control processor module
Yokogawa SCP451-11 S1 is a processor module in the ProSafe-RS safety instrumented system family for SSC50S/SSC50D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
Match the documented processor architecture (MIPS R5000) and main memory capacity (32 MB) to the installed ProSafe-RS configuration. Preserve the complete suffix, hardware interfaces and required mating components.
Use the applicable Yokogawa mounting, connection and commissioning instructions. Save the existing configuration and validate the affected functions before returning the equipment to operation.
Features:
- Processor architecture: MIPS R5000
- Main memory capacity: 32 MB
- Control network ports: 2 Vnet/IP
The SCP451-11 S1 safety control processor module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify SCP451-11 S1 safety control processor module
Before exchanging SCP451-11 S1, verify the complete article identification, installed hardware revision and documented safety control processor module role. Matching appearance alone does not establish interchangeability.
Record the installed ProSafe-RS connections and settings. Preserve the applicable configuration, application records and diagnostic information before disconnecting the current item.
After installing the verified SCP451-11 S1, restore the controlled configuration and perform the manufacturer-defined functional checks. Record the completed inspection and test results before release.
Features:
- Processor architecture: MIPS R5000
- Main memory capacity: 32 MB
- Control network ports: 2 Vnet/IP
The SCP451-11 S1 safety control processor module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the SCP451-11 S1 safety control processor module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.20 × 14.40 × 19.80 cm
-
Shipping weight0.70kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginJapan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SCP451-11 S1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which safety control units accept SCP451-11 S1?
SCP451-11 S1 belongs to ProSafe-RS and is used with the documented SSC50S/SSC50D units. Match the full suffix and style rather than selecting a CENTUM processor by appearance. -
How does SCP451-11 S1 connect to the control network?
SCP451-11 S1 has separate Bus 1 and Bus 2 Vnet/IP connections. The documented network uses 100 Mbps full-duplex 100BASE-TX, RJ45 connectors and CAT5e or higher cable. -
How far may the SCP451-11 S1 network cable run?
The documented SCP451-11 S1 connection from its safety control unit to a Layer 2 switch is limited to 100 m. This limit does not describe an optical ESB extension. -
What storage survives a power loss in SCP451-11 S1?
For SCP451-11 S1, application information is held in nonvolatile flash. The processor management information uses the specified lithium battery; battery replacement does not replace the application backup procedure. -
When should the SCP451-11 S1 battery be replaced?
The S9185FA battery associated with SCP451-11 S1 has a recommended interval of three years at an average ambient temperature up to 30 ℃, eighteen months up to 40 ℃ and nine months up to 50 ℃. -
Can a different processor style replace SCP451-11 S1?
An exchange for SCP451-11 S1 requires the approved station, style and software combination. Do not substitute S2CP471 without the applicable Yokogawa upgrade kit and authorized service procedure. -
What identification is needed to quote SCP451-11 S1?

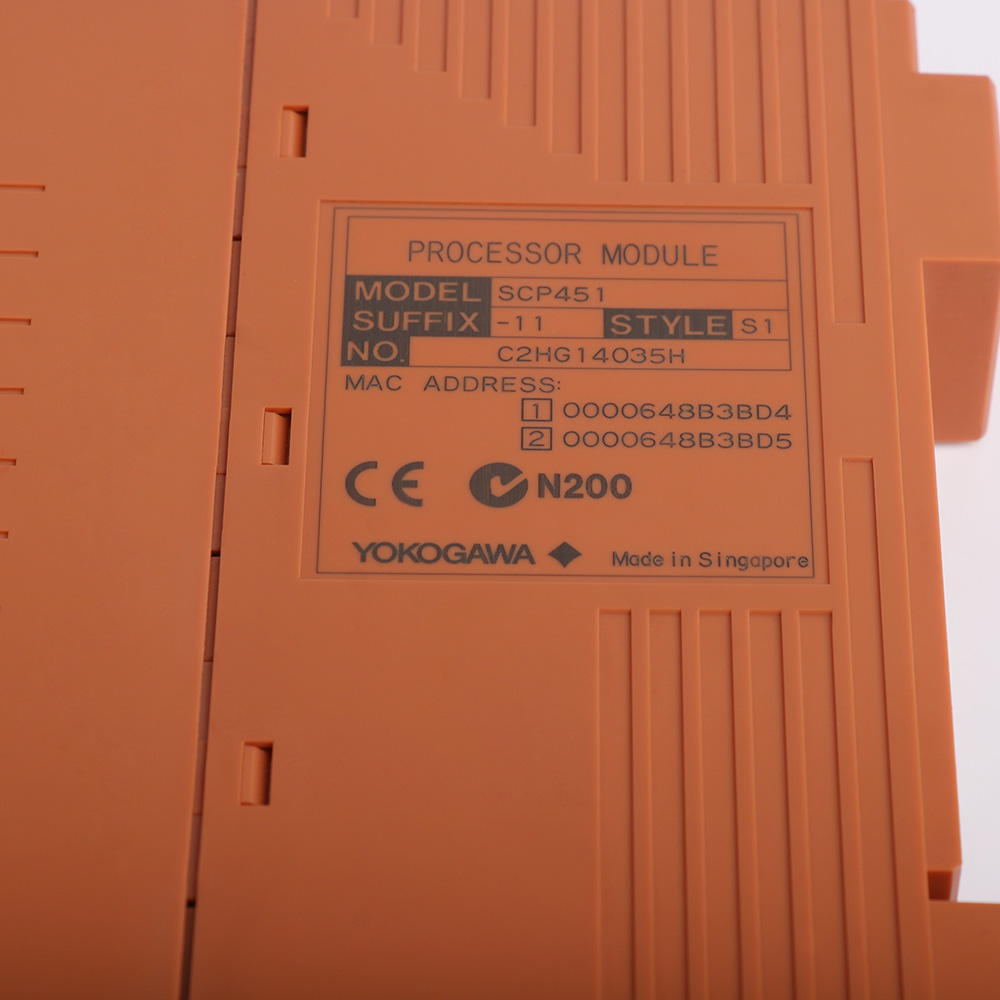

Provide the complete SCP451-11 S1 nameplate, safety control unit designation, required quantity, software release and destination. Include the installed processor pair details if the unit is redundant. -
What should be inspected on delivery of SCP451-11 S1?
Compare the SCP451-11 S1 suffix and style against the order. Inspect both network connectors, the module contacts, front switches and battery expiration label before scheduling the processor exchange.
