PRODUCT DESCRIPTION

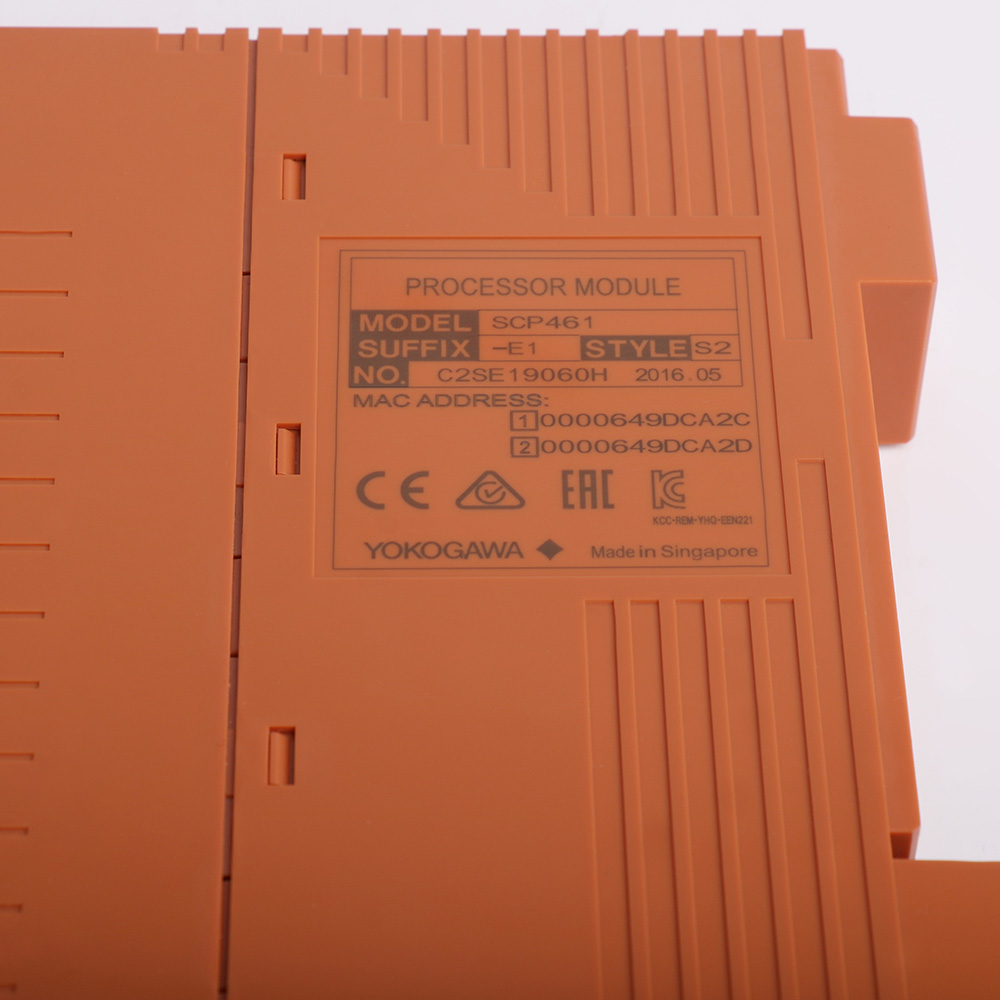

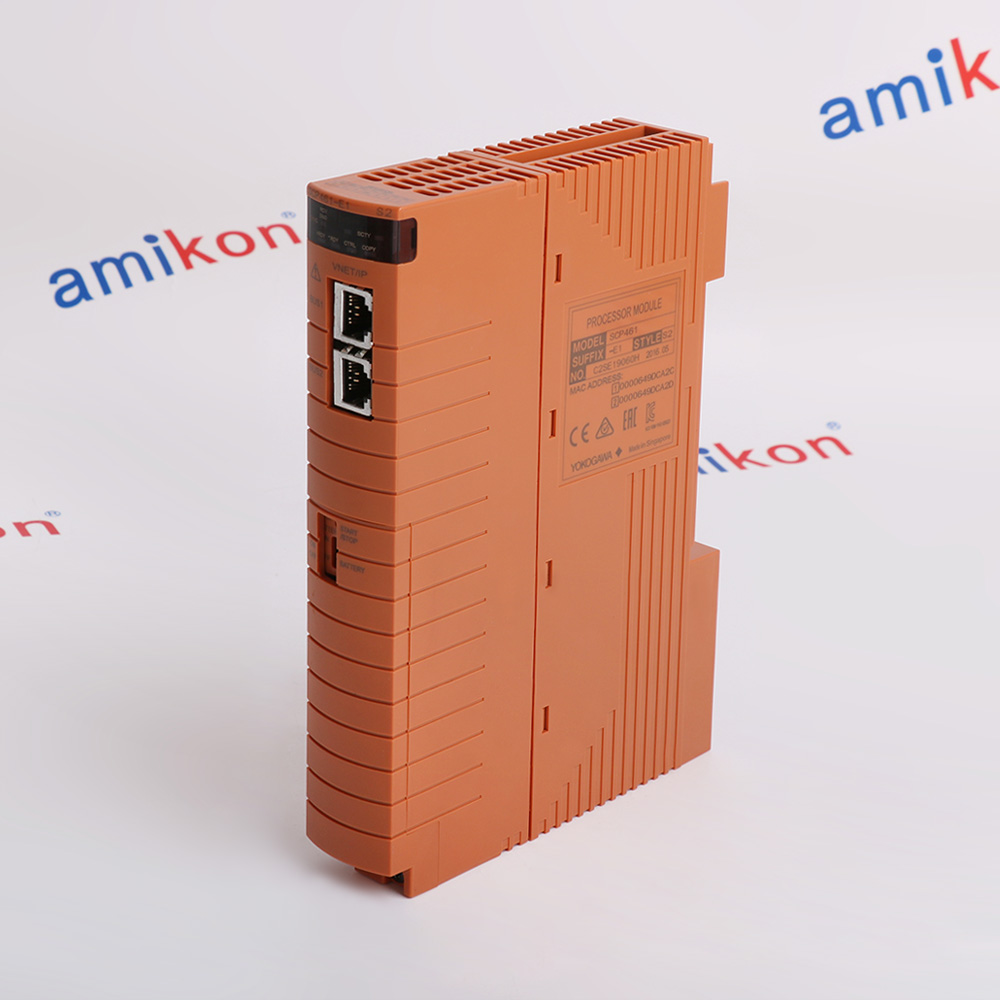

SCP461-E1 S2 Safety control processor module
Yokogawa SCP461-E1 S2 is a processor module in the ProSafe-RS safety instrumented system family for SSC60S/SSC60D and S2SC70S/S2SC70D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
BEFORE YOU BUY
Confirm the complete safety control processor module
ACTUAL APPLICATIONS
Application context for SCP461-E1 S2
SCP461-E1 S2 is a ProSafe-RS safety processor covered by the applicable safety control unit specifications. It supports configured safety control in gas processing, chemical production and industrial power generation. The station, processor style, software release and connected I/O determine suitability.
-
01 · OIL & GAS
Natural Gas Processing and Petroleum Production
Natural Gas LiquefactionOil Production and Processing -
02 · CHEMICAL & PETROCHEMICAL
Chemical Processing and Petrochemical Production
Chemical Production and ProcessingPetrochemical Production and Refining -
03 · POWER GENERATION
Industrial Power Generation and Heat Supply
Thermal Power GenerationIndustrial Steam and Power
Technical specifications for SCP461-E1 S2
-
Product ModelSCP461-E1 S2
-
Spare ModelSCP461-E1
-
Product ParametersSafety control processor module
-
In stock9 units
-
ManufacturerYokogawa
-
Control network ports2 Vnet/IP
-
Network speed100 Mbps
-
Ethernet transmission modeFull duplex
-
Ethernet physical interface100BASE-TX
-
Network connectorRJ45
-
Network cable categoryCAT5e or higher
-
Controller-to-switch distance100 m maximum
-
Front configuration switch6-bit DIP
-
Status indicator bank8 numbered LEDs
-
Battery packS9185FA
-
Battery chemistryLithium
-
Battery replacement interval3 years at average ambient ≤30 ℃; 18 months at ≤40 ℃; 9 months at ≤50 ℃
-
Application-program storageFlash memory
-
Operating-data storageNVRAM
-
Redundant processor quantity2 identical modules
View all additional
Alternative Names
SCP461-E1 S2
SCP461 E1 style S2 processor
ProSafe-RS safety control CPU
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SCP461-E1 S2 safety control processor module
Yokogawa SCP461-E1 S2 is a processor module in the ProSafe-RS safety instrumented system family for SSC60S/SSC60D and S2SC70S/S2SC70D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
Match the documented control network ports (2 Vnet/IP) and network speed (100 Mbps) to the installed ProSafe-RS configuration. Preserve the complete suffix, hardware interfaces and required mating components.
Use the applicable Yokogawa mounting, connection and commissioning instructions. Save the existing configuration and validate the affected functions before returning the equipment to operation.
Features:
- Control network ports: 2 Vnet/IP
- Network speed: 100 Mbps
- Ethernet transmission mode: Full duplex
The SCP461-E1 S2 safety control processor module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify SCP461-E1 S2 safety control processor module
Before exchanging SCP461-E1 S2, verify the complete article identification, installed hardware revision and documented safety control processor module role. Matching appearance alone does not establish interchangeability.
Record the installed ProSafe-RS connections and settings. Preserve the applicable configuration, application records and diagnostic information before disconnecting the current item.
After installing the verified SCP461-E1 S2, restore the controlled configuration and perform the manufacturer-defined functional checks. Record the completed inspection and test results before release.
Features:
- Control network ports: 2 Vnet/IP
- Network speed: 100 Mbps
- Ethernet transmission mode: Full duplex
The SCP461-E1 S2 safety control processor module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the SCP461-E1 S2 safety control processor module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.20 × 14.40 × 19.80 cm
-
Shipping weight0.65kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginJapan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SCP461-E1 S2
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which current safety-unit document covers SCP461-E1 S2?
The S2SC70 general specification GS 32P06D10-01EN lists the SCP461-E1 processor for the applicable safety control unit. Confirm the S2 style and installed software combination. -
Can SCP461-E1 S2 be selected by memory capacity alone?
No. SCP461-E1 S2 selection requires its complete suffix, style and approved control-unit configuration. The current specification does not justify assigning a RAM value from a different processor generation. -
Is the E1 processor a field signal converter?
SCP461-E1 S2 executes the configured safety application and coordinates station I/O. The signal-conversion ranges belong to the installed I/O modules rather than this processor. -
What is the copper network segment limit for the E1 style?
The documented Vnet/IP copper connection for SCP461-E1 S2 is limited to 100 m between the safety control unit and Layer 2 switch. -
How does ambient temperature affect the S2 battery interval?
For the SCP461-E1 S2 processor battery, the documented intervals are three years up to 30 ℃ average ambient, eighteen months up to 40 ℃ and nine months up to 50 ℃. -
Does an S2CP471 automatically replace SCP461-E1 S2?
A conversion from SCP461-E1 S2 to another processor generation requires the applicable Yokogawa upgrade instructions and approved hardware/software combination. Connector similarity is insufficient. -
What should be supplied for an E1 S2 compatibility review?
Supply the SCP461-E1 S2 label and installed safety-unit designation, software release and redundant-pair details so the proposed article can be compared with the actual station. -
What acceptance records are useful for an S2 processor?
Retain the ordered SCP461-E1 S2 article identification, inspection of the two network connectors and battery date, plus the approved functional-check record after installation.
