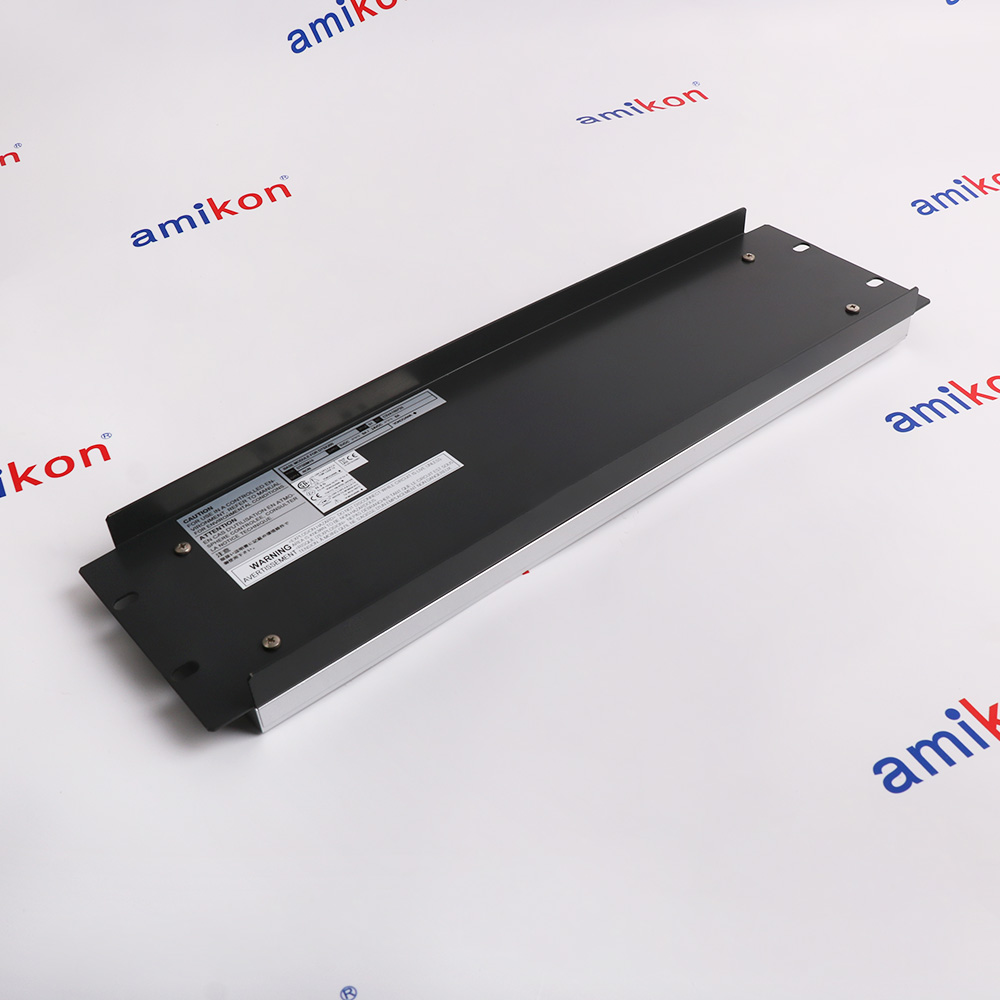

- DTSBM10-N0N S1
In Stock
Ships by Sunday, August 30
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DTSBM10-N0N S1
-
Product ModelDTSBM10-N0N S1
-
Spare ModelDTSX Base Module
-
Product ParametersDTSX system base module
-
Tariff Code85389099
-
Country of originJapan
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size48.26 x 13.25 x 5.50 cm
-
ManufacturerYokogawa
-
Weight2.3 kg
-
Product TypeDTSX base module
-
Base ModelDTSBM10
-
Suffix -NStandard type
-
Suffix 0Standard type
-
Suffix NBasic type
-
System CompatibilityDTSX200 and DTSX3000
-
Power Consumption0.3 W
-
Mounting Holes4 x M5
-
DIN-Rail MountingNot allowed
-
Power-Supply RedundancyNot allowed
Description

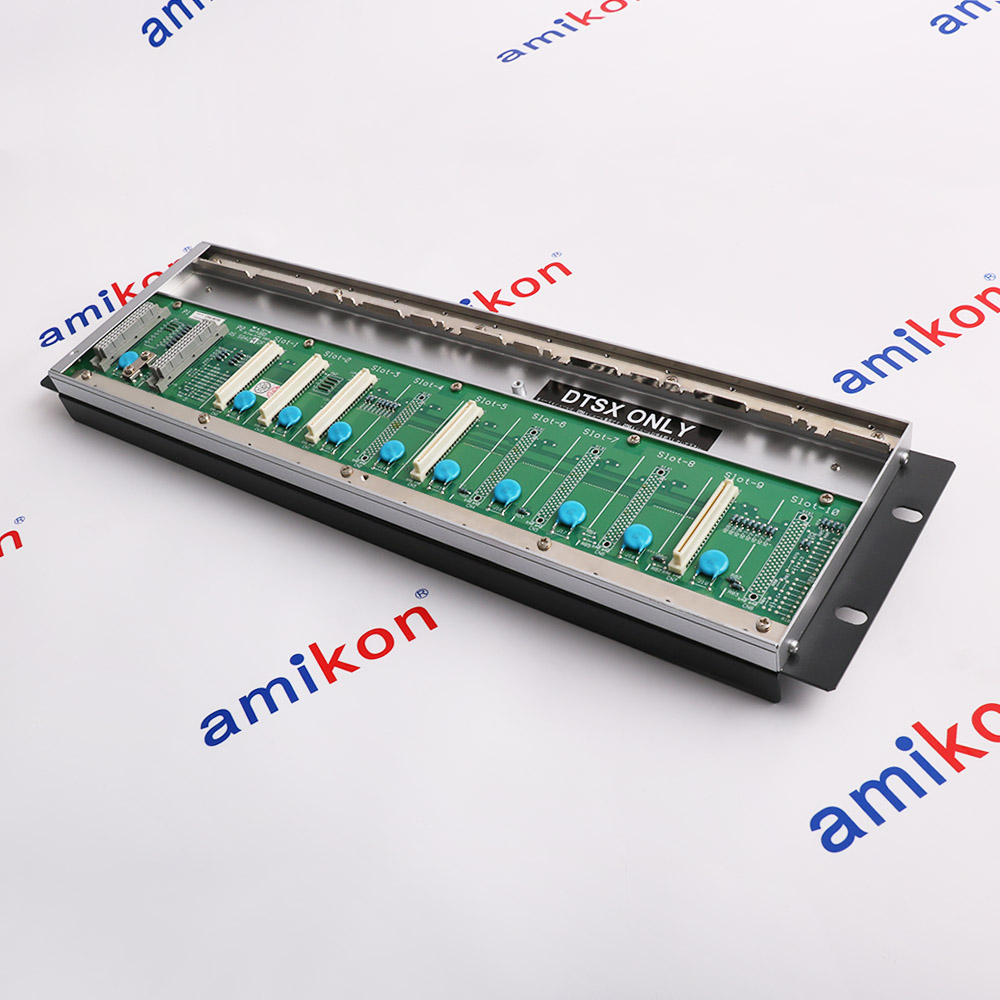

Yokogawa DTSBM10-N0N S1 is the standard basic DTSBM10 base module used with DTSX200 and DTSX3000 distributed temperature sensing systems. It provides the mounting platform for the DTSX sensor, one approved power-supply module, a compatible optical-switch module and an optional NFCP050 CPU module.
The base module consumes 0.3 W and measures 482.6 × 132.5 × 55.0 mm with an approximate weight of 2.3 kg. DIN-rail mounting, redundant power supplies and unsupported STARDOM modules are not permitted, so the complete system configuration must be checked against current Yokogawa documentation.
The base module consumes 0.3 W and measures 482.6 × 132.5 × 55.0 mm with an approximate weight of 2.3 kg. DIN-rail mounting, redundant power supplies and unsupported STARDOM modules are not permitted, so the complete system configuration must be checked against current Yokogawa documentation.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- Standard basic DTSBM10 base module for DTSX systems
- Supports DTSX200 and DTSX3000 distributed temperature sensors
- Mounting platform for power, optical-switch and optional CPU modules
- 0.3 W power consumption with four M5 mounting holes
- 482.6 x 132.5 x 55.0 mm base-module construction
The base module consumes 0.3 W, weighs approximately 2.3 kg and uses four M5 mounting holes. Only documented Yokogawa modules may be installed; DIN-rail mounting, dual-redundant power supplies and unsupported STARDOM modules are not allowed.
DTSBM10-N0N S1 Yokogawa: Verify the complete suffix code, DTSX system, cabinet mounting, power-supply module, optical-switch channels, optional CPU module and optical-fiber routing before installation or replacement.
Yokogawa DTSBM10-N0N S1 DTSX Base Module Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer sources. Accessories, manuals, cables, certificates and other items are not included unless listed in the stock item description.
- Distributed temperature monitoring along pipelines
- Well and reservoir thermal-profile measurement
- Power-cable temperature and hotspot monitoring
- Conveyor and bulk-material fire detection
- Storage-tank thermal monitoring and leak detection
DTSBM10-N0N S1 provides the module base for Yokogawa DTSX distributed temperature sensing systems used in continuous thermal monitoring applications. Application engineering must confirm the sensing range, optical-fiber type, channel count, power module, environmental conditions, communication architecture and cabinet arrangement.
DTSBM10-N0N S1 is compatible with documented Yokogawa DTSX200 and DTSX3000 systems. The base module accepts one approved NFPW426, NFPW441, NFPW442 or NFPW444 power-supply module, compatible DTOS2, DTOS4 or DTOS16 optical-switch modules, and one optional NFCP050 CPU module. Other STARDOM I/O, bus-repeater and serial communication modules are not supported, and power-supply redundancy is not allowed.
Current Yokogawa DTSX documentation lists DTSBM10 as the required base module for supported DTSX200 and DTSX3000 configurations. Before replacement, record the complete DTSBM10-N0N S1 order code, mounted DTSX sensor, power-supply model, optical-switch model and channel count, optional NFCP050 CPU, cabinet mounting points and optical-fiber routing. Do not substitute a different base solely on physical similarity, and confirm current Yokogawa documentation before commissioning.
Alternative Names
DTSBM10-N0N S1
DTSBM10-N0N Base Module
DTSX200 DTSX3000 Base Module
Technical notes
Confirm the complete DTSBM10-N0N S1 order code, DTSX200 or DTSX3000 system configuration, mounting arrangement, power-supply selection, optical-switch channels and optional CPU module before installation or replacement.
FAQs
-
What is the DTSBM10-N0N S1?
+It is the standard basic Yokogawa DTSBM10 base module used in documented DTSX200 and DTSX3000 systems. -
Which modules can be installed on DTSBM10?
+The base supports the DTSX sensor, one approved NFPW power module, a compatible DTOS optical switch and an optional NFCP050 CPU module. -
Can the DTSBM10 use redundant power supplies?
+No. Yokogawa states that dual-redundant power-supply configuration is not allowed. -
Can the DTSBM10 be mounted on a DIN rail?
+No. The official specification states that DIN-rail mounting is not allowed. -
What should be verified before replacing DTSBM10-N0N S1?
+Verify the complete suffix code, DTSX system, four M5 mounting points, power module, optical-switch channels, optional CPU and optical-fiber routing.
