Technical specifications for DPM200
-
Product ModelDPM200
-
Product ParametersProfiBus DP Master Module
-
Tariff Code8537101190
-
Country of originAustria
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x6x12cm
-
Manufacturerbachmann
-
Weight0.22 kg
-
Size process image8 kB x 16 DPM
-
FirmwareUpdate via SolutionCenter is possible
-
Max. number of master3 per M200 controller
-
Max. Number of slaves32 without repeater, 125 with repeater
-
PROFIBUS® standardV0
-
Data length in the DPM732 bytes per slave
-
Current consumption400 mA / 5 V DC
-
Transfer rate9.6 k to 12 MBaud
-
Connection2x 9-pin D-sub sockets
-
Operating temperature-30 °C to +60 °C
-
Relative humidity, operation5 % to 95 % noncondensing
Description
12Mbit/s
Profibus V0
Isolated
Cold Climate
Profibus V0
Isolated
Cold Climate
Information
Overview
Manuals
Technical notes
Product Applications
Physical Hardware Installation
Features:
- Up to 3 DPM200 modules per M200 controller
- Transfer rate 9.6 Kbaud to 12 Mbaud
- 8 kB shared memory for process data image
- Consistency lock for data blocks is configurable
- Two internal bridged connections for loop-through of the cable
- Galvanic isolation between fieldbus and controller
The fieldbus module DPM200 for PROFIBUS® DP (Distributed Peripherals) can be operated as DP Master, DP Slave or as combined master/slave, which in a multi-master network offers variables for another master. The process data is available to the application program as logical I/O module and thus can be reached via the process image or via the function interface.
The DPM200 BACHMANN ProfiBus DP Master Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
BACHMANN DPM200 ProfiBus DP Master Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

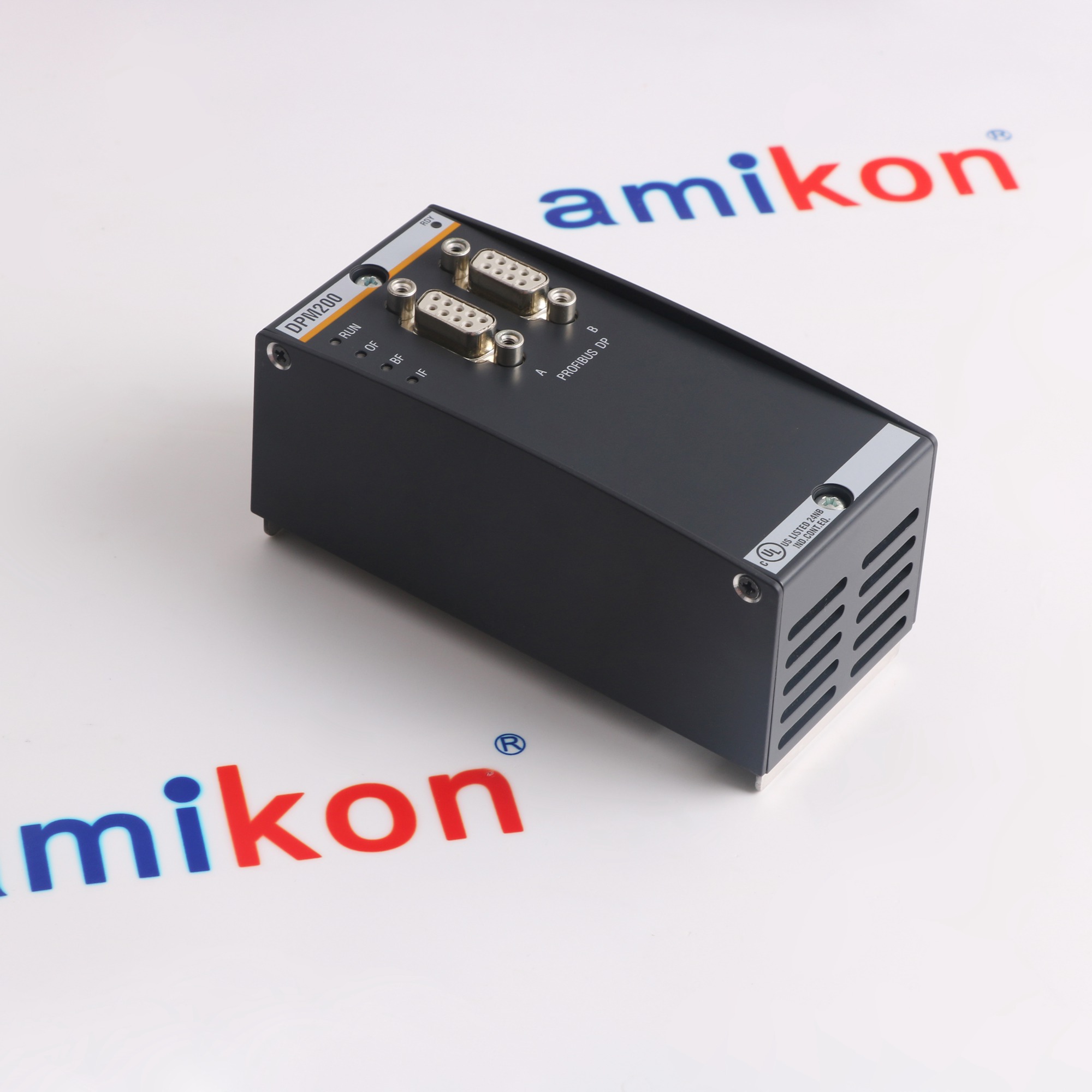

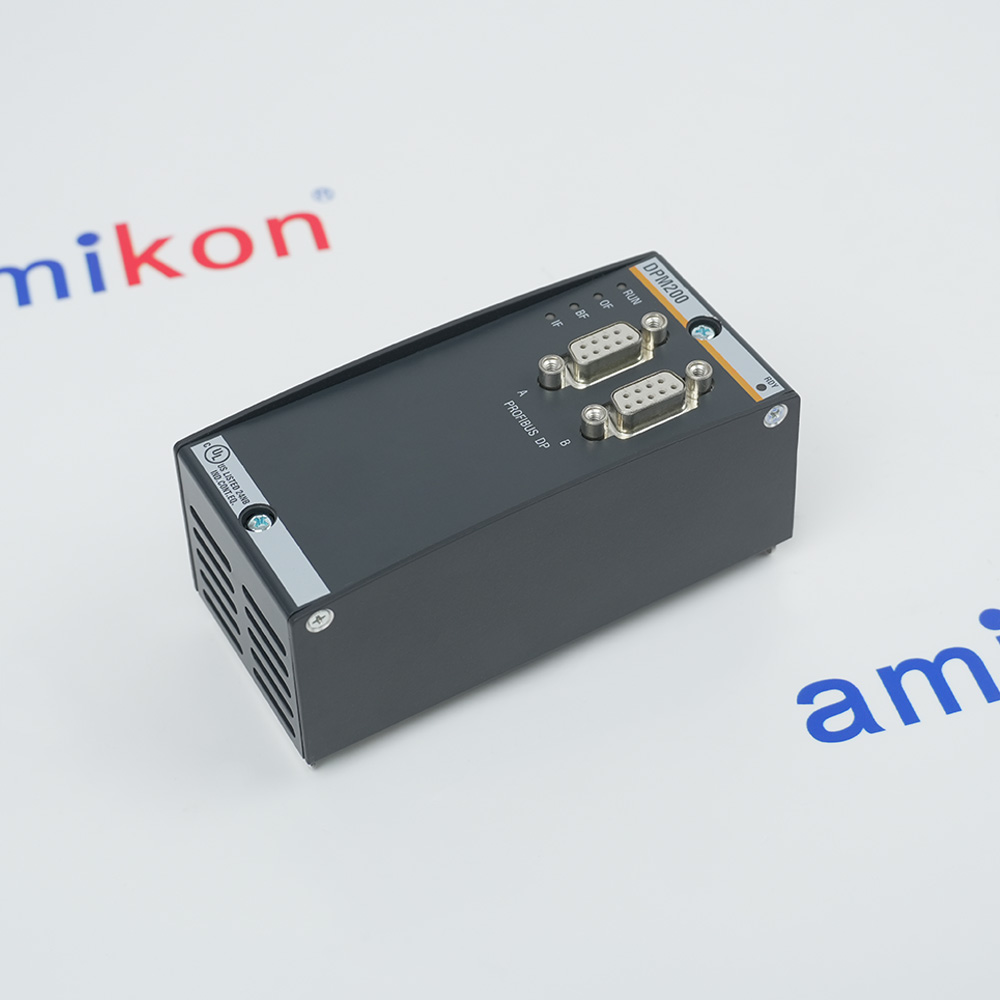

The Bachmann DPM200 is a PROFIBUS DP master/slave module designed for M1 automation systems. It features an 8 kB process image memory, transfer rates up to 12 Mbit/s, and galvanic isolation. Up to 3 modules can be used per controller, supporting up to 125 slaves with a repeater.The module operates as a DP master, DP slave, or in combined master/slave mode for multi-master networks.
- Industrial & Factory Automation:Connects Bachmann M1 to legacy/modern distributed peripherals
- Motion & Drive Control:Integrates servo drives for high-speed PROFIBUS positioning
- Wind Energy:Gateway for turbine controls: sensors & safety in nacelles
- Marine & Offshore:Ship automation & maritime comms with condition monitoring
- Energy Production:Links controllers to I/O & grid gear for real-time data
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down: Always isolate and turn off the main 24 VDC power supply to the M1 controller rack before inserting or removing modules.
Slot Alignment: Slide the DPM200 module carefully into an available slot on the M1 backplane rack. Ensure the backplane connectors align perfectly without using excessive force.
Securing: Tighten the module's integrated mounting screws to secure it onto the rack frame and establish proper grounding.

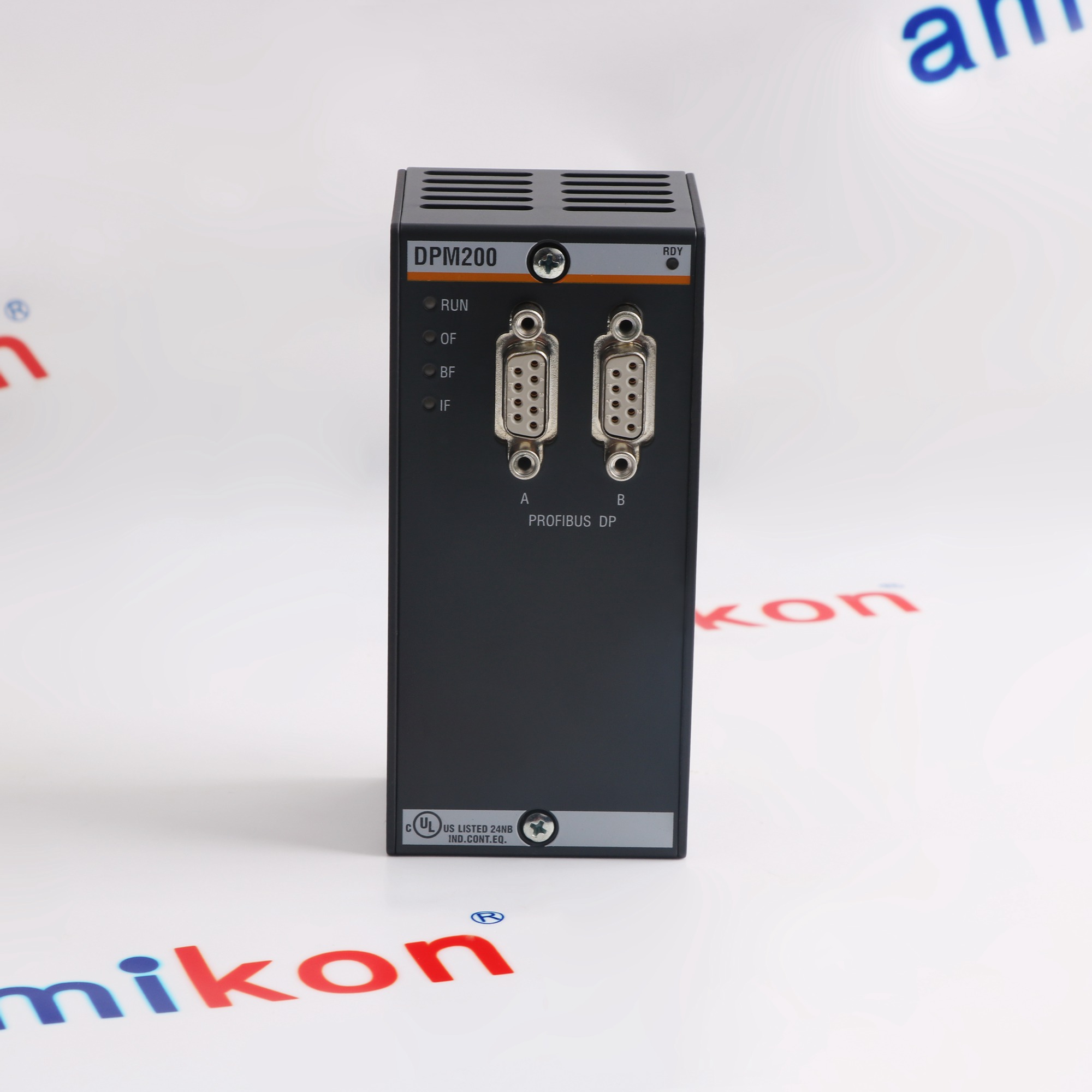

PROFIBUS Cabling: Connect your standard RS-485 PROFIBUS DB9 cable to the master port. The module features two internal bridged connections, allowing a direct loop-through of the fieldbus cable if needed.
FAQs
-
What is the DPM200？
+The Bachmann DPM200 is a versatile fieldbus module for the M200 automation system, functioning as a PROFIBUS® DP master, slave, or combined master/slave. -
What modes can the DPM200 operate in?
+It can operate as a PROFIBUS DP Master, DP Slave, or as a combined master/slave, which allows variables to be accessed by another master in a multi-master network. -
How many modules can be used on a single controller?
+Up to 3 DPM200 modules can be installed per M200/MX200 processor controller. -
What are the limits for connected slaves?
+The module supports up to 32 slaves without a repeater, and up to 125 slaves when using repeaters. -
How much data can be processed per slave?
+The module allocates an 8 kB shared memory for the process data image, with up to 732 bytes of data length per slave.
