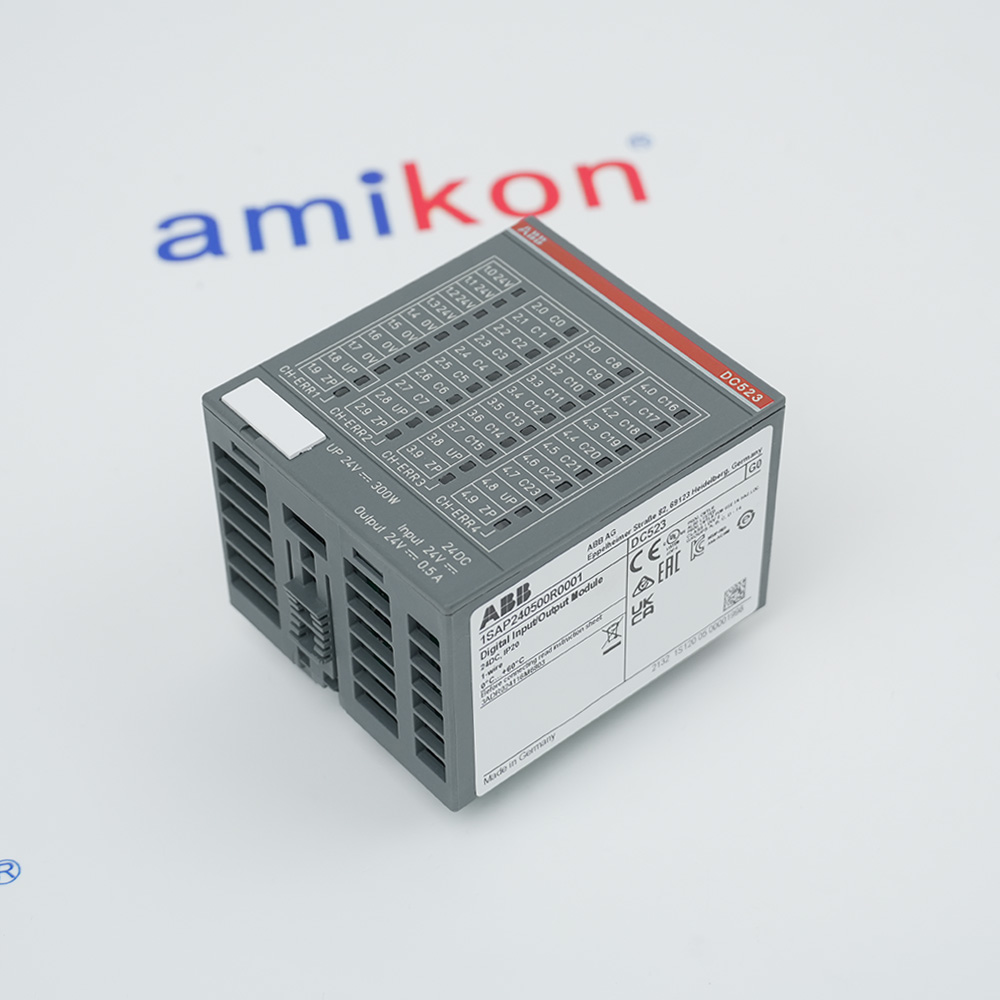

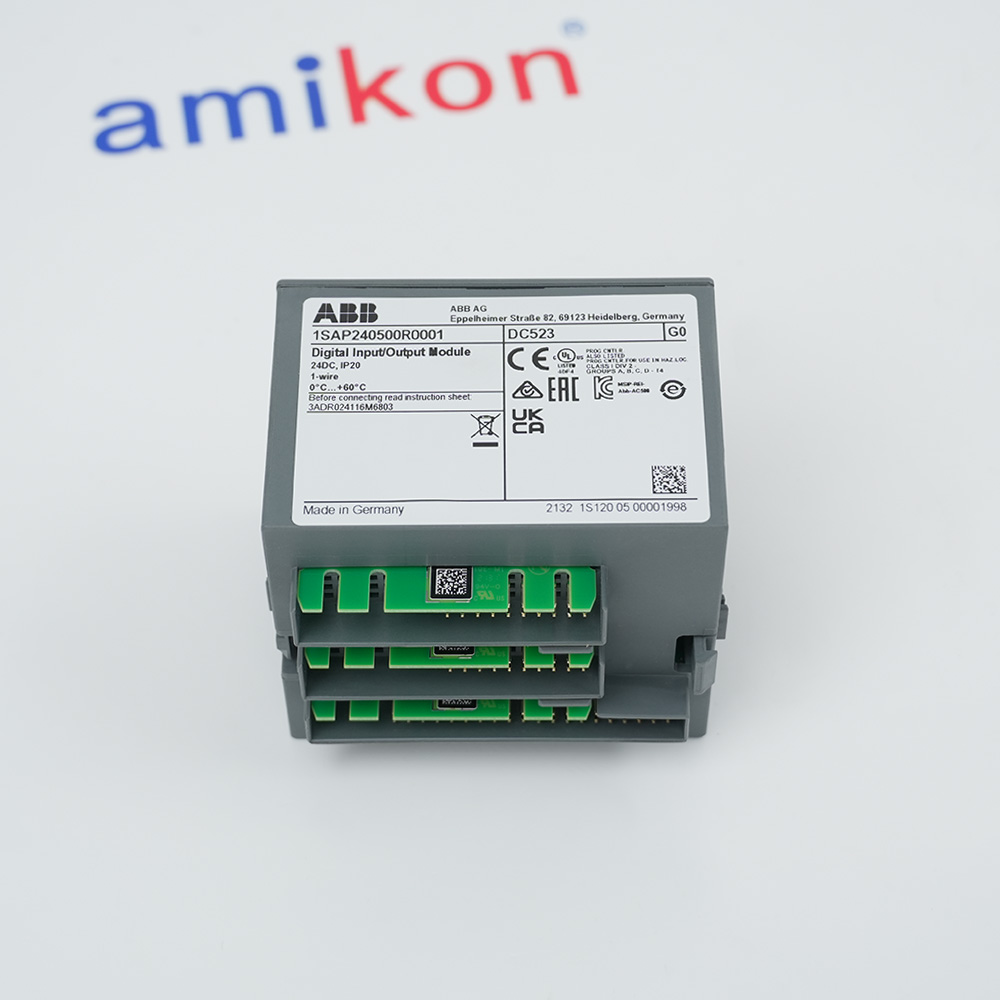

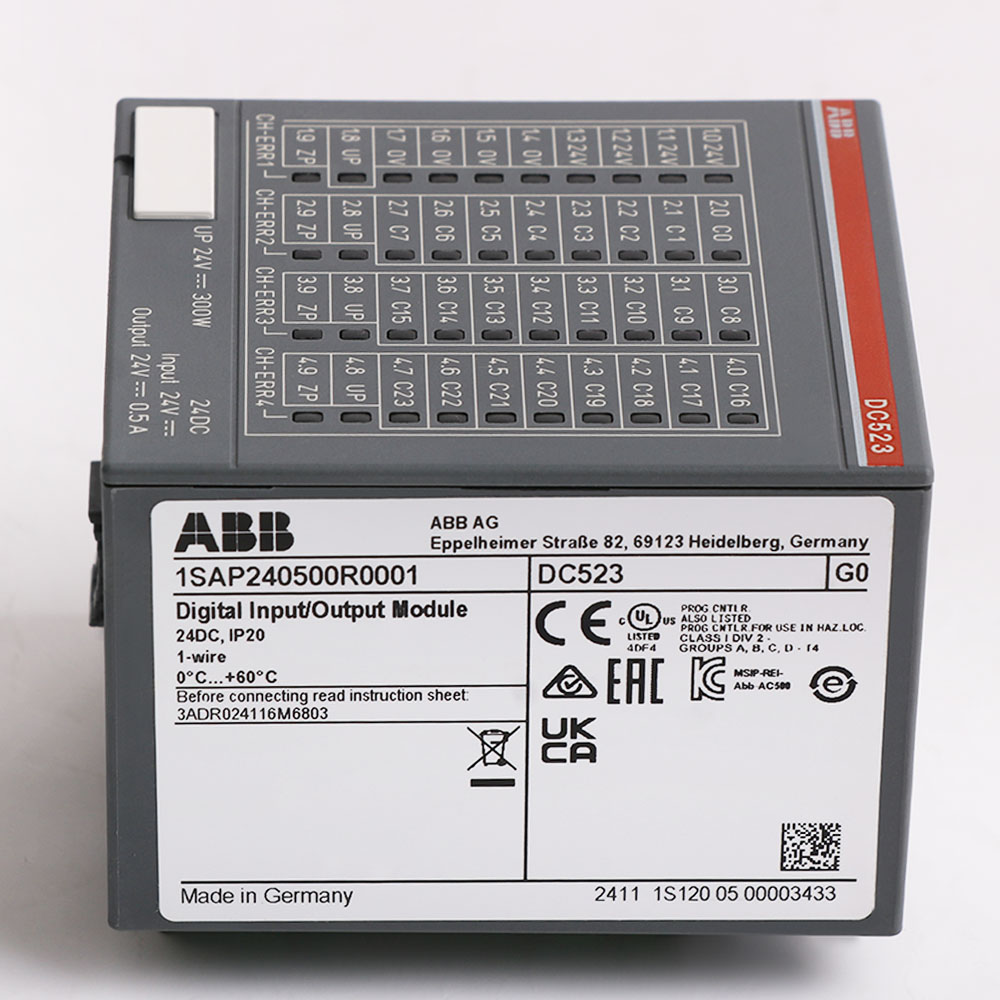

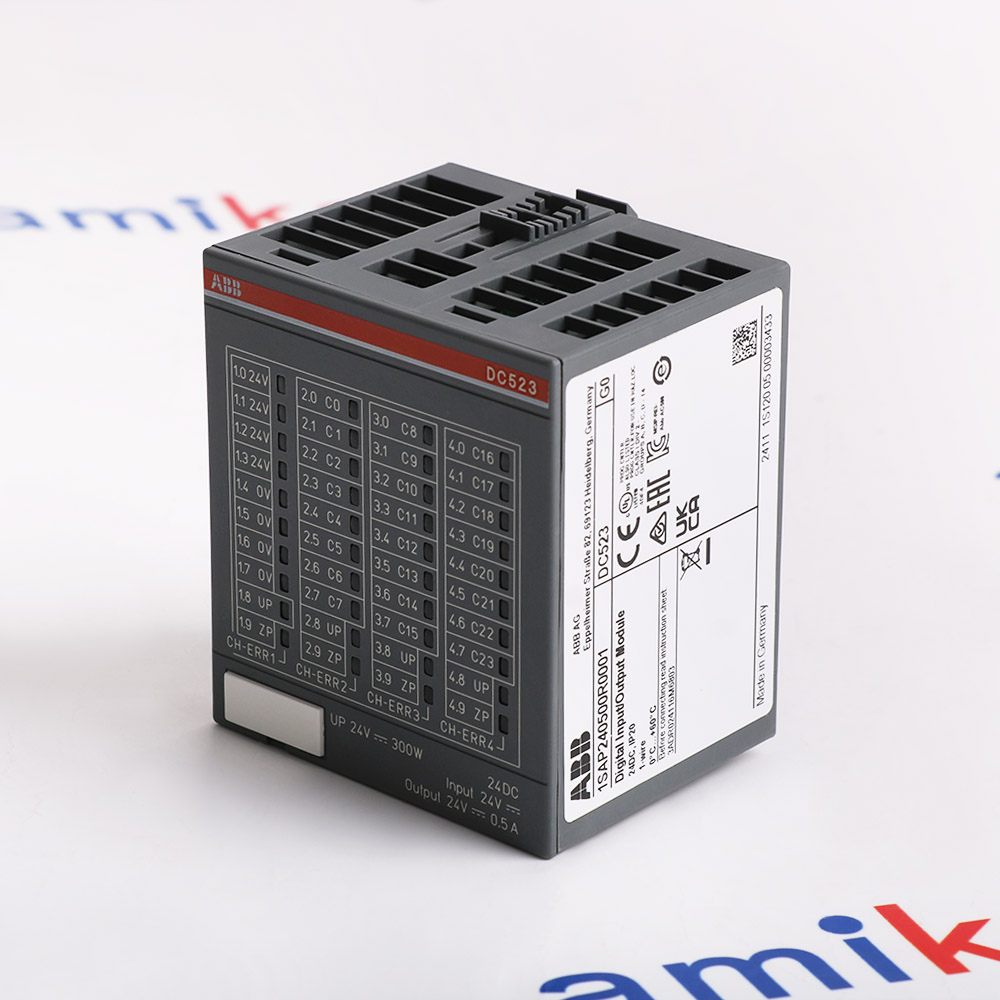

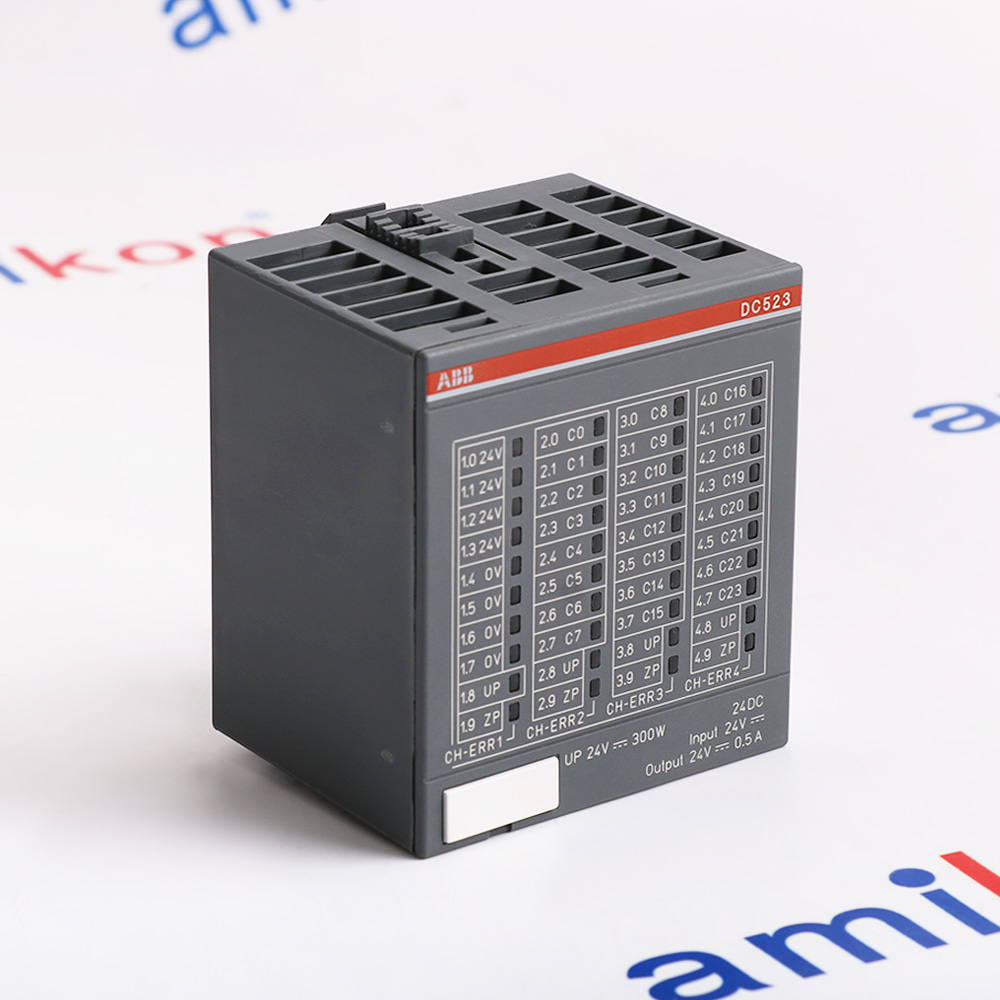

- DC523 1SAP240500R0001
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DC523 1SAP240500R0001
-
Product ModelDC523 1SAP240500R0001
-
Spare Model1SAP240500R0001
-
Product ParametersDIGITAL CONFIGURABLE I/O MODULE
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.8x6.3x8cm
-
ManufacturerABB
-
Weight0.12 kg
-
Number of Digital Configurable I/Os24
-
Input Voltage TypeDC
-
Input Current5 mA
-
Maximum Input Voltage0 ... 30 V
-
Delay Time (τ)0.1 … 32 ms
-
OutputTransistor
-
Output Voltage TypeDC
-
Output Voltage (Uout)24 V DC
-
Output Current0.5 A
-
Output Voltage Maximum20.4 … 28.8 V
Description
1SAP240500R0001
DIGITAL CONFIGURABLE I/O MODULE
0.5 AMP
24 VDC
1/2-WIRE
0 TO +60 DEGREES C
DIN RAIL MOUNTING
IP20
(DC523)
DIGITAL CONFIGURABLE I/O MODULE
0.5 AMP
24 VDC
1/2-WIRE
0 TO +60 DEGREES C
DIN RAIL MOUNTING
IP20
(DC523)
Information
Overview
Manuals
Technical notes
Product Applications
Critical Installation Safety Rules
Features:
- 24 Software-Configurable DI/DO Channels
- Dual 50 kHz Hardware Fast Counter Inputs
- 2-Wire & 3-Wire Connection Support with Auxiliary Terminals
- Transistor Outputs with 0.1–32 ms Configurable Delay Time
The DC523 1SAP240500R0001 ABBDIGITAL CONFIGURABLE I/O MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DC523 1SAP240500R0001 DIGITAL CONFIGURABLE I/O MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB DC523 (Part Number: 1SAP240500R0001) is a digital configurable input/output module belonging to the S500 I/O expansion series. It is primarily deployed alongside the ABB AC500 PLC and Advant OCS platforms to provide flexible distributed automation scaling.Operates at a nominal supply voltage of 24 V DC (acceptable window: 20.4 to 28.8 V DC). Nominal input current of 5 mA per channel with an acceptable voltage range of 0 to 30 V DC.
- Conveyor & Sorting Controls:Photo-eyes to track parts; outputs switch gates/arms
- Pick-and-Place Robocell Handshaking:Links robotic workcells with AC500 via I/O for safety & coordination
- Hydraulic & Pneumatic Valves:Drives 24V solenoids & valves for presses/molders
- High-Speed Part Counting:Two 50 kHz counters track throughput or encoder input
- Pumping Stations & Fluid Control:Level switches & contactors for dosing/valves/filtration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hot Swapping Limitations: While terminal units marked with a white border support hot swapping, you must ensure that digital outputs are under no physical load and any voltages exceeding safety thresholds (SELV/PELV) are turned off before pulling a live module.
Avoid Reserved Pins: Never route wires or signals into unassigned or reserved terminals. They contain internal proprietary voltages that can damage the electronics.
Disassembly: To pull a module out, firmly press the structural release tabs situated on the top and bottom of the plastic housing, then slide the module cleanly off the unit.
FAQs
-
Does the module provide galvanic isolation?
+Yes, the module provides galvanic isolation per module to protect the system from electrical faults and surges. -
How are the I/O channels configured?
+The 24 channels are automatically or programmatically assigned via standard automation software. Each individual channel operates as an input or a transistor output without physical toggle switches required on the module hardware -
What is the typical power consumption and dissipation?
+The internal power consumption sits at approximately 2.448 W under basic operating states. The maximum power dissipation within the module body rises to 6 W when outputs remain unloaded. -
What are the key electrical ratings for the I/O channels?
+The module operates at a rated supply voltage of 24 V DC. Transistor outputs support a maximum current of 0.5 A each.
