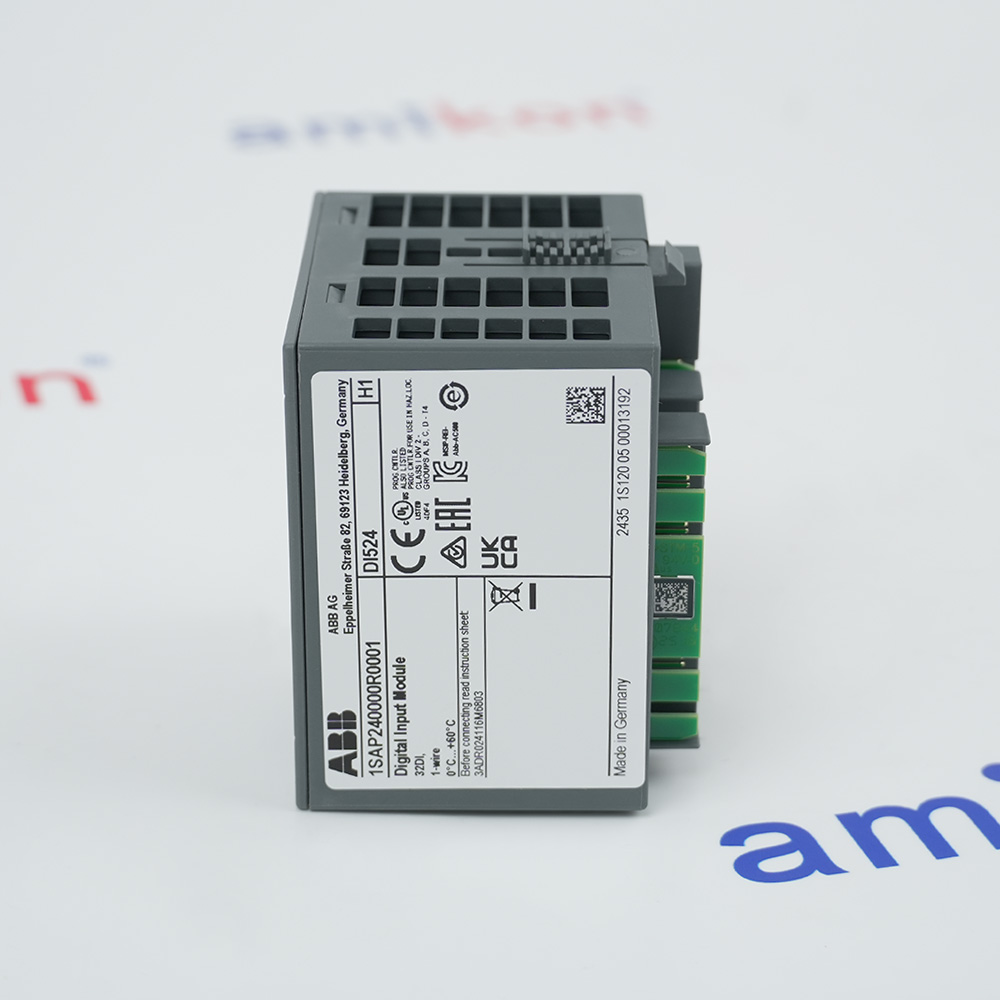

Technical specifications for DI524 1SAP240000R0001
-
Product ModelDI524 1SAP240000R0001
-
Spare ModelDI524
-
Product ParametersDI524 Digital Input Module
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.6x7.6x7.6cm
-
ManufacturerABB
-
Weight0.1 kg
-
Function32 DI: 24VDC
-
Number of Digital Inputs32
-
Input Voltage TypeDC
-
Input Current5 mA
-
Maximum Input Voltage0 ... 30 V
-
Delay Time (τ)0.1 … 32 ms
-
Degree of ProtectionIP20
-
Supply Voltage20.4 … 28.8 V DC
Description
1SAP240000R0001
DIGITAL INPUT MODULE
32 DI
24 VDC
DELAY TIME: 0.1....32 MS
DI524
DIGITAL INPUT MODULE
32 DI
24 VDC
DELAY TIME: 0.1....32 MS
DI524
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- 32-Channel 24 VDC Digital Input with 1-Wire Configuration
- Dual 50 kHz Fast Counter Inputs (I24/I25) for High-Speed Counting
- Module-Wise Galvanic Isolation & Reverse Voltage Protection
- Configurable Input Delay from 0.1 ms to 32 ms
- Comprehensive LED Diagnostics
The DI524 1SAP240000R0001 ABB DIGITAL INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DI524 1SAP240000R0001 DIGITAL INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

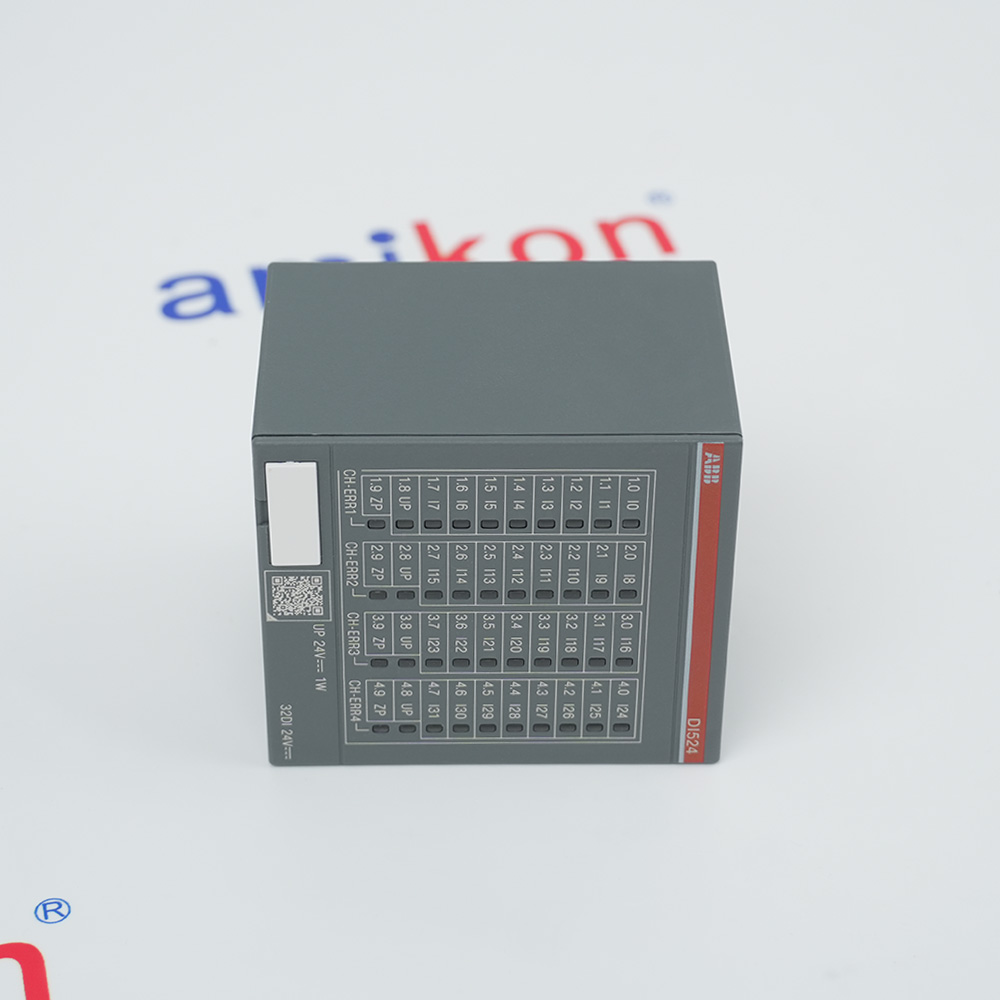

The DI524 provides 32 digital input channels operating from 24 VDC with a 1-wire connection topology. The channels are organized into 4 logical groups of 8 channels each, with terminals 1.0–1.7, 2.0–2.7, 3.0–3.7, and 4.0–4.7 serving as the individual input points. The process supply voltage (UP = +24 VDC) is connected to terminals 1.8, 2.8, 3.8, and 4.8, while the reference potential (ZP = 0 V) is connected to terminals 1.9, 2.9, 3.9, and 4.9. This grouped architecture simplifies wiring and allows common power distribution across each 8-channel block. The module draws approximately 2 mA from the 24 VDC supply in standby and 0.15 A during normal operation, with an inrush current of 0.008 A²s.
- Power Generation & Utilities:Uninterrupted control loops for nuclear/thermal/hydro plants
- Oil, Gas, and Petrochemicals:Explosion-proof power for refinery safety & process tracking
- Chemical & Heavy Manufacturing:Redundant parallel power prevents systemic shutdowns
- Water and Wastewater Infrastructure:Centralized DCS rack power for municipal water treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Installation: Snap the compatible Terminal Unit onto a TH35-15 (35 x 15 mm) or TH35-7.5 standard DIN rail adhering to IEC 60715.
Telescoping Bus Connectors: Slide successive terminal bases laterally along the rail to lock the internal I/O bus connectors together.
Module Insertion: Ensure the PLC system is powered off. Push the DI524 module straight onto the Terminal Unit until the plastic side latches click securely into place.
Mounting Position: Horizontal orientation is standard. Vertical mounting is permitted but requires thermal derating.
FAQs
-
What is DI524 1SAP240000R0001?
+The ABB DI524 1SAP240000R0001 is a high-density, 32-channel digital input module for ABB’s S500 and AC500 programmable logic controller (PLC) systems. -
What do the onboard LEDs signal?
+It features 32 yellow status LEDs indicating active signal state per channel, 1 green power LED for process supply tracking (UP), and 4 red LEDs for direct hardware error reporting. -
What is the channel layout?
+The module houses 32 digital channels grouped into 4 distinct segments (Channels I0–I7, I8–I15, I16–I23, and I24–I31). -
What is the main purpose of the ABB DI524?
+It is used in industrial automation and process control to read up to 32 digital signals from field devices (like switches or sensors) and convert them into a readable format for ABB AC500 PLCs.
