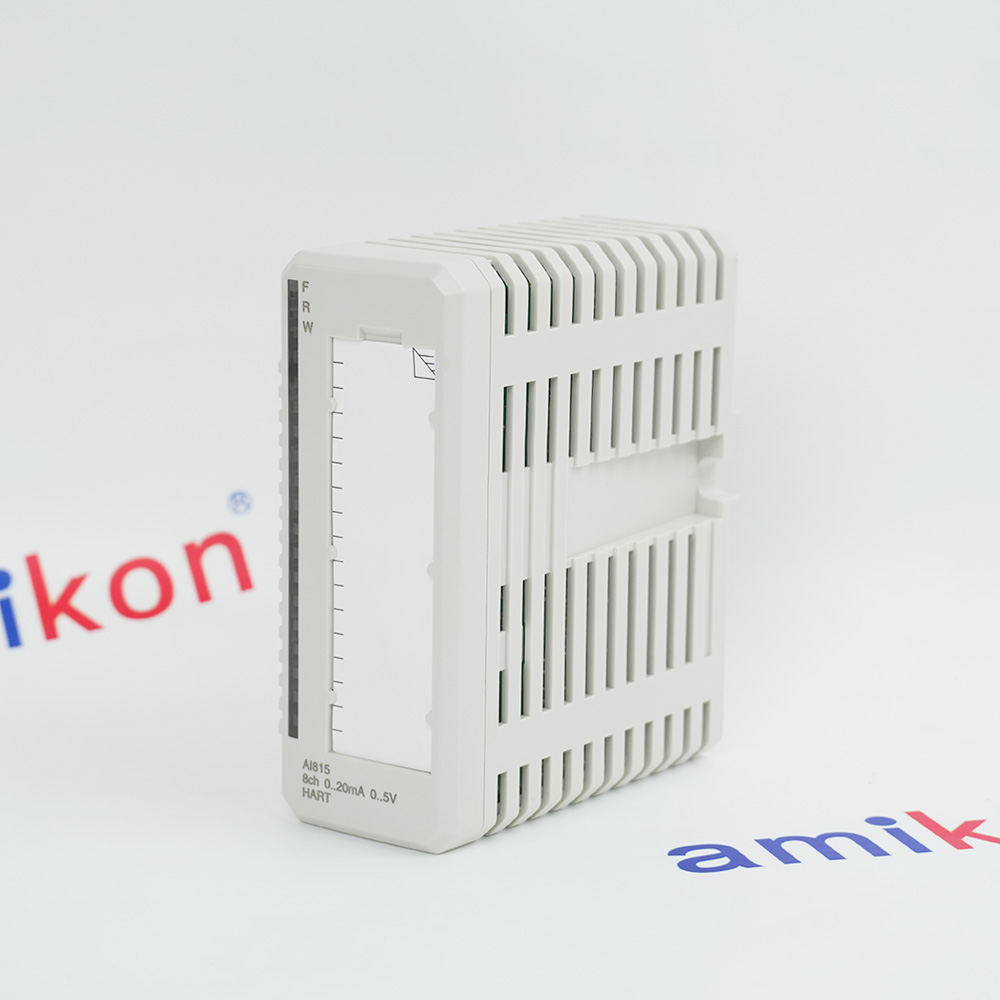

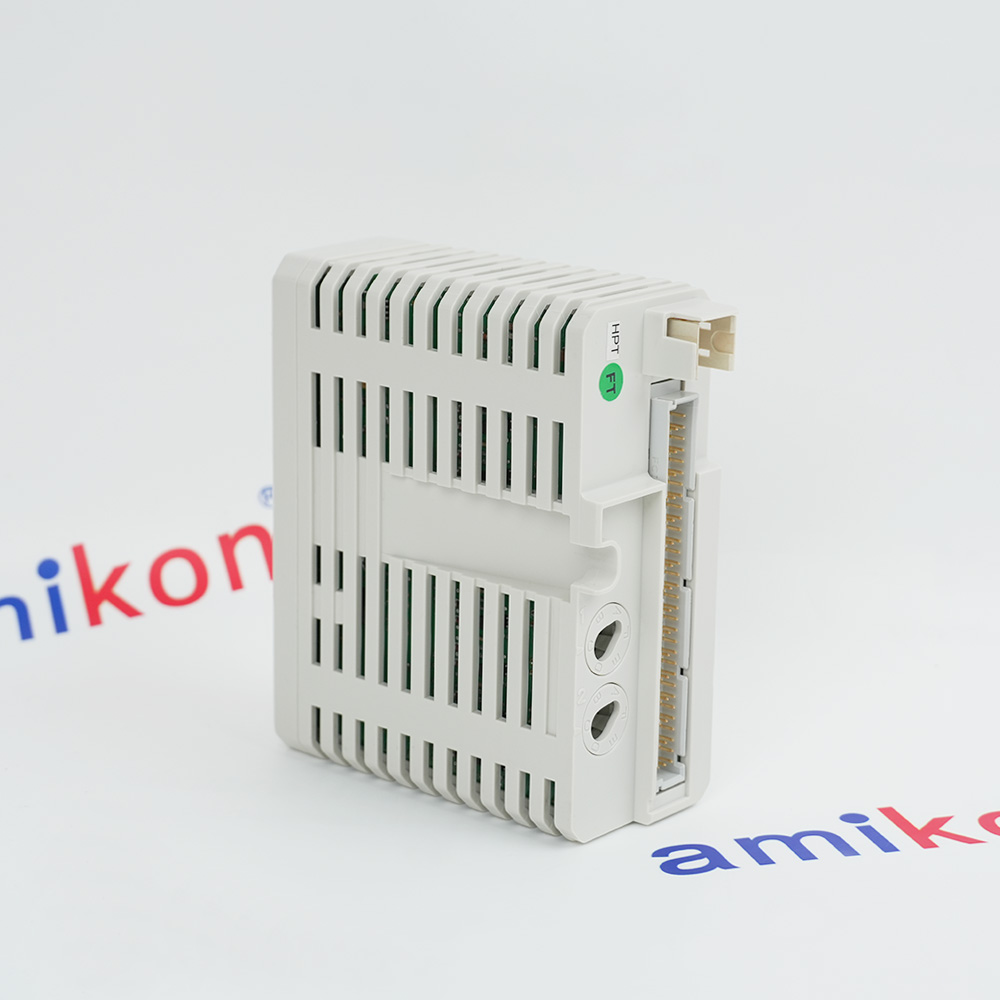

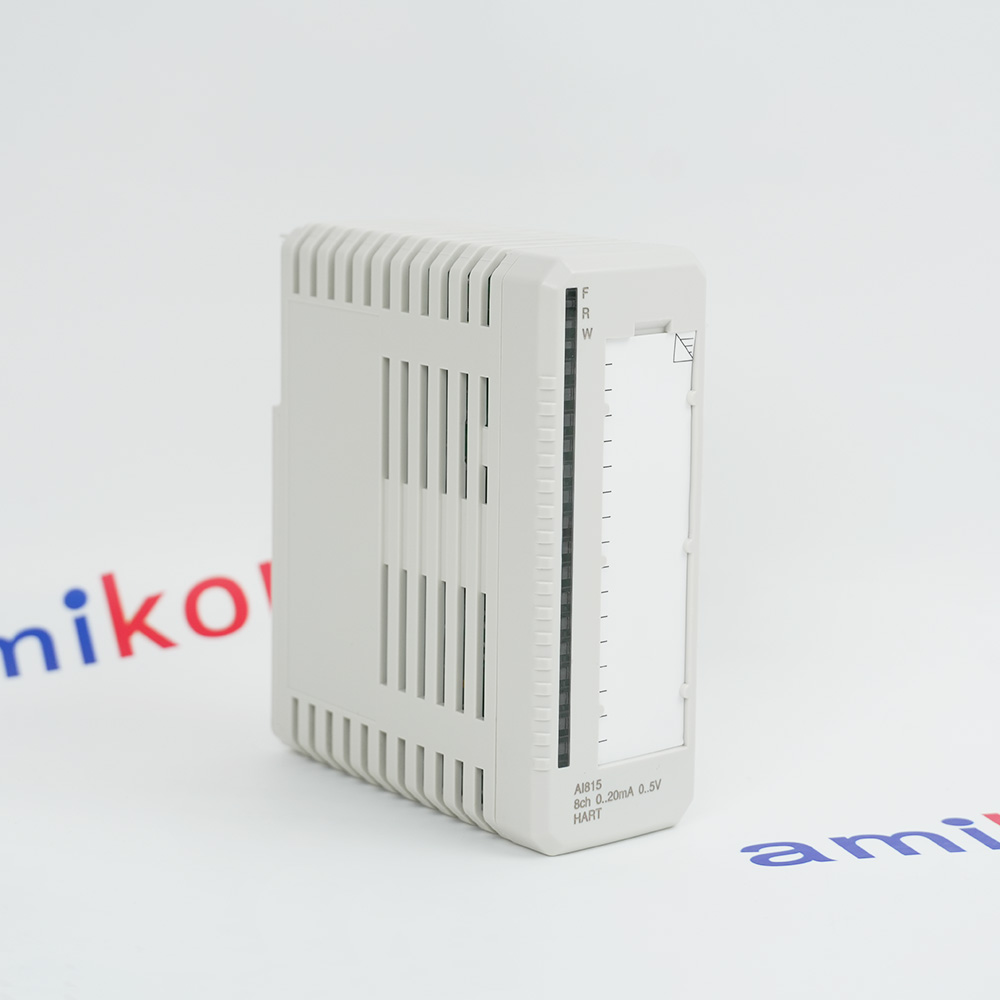

      AI815 3BSE052604R1

      Need Help? Contact US!
      Call us: +86-18020776786
      Proper, Ready.

      Delivery time
      Please indicate your delivery time

      Product Information

      Product Describe
      8 channels for 0...20 mA
      4...20 mA, 0...5 V or 1...5 V d.c
      single ended unipolar inputs
      1 group of 8 channels isolated from ground
      12 Bit resolution
      Current limited transmitter supply per channel
      HART pass-through communication

      Specifications

      • Product Model
        AI815 3BSE052604R1
      • Spare Model
        3BSE052604R1
      • Product Parameters
        Analog Input Unit - HART
      • Tariff Code
        8537101190
      • Country of origin
        Sweden
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        10.2x12.7x5.1cm
      • Manufacturer
        ABB
      • Weight
        0.2 kg
      • Type
        Analog Input
      • Signal specification
        0..20 mA, 4..20 mA, 0..5 V, 1..5 V
      • Number of channels
        8
      • Signal type
        Unipolar single ended

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is the AI815 3BSE052604R1?+
        The ABB 3BSE052604R1 (model AI815) is an 8-channel Analog Input HART module designed for the S800 I/O system, commonly used with ABB’s 800xA control system.
      • What are the key features of the AI815?+
        It is an Analog Input module with 8 channels, supporting HART (Highway Addressable Remote Transducer) protocol for diagnostics and configuration.
      • What is the resolution?+
        The module features 12-bit analog-to-digital conversion.
      • What Modules Termination Units (MTUs) are compatible?+
        It works with TU810, TU812, TU814, TU830, TU833, TU835, and TU838.
      • Is this product brand new?+
        Yes, ABB AI815 3BSE052604R1 is brand new, original, unused, and factory sealed
      Get a quick price fo AI815 3BSE052604R1
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product Applications
      • In thermal power plants and nuclear power plants, it is used to collect key process parameters such as boiler pressure and turbine temperature.
      • It is deployed in oil refineries, natural gas processing plants and chemical plants.
      • It is used for the automatic management of large-scale sewage treatment plants and seawater desalination plants.
      • It is also used in steel mills, paper mills and mining sites.
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      What happens next
      Get the quote now Write Email to INFO@AMIKON.CN
      Email confirmation You will get an email confirming that we have received your enquiry.
      Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.
      Your quote You will receive a comprehensive quote tailored to your specific needs.
      Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Amikon 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
       We accept Bank transfers and the following methods of payment:

      For more information, please visit our dedicated payments page.
      Why Choose Amikon Limited?

      When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.

      • ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
      • ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
      • ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
      • ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
      • ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
      •

      Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.


      Product

      MORE INFORMATION

      Overview Manuals Technical notes Core Protection Features

      Features:

      • 8 channels for 0...20 mA, 4...20 mA, 0...5 V or 1...5 V d.c., single ended unipolar inputs
      • 1 group of 8 channels isolated from ground
      • 12 Bit resolution
      • Current limited transmitter supply per channel
      • HART pass-through communication
      The AI815 Analog Input Module has 8 channels. The modules can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c.

      The AI815 3BSE052604R1 ABB Analog Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ABB AI815 3BSE052604R1 Analog Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The input resistance for voltage input is greater than 10 M ohm, and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited. If an external power supply is used for feeding HART transmitters, the power supply must be HART compatible.
      Current Limiting: The module has built-in current limiting for the transmitter power supplied to each channel. This protects the module and field wiring in the event of a short circuit in the field.
      Voltage Withstand: The inputs are designed to withstand overvoltage or undervoltage of at least ±11 V DC without damage.
      Galvanic Isolation: It features groupwise isolation from ground, which protects the internal system bus from field-side electrical noise, surges, and ground loops.
