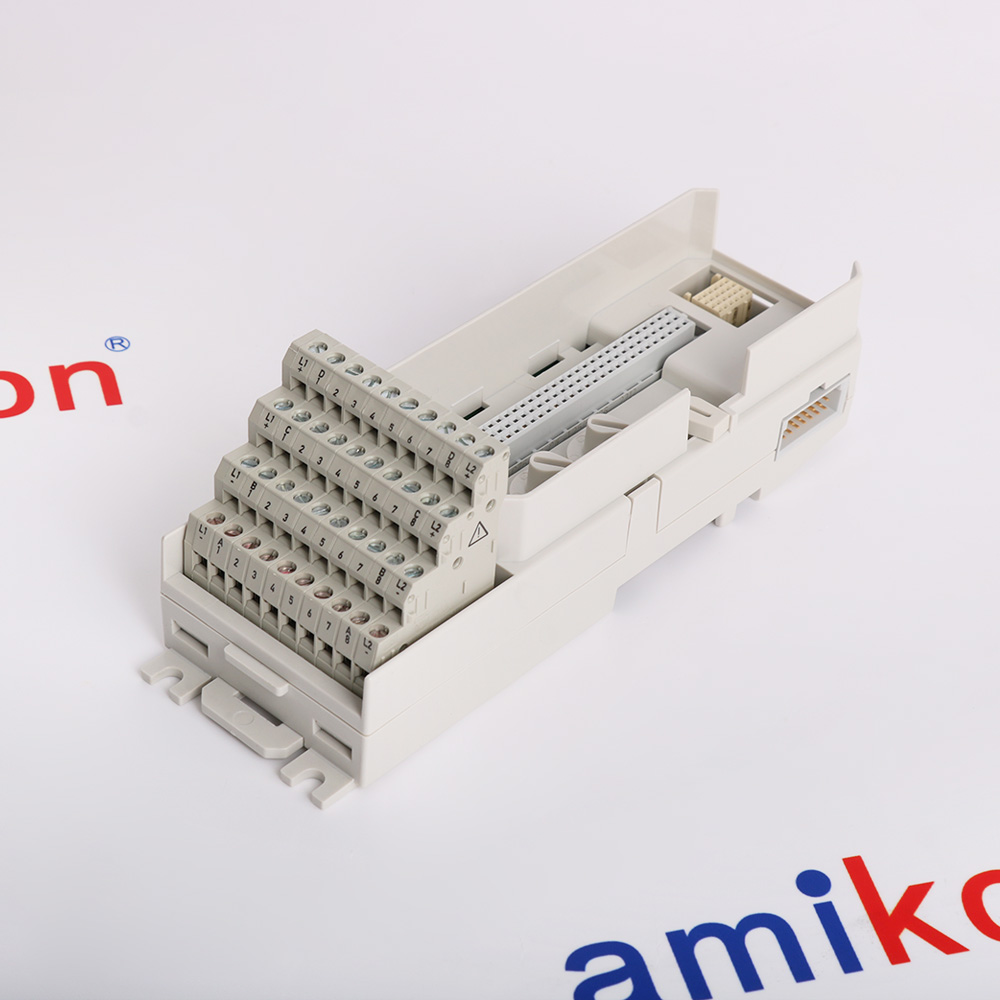

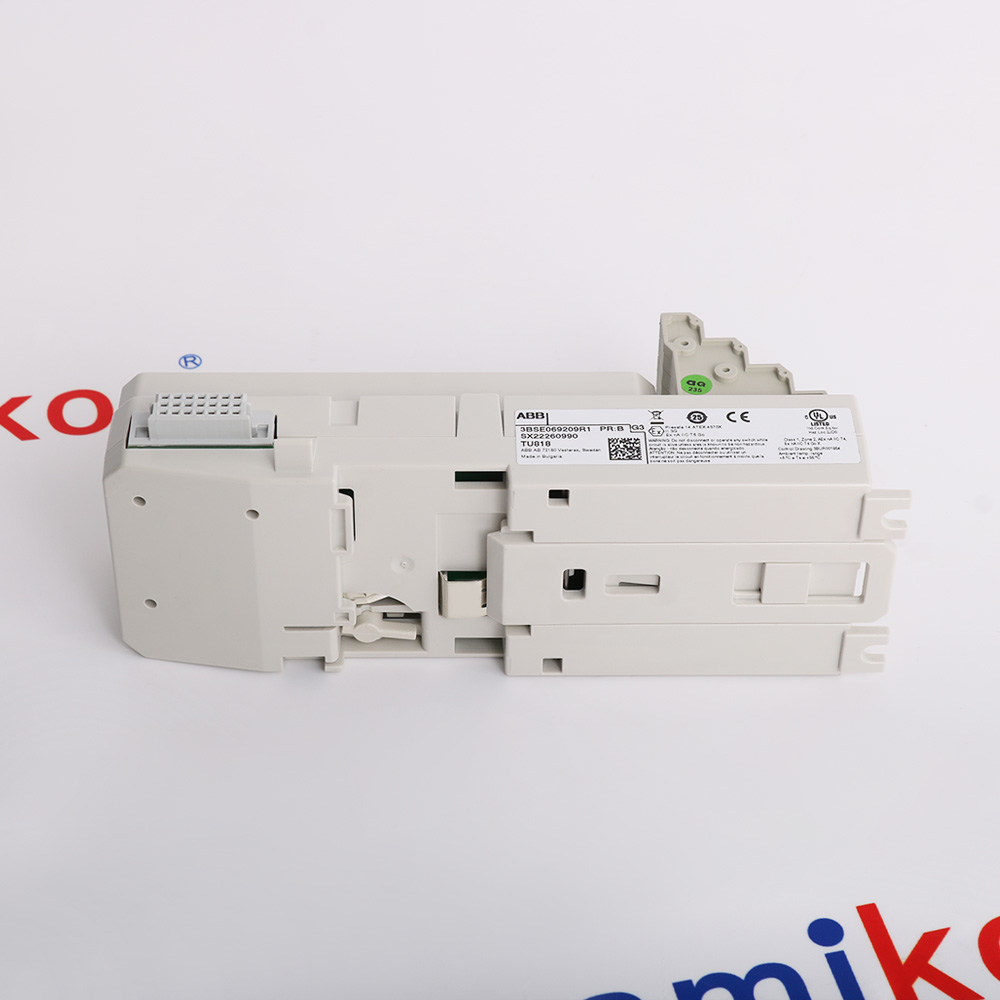

Technical specifications for TU818 3BSE069209R1
-
Product ModelTU818 3BSE069209R1
-
Spare Model3BSE069209R1
-
Product ParametersCompact Module Termination Unit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size17x6.4x6.3cm
-
ManufacturerABB
-
Weight0.2 kg
-
TypeCompact
-
ConnectionTerminal block
-
Channels32
-
Voltage50 V
-
MountingBoth directions
-
Process connections40 pole screw terminal
-
Single/redundant I/OSingle
Description
The TU818 is a 32 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion
Features:
- Compact installation of I/O modules using one-wire or two-wire (depends on I/O module type) connections
- Up to 32 channels of field signals and process power connections
- Connections to ModuleBus and I/O modules
- Mechanical keying prevents insertion of the wrong I/O module
- Latching device to DIN rail for grounding
- DIN rail mounting
The TU818 3BSE069209R1 ABB Terminal block may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB TU818 3BSE069209R1 Terminal block Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The TU818 is designed as a passive interface module, meaning it does not perform signal processing itself. Instead, it provides a structured connection layer between field devices and ABB S800 I/O modules such as AI, DI, and DO series modules. Communication with I/O modules is handled through the internal ModuleBus system, ensuring consistent signal routing within the rack architecture.
Mechanical keying features are built into the unit to prevent incorrect module installation, ensuring compatibility between MTU and corresponding I/O modules. The DIN rail mounting system allows flexible installation inside control cabinets, with support for both horizontal and vertical orientations depending on environmental conditions.
- Oil/Gas: Used on offshore platforms, FSUs, gas plants, and refineries; compact design saves control room space
- Power/Utilities: Integrated into thermal, renewable, and large-scale water treatment facilities
- Chemical/Petrochemical: Deployed in automated plants requiring high availability and extensive routing
- Pharmaceuticals: Ideal for batch processing with strict uptime and quality tracking requirements
- Mining/Metals: Utilized in smelters, cement plants, and crushers with robust grounding and durability
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Mounting: Mount the TU818 onto a standard DIN rail. Ensure the latching device snaps securely in place, which also establishes the chassis/ground connection.
Mechanical Keying: The TU818 features two mechanical keys to configure it for specific I/O module types.
Each key has 6 positions, yielding 36 different configurations. Adjust these using a screwdriver to align with your corresponding I/O module (e.g., DI818) and prevent improper module insertion.
Alternative Names
TU818 3BSE069209RI
TU818 3BSE0692O9R1
TU818 3BSEO69209R1
TU818 38SE069209R1
TU81B 3BSE069209R1
TU8I8 3BSE069209R1
TU818-3BSE069209R1
TU818-3BSE069209RI
TU818-3BSE0692O9R1
TU818-3BSEO69209R1
TU818-38SE069209R1
TU8I8-3BSE069209R1
Technical notes
Environmental specifications specify an operating temperature of -40°C to +70°C and storage temperature of -40°C to +85°C. The IP20 protection rating requires installation within a control cabinet. Pollution degree is 2, and altitude rating is 2,000 m without derating.
The TU818 carries CE marking, UL/cULus certification, and is RoHS compliant. ATEX variants are available for installation in potentially explosive atmospheres.
FAQs
-
What is the TU818 3BSE069209R1?
+The ABB TU818 3BSE069209R1 is a Compact Module Termination Unit (MTU) rated for 50V. -
Can the TU818 be replaced while the system is operational?
+Yes, the TU818 features a hot-swappable design. The active top part of the MTU can be removed for replacement without shutting down the entire system or interrupting the main process -
What I/O modules are compatible with this MTU?
+The TU818 acts as a base and connects to a wide variety of S800 I/O modules, such as the AI810 (Analog Input) and DI880 (Digital Input). -
Does the TU818 require external batteries?
+No, the Compact MTU does not contain any batteries
