Technical specifications for AI835A 3BSE051306R1
-

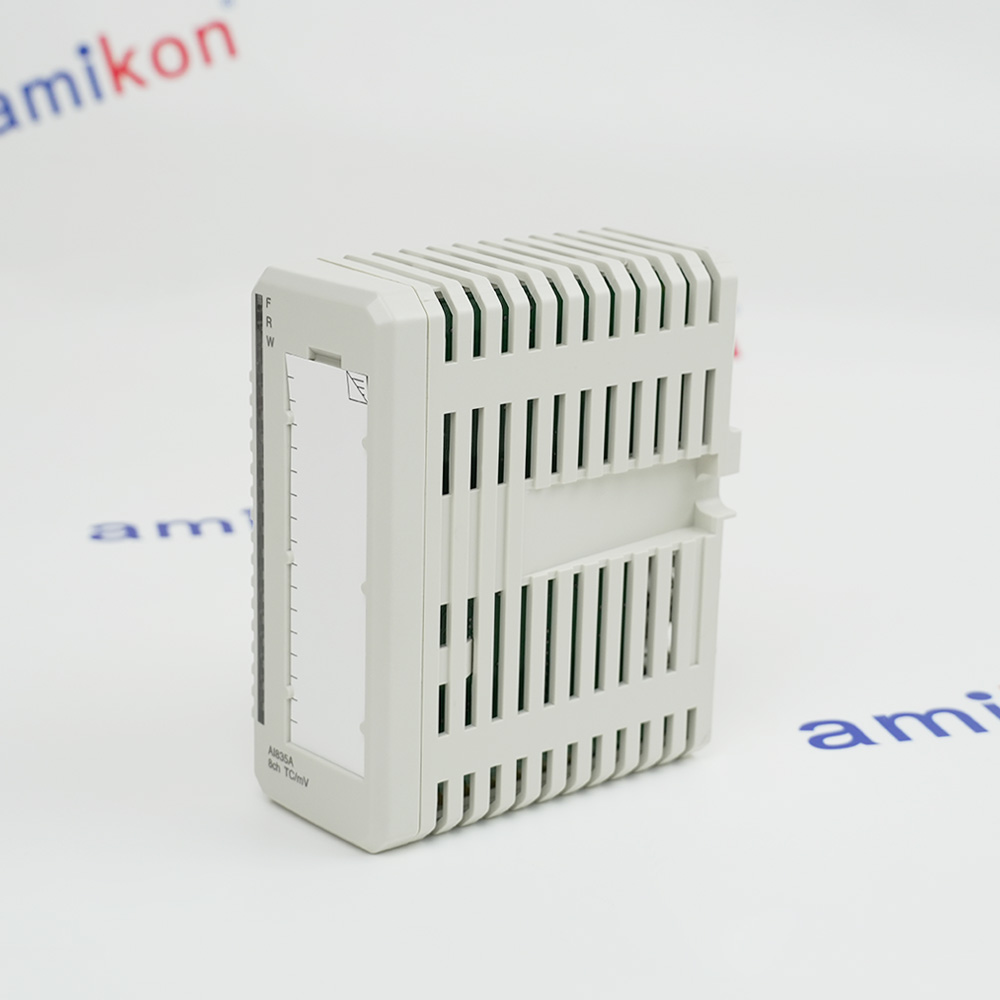

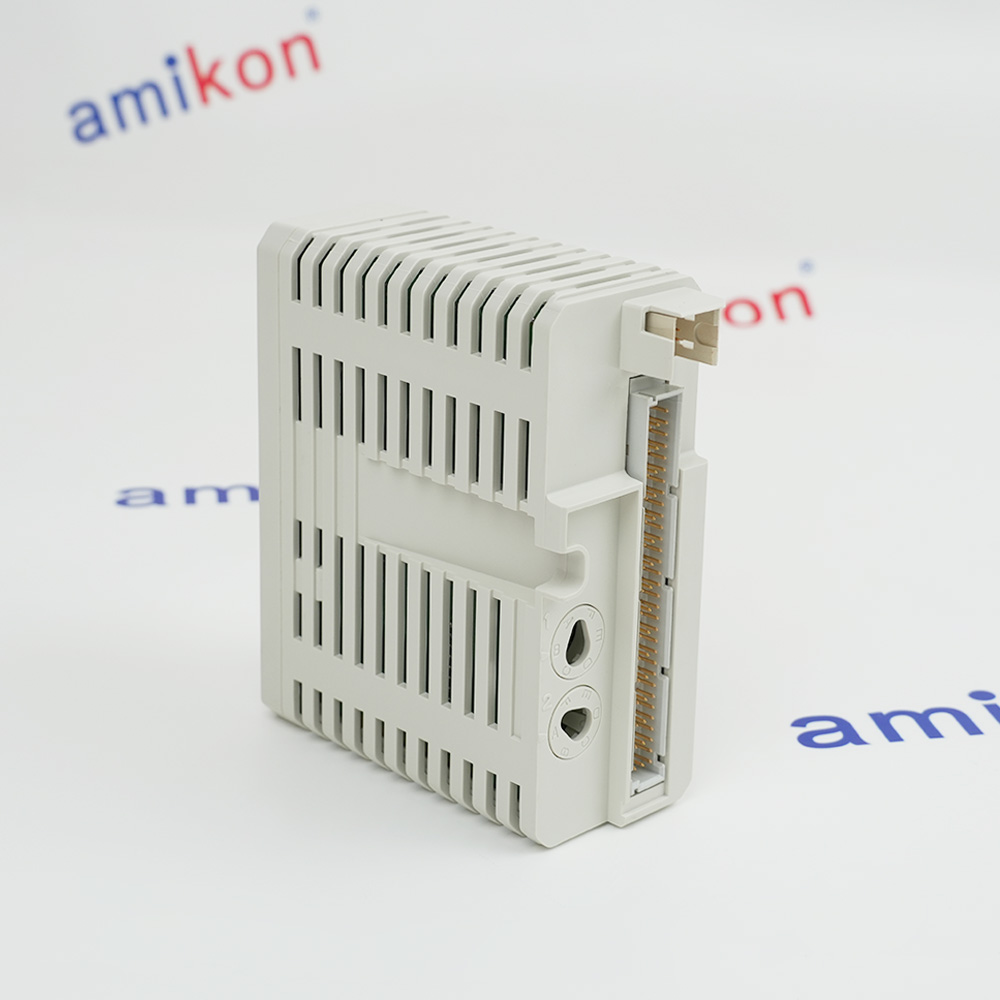

Product ModelAI835A 3BSE051306R1
-
Product ParametersS800 I/O 8 differential input channels
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.5x11x11.8cm
-
ManufacturerABB
-
Weight0.25 kg
-
Signal specification-30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U
-
Number of channels8
-
Resolution15 bits
-
Input impedance> 1 MΩ
-
IsolationGroupwise isolated from ground Error Max. 0.1%
-
Maximum field cable length600 meters (656 yards)
-
CMRR, 50Hz, 60Hz120 dB
-
NMRR, 50Hz, 60Hz> 60 dB
-
Rated insulation voltage50 V
-
Dielectric test voltage500 V a.c.
-
Power dissipation1.6 W
-
Current consumption +5 V Modulebus75 mA
-
Current consumption +24 V Modulebus50 mA
Description
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.
Alternative Names
AI835A-3BSE051306R1
3BSE0513O6R1
A1835-A 3BSE051306R1
AI835 3BSE051306R1
AI835A 3BSEO5130OR1
3BSEO5130OR1
Information
Overview
Manuals
Application Notes
Product Applications
Wiring & Signal Guidelines
Features:
- 8 differential input channels for thermocouple/mV.
- Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
- Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D, L and U
- 15 Bit resolution (A/D)
- Inputs are monitored for wire-break open-circuit
The ABB AI835A 3BSE051306R1 supports configurable measurement ranges per channel. The ABB AI835A 3BSE051306R1 measures −30 mV to +75 mV in linear range. The ABB AI835A 3BSE051306R1 supports thermocouple types B, C, D, E, J, K, L, N, R, S, T, and U. The variety of thermocouple types on the ABB AI835A 3BSE051306R1 accommodates diverse industrial temperature measurement requirements.
The AI835A 3BSE051306R ABB S800 I/O 8 differential input channels may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI835A 3BSE051306R S800 I/O 8 differential input channels Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB AI835A 3BSE051306R1 features 15-bit A/D resolution. The 15-bit resolution on the ABB AI835A 3BSE051306R1 provides high-precision signal conversion for accurate process temperature monitoring. The ABB AI835A 3BSE051306R1 monitors inputs for wire-break and open-circuit conditions. This monitoring on the ABB AI835A 3BSE051306R1 ensures measurement integrity and enables diagnostic alerting for maintenance activities.
- Power Generation:Boiler/exhaust gas & turbine temps
- Chemical & Petrochemical Processing:Reactor, column & fluid line heat
- Oil & Gas:Data for remote extraction & refineries
- Water & Wastewater Treatment:Liquid handling & climate tracking
- Manufacturing & Metallurgy:Furnace, casting & curing temps
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Input Signal Support: The module accepts linear millivolt ranges from -30 mV to +75 mV or standardized Thermocouple types (B, C, D, E, J, K, L, N, R, S, T, and U).
Maximum Distance: Field sensor cables must not exceed a maximum length of 600 meters.
Cold Junction (CJ) Configuration: Channel 8 can be explicitly assigned for Cold Junction temperature compensation using a Pt100 RTD sensor wired to the MTU screw terminals. Alternatively, you can disable CJ tracking on Channel 8 to use it as a standard 8th input channel, configuring a fixed user parameter in your control application instead.
Technical notes
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
FAQs
-
What is the AI835A?
+An ABB Ability System 800xA analog input module for industrial process control.Designed for measuring Thermocouple (TC) or millivolt (mV) signals. -
Which I/O system does it belong to?
+It is part of the S800 I/O family and is compatible with ABB Ability™ System 800xA controllers. -
Does it support HART or Sequence of Events (SOE)?
+No, this specific module does not support HART communication or SOE time-tagging.
