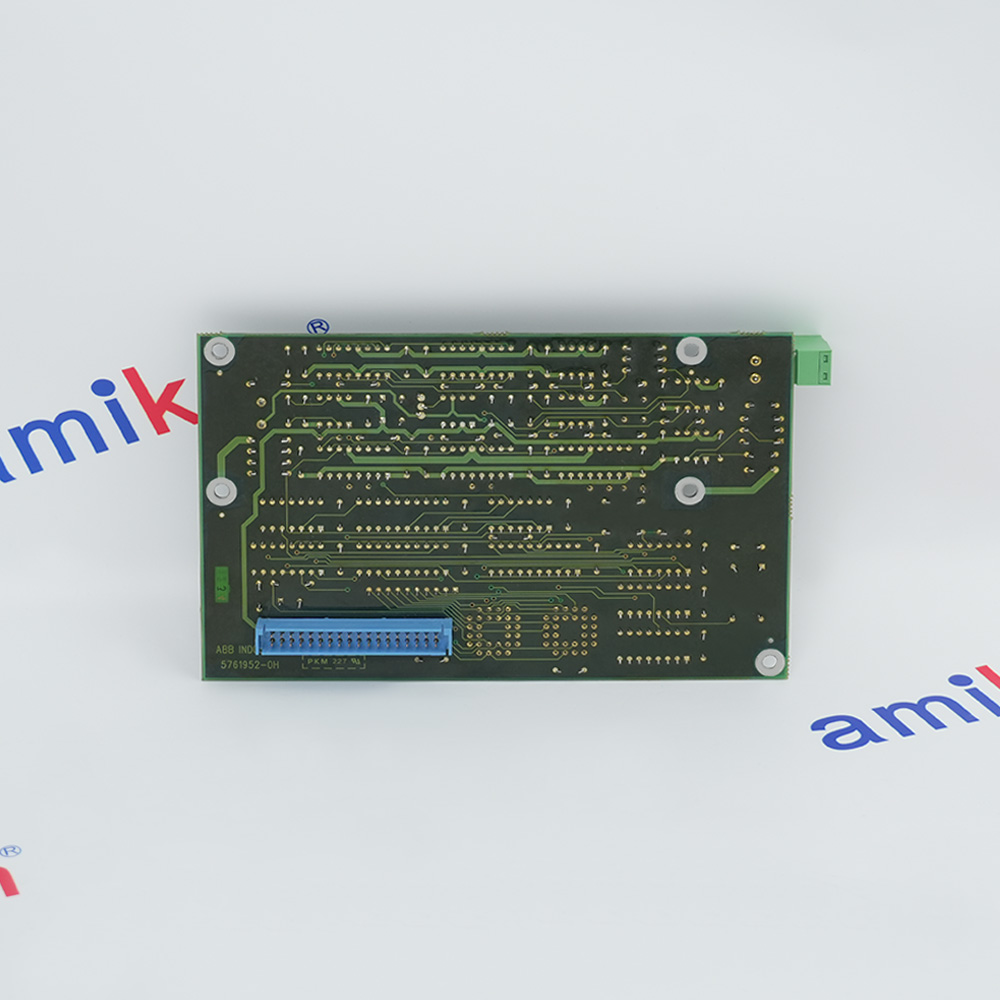

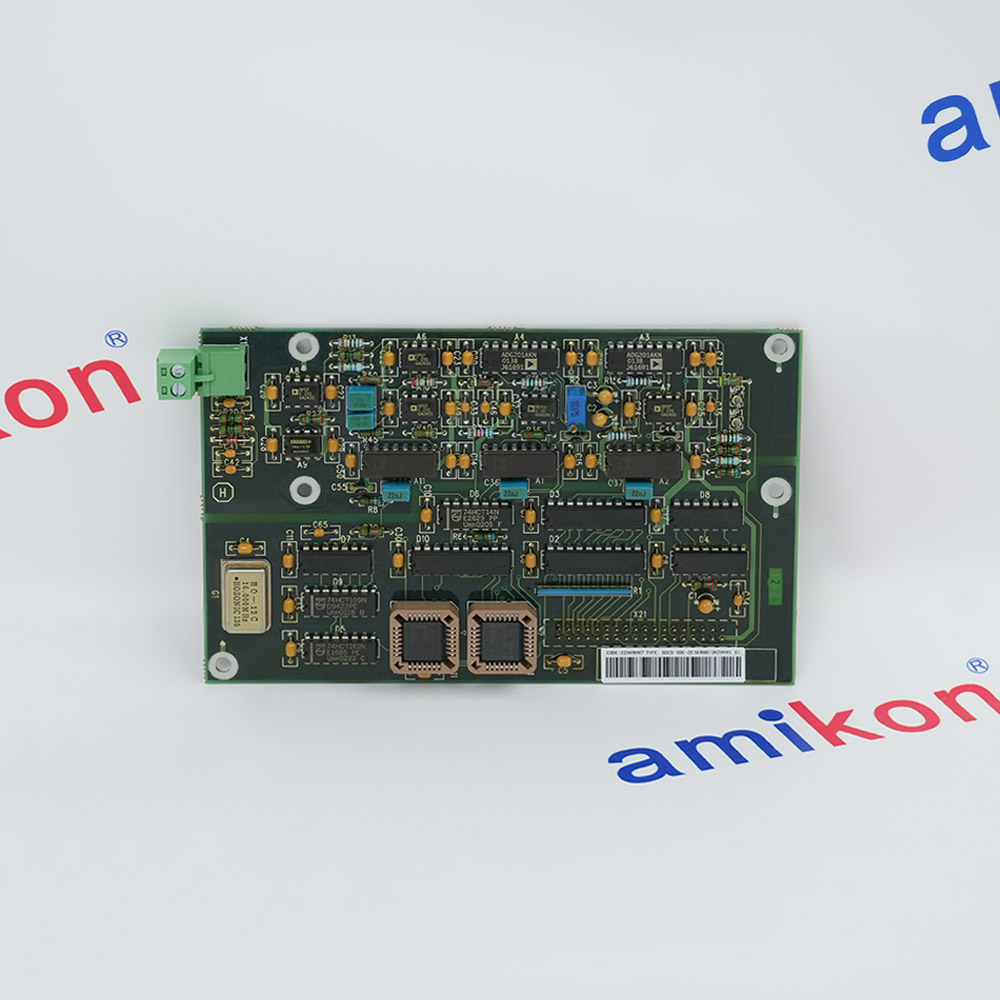

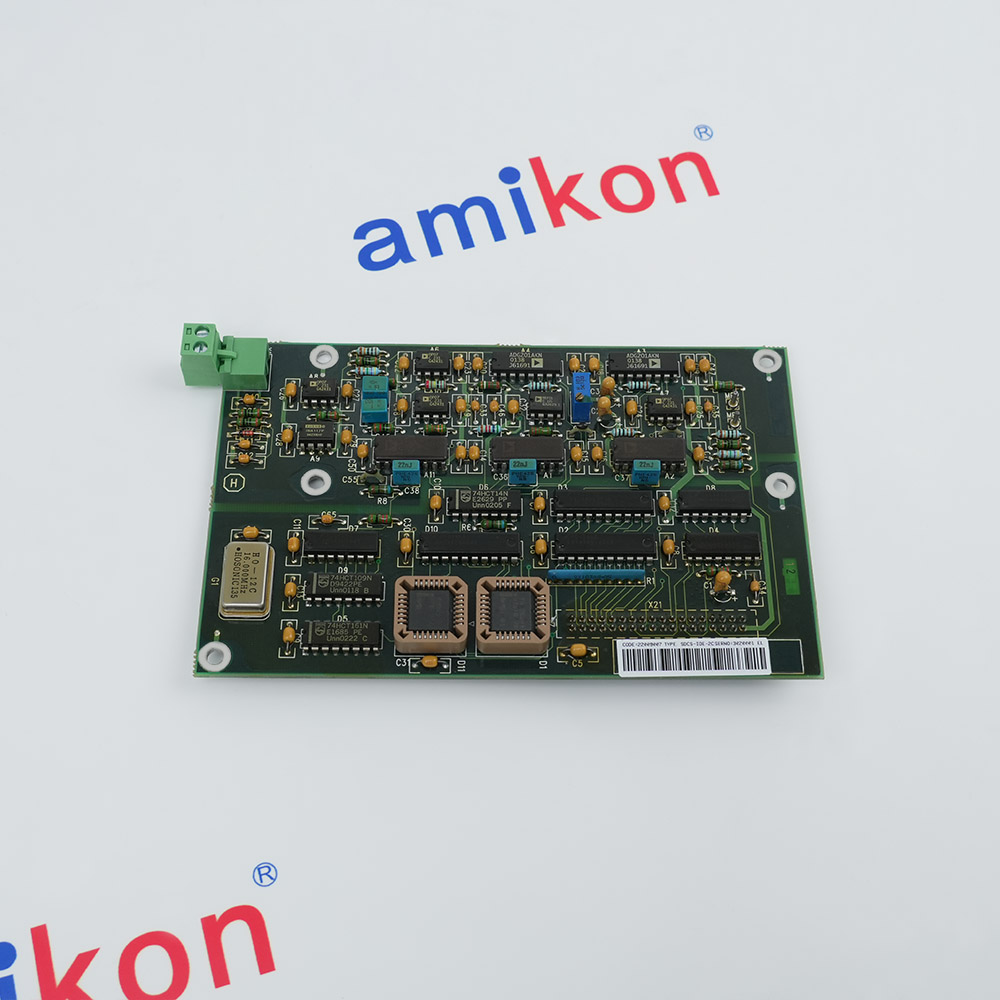

Technical specifications for SDCS-IOE-2C
-
Product ModelSDCS-IOE-2C
-
Product ParametersMEASUREMENT INTERFACE BOARD
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size15.6x10x2cm
-
ManufacturerABB
-
Weight0.1 kg
-
Supply Voltage24 V DC
-
Isolation Voltage2500 Vrms
-
Power Consumption10 W
-
Total Channels16 channels
-
Digital Inputs (DI)8 channels
-
Digital Outputs (DO)8 channels
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Humidity Range5% to 95% RH (non-condensing)
Description
SDCS-IOE-2C
Extension bord
MEASUREMENT INTERFACE BOARD
Extension bord
MEASUREMENT INTERFACE BOARD
Alternative Names
SDCS-IOE-2
SDCSIOE2C
SDCS-1OE-2C
SDCS-I0E-2C
Information
Overview
Manuals
Technical notes
Product Applications
Safety Prerequisites
Features:
- 7 Isolated Digital Inputs
- 2 Analog Inputs
- PT100/PTC Temperature Sensor Supply Current Source
- External DIN Rail Mounting
- 10-Core Flat Cable Connection
The SDCS-IOE-2C ABB I/O extension board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-IOE-2C I/O extension board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The board consists of 7 isolated digital inputs, 2 analog inputs, and 1 PT100/PTC temperature sensor supply current source. The 7 digital inputs are electrically isolated from the unit via optocouplers and are divided into two potential groups (DI 9 to DI 12 and DI 13 to DI 15).
The input voltage range is 0–8V ("0" state) and 16–31V ("1" state), with a maximum voltage of 50V between groups/control board, a filter time constant of 2 ms, and signal status indicated by LEDs. The 2 analog inputs are differential inputs with a common-mode range of ±40V, a resolution of 11 bits + sign, a default input range of ±10V (settable to ±1V via jumpers), and can also be configured via hardware and software for ±20 mA or 4–20 mA signals. The temperature sensor supply current source can provide 5 mA for PT100 or 1.5 mA for PTC
- Mine Hoists & Industrial Windlasses:Braking, slack rope & load for safe vertical transport
- Heavy-Duty Conveyor Systems:Speed/tension telemetry for multi-pulley bulk handling
- Main Rolling Stand Mill Drives:Tachometers & thermal sensors for steel/aluminum shaping
- Industrial Printing Presses:Synchronizes multi-color cylinders for print alignment
- Cement Kilns & Ore Crushers:Interlocks, low-speed torque & bearing temps
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolate All Power: Lock out and tag out the main drive AC supply, the control electronics power supply, and any external 115V/230V relay circuit connections.
Wait for Discharging: Allow at least 5 minutes for the DC drive internal capacitors to fully discharge before opening the cabinet doors.
ESD Protection: Wear a grounded electrostatic discharge (ESD) wrist strap; static electricity can permanently destroy the board's micro-components.
No Insulation Testing: Disconnect all external control cables from the card before performing insulation or megger tests on the motor or main drive cables.
FAQs
-
What is the SDCS-IOE-2C？
+The ABB SDCS-IOE-2C is an Input/Output (I/O) extension and measurement board primarily for ABB DCS500 and DCS800 DC drive systems. -
What is the primary function of the SDCS-IOE-2C?
+The board is used to expand the digital and analog I/O points of ABB DC drives. It facilitates signal acquisition from field devices (like sensors and switches) and controls actuators without requiring users to replace the main drive unit. -
Does the module feature electrical isolation?
+Yes, it incorporates advanced photoelectric isolation technology to prevent industrial electrical noise and interference from causing signal distortion or equipment damage. -
Which ABB drive series are compatible with this board?
+The SDCS-IOE-2C is heavily integrated with legacy and current ABB DC drives, specifically the DCS500 and DCS800 series.
