Technical specifications for BGDR-01C 3AUA0000074145
-
Product ModelBGDR-01C 3AUA0000074145
-
Spare Model3AUA0000074145
-

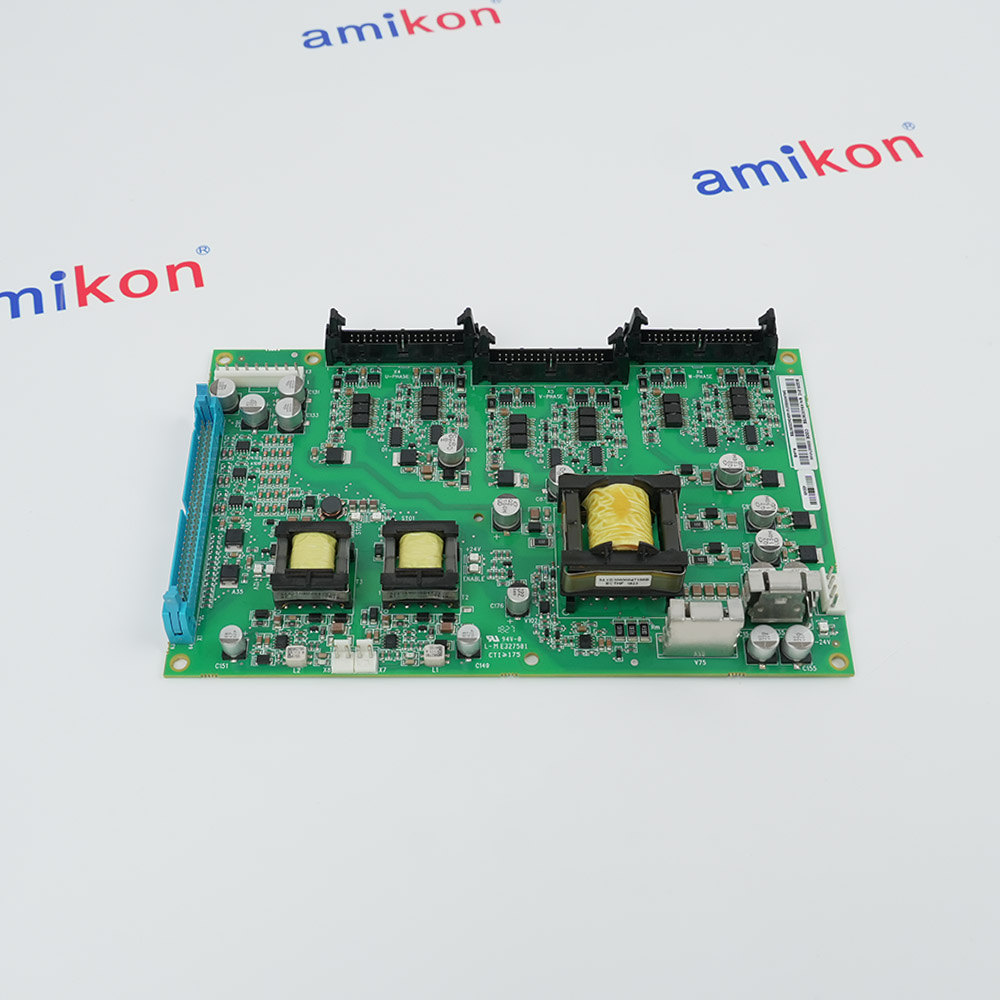

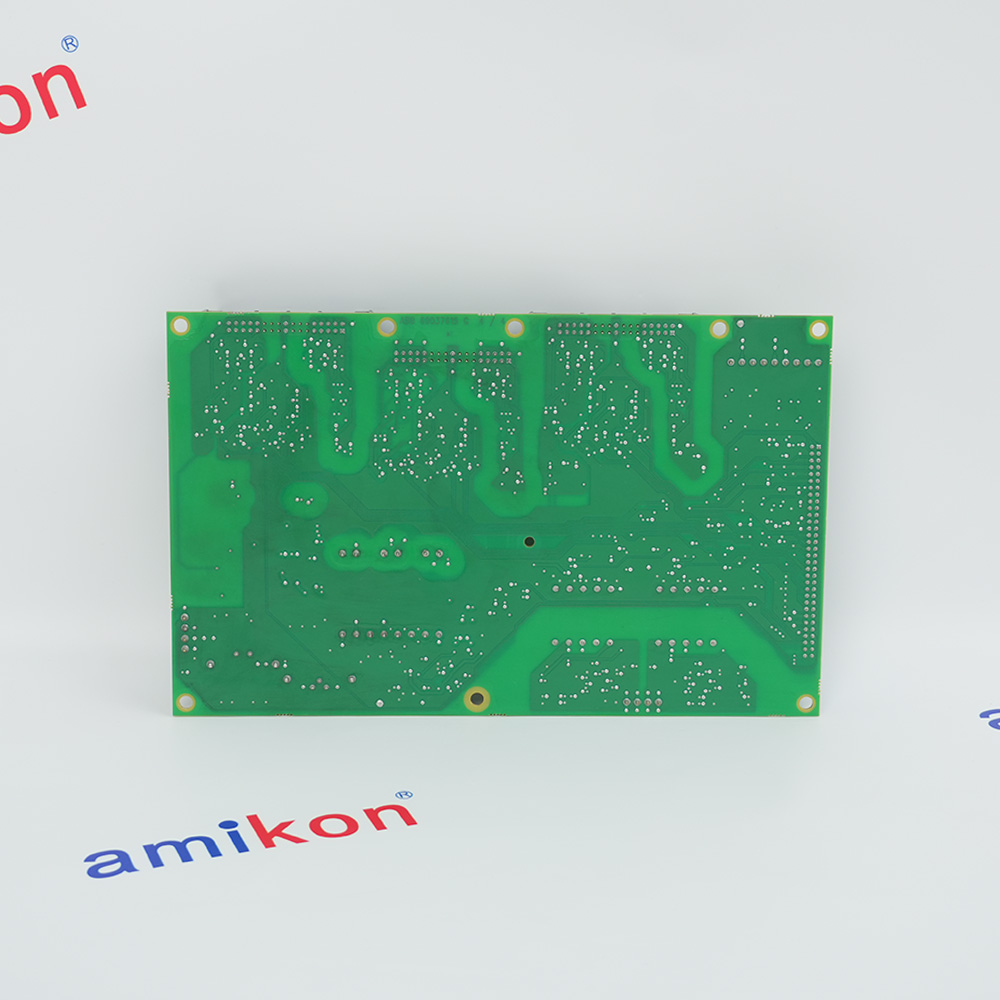

Product ParametersGate Driver Board
-
Tariff Code8537101190
-
Country of originsweden
-
Place of shipmentXiamen, China
-
Estimated Shipping Size24x15x3.5cm
-
ManufacturerABB
-
Weight0.4 kg
-
Operating Temperature-25°C to +70°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5% to 95% non-condensing
-
Input Voltage24V DC
-
Turn-on voltage+15V typical
-
Turn-off voltage-8V typical
-
Peak output current10A
-
Isolation Voltage2500V AC
-
Propagation Delay<500ns typical
Description
BGDR01C
GATE DRIVER BOARD
24 CM WIDTH
3AUA0000074145
GATE DRIVER BOARD
24 CM WIDTH
3AUA0000074145
Information
Overview
Manuals
Technical notes
Product Applications
Essential Safety Precautions
Features:
- Gate driver board
- 24 CM WIDTH
- ABB ACS880
The BGDR-01C 3AUA0000074145 ABB Gate Driver Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB BGDR-01C 3AUA0000074145 Gate Driver Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Signal Processing: It converts low-voltage PWM (Pulse Width Modulation) signals from the control unit into isolated, high-current pulses suitable for the gate-emitter capacitance of an IGBT.
Fiber Optic Interface: In many ACS880 configurations, the BGDR series uses fiber optic links to ensure complete electrical isolation between the control logic and the high-voltage DC bus.
Gate Drive Current: It can deliver peak gate currents up to 3A, enabling rapid switching to minimize thermal losses
- Cranes and Hoists: Used for smooth lifting and positioning of heavy loads
- Conveyors: Essential for long-distance transport in mining, food, and logistics
- Winches and Winders: Used in marine and textile applications for tension control
- Compressors and Blowers: Found in HVAC, chemical processing, and wastewater treatment
- Pumps: Including centrifugal pumps and irrigation systems
- Fans: Large industrial cooling tower fans and ventilation systems
- Extruders and Mixers: Common in plastics, rubber, and food production
- Centrifuges: Used for separation processes in mining and water treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Disconnect Power: Switch off the main breaker and any external power sources for control circuits.
Discharge Time: Wait at least 10 minutes (for ACS800/880 series) after power-off for the DC link capacitors to fully discharge.
ESD Protection: Always use an anti-static (ESD) wrist strap and a grounded workstation, as the BGDR-01C contains sensitive electronic components.
FAQs
-
What is the function of the BGDR-01C?
+It acts as a driver board for controlling power devices (IGBTs/MOSFETs) within industrial drive systems. -
Which drive families is the BGDR-01C compatible with?
+It is designed for the ABB ACS880-04 and ACS580-04 inverter series. -
What are the main specifications of the BGDR-01C?
+It uses four 2-pin terminals, has a power consumption of 2W, and an IP54 protection rating. -
What are the communication and power requirements?
+The board features an RS-485 communication interface and has a power consumption of approximately 2W.
