Technical specifications for ZCU-14 3AXD50000005164
-
Product ModelZCU-14 3AXD50000005164
-
Spare Model3AXD50000005164
-
Product ParametersControl Unit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size30.2x8.8x5.4cm
-
ManufacturerABB
-
Weight0.4 kg
-
Supply Voltage24 VDC
-
Channels2
-
Output Range0...20 mA
-
Load Resistance< 500 Ω
-
Frequency Range0...500 Hz
-
Resolution11 bit + sign bit
-
Operating Temperature0°C to +50°C (Typical)
-
Storage Temperature-20°C to +70°C
Description

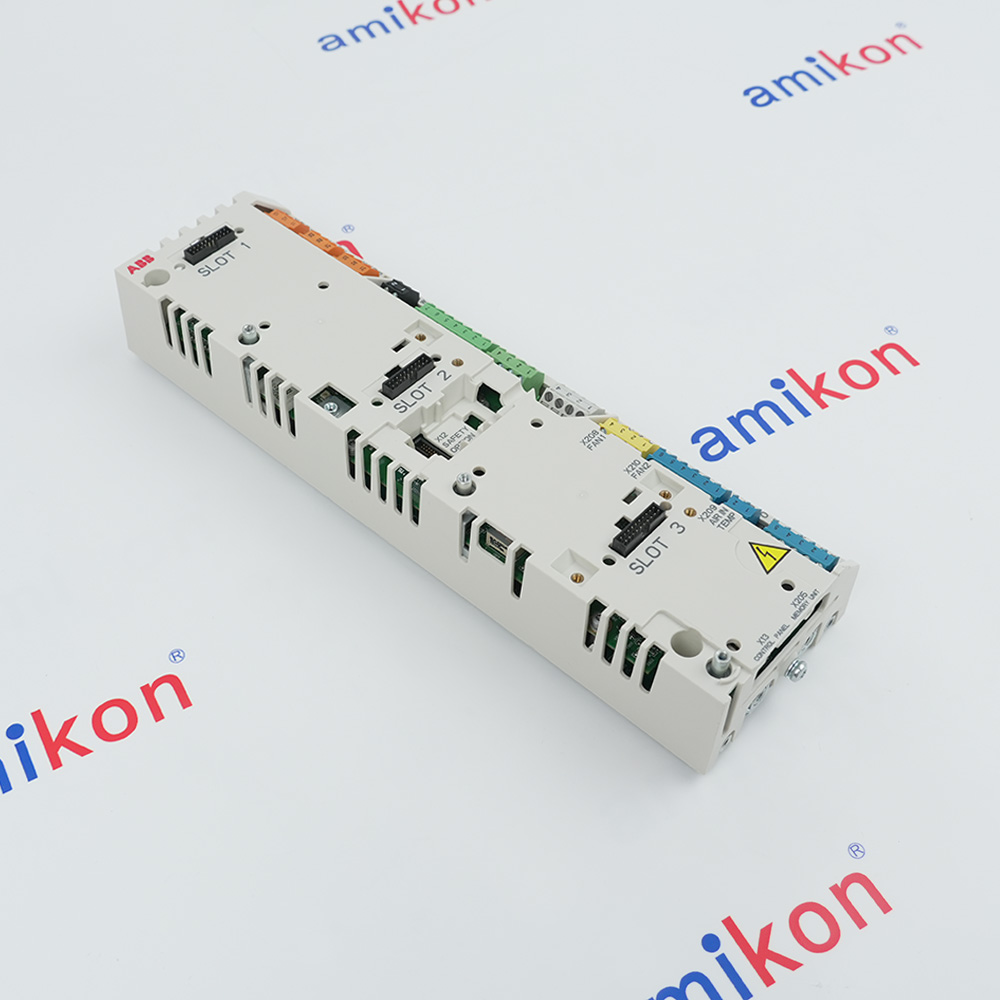

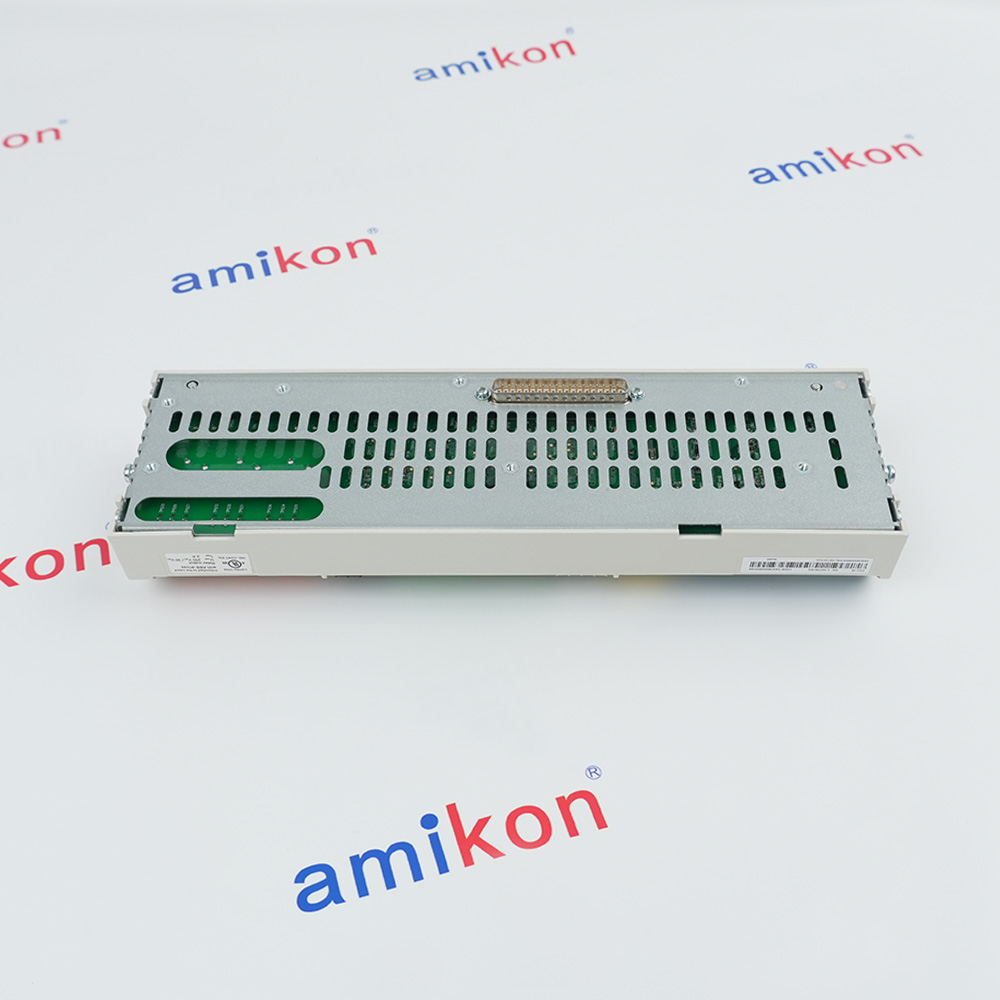

The ABB ZCU-14 3AXD50000005164 is an external control unit for the ACS880 series of industrial drives. It consists of an I/O board integrated into a plastic housing and serves as the primary control and communication interface for ACS880-14 single drive module packages, ACS880-307 diode supply units, and various ACS880 inverter module configurations.
The unit can be mounted directly onto the drive or inverter module, or installed separately depending on the cabinet layout. It receives 24 V DC power through the XPOW terminal block at 2 A minimum. Redundant power supply connections are supported for critical applications. The +24 V output (XD24) provides auxiliary power for external digital inputs with a total capacity of 4.8 W (200 mA), minus any current drawn by DIO1 and DIO2.
The ZCU-14 features two analog inputs (AI1, AI2) with selectable current or voltage mode via onboard jumpers, and two analog outputs (AO1, AO2) for process value feedback. Six digital inputs (DI1...DI6) and one digital interlock input (DIIL) accept 24 V logic signals, while two configurable digital input/output channels (DIO1, DIO2) provide flexibility for pulse frequency input/output applications. Three relay outputs (RO1, RO2, RO3) with NC/COM/NO contacts deliver status indication and control signals at up to 250 V AC / 30 V DC, 2 A.
The unit can be mounted directly onto the drive or inverter module, or installed separately depending on the cabinet layout. It receives 24 V DC power through the XPOW terminal block at 2 A minimum. Redundant power supply connections are supported for critical applications. The +24 V output (XD24) provides auxiliary power for external digital inputs with a total capacity of 4.8 W (200 mA), minus any current drawn by DIO1 and DIO2.
The ZCU-14 features two analog inputs (AI1, AI2) with selectable current or voltage mode via onboard jumpers, and two analog outputs (AO1, AO2) for process value feedback. Six digital inputs (DI1...DI6) and one digital interlock input (DIIL) accept 24 V logic signals, while two configurable digital input/output channels (DIO1, DIO2) provide flexibility for pulse frequency input/output applications. Three relay outputs (RO1, RO2, RO3) with NC/COM/NO contacts deliver status indication and control signals at up to 250 V AC / 30 V DC, 2 A.
Alternative Names
ZCU-14 3AXD50000005I64
ZCU-14 3AXD500000O5164
ZCU-14 3AXO50000005164
ZCU-14 34XD50000005164
ZCU-I4 3AXD50000005164
ZCU 14 3AXD50000005164
ZCU 14 3AXD50000005I64
ZCU 14 3AXD500000O5164
ZCU 14 3AXO50000005164
ZCU 14 34XD50000005164
ZCU I4 3AXD50000005164
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- Complete Drive Control
- Integrated Analog and Digital I/O
- Safety Function Support
- Flexible Communication Expansion
The control unit includes onboard analog and digital I/O, programmable relay outputs, a Safe Torque Off (STO) interface, drive-to-drive communication, memory unit support, and three communication option slots for expanding connectivity. An external 24 VDC power input allows the controller to remain operational during temporary mains power interruptions, supporting uninterrupted communication and faster drive recovery after power restoration.
The ZCU-14 3AXD5000000516 ABB CONTROL UNIT may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ZCU-14 3AXD5000000516 CONTROL UNITManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Safe Torque Off (XSTO) connection accepts −3...30 V DC signals and provides safe shutdown functionality. When controlling an inverter unit, de-energizing the STO inputs constitutes a true safety function; when controlling a supply unit, de-energizing stops the unit but does not perform a safety shutdown.
A 7-segment display on the board provides status and fault indication, with LEDs for power (PWR OK), fault (FAULT), battery status (BATT OK), and memory write activity (WRITE). The real-time clock is backed by a BR2032 battery.
All screw terminals accept wire sizes from 0.5 to 2.5 mm² (24 to 12 AWG) with a tightening torque of 0.5 N·m. The control unit fulfills PELV (Protective Extra Low Voltage) requirements and carries CE, UL, EAC, and China RoHS markings.
- Oil & Gas: Powers heavy pumping systems (PCP, ESP), compressors, and pipeline distribution
- Material Handling: Drives cranes, hoists, winders, and conveyors requiring starting torque and brake controls
- Mining/Minerals: Drives crushers, mills, shredders, and ventilation fans under severe strain
- Water/Wastewater: Runs high-capacity pumps, aeration blowers, and industrial mixers
- Marine/Offshore: Deployed in thrusters, winches, deck machinery, and propulsion with safety certifications
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolate Power: Switch off the main supply and wait 5 minutes for the DC bus capacitors to discharge.
Mounting: Secure the ZCU-14 onto the standard mounting slots or plate inside the drive cabinet. If mounted externally, use a compatible din-rail template or panel mounting platform.
Card Alignment: When inserting optional extension modules into Slots 1, 2, or 3, slide the module carefully along the guide rails until the plastic retaining clips snap securely into position.
Fastening: Tighten the grounding/retaining screws. Do not overtighten, to prevent damaging the board.
Technical notes
Power supply for the ABB ZCU-14 is provided through terminal block XPOW from a 24 V DC, 2 A external supply. Using an external supply with the ABB ZCU-14 is recommended if the control unit needs to be kept operational during input power breaks, for example because of continuous fieldbus communication, or if immediate restart is needed after a power break with no control unit power-up delay allowed.
FAQs
-
What is the primary purpose of the ABB ZCU-14 unit?
+It functions as an external drive processing and control hub, handling high-speed motor regulation, real-time thermal protection, and electrical stress supervision. It also offers integrated expansion slots for fieldbus adapters and additional I/O modules. -
What temperature sensors are compatible with the ZCU-14?
+The control unit supports both PTC and Pt100 temperature sensor types. You can configure and monitor these directly through the drive's firmware manual to prevent motor overheating -
What expansion slots are available on the ZCU-14?
+The unit contains three option slots (Slots 1, 2, and 3) that accommodate plug-in modules. You can insert analog/digital I/O extensions, encoder feedback interface modules, or fieldbus communication adapters. There is also a dedicated connector (X12) for mounting the FSO-xx functional safety module. -
Does the ZCU-14 support external power?
+Yes. While it runs on internal drive power during operation, the board features an XPOW terminal block for an external +24 V DC power supply. An external supply keeps the control logic, communications, and diagnostics alive even when the main 3-phase AC power input is disconnected.
