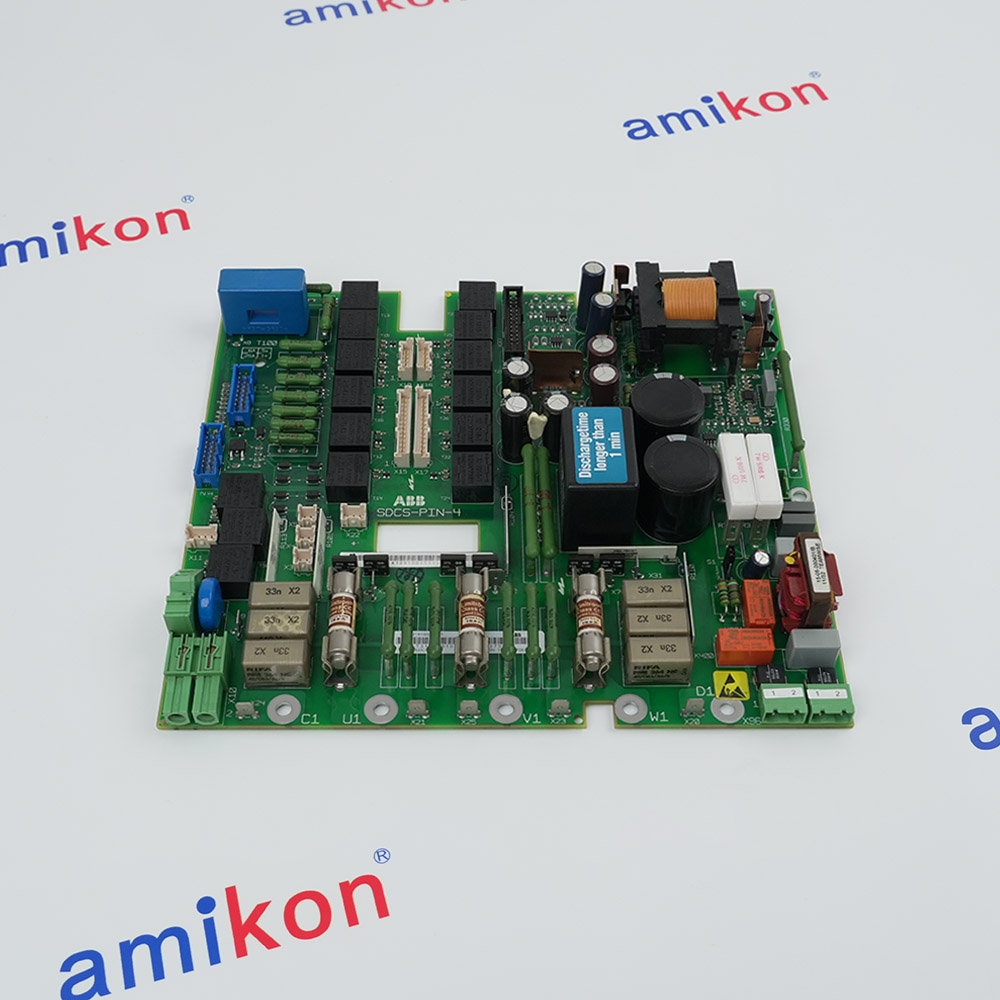

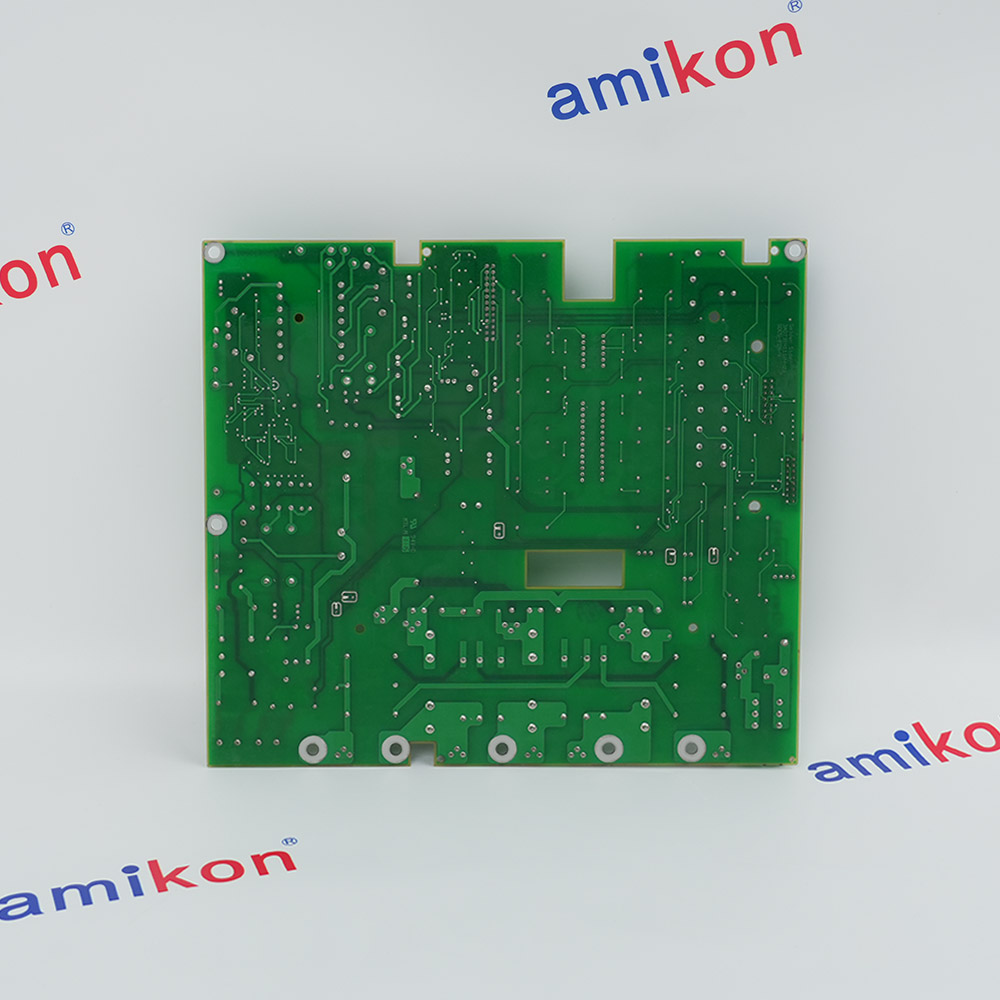

SDCS-PIN-4 3ADT314100R1001
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
SDCSPIN4
DISCONTINUED BY MANUFACTURER
POWER INTERFACE BOARD
DRIVES AND CONTROL
DISCONTINUED BY MANUFACTURER
POWER INTERFACE BOARD
DRIVES AND CONTROL
Technical specifications for SDCS-PIN-4 3ADT314100R1001
-
Product ModelSDCS-PIN-4 3ADT314100R1001
-
Spare Model3ADT314100R1001
-
Product ParametersPOWER INTERFACE BOARD
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size25x22.5x5.5cm
-
ManufacturerABB
-
Weight0.82 kg
-
Input Voltage24 V DC
-
Operating Temperature Range-25°C to +70°C
-
Storage Temperature Range-40°C to +85°C
-
MountingDIN-rail or panel mounting
-
Humidity5% – 95% RH, non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the SDCS-PIN-4?+It is a Power Interface Board used in ABB DCS800 drive sizes D1-D4 (3ADT314111P4103) for managing signals between the control unit and power components.
-
Where is the SDCS-PIN-4 used?+It is part of the SDCS-PIN-4-COAT series designed for DCS800 converters, often in robust, conformally coated versions for harsh environments
-
What is the difference between PIN-4 and PIN-51?+SDCS-PIN-4 is used on D1-D4 drives, while SDCS-PIN-51 is used on larger D5-D7 drives.
-
What is the COAT version (SDCS-PIN-4-COAT)?+This version includes a conformal coating on the circuit board, which provides extra protection against dust, humidity, and chemical contaminants in harsh industrial environments.
-
Can it handle different auxiliary supply voltages?+Yes, the power supply on this board automatically adjusts to either 115 VAC or 230 VAC. For environments with unstable supply (like generator networks), you can use jumper S1 to lock it to a fixed 230 VAC setting.
Get a quick price fo SDCS-PIN-4 3ADT314100R1001
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- Integrated Voltage Measurement
- Pulse Transformer Firing Circuitry
- Comprehensive Galvanic Isolation
- Snubber Circuit Integration
- Flexible Voltage Range Compatibility
- Thermal Monitoring Interface
The SDCS-PIN-4 3ADT314100R1001 ABB POWER INTERFACE BOARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-PIN-4 3ADT314100R1001 POWER INTERFACE BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SDCS PIN4 board is designed for DCS800 Converter modules sizes D1 up to size D4 (20 A...1000A) the board has three different functions:1. Power supply of CON-4 board and the connected options2. Control of armature bridge and measurement3. Control of on-board field exciter and field current measurementThe board is mounted conducting ground at points ( ) inside the module.The board is used for supply voltages from 230 V up to 525 V, 600 V.The converter identification is made by TYPECODE 97.01 (and not by hardware)!The converter identification manages the burden resistor setting and 2-Q or 4-Q bridges operation.
- Metals & Steel Mills:Steady speed under varying loads: rolling mills & wire drawing
- Mining & Construction:Mine hoists, large conveyors & cement kilns
- Material Handling:Cranes & hoists: smooth lifting with regenerative braking
- Pulp & Paper:Synchronized motor control for paper machines & winders
- Printing & Textiles:High-precision printing presses & weaving/spinning machines
- Rubber & Plastics:High initial torque mixers & extruders
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Location: The SDCS-PIN-4 is typically mounted on the electronic tray of DCS800 converter modules (sizes D1–D4).
Secure Fixing: Ensure the board is properly grounded through its mechanical fixing points to the frame.
Environmental Caution: During installation, ensure no drilling dust or conductive debris enters the drive, as this can lead to malfunctions or internal shorts
