PRODUCT DESCRIPTION
Modbus RTU communication for compatible ABB drives
ABB NWPM-01 connects a compatible ABB drive to a Modbus RTU master through a two-wire RS-485 network. A separate optical DDCS link connects the adapter to the drive, allowing supervisory commands, reference values and operating information to pass between the systems.
Configuration must match the connected drive, station address, communication speed and register mapping. When replacing an NMBA-01 arrangement, review the changed holding-register allocation rather than assuming identical operation. Installation also requires the documented external supply, earthing, bus termination and safe isolation procedures.
Configuration must match the connected drive, station address, communication speed and register mapping. When replacing an NMBA-01 arrangement, review the changed holding-register allocation rather than assuming identical operation. Installation also requires the documented external supply, earthing, bus termination and safe isolation procedures.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Modbus communication in compatible ABB drive systems
NWPM-01 transfers commands, references and operating information between a Modbus master and a documented compatible drive. These are supported communication functions, not claims of installation at a named factory.
-
01 · SUPERVISORY DRIVE CONTROL
PLC-controlled drive start and speed reference
Within a documented compatible drive system, NWPM-01 conveys the Modbus master's operating commands and speed or torque reference to the drive. The controller program must use the correct holding-register mapping and the drive must select fieldbus control as its command source. -
02 · PROCESS REGULATION
Drive PID reference and actual-value exchange
The adapter can transfer a process reference or actual value to the connected drive's PID controller where that drive supports the documented function. This is a communication interface for the configured control system, not an independent process sensor or PID controller. -
03 · MAINTENANCE MONITORING
Remote drive status and parameter access
The Modbus host can read drive operating values and status, access supported parameters and issue a documented fault reset. Diagnostic LEDs and message counters help distinguish network errors from a missing optical response; available drive functions remain configuration-dependent.
Technical specifications for NWPM-01
-

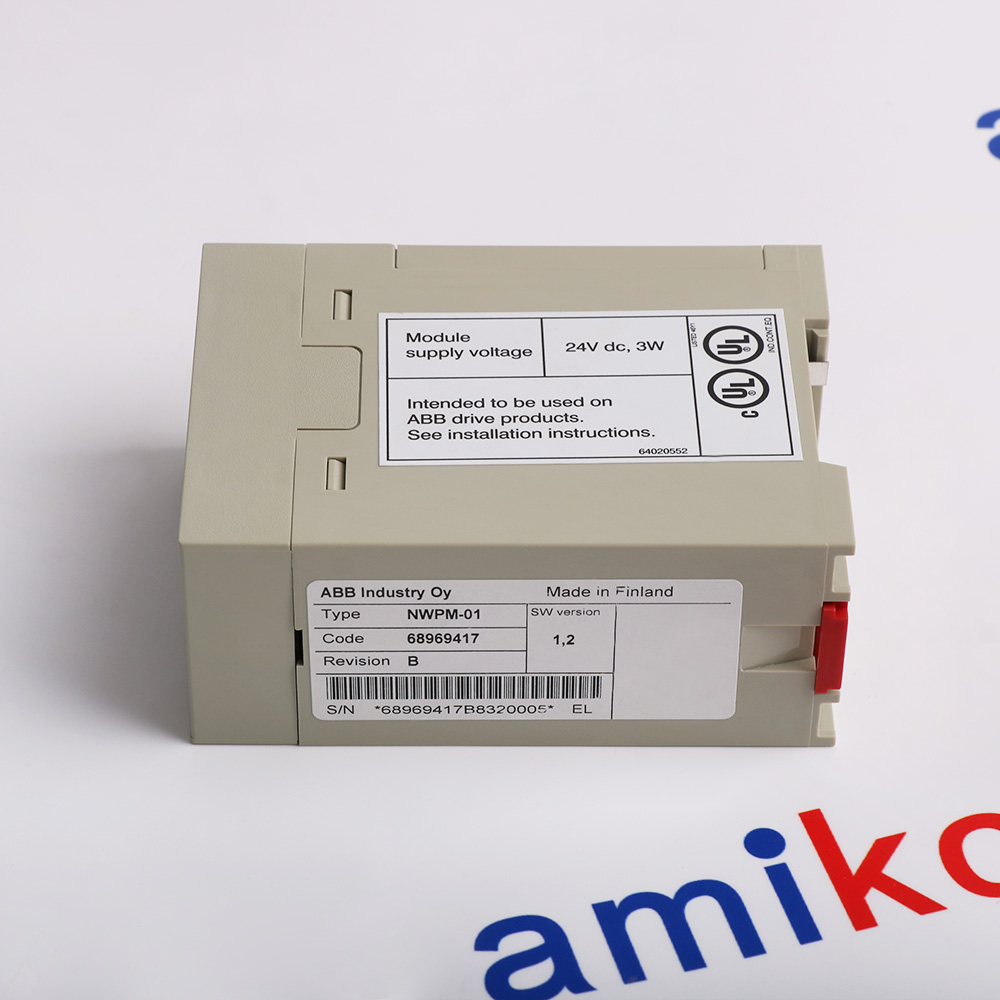

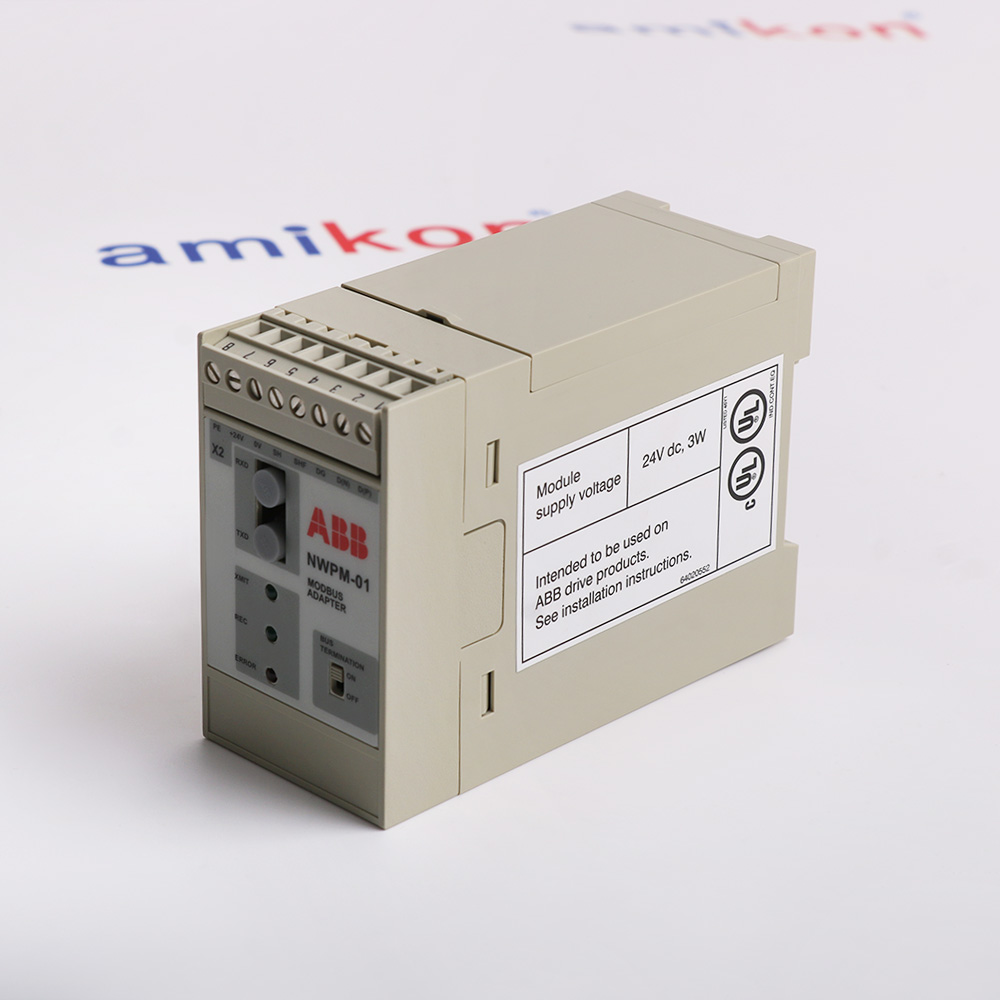

Product ModelNWPM-01
-
Product ParametersModbus Drive Adapter Module
-
In stock1 unit
-
ManufacturerABB
-
Serial protocolModbus RTU only
-
Network electrical interfaceTwo-wire RS-485
-
Communication roleDrive operates as a Modbus slave
-
Selectable baud rates2400, 4800, 9600, 19200 or 38400 baud
-
Station address range1 to 247
-
External supply24 V DC, +/-10%
-
Current consumption65 mA at 24 V DC
-
Drive-side connectionOptical DDCS; 4 Mbit/s
-
Enclosure protectionIP20 plastic enclosure
-
Mounting methodStandard mounting rail; minimum 10 mm adjoining clearance
-
Maximum fieldbus length1200 m, documented shielded twisted-pair network
-
Operating temperature0 to +50 degrees C
-
Operating relative humidity5 to 95%, non-condensing; maximum 60% with corrosive gases
-
Bus terminationBuilt-in switchable resistors, enabled only at a bus end
-
DDCS optical station spacingMaximum 10 m between stations
View all additional
Alternative Names
NWPM01 Modbus drive adapter
NWPM-01 RS-485 fieldbus interface
ABB NWPM-01 optical DDCS adapter
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
MODBUS DRIVE COMMUNICATION
Check the drive and Modbus communication configuration
The manufacturer lists ACS800 SingleDrive, ACS800 MultiDrive and ACS 600 compatibility. Connect the drive-side optical DDCS link and the master-side RS-485 bus as separate interfaces; neither a matching connector nor the ABB brand establishes compatibility with other drives.
The external supply is 24 V DC with a +/-10% tolerance. Set a unique station address, matching baud rate and parity. Use the supported Modbus RTU register mapping and select the fieldbus adapter as the source of the required drive commands.
Install on an earthed standard rail with the required clearance and operating conditions. Enable termination only at a bus end, protect the optical cables and follow the drive-specific isolation procedure before installation or service.
Features:
- Confirm drive and optical DDCS configuration
- Match Modbus address, baud rate and parity
- Check supply, earth and bus-end termination
The ABB NWPM-01 Modbus adapter requires the documented drive configuration and connection checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the NWPM-01 identification and the installed drive configuration before replacement. Preserve the optical link arrangement, network address, supply and intended control-source selection; the module alone does not define the complete drive application.
ABB documents differences from NMBA-01, including register mapping and communication speed. An NMBA-01 program cannot be assumed to work unchanged. Check the direction and allocation of datasets and the PLC's holding-register addresses before commissioning.
The reviewed manual does not establish a current discontinuation date or a named drop-in successor. Its document revision is not a hardware revision of the supplied module. Leave unsupported lifecycle and revision entries unfilled.
Features:
- Review NMBA-01 mapping differences
- Preserve the actual drive communication settings
- Do not infer a drop-in successor
The ABB NWPM-01 Modbus adapter requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikon-hosted reference packages, not direct manufacturer downloads. Refer to the applicable ABB documentation and supplied product identity before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify the NWPM-01 manual and applicable drive instructions
- Check Modbus settings and drive-specific configuration
- Accessories are supplied only when listed in the quotation
Documentation for the ABB NWPM-01 Modbus drive adapter must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceClassification unconfirmed
-
OriginOrigin unconfirmed
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about NWPM-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which ABB drives are listed as compatible with NWPM-01?
The manual lists ACS800 SingleDrive, ACS800 MultiDrive and ACS 600 drives. Check the installed drive documentation for its communication activation and placement requirements; compatibility is not established for every ABB drive. -
Does NWPM-01 support Modbus ASCII?
No. Its configuration section explicitly states RTU-only support. The manual explains other Modbus formats for context, but that does not add ASCII capability to the module. -
Can NWPM-01 replace NMBA-01 without changing the PLC mapping?
Do not assume unchanged mapping. ABB documents different holding-register-to-dataset allocation and different baud-rate selections. Review the PLC addresses, dataset direction and connected drive configuration before substitution. -
Why can I read drive values but not start the drive?
Check whether the fieldbus adapter is selected as the source of start, stop and reference commands. The manual also gives drive-program-specific DDCS settings; use the values applicable to the actual drive program. -
When must the bus termination switch be enabled?
Enable the built-in terminating resistors only when the module is at the end of the RS-485 bus. Otherwise leave them off. Follow the documented shield and data-ground arrangements separately. -
Do changed communication settings take effect immediately?
No. The manual states that the new module settings take effect after its next power-up. Carry out any power cycle under the installation's safe isolation procedure. -
What does a continuously flashing ERROR LED indicate?
The manual identifies a functioning adapter with no response from the drive over the optical link. Check that the drive is powered and the fibre connection is correct before considering hardware replacement. -
Can it be mounted directly beside another device?
Provide the documented minimum 10 mm clearance from adjoining equipment or a wall. Use a correctly earthed standard mounting rail and an environment meeting the IP20 module's installation requirements.
READY TO VERIFY YOUR PART?
Get a NWPM-01 quote with price, lead time and revision check.
