Technical specifications for D2D146-AA02-22
-
Product ModelD2D146-AA02-22
-
Product ParametersAC centrifugal fan
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size27x23.8x20.8cm
-
ManufacturerABB
-
Weight4.75 kg
-
Nominal voltage230VAC
-
Frequency50Hz
-
Speed (rpm)2250min-1
-
Power consumption290 W
-
Current draw0.81 A
-
Min. back pressure275 Pa
Description

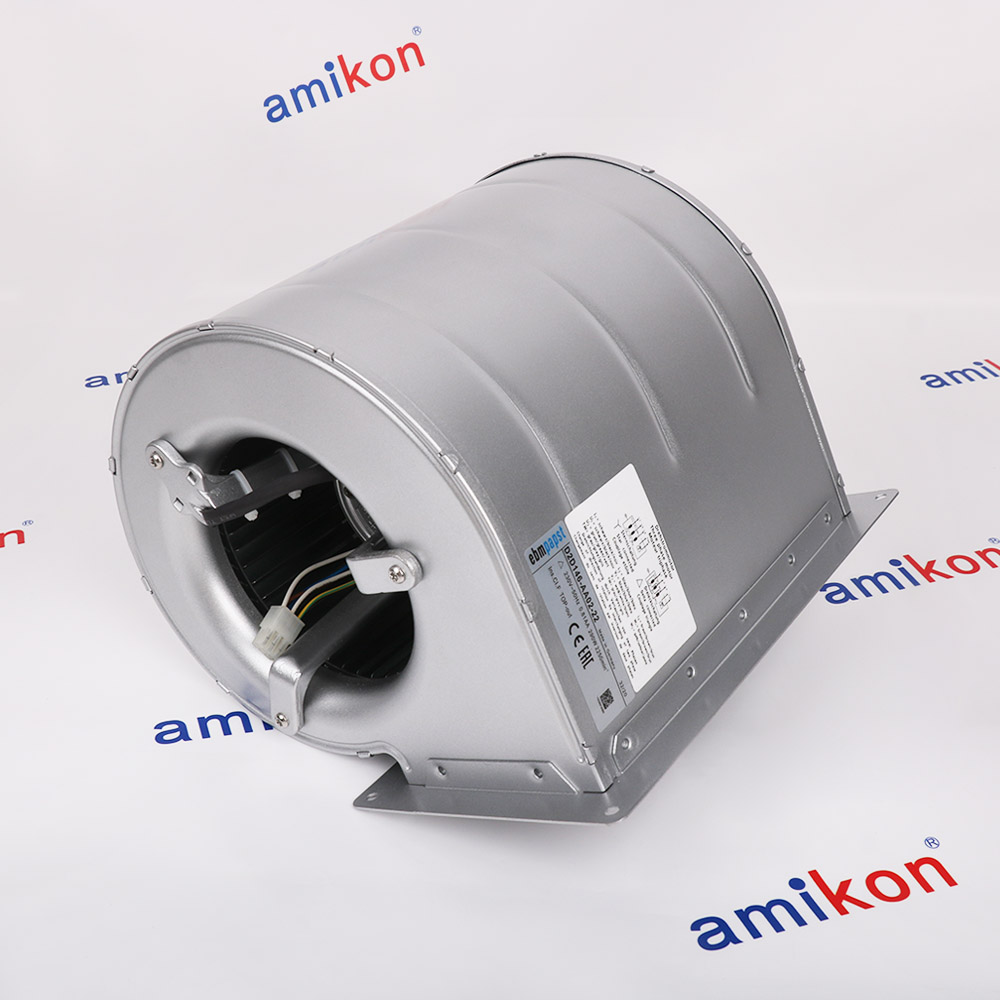

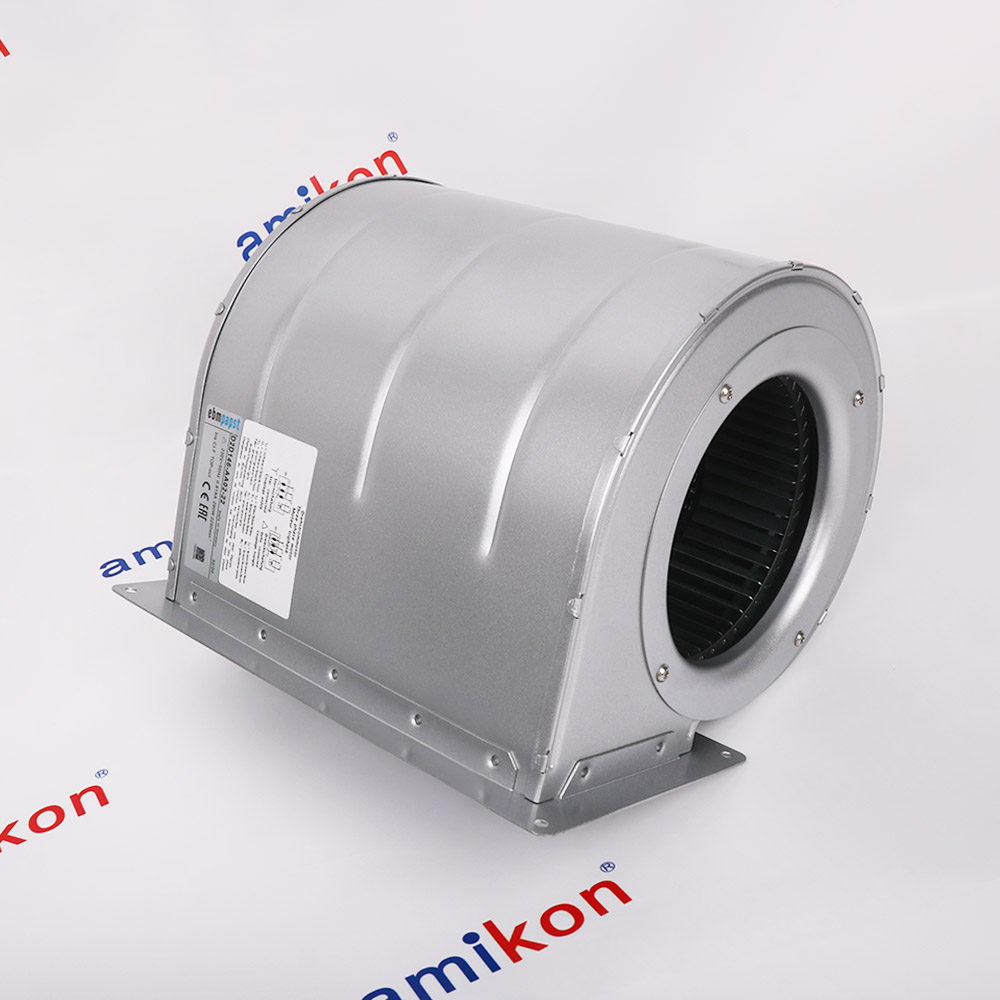

The D2D146-AA02-22 is an AC centrifugal fan. The D2D146-AA02-22 is manufactured by ABB. The D2D146-AA02-22 is a forward-curved, dual-intake fan with housing and flange mounting.
The D2D146-AA02-22 operates on three-phase AC power. The D2D146-AA02-22 has terminal connections for L1 (U1), L2 (V1), L3 (W1), PE (protective earth), and TOP (thermal overload protection). The rotation direction of the D2D146-AA02-22 is changed by reversing any two phases.
The D2D146-AA02-22 uses a 6-pin Molex connector. The connector housing on the D2D146-AA02-22 is Molex part number 46992-0610. The connector on the D2D146-AA02-22 uses six socket contacts Molex 39-00-0059. The cable on the D2D146-AA02-22 is PFA insulated AWG20 (green/yellow AWG18). The cable length on the D2D146-AA02-22 is 250mm ±10mm.
The D2D146-AA02-22 operates on three-phase AC power. The D2D146-AA02-22 has terminal connections for L1 (U1), L2 (V1), L3 (W1), PE (protective earth), and TOP (thermal overload protection). The rotation direction of the D2D146-AA02-22 is changed by reversing any two phases.
The D2D146-AA02-22 uses a 6-pin Molex connector. The connector housing on the D2D146-AA02-22 is Molex part number 46992-0610. The connector on the D2D146-AA02-22 uses six socket contacts Molex 39-00-0059. The cable on the D2D146-AA02-22 is PFA insulated AWG20 (green/yellow AWG18). The cable length on the D2D146-AA02-22 is 250mm ±10mm.
Alternative Names
D2D146 AA02 22
D2DI46-AA02-22
D2D146-AA0Z-22
D2D146-AAO2-22
D2D146-AA02-22
Information
Overview
Manuals
Engineering Considerations
Product Applications
Electrical Hookup
Features:
- Forward-Curved Dual-Intake Centrifugal Fan with Housing
- Three-Phase AC Operation with Phase Reversal for Direction Control
- High Airflow Capacity up to 1,600 m³/h at 50 Hz
- Compact Flange-Mounted Construction
- Six-Pin Molex Connector with PFA AWG20 Wiring
The D2D146-AA02-22 has multiple operating points on the performance curve. Point 1 on the D2D146-AA02-22 represents maximum efficiency. Point 2 on the D2D146-AA02-22 represents customer specification. Point 3 on the D2D146-AA02-22 represents maximum load. Point 4 on the D2D146-AA02-22 represents free air operation.
The D2D146-AA02-22 ABBAC centrifugal fan may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB D2D146-AA02-22 AC centrifugal fan Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB D2D146-AA02-22 is a heavy-duty, forward-curved, dual-intake AC centrifugal blower fan commonly used for forced cooling of high-power converters, like the ABB ACS800 drive series. When incorporating or maintaining this fan in an industrial system, engineers must account for critical electrical, mechanical, and lifecycle considerations. forward-curved centrifugal impellers overload if run wide open (free air), this unit requires a minimum back pressure of 275 Pa (at 50 Hz) or 450 Pa (at 60 Hz).
- Air Handling Units (AHUs):Ceiling/modular AHUs: efficient air distribution
- Industrial Ventilation:Localized air distributor for S1 continuous dutC
- Control Cabinet Heat Management:Prevents PLC/electrical room thermal throttling
- Marine Automation Units:IP44 rated for naval electronic/power panels.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Nominal Power: The fan requires a 230 VAC, 3-phase power supply (Delta wiring) operating at 50/60 Hz.
Safety Ground: This fan utilizes Protection Class I. You must connect the protective earth (PE) wire to prevent electrical shock.
Overload Protection: The fan features a built-in Thermal Overload Protector (TOP) with basic insulation. Do not bypass this, as it protects the motor from overheating.
Wiring: Wire the motor according to the connection diagram provided on the specific motor lead tips
Technical notes
The D2D146-AA02-22 air performance at 50Hz shows airflow up to approximately 1,600 m³/h. The pressure increase on the D2D146-AA02-22 at 50Hz reaches up to approximately 560 Pa. The D2D146-AA02-22 air performance at 60Hz shows airflow up to approximately 1,400 m³/h. The pressure increase on the D2D146-AA02-22 at 60Hz reaches up to approximately 720 Pa.
