PRODUCT DESCRIPTION

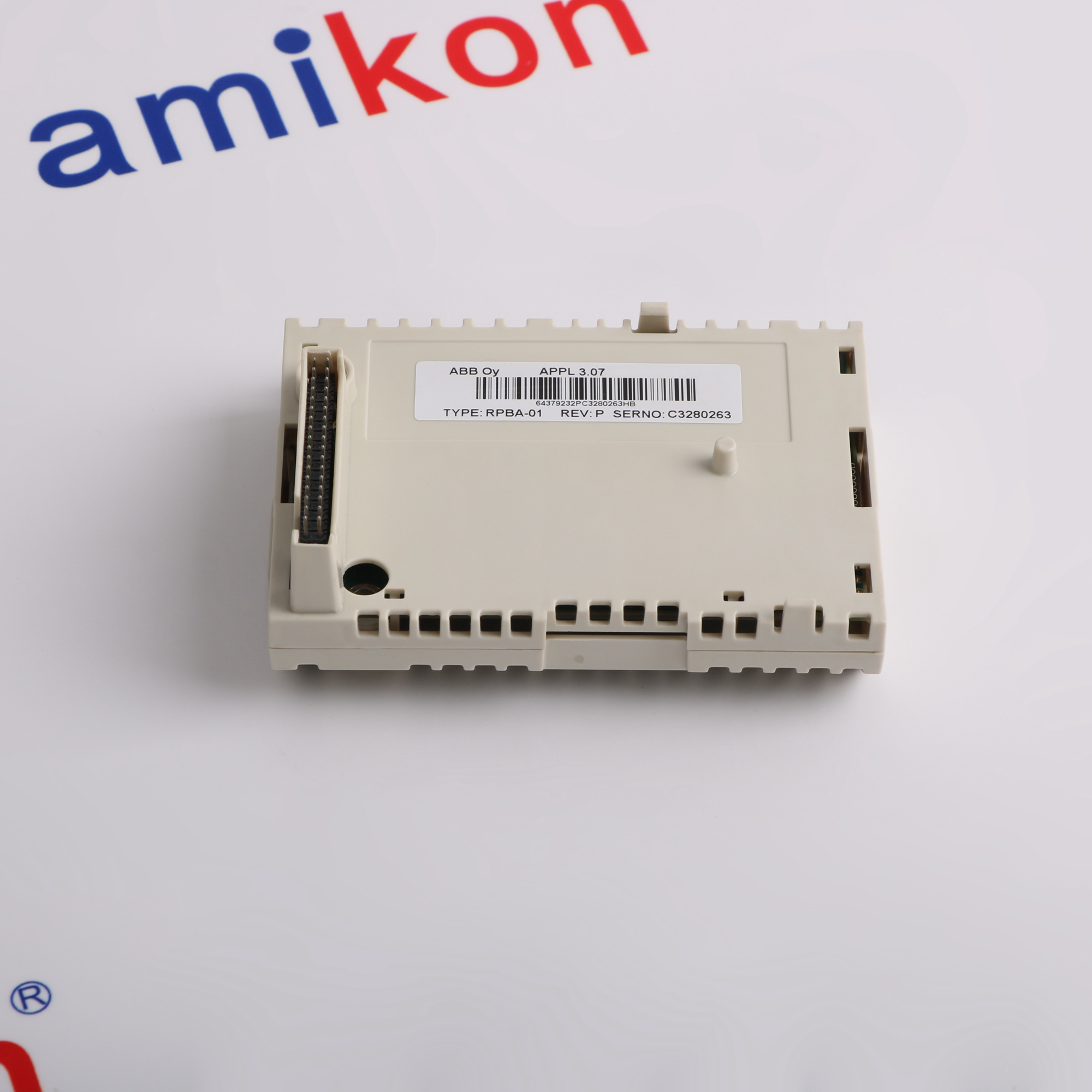

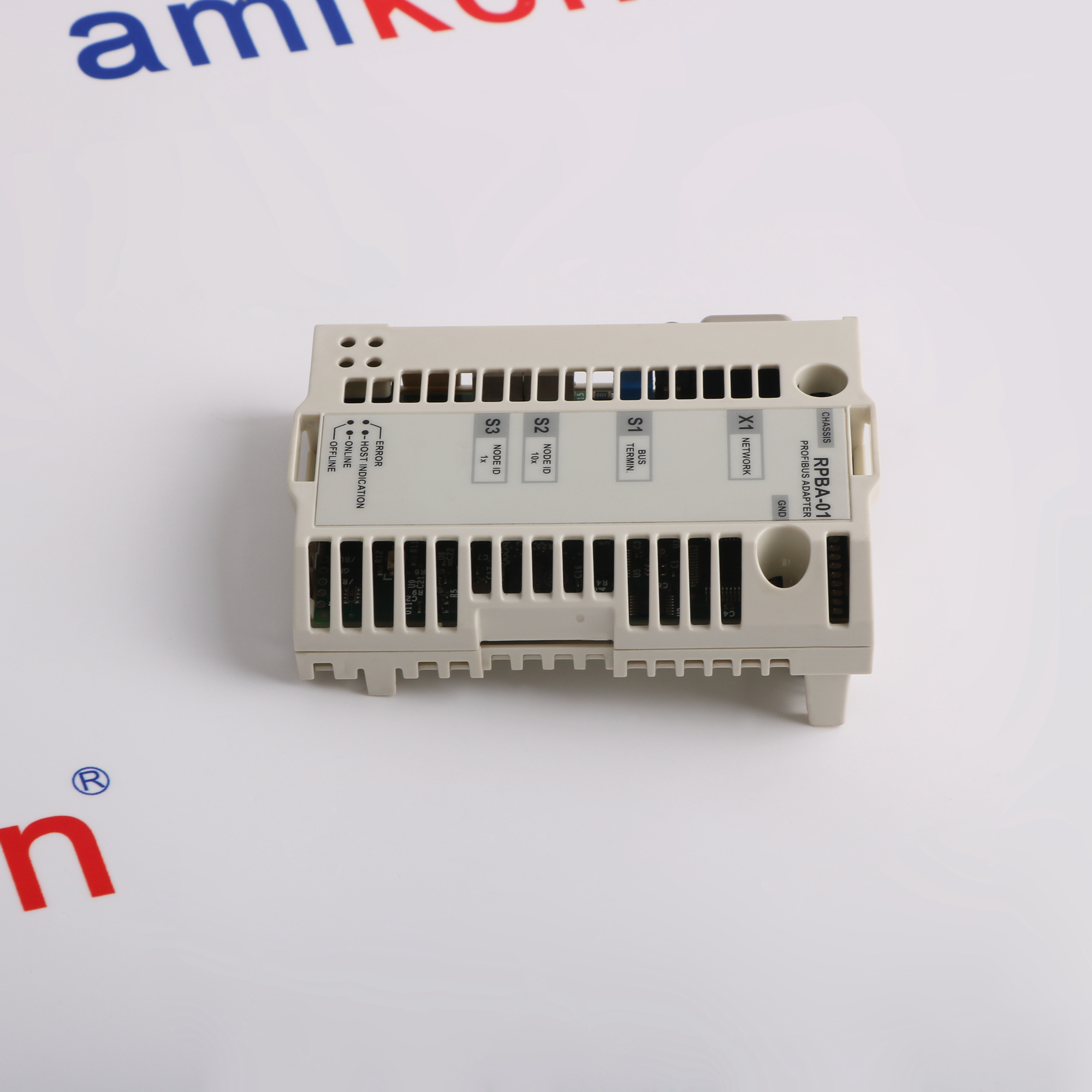

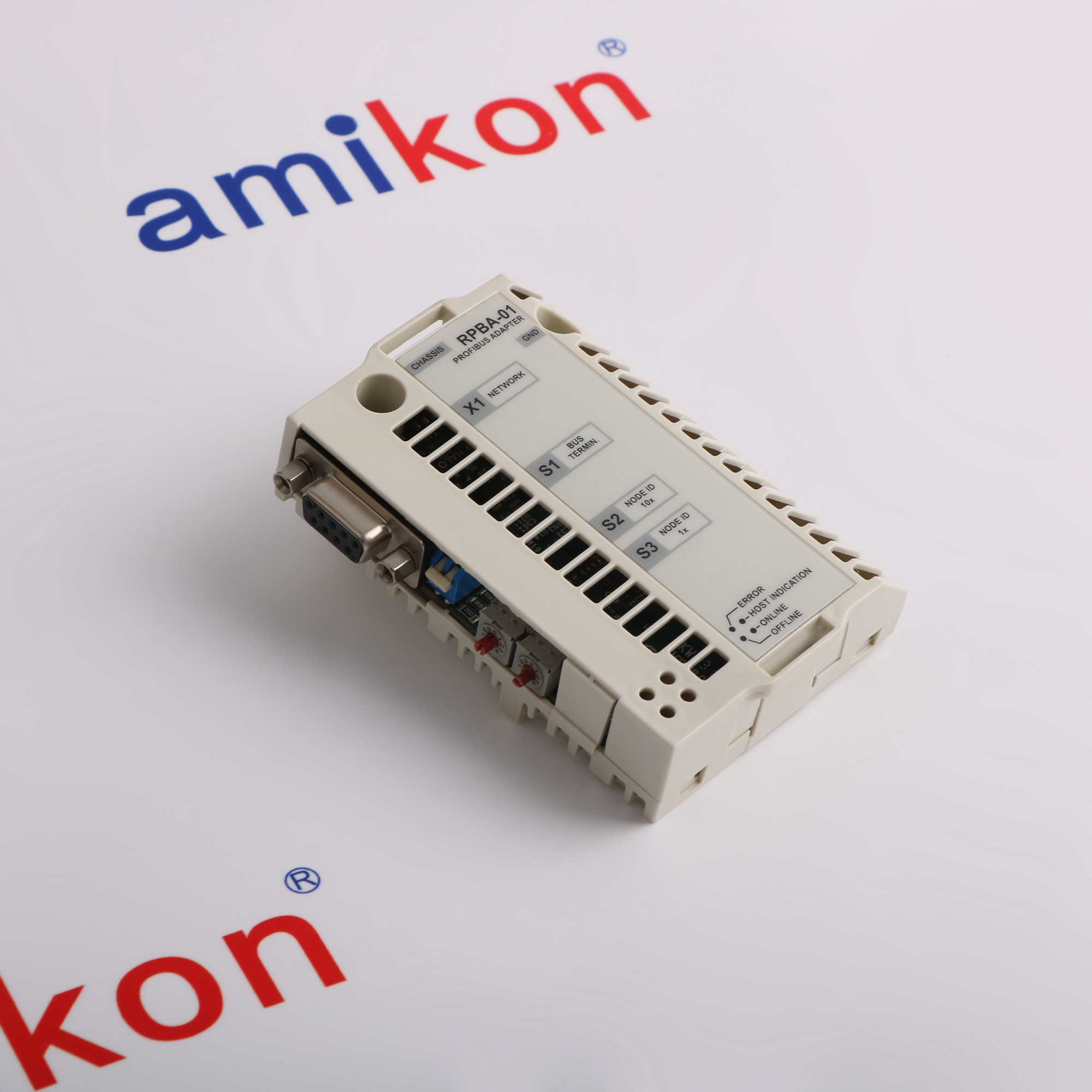

RPBA-01 3ABD64606859 PROFIBUS DP adapter module
ABB RPBA-01 3ABD64606859 is a PROFIBUS DP adapter module for the ABB drive communication adapters. It is used to connect ABB drives as PROFIBUS slaves. Confirm the complete article identity, electrical limits, interfaces, companion hardware and controlled commissioning procedure before ordering.
BEFORE YOU BUY
Confirm the complete PROFIBUS DP adapter module
ACTUAL APPLICATIONS
Application context for RPBA-01 3ABD64606859
Manufacturer documentation places the Profibus Dp Adapter Module in practical network applications. The three cases below describe different operating tasks in which RPBA-01 3ABD64606859 performs its documented product-family role with the configured companion equipment.
- 01 · WATER & WASTEWATER
Sequence plant-data uplink with Profibus Dp process control
As part of the control servers, historians and reporting systems, RPBA-01 3ABD64606859 handles its designated signal or control duty as a Profibus Dp Adapter Module. During scheduled data collection, the system uses this function to separate reporting traffic from the control network, helping it deliver operating records without delaying control messages. - 02 · INFORMATION TECHNOLOGY
Manage machine-data collection with Profibus Dp
For the coordinated operation of the machine gateways and production databases, RPBA-01 3ABD64606859 operates in its approved product-family role as a Profibus Dp Adapter Module. During diagnostic polling, the system uses this function to separate production data from time-critical control messages, helping it deliver operating records without disturbing control traffic. - 03 · GENERAL MANUFACTURING
Track shuttle-system communication with Profibus Dp
As part of the shuttle PLCs, safety devices and supervisory systems, RPBA-01 3ABD64606859 performs its assigned control role as a Profibus Dp Adapter Module. During aisle-controller restart, the system uses this function to restore cyclic control data to the shuttle aisle, helping it return the aisle to coordinated operation.
Technical specifications for RPBA-01 3ABD64606859
-
Product ModelRPBA-01 3ABD64606859
-
Product ParametersPROFIBUS DP adapter module
-
In stock1 unit
-
ManufacturerABB
-
Component ClassPROFIBUS DP adapter module
-
Drive FamilyABB drive communication adapters
-
Primary FunctionConnects ABB drives as PROFIBUS slaves
-
Power ArchitectureR-series drive option architecture
-
Voltage Class5 V drive backplane supply
-
Current Rating350 mA maximum consumption
-
Control SupplyInternal control-board power
-
Power SectionABB drive option slot
-
Mechanical Design95 × 34 × 20 mm enclosure
-
Electrical Interface9-pin female D-sub PROFIBUS
-
Cooling IntegrationDrive ambient cooling conditions
-
Board DesignationRPBA-01 hardware designation
-
Service RoleCyclic and acyclic drive data
-
Product StatusDP-V0 and DP-V1 support
-
Commissioning CheckVerify node address and process data
View all additional
Alternative Names
RPBA 01 3ABD64606859
ABB drive communication adapters PROFIBUS DP adapter module
ABB PROFIBUS DP adapter module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match RPBA-01 3ABD64606859 to the installed ABB drive communication adapters
ABB RPBA-01 3ABD64606859 is a PROFIBUS DP adapter module used in the ABB drive communication adapters. Use RPBA-01 to connect the documented ABB drive as a PROFIBUS DP slave. Match the drive type, option slot, master configuration, PPO selection and process-data mapping before enabling network control.
Record the rotary switch setting, 9-pin D-sub wiring, shield bonding, built-in termination position and cable route. Confirm the selected baud rate and maintain the approved multi-drop segment topology. Confirm 5 v drive backplane supply, 350 ma maximum consumption, the exact mechanical position and the approved system configuration before connection.
After installation, refresh the fieldbus adapter parameters and verify communication LEDs, control word, status word, references and actual values. Test required DP-V1 services and retain the final configuration record. Use qualified personnel, keep the applicable manufacturer instructions at the work location and retain the measured results with the equipment service record.
Features:
- Exact identity: RPBA-01 3ABD64606859
- Product class: PROFIBUS DP adapter module
- Family: ABB drive communication adapters
The ABB RPBA-01 3ABD64606859 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete RPBA-01 3ABD64606859 identity before exchange
Replace RPBA-01 3ABD64606859 only after matching the full article identity, PROFIBUS DP adapter module, installed abb drive option slot and documented system role. A similar family name or physical outline does not establish interchangeability.
Before removal, photograph the product label, mounting position, 9-pin female d-sub profibus, cable routing, shields, earth connections and adjacent assemblies. Preserve the approved configuration or parameter backup for recovery.
After installation, restore all controlled settings and complete verify node address and process data. Review status indications and diagnostics, test the affected function at a safe operating point, and record the final maintenance acceptance evidence.
Features:
- Exact identity: RPBA-01 3ABD64606859
- Connection: 9-pin female D-sub PROFIBUS
- Test: Verify node address and process data
The ABB RPBA-01 3ABD64606859 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for RPBA-01 3ABD64606859
- Official ABB Drives pages attached
- Exact identity required before service
Documentation for the KEYENCE CA-H200C cable must be matched to the connected camera and controller; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size6.6 × 3.5 × 9.4 cm
-
Shipping weight0.06 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85176200
-
OriginFinland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about RPBA-01 3ABD64606859
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which ABB drives and option slots should be checked before ordering RPBA-01 3ABD64606859?
Confirm the exact ABB drive family, supported firmware, specified option slot, 34-pin control-board connector and the complete RPBA-01 3ABD64606859 identity. -
Which PROFIBUS modes does the RPBA-01 adapter support?
The ABB manual documents PROFIBUS DP with DP-V0 cyclic communication and the DP-V1 extension for acyclic parameter access. -
How is the PROFIBUS node address set on RPBA-01?
Use the two rotary selectors for addresses 01 to 99, or set both to zero and configure the address through the applicable drive parameters. -
What must maintenance record before removing an RPBA-01 module?
Record the node address, termination switch, D-sub pinout, cable shield, option slot, master configuration, PPO type and current drive parameter backup. -
Which communication speeds are available for engineering configuration?
RPBA-01 automatically detects supported rates from 9.6 kbit/s through 12 Mbit/s, including the standard intermediate PROFIBUS rates. -
Can a visually similar ABB fieldbus module replace RPBA-01 directly?
No. Verify the protocol, drive compatibility, hardware identity, connector, option slot, GSD file, process-data mapping and required DP-V1 functions. -
What information should a distributor request for an RPBA-01 quotation?
Request the RPBA-01 and 3ABD64606859 markings, drive model, quantity, module photos, installed slot, PROFIBUS configuration and required document scope. -
Which tests are required after fitting the PROFIBUS adapter?
Refresh the adapter parameters, verify diagnostic LEDs and master communication, then test control word, status word, references, actual values and required parameter access.
