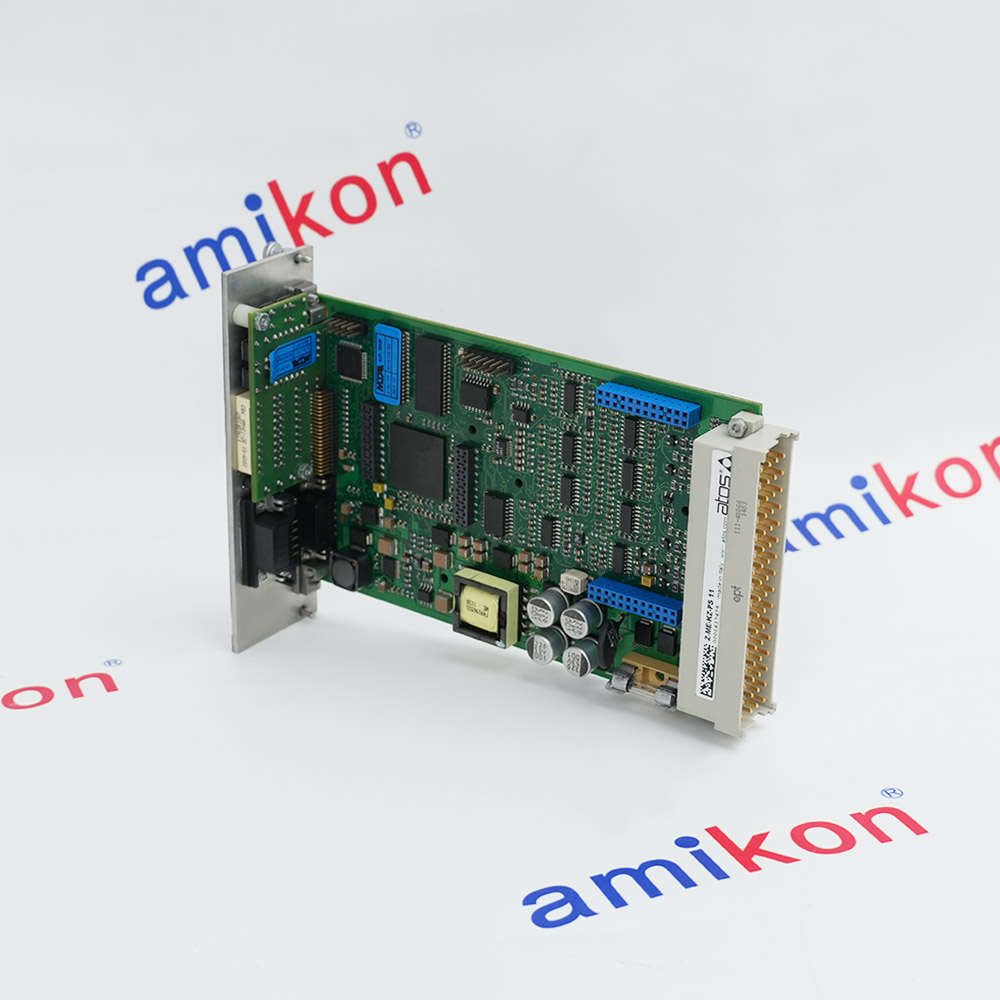

Technical specifications for Z-ME-KZ-PS
-
Product ModelZ-ME-KZ-PS
-
Product ParametersPlastic injection controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x18.5x12.8cm
-
ManufacturerATOS
-
Weight0.25 kg
-
Power supply+24 VDC
-
Max power consumption10 W
-
Analog reference outputs±10 VDC @ max 30 mA
-
Inceremental encoder power supply+5 VDC @ max 100 mA
-
Card formatPlug-in unit DIN 41494
-
Operating temperature0 - +50 °C (storage -20 - +70 °C)
-
Fault output0-24 VDC
Description
Z-ME-KZ
Digital position controllers
Digital axis controller
Eurocard format
for electrohydraulic closed loop controls
Digital position controllers
Digital axis controller
Eurocard format
for electrohydraulic closed loop controls
Information
Overview
Manuals
Technical notes
Product Applications
Operation Phases
Features:
- 4 digits front panel display to check andchange parameters as well as for diagnostics
- Front panel DB9 connector for serial programming interface
- Front panel test points for debug and maintenance
- Eurocard format (DIN 41494 - Plug-in-units)
- CE mark according to EMC directive
- Software selectable range of electronicreference analog inputs: voltage or current
The machine electronic control unit managesthe injection process through dedicated digital commands or fieldbus communication.Serial and Profibus (only for BP option) portsare available on the front panel for controllerconfiguration and diagnostics.
The Z-ME-KZ-PS ATOS Plastic injection controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ATOS Z-ME-KZ-PS Plastic injection controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

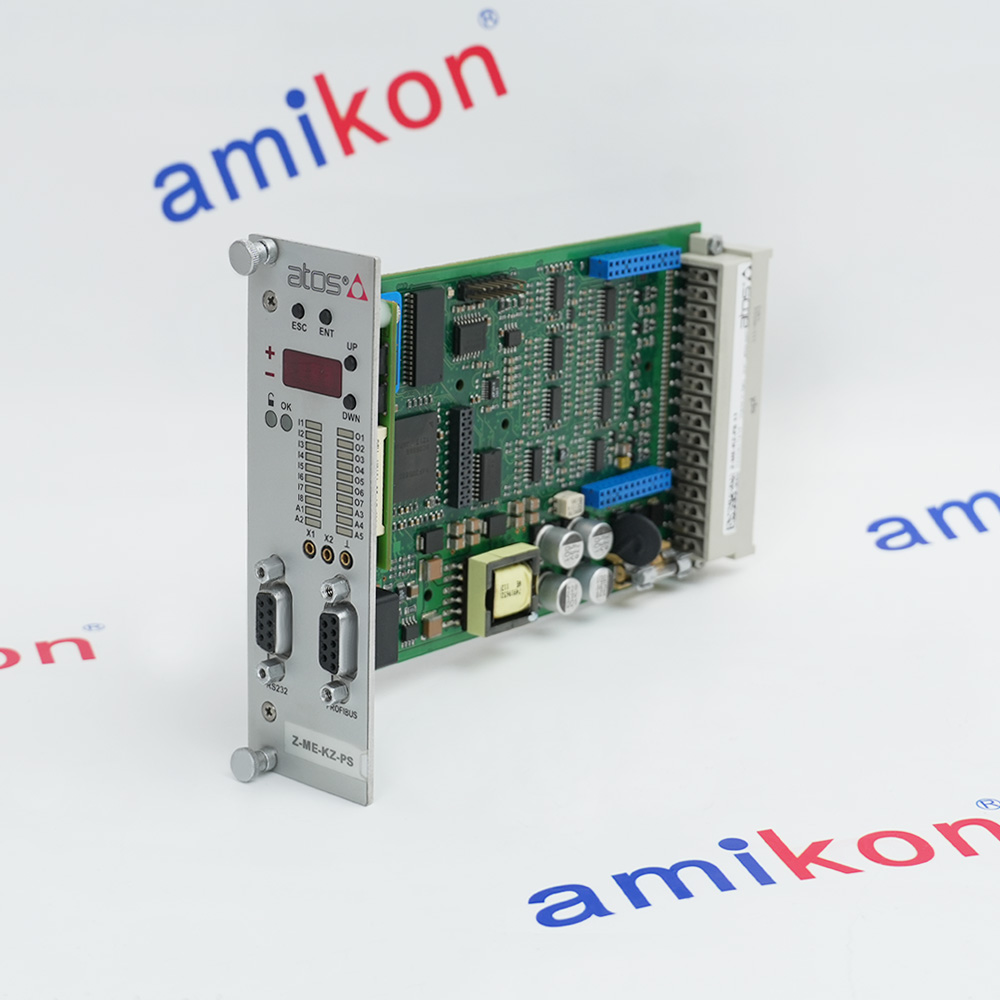

On the Z-ME-KZ-PS/GI front panel are available 4 function keys (ESC, ENT, UP,DWN), and a numeric display (4 digits plus sign) to allow the user to view andchange the controller’s parameters as well as to display diagnostic messages.The following parameters can be accessed (viewed or changed) via corresponding menu structure:
- command and actual values- analog input / output values
- digital input / output status- position sensor indication
- force / pressure sensor indication
Parameter’s changes of the configuration, control gains, trigger conditions, internal cycle, fault monitoring are not allowed via front panel operations.
- Plastic Injection Molding Machines:Controls injection cycle: velocity during fill, pressure during pack & hold
- Die-Casting Machinery:Fast/slow mold clamp cycles with accurate position/force control
- Sheet Metal Cold-Forming Machine Tools:Combines position regulation & force control for stamping/bending
- Hydraulic Woodworking Machinery:Repetitive motion profiles & digital synchronization with other axes
- Wind Turbines:Blade pitch control to position rotors for energy & service life
- Marine Steering Systems:Rudder controls for motor yachts & sailboats with smooth positioning
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Injection Phase: Velocity closed-loop control with maximum pressure limitation. It starts when the machine control unit enables the "Injection" command.
Pack and Hold Phase: Automatically switches to pressure/force closed-loop control once the "Force Transfer" command is active. This phase includes a maximum velocity limitation to prevent sudden actuator movements during the transition.
Decompression Phase: Regulates backward velocity in an open loop to relieve pressure after the holding phase.
FAQs
-
What is the Z-ME-KZ-PS?
+Atos Z-ME-KZ-PS controllers are digital, DIN-rail mounted units for closed-loop position and pressure/force control of proportional valves. -
What are the primary functions of Z-ME-KZ-PS?
+They manage closed-loop position/pressure control for hydraulic actuators, often used in plastic injection molding for controlling velocity and force based on real-time commands -
What communication interface is used?
+The /-PS option indicates a serial RS232 interface, allowing for configuration, diagnostics, and parameter setting via PC. -
What is the difference between Z-ME-KZ and Z-ME-KZ-PS?
+Z-ME-KZ is the general digital position controller series, while the /PS suffix indicates a specific "standard" serial interface version that allows for easy, user-friendly PC programming and diagnostics, often intended as interchangeable with analog models -
How does the controller receive signals?
+It receives external references via analog inputs (e.g., from a machine PLC) or via fieldbus, depending on the model configuration.
