Technical specifications for E-ME-T-01H
-
Product ModelE-ME-T-01H
-
Product ParametersELECTRONIC DRIVER CARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x18.5x12.8cm
-
ManufacturerATOS
-
Weight0.5 kg
-
Power supply+24 VDC
-
Max power consumption50 W
-
Current supplied to solenoids3,3 A square wave PWM type
-
Reference signal variation range±10 V (SW pos. 1) and ±5 V (SW pos. 2)
-
Spool feedback signal±5 V maximum range
-
Potentiometer supply+10 V / 10 mA at contact 10c and -10 V / 10 mA at contact 14c
-
Connector elements availableType E-K-32M frame snap connector
Description
EMET01H
ELECTRONIC DRIVER CARD
DRIVE CONTROL 24VDC 50W
FOR -T PROPORTIONAL VALVE WITH TRANSDUCER
FOR SINGLE SOLENOID PROPORTIONAL VALVES
E-BM-TID SERIES FOR POSSIBLE REPLACEMENT (DEP ON VALVE)
ELECTRONIC DRIVER CARD
DRIVE CONTROL 24VDC 50W
FOR -T PROPORTIONAL VALVE WITH TRANSDUCER
FOR SINGLE SOLENOID PROPORTIONAL VALVES
E-BM-TID SERIES FOR POSSIBLE REPLACEMENT (DEP ON VALVE)
Information
Overview
Manuals
Technical notes
Product Applications

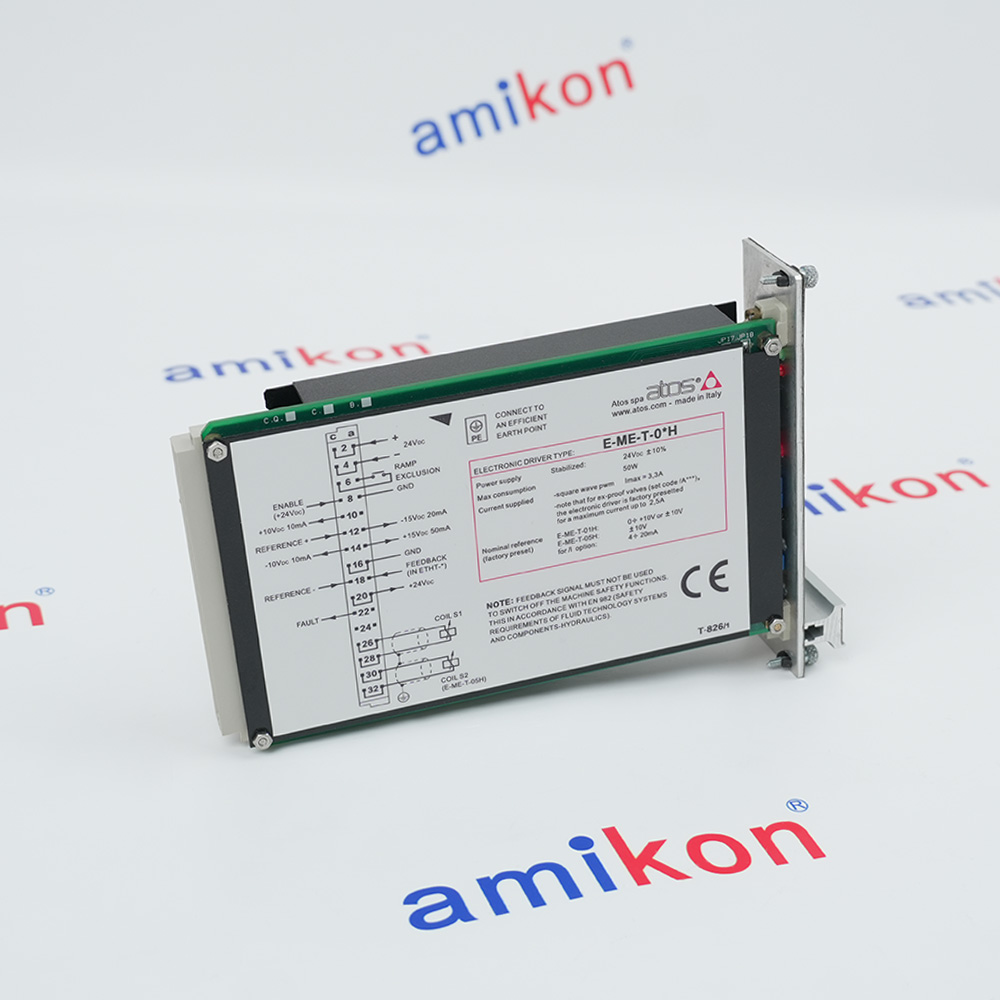

Power supply and wirings
Features:
- bias regulation
- scale and dissymmetrical ramps regulation
- voltage (standard) or current (/I option) reference signal
- test point for reference and feedback control on front panel
- factory pre-set
- Eurocard format (DIN 41494 - plug-in unit)
The E-ME-T-01H ATOS ELECTRONIC DRIVER CARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ATOS E-ME-T-01H ELECTRONIC DRIVER CARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

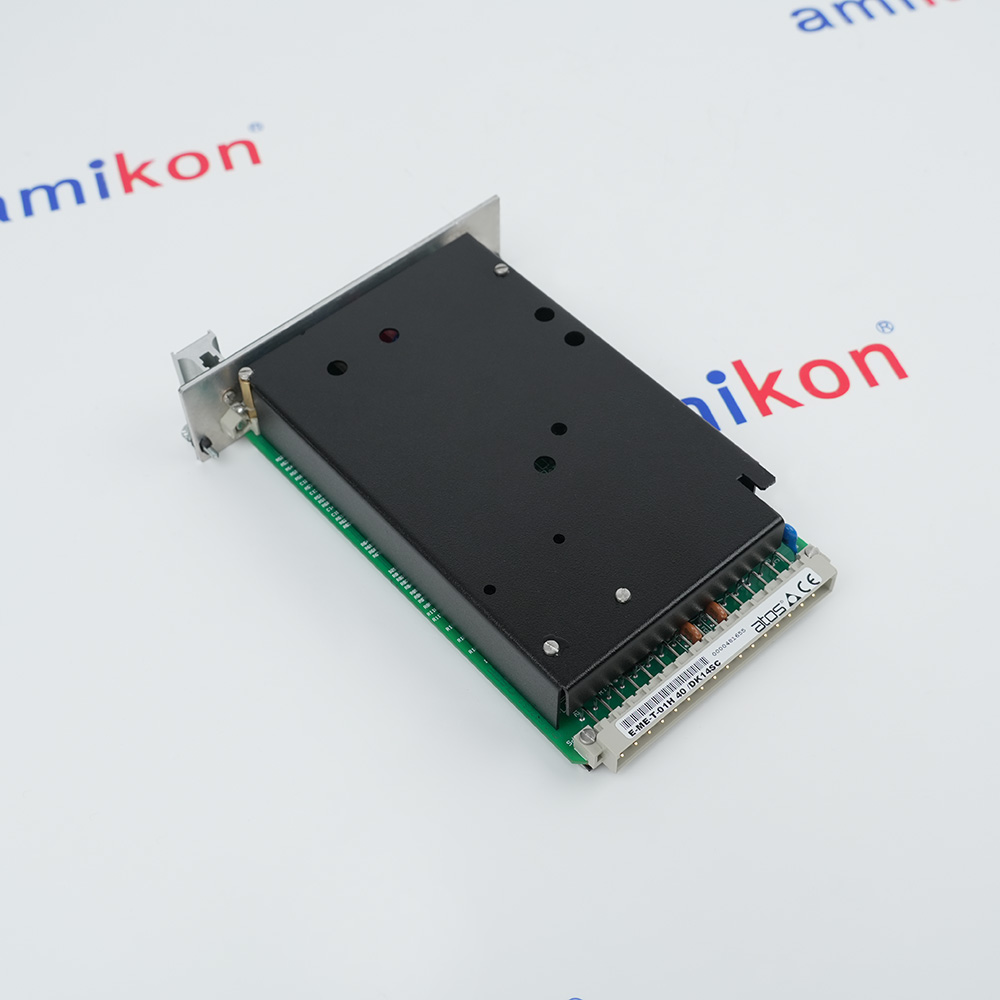

The Atos E-ME-T-01H is an analog electronic driver card in Eurocard format designed to control single-solenoid proportional valves with position or flow transducers. It precisely regulates the current supplied to the valve’s solenoid based on an input reference signal and transducer feedback.
- Bending Presses & Press Brakes:Synchronizes press beam for sheet metal bending
- Hydraulic Die Presses:Regulates force & strokes for high-repeatability stamping
- Metal Forging Hammers:Controls solenoid valves for precise energy per strike
- Injection Molding Machines:Controls flow/velocity for consistent melt delivery
- Blow Molding Systems:Governs parison thickness via hydraulic actuator
- Extruders:Stabilizes pressure loops for consistent extrusion
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The power supply must be appropriately stabilized or rectified and filtered. If the power supply isgenerated by a single phase rectifier, use a 10000µF/40V capacitor; if pulse voltage is generatedby a three phase rectifier connect a 4700µF/40V capacitor. Connect the reference signal to the main electronic control bymeans of shielded and twisted cables. Pay attention: the negative and the positive poles must notbe exchanged each other. Shield the wirings to avoid electromagnetic noise (EMC). It is suitable to keep the driver and its cables far from any electromagnetic radiation source. Wire the earth connection as shown in , according to CEI EN 60204-1 standards. Connect the shield of the driver to the noiseless earth terminal (TE) . The driver is protected against overloads by an internal safety fuse: 4 A fast fuse.
FAQs
-
What is the E-ME-T-01H？+The Atos E-ME-T-01H is an analog electronic driver in Eurocard format designed to control a single-solenoid proportional valve with a position transducer.
-
What type of power supply does the card require?+It operates on a standard 24 VDC ± 10% supply.
-
Does the card include built-in overcurrent protection?+Yes. The board relies on an integrated, fast-acting 4 A safety fuse to guard components against sudden overloads.
-
What do the onboard LEDs indicate?+The board features a green LED indicating main power status and a diagnostic LED channel that lights up when the single solenoid (S1) is actively enabled and receiving current.
