- AINT-02C 68257867
In Stock
Ships by Saturday, June 20
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for AINT-02C 68257867
-
Product ModelAINT-02C 68257867
-
Product ParametersKIT MAIN INTERFACE
-
Tariff Code8537101190
-
Country of originSweden
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.1x12.3x1.5cm
-
ManufacturerABB
-
Weight0.1 kg
-
Voltage Rating24 V DC
-
Power Consumption15 W
-
Digital I/O16 digital inputs
-
RAM2 KB
-
ROM8 KB
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-20°C to +60°C
Description

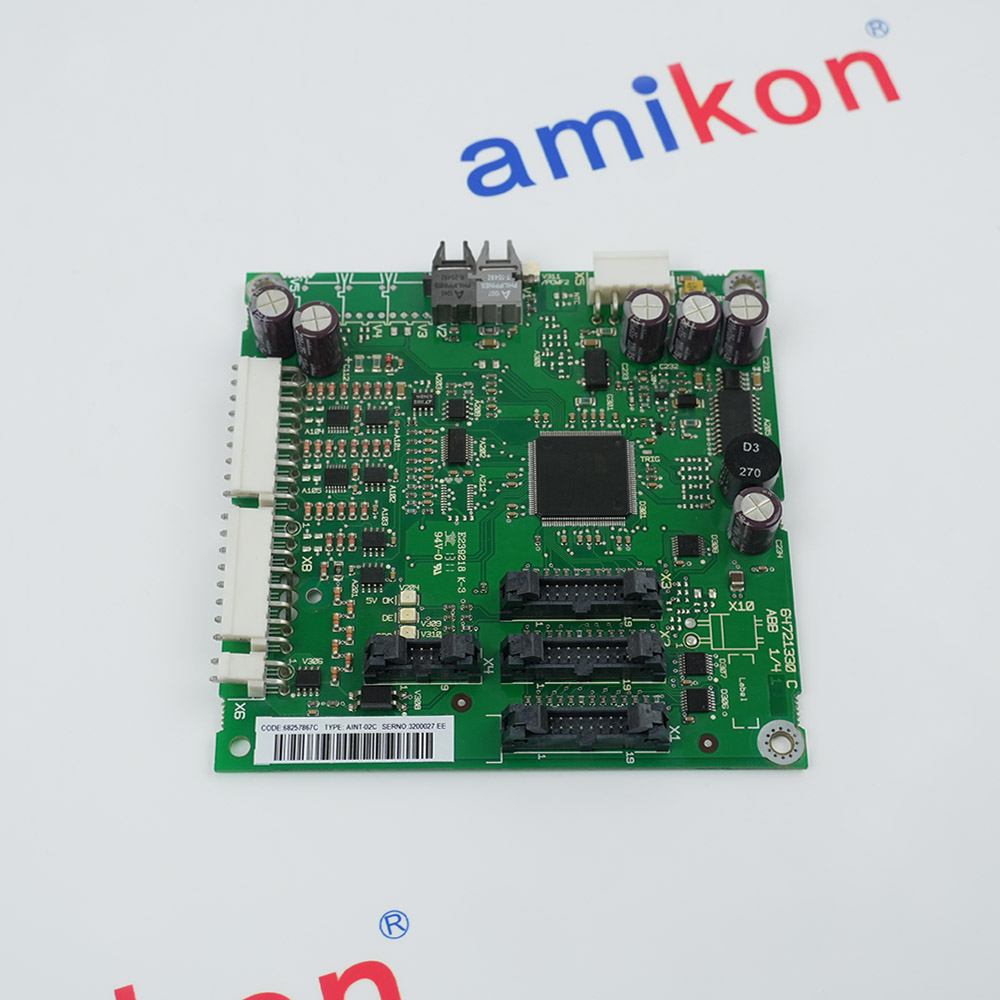

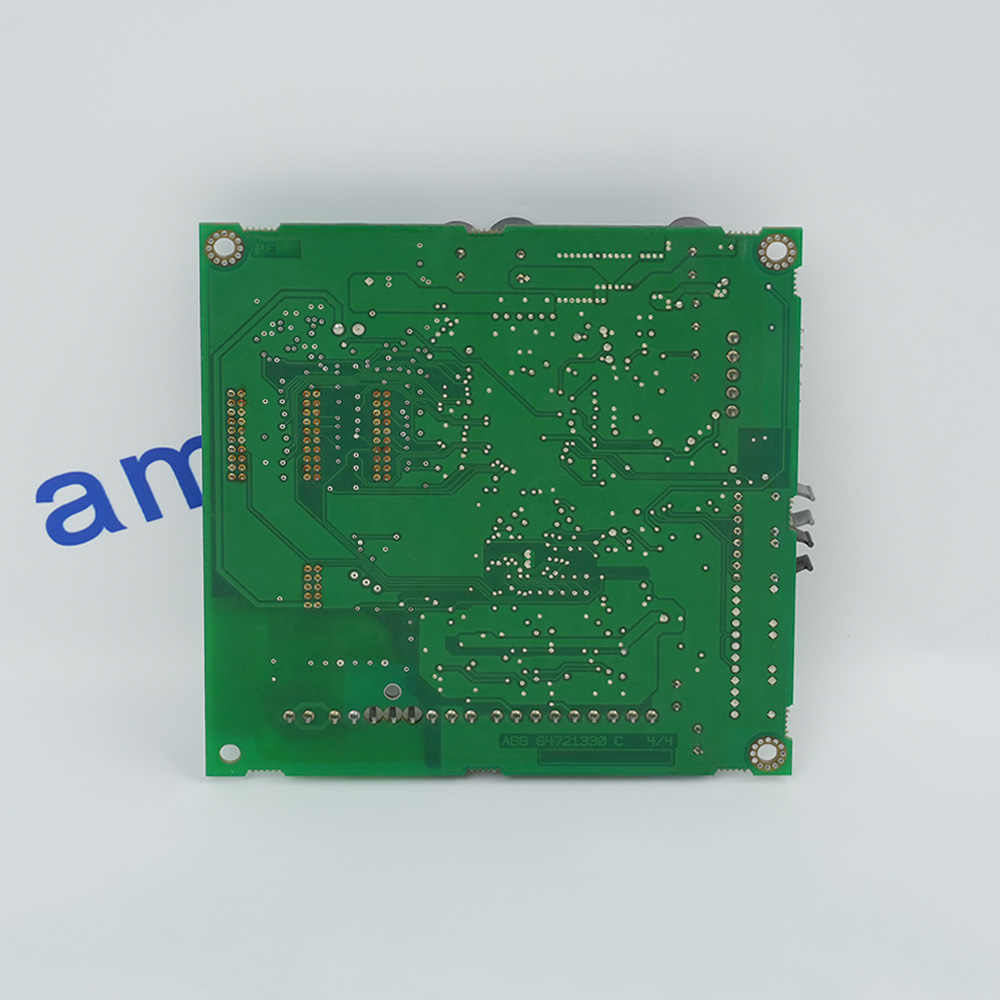

The AINT-02C is a Main Circuit Interface Board from ABB, designed as a spare parts kit for ACS800 industrial AC drives. The AINT-02C serves as the primary I/O interface between the drive's control electronics and power section, ensuring reliable communication and signal transmission for safe and efficient drive operation.
The AINT-02C receives an internal signal that a Safe Torque Off (STO) function activation command has been given. If the STO function activation command was given during run, the drive coasts to stop. The AINT-02C ensures that ACS800 IGBT pulses are always blocked when the program detects that the DC switch is opened or inverter charging is ongoing at power switch on. The application program generates alarm INV DISABLED if the DC switch is opened when the inverter is stopped, and the inverter trips to fault INV DISABLED if the DC switch is opened when the inverter is running.
The AINT-02C receives an internal signal that a Safe Torque Off (STO) function activation command has been given. If the STO function activation command was given during run, the drive coasts to stop. The AINT-02C ensures that ACS800 IGBT pulses are always blocked when the program detects that the DC switch is opened or inverter charging is ongoing at power switch on. The application program generates alarm INV DISABLED if the DC switch is opened when the inverter is stopped, and the inverter trips to fault INV DISABLED if the DC switch is opened when the inverter is running.
Alternative Names
AINT-02C-68257867
AINT 02C 68257867
AINT02C 68257867
AINT-O2C 68257867
A1NT-02C 68257867
AINT-02C 68Z57867
AINT 02 C 68257867
Information
Overview
Manuals
Application Notes
Product Applications
Fiber Optic Connection Guidelines
Features:
- Main Circuit Interface Board for ACS800 Series
- Safe Torque Off (STO) Function Support
- DC Switch Monitoring Capability
As part of the ACS800 spare parts program, the AINT-02C is supplied as an I/O Kit intended for maintenance, repair, and lifecycle support of installed drive systems. The board supports internal drive communications, signal conditioning, status supervision, and interface management required for stable inverter operation. Its coated industrial PCB construction provides additional protection in demanding industrial environments where drives are exposed to vibration, temperature fluctuations, and electrical noise.
The AINT-02C 68257867 ABB SP KIT MAIN INTERFACE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AINT-02C 68257867 SP KIT MAIN INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The AINT-02C is widely deployed in applications involving variable-speed motor control, including conveyors, pumps, fans, compressors, mining equipment, process plants, and manufacturing systems. As a critical interface component within the ACS800 architecture, it contributes to reliable drive operation, system diagnostics, and long-term maintainability of ABB industrial automation installations.
- Wind Turbines:ACS800-67LC sync & distribution
- Cranes & Hoists:Precise motor positioning & safety comms
- Mixers & Extruders:High-torque speed control
- Conveyor Systems:Constant torque for bulk material & packaging
- Industrial Pumps & Fans:Flow/pressure regulation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Grab Connectors Only: Never pull or stress the fiber optic cables directly; always grip the hard plastic shell connector.
Maintain Cleanliness: Do not touch the clear ends of the fiber cables with bare fingers. Minute grease or dirt film will corrupt data transmission and trigger drive faults.
Observe Bend Radius: Ensure that the fiber optic cables are routed cleanly with a minimum bend radius of 35 mm (1.4 inches). Sharp bends can break the internal core.
Technical notes
The AINT-02C activates the inverter DC switch (switch fuse) monitoring function. The monitoring must be active when the Switch Fuse Control Board (ASFC) is in use and connected to the inverter AINT-02C board, specifically in all frame R8i inverters equipped with the DC switch. The function must be inactive in units that do not use the ASFC board with the DC switch, such as frame R2i through R7i inverters and all single drive units where no DC switch exists. The default setting for each unit is set accordingly at the factory.
FAQs
-
What is the AINT-02C？
+The ABB AINT-02C 68257867 is a Main Circuit Interface Board and spare I/O kit primarily used in ABB ACS800 series frequency converters. -
What does the AINT-02C board actually do?
+It handles high-speed communication within the inverter. It bridges the command-giving control board (like the RMIO board) and the power modules (IGBTs). It translates system parameters into actual motor gate-driving controls. -
Is this product brand new?
+Yes, ABB AINT-02C 68257867 is brand new, original, unused, and factory sealed -
Do you provide warranty as standard?
+We provide a full 12-month warranty for the AINT-02C 68257867. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
