Technical specifications for FS300R12KE3/AGDR-62C
-
Product ModelFS300R12KE3/AGDR-62C
-
Product ParametersInsulated Gate Bipolar Transistor
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size18.5x15x3cm
-
ManufacturerABB
-
Weight1 kg
-
Maximum Junction Temperature150°C
-
Storage Temperature-40°C to +125°C
-
Recommended Gate Resistance1-10 Ω
-
Voltage/Amperage1200 V / 300 A
-
Module TypeEcono+ Power Module
-
Switching FrequencyUp to 10 kHz
Description

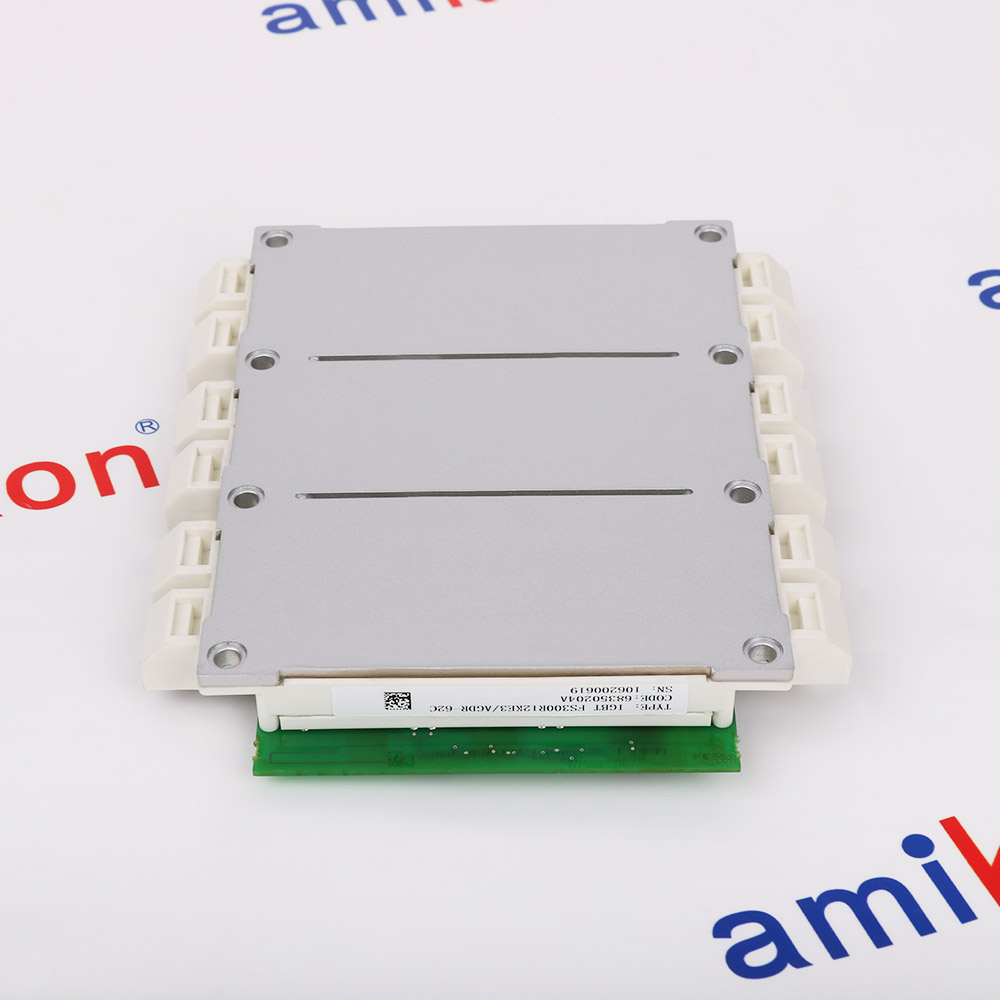

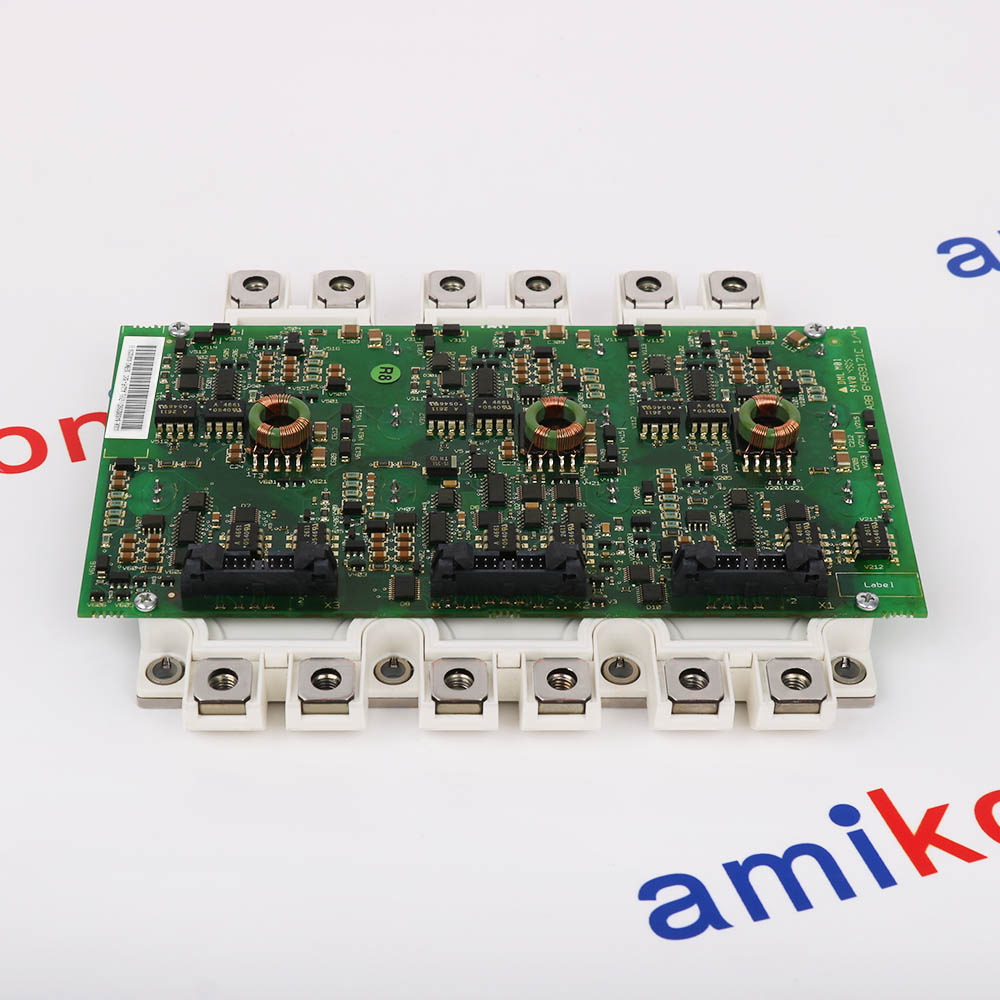

The ABB FS300R12KE3/AGDR-62C is an IGBT module kit. The ABB FS300R12KE3/AGDR-62C consists of an FS300R12KE3 IGBT module and an AGDR-62C gate driver board. The ABB FS300R12KE3/AGDR-62C is used in ABB ACS800 series industrial drives and other medium-voltage power conversion applications.
The FS300R12KE3 component of the ABB FS300R12KE3/AGDR-62C is an Infineon E3-series IGBT module. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a rated voltage of 1200V. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a rated current of 300A RMS at 80°C case temperature with sinusoidal load. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a peak current of 600A for 10ms pulse at duty cycle less than or equal to 1%.
The FS300R12KE3 component of the ABB FS300R12KE3/AGDR-62C is an Infineon E3-series IGBT module. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a rated voltage of 1200V. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a rated current of 300A RMS at 80°C case temperature with sinusoidal load. The FS300R12KE3 in the ABB FS300R12KE3/AGDR-62C has a peak current of 600A for 10ms pulse at duty cycle less than or equal to 1%.
Alternative Names
FS300R12KE3
AGDR-62C
FS3OOR12KE3 AGDR-62C
FS300RI2KE3 AGDR/62C
FS300R12KE3/AGOR-62C
FS300R12KE3/AGOR-62-C
Information
Overview
Manuals
Phase-Leg Parallel Operation
Product Applications
Physical Disassembly Sequence
Features:
- 1200V / 300A IGBT Module with Integrated Gate Driver
- Press-Fit Packaging for Direct PCB or Heat Sink Mounting
- Integrated Protection Functions
- Low Saturation Voltage Drop
The ABB FS300R12KE3/AGDR-62C has a typical saturation voltage drop of 1.8V. This saturation voltage on the ABB FS300R12KE3/AGDR-62C is measured at 300A collector current and 25°C junction temperature. The ABB FS300R12KE3/AGDR-62C supports switching frequencies up to 25 kHz. The actual switching frequency of the ABB FS300R12KE3/AGDR-62C depends on thermal conditions and load characteristics.
The FS300R12KE3/AGDR-62C ABB Insulated Gate Bipolar Transistor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB FS300R12KE3/AGDR-62C Insulated Gate Bipolar Transistor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Symmetrical Current Sharing: To ensure balanced current distribution, the physical layout of the AC busbars must be perfectly symmetrical. Asymmetric busbar geometry changes the loop inductance, forcing one module to shoulder more current and experience rapid thermal wear.
Driver Board Verification: Ensure all parallel boards share identical firmware revisions and component batches. Variations in internal gate resistance on the AGDR-62C board can create microsecond switching delays, causing a single module to momentarily handle the full load
- Motor Speed & Torque Control:Production lines, conveyors & material handling
- Pumping & Ventilation Systems:Water supply pumps & HVAC fans: lowers energy spikes
- Renewable Energy Grid Ties:Wind/solar power conversion topologies
- Factory Automation Infrastructure:High-voltage switching for robots & manufacturing cells
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
De-route Wiring: Mark and label all plug-in connections on the AGDR-62C driver board, then remove fiber-optic links and the auxiliary power cables.
Unfasten Busbars: Unscrew and clear out the AC output busbars and main DC power plates obstructing access to the power semiconductors.
Extract the Assembly: Unscrew the module housing mounting points and pull the faulty module straight out of the drive chassis.
Technical notes
The ABB FS300R12KE3/AGDR-62C (ABB global part code: 64717812) is an integrated power module and gate driver kit engineered for industrial heavy-duty variable frequency drives, specifically serving the ABB ACS800-104 series air-cooled inverter systems (R7i and R8i frame sizes). It combines an Infineon EconoPACK+ IGBT module with a matched, factory-calibrated ABB drive board.
FAQs
-
What is the FS300R12KE3/AGDR-62C ？+The ABB FS300R12KE3/AGDR-62C is an integrated IGBT (Insulated Gate Bipolar Transistor) and drive board module widely used in ABB industrial drives, specifically the ACS800 multidrive systems
-
Should I replace the ribbon cable when installing a new module?+Yes, it is highly recommended to use a brand-new ribbon cable when replacing the IGBT module to ensure optimal communication and prevent drive faults
-
What safety precautions are required when handling this board?+The board contains sensitive electronic components prone to electrostatic discharge (ESD). Always use an anti-static wrist strap, handle the module by its edges, and store it in an anti-static bag when not actively in use.
-
Which ABB variable frequency drives use this assembly?+It is extensively used in the ABB ACS800 Multidrive series, specifically within the R7i and R8i inverter modules
