- G2E140-PI51-09
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for G2E140-PI51-09
-
Product ModelG2E140-PI51-09
-
Product ParametersAC centrifugal fan
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5x29x48cm
-
ManufacturerABB
-
Weight5.1 kg
-
Voltage230V AC
-
Frequency50/60 Hz
-
Current Consumption0.3A
-
Power Consumption65W
-
Airflow280 m³/h (165 CFM)
-
Speed2650 RPM
-
Current Draw0.8 A
-
Motor Capacitor4 µF
-
Capacitor Voltage Rating450 VDC
Description

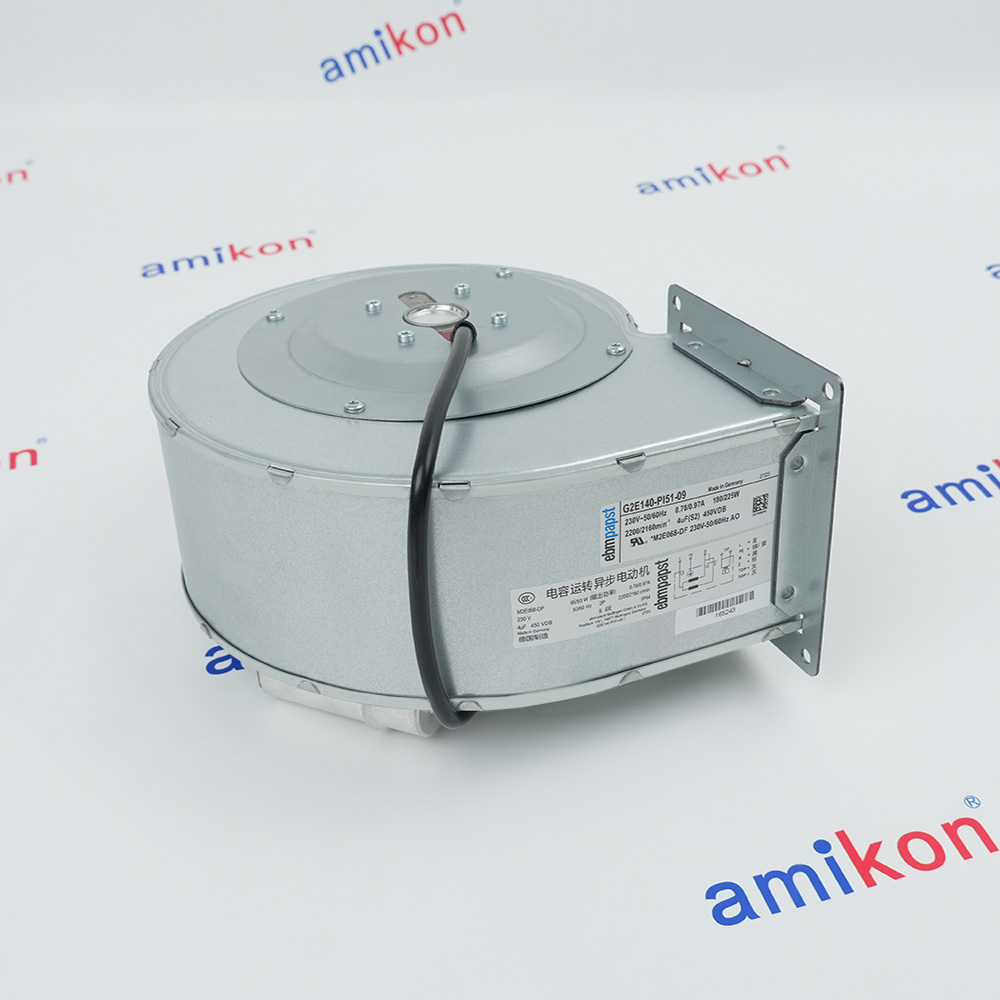

The ABB G2E140-PI51-09 is an industrial AC centrifugal cooling fan manufactured by ebm-papst and supplied by ABB as a replacement cooling component for ACS800, ACS880, and other industrial drive systems. The fan is designed to provide efficient airflow and static pressure for cooling power electronics, inverter cabinets, and control equipment operating in demanding industrial environments. It features a forward-curved centrifugal impeller, external rotor motor technology, and a compact flange-mounted housing for reliable heat dissipation and long service life.

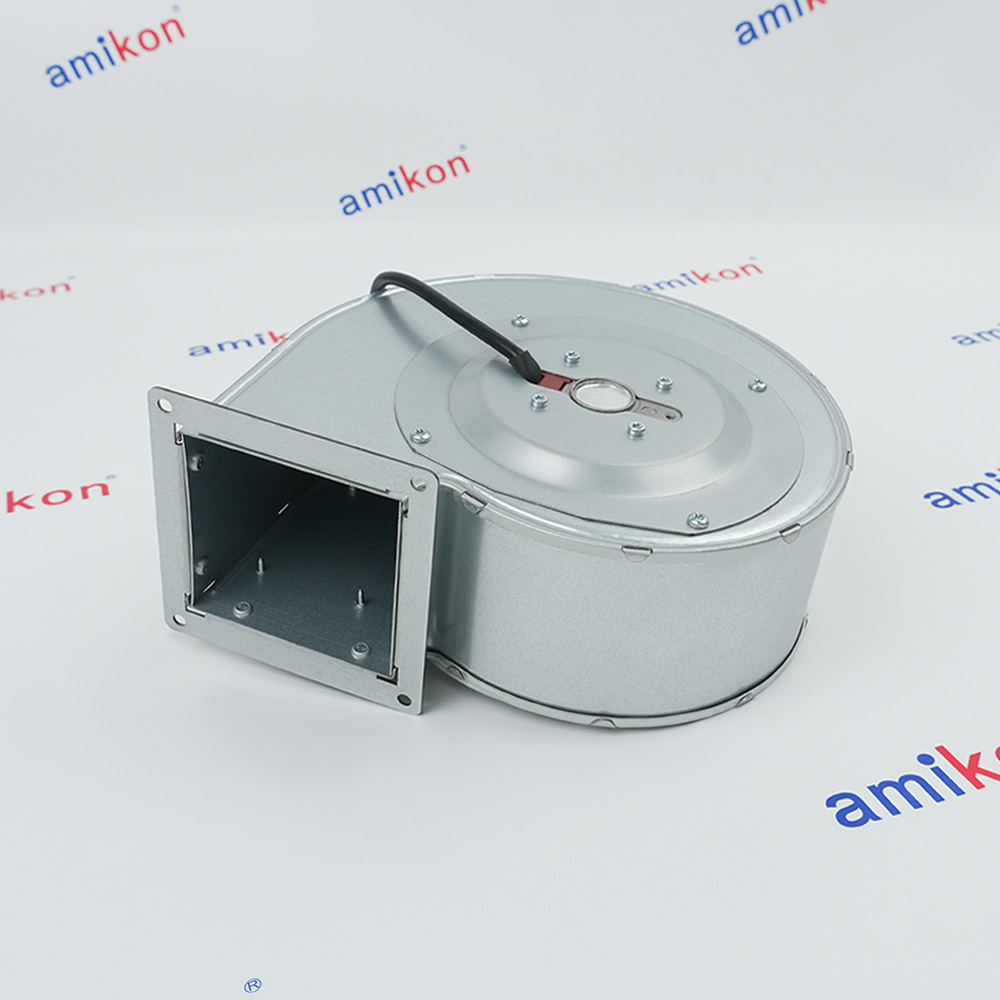

The fan features a 140 mm diameter forward-curved impeller housed within an integrated scroll housing with flange mounting. This configuration is optimized for high static pressure generation — a critical requirement for cooling applications where the fan must overcome the airflow resistance of densely packed drive electronics, heatsinks, and cabinet baffles. The single-intake design draws air axially from the drive enclosure and discharges it radially through the scroll housing, allowing flexible ducting and exhaust routing.
The fan features a 140 mm diameter forward-curved impeller housed within an integrated scroll housing with flange mounting. This configuration is optimized for high static pressure generation — a critical requirement for cooling applications where the fan must overcome the airflow resistance of densely packed drive electronics, heatsinks, and cabinet baffles. The single-intake design draws air axially from the drive enclosure and discharges it radially through the scroll housing, allowing flexible ducting and exhaust routing.
Alternative Names
G2E140 PI51 09
G2E140PI5109
G2E14O-PI51-O9
G2EI40-PI5I-09
G2E140-P151-09
G2E14O PI51 O9
G2EI40 PI5I 09
G2E140 P151 09
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Forward-curved, single-intake centrifugal design with housing
- 230 VAC nominal voltage with 50/60 Hz operation
- High-performance motor with ball bearings
- Thermal overload protection
G2E140-PI51-09 operates at a nominal voltage of 230 VAC with 50/60 Hz frequency, achieving speeds of 2200 rpm at 50 Hz and 2100 rpm at 60 Hz, with power consumption of 180 W at 50 Hz and 225 W at 60 Hz, and current draw of 0.8 A at 50 Hz and 0.99 A at 60 Hz.

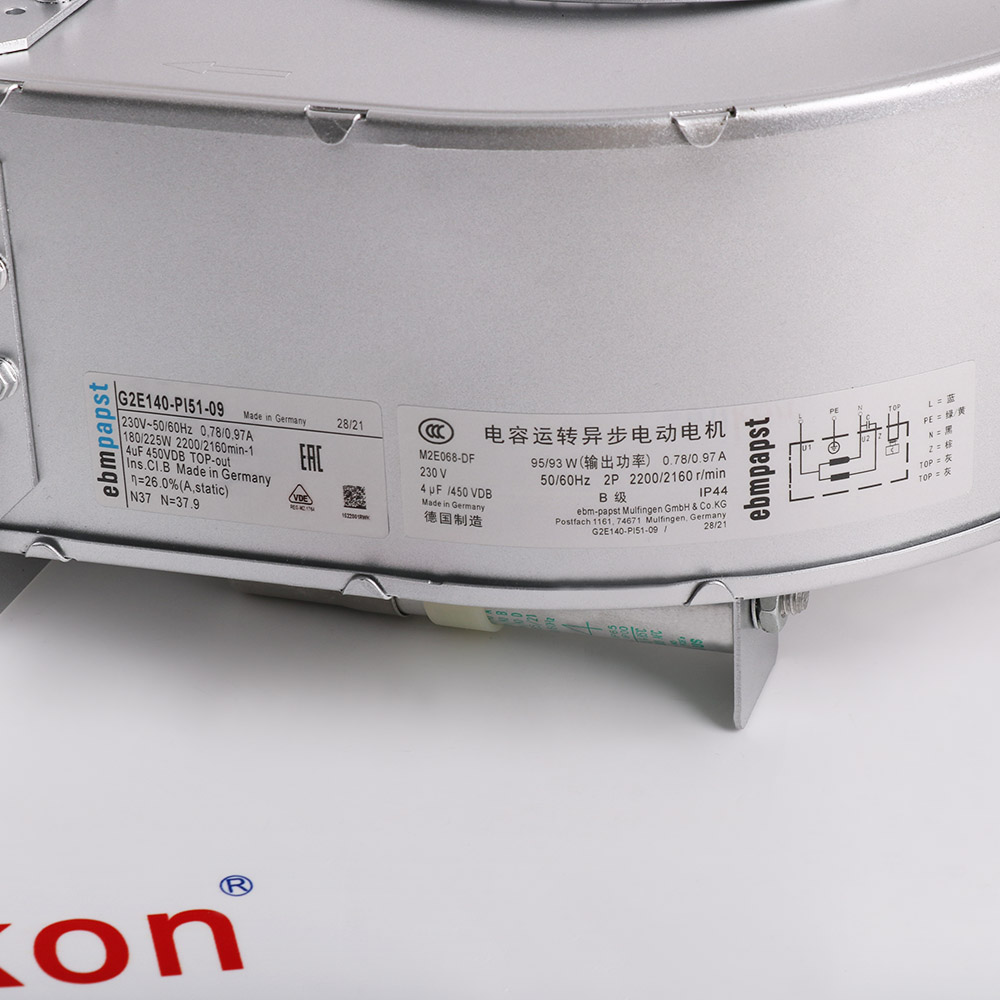

G2E140-PI51-09 is equipped with an M2E068-DF motor featuring ball bearings for extended service life, thermal overload protection (TOP) with basic insulation for motor protection, and a 4 µF capacitor with 450 VDB rating in safety protection class S2 (CE) according to EN 60252-1.
The G2E140-PI51-09 ABB AC centrifugal fan may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB G2E140-PI51-09 AC centrifugal fan Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

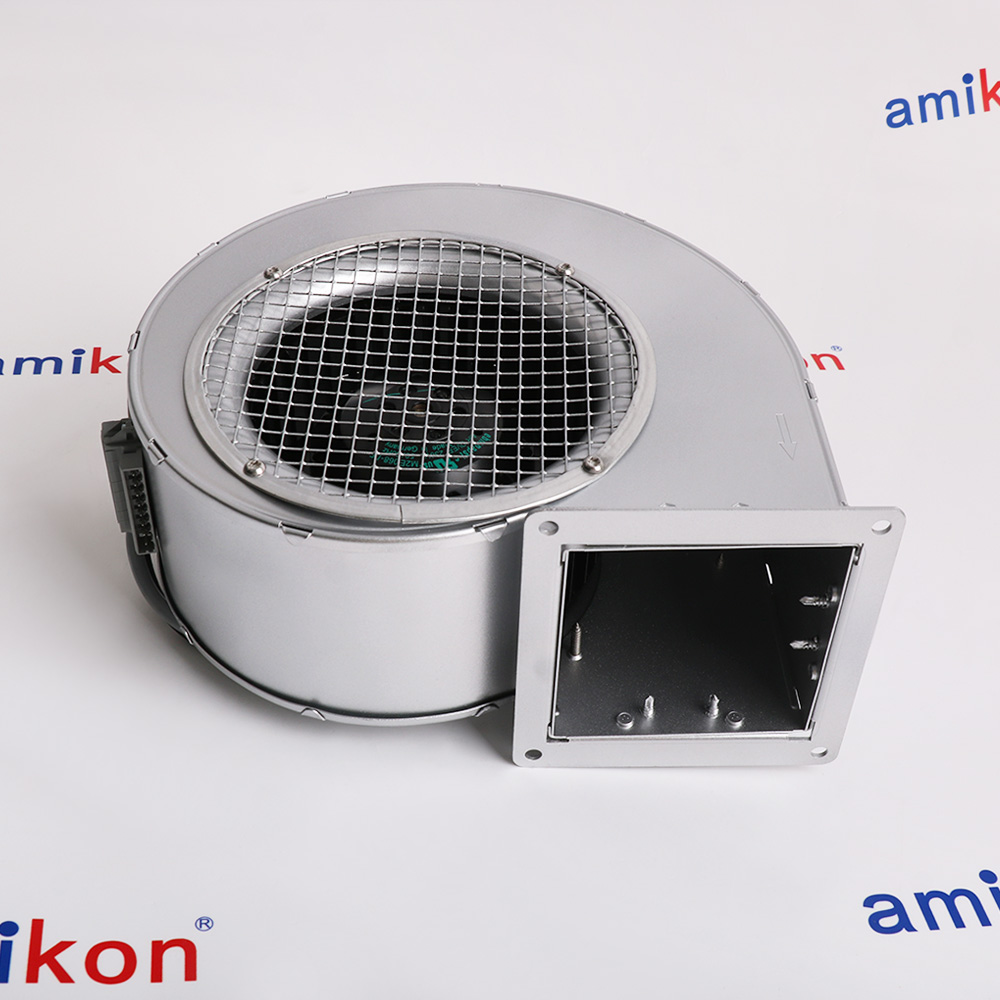

G2E140-PI51-09 features a 140 mm fan size with sheet steel impeller painted black, galvanized sheet steel housing, and hot-dip galvanized and spot-welded guard grille material, with clockwise direction of rotation when viewed toward the rotor.
G2E140-PI51-09 provides IP44 degree of protection (installation and position-dependent as per EN 60034-5), Class B insulation, HO+ moisture/environmental protection class, and operates in ambient temperatures from -25°C to +60°C at 50 Hz and -25°C to +40°C at 60 Hz.
- Drive and Inverter Cooling:Spare fan for ACS880 drives; prevents thermal failure
- Control Cabinet & Enclosure Ventilation:Harsh-environment airflow for PLCs & electronics
- Automation Systems:High-CFM ventilation for robotics & production lines
- Marine & Railway Systems:Climate control for transportation/marine panels
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Grounding: Always connect the Protective Earth (PE) cable first before making any other connections.
Power Specifications: The fan requires an input of 230VAC ±10% at 50/60Hz and draws roughly 0.78A to 0.97A.
EMC Filtering: If you are operating this alongside a variable frequency drive, utilize an all-pole sine filter to protect the motor coil insulation from high-voltage transients and bearing currents.
Technical notes
At 50 Hz operation, the fan delivers 180 W of mechanical power at 2200 rpm, drawing 0.8 A from a 230 VAC ±10% supply. At 60 Hz, power consumption increases to 225 W at 2100 rpm with a current draw of 0.99 A. The 4 µF motor run capacitor, rated at 450 VDC to S2 (CE) standards, ensures reliable single-phase motor starting and running torque across the full voltage tolerance range. The motor employs a shaded-pole or capacitor-run design (M2E068-DF type) optimized for continuous duty in inverter cooling applications.
FAQs
-
What drive models use this fan?
+The G2E140-PI51-09 is primarily used for the cabinet-built, low harmonic, and industrial single drives across the ABB ACS800 and ABB ACS880 drive series. -
What happens if this fan fails inside the inverter?
+If the fan stops or slows down, the internal temperature of the AC drive's IGBT power modules will rapidly increase. The ABB drive will typically trip with an Overtemperature Fault -
Is this product brand new?
+Yes, ABB G2E140-PI51-09 is brand new, original, unused, and factory sealed
