PRODUCT DESCRIPTION

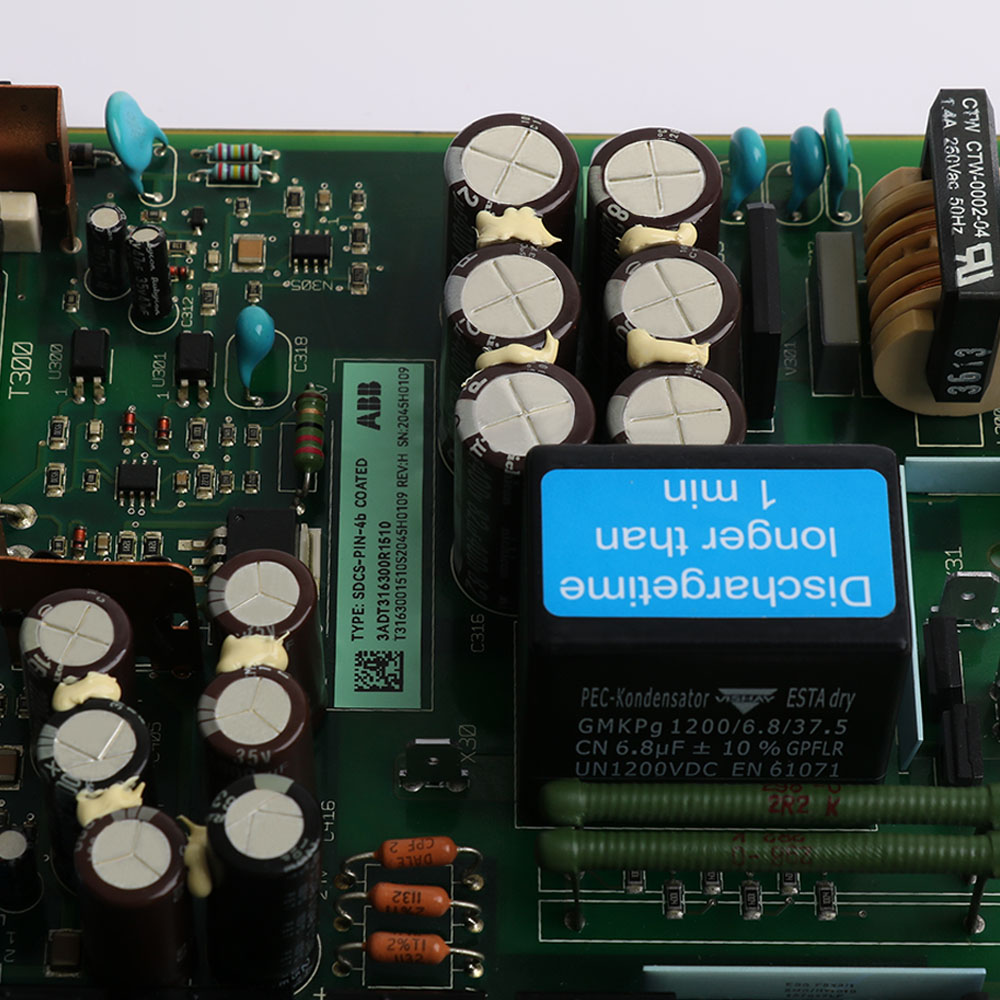

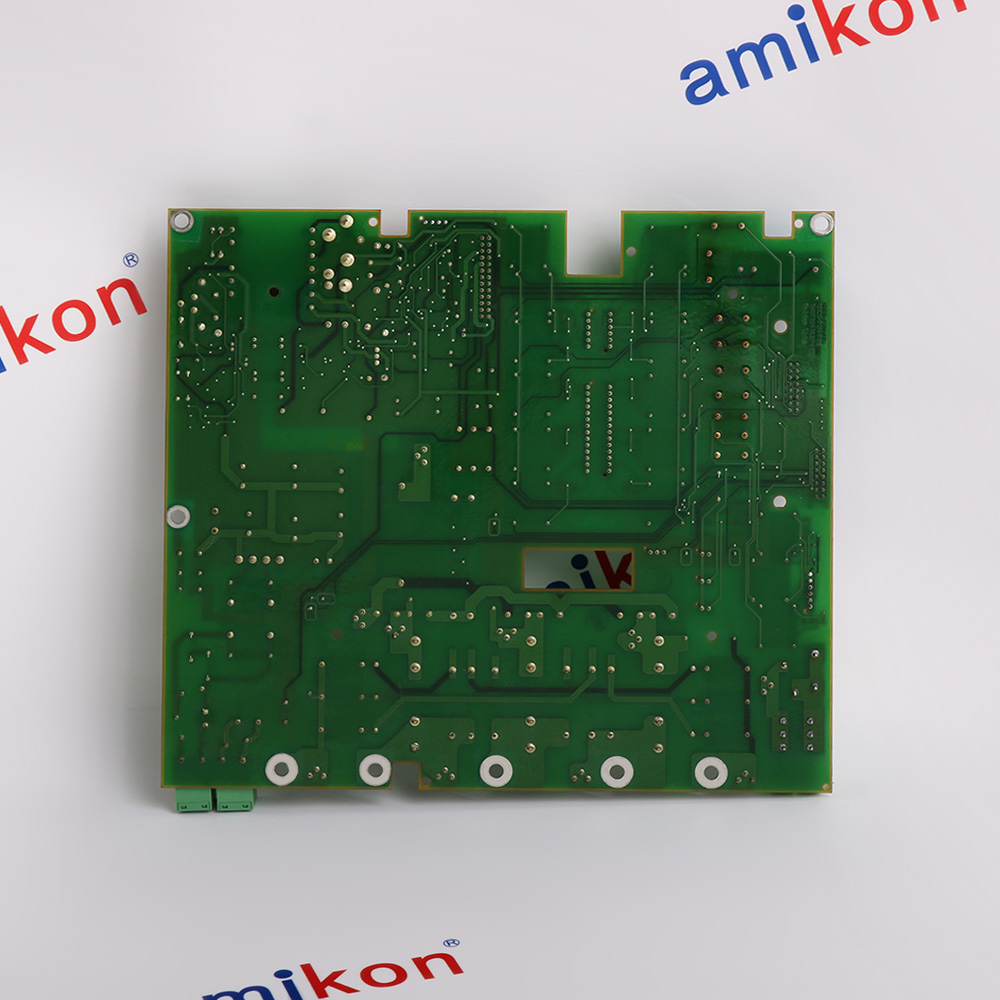

SDCS-PIN-4B-COATED 3ADT316300R1510 SDCS-PIN-4b Power Interface Board
ABB SDCS-PIN-4B-COATED 3ADT316300R1510 is the SDCS-PIN-4b power-interface spare for a compatible DCS800 DC drive. The ABB service spare list identifies this article for the onboard field arrangement up to 525 V AC.
The interface board provides low-voltage power supply, armature-bridge firing and measurement interfaces, and the applicable onboard field interface. Its auxiliary supply automatically adapts to 115 or 230 V AC and also supports documented 230 V DC operation; relay, buffering and circuit ratings must be applied to the corresponding terminals.
The interface board provides low-voltage power supply, armature-bridge firing and measurement interfaces, and the applicable onboard field interface. Its auxiliary supply automatically adapts to 115 or 230 V AC and also supports documented 230 V DC operation; relay, buffering and circuit ratings must be applied to the corresponding terminals.
BEFORE YOU BUY
Confirm the complete sdcs-pin-4b power interface board
ACTUAL APPLICATIONS
Application context for SDCS-PIN-4B-COATED 3ADT316300R1510
SDCS-PIN-4B-COATED 3ADT316300R1510 supports compatible ABB DCS800 DC drive systems. Industrial contexts include paper production, metal processing and heavy manufacturing. The converter size, field arrangement and exact spare article determine board compatibility.
-
01 · PULP & PAPER
Pulp Manufacturing and Paper Production
Pulp Production and ProcessingPaper and Board Manufacturing -
02 · METAL PROCESSING
Metal Production and Industrial Material Processing
Steel Production and ProcessingIndustrial Metal Fabrication -
03 · INDUSTRIAL MANUFACTURING
Heavy Manufacturing and Industrial Product Production
Heavy Industrial Material ProductionIndustrial Product Manufacturing
Technical specifications for SDCS-PIN-4B-COATED 3ADT316300R1510
-
Product ModelSDCS-PIN-4B-COATED 3ADT316300R1510
-
Product ParametersSDCS-PIN-4b Power Interface Board
-
In stock9 units
-
ManufacturerABB
-
Auxiliary AC voltage115 / 230 V AC, automatic adaptation
-
Auxiliary DC voltage230 V DC, SDCS-PIN-4b
-
Auxiliary voltage tolerance-15% / +10%
-
Auxiliary AC frequency45 to 65 Hz
-
Auxiliary AC power consumption120 VA
-
Maximum power loss60 W
-
Auxiliary inrush at 115 V AC20 A for 20 ms
-
Auxiliary inrush at 230 V AC/DC10 A for 20 ms
-
Recommended auxiliary fuse6 A time-delay
-
Mains buffering at 230 V ACAt least 300 ms, SDCS-PIN-4b
-
Mains buffering at 230 V DCAt least 150 ms
-
DO8 AC contact rating250 V AC, maximum 3 A
-
DO8 DC contact rating24 V DC / 3 A; 115 or 230 V DC / 0.3 A maximum
-
Armature-bridge firing channels6 or 12 thyristors
-
Armature measurement leakage5 mA at 500 V supply, approximately 1 MΩ
View all additional
Alternative Names
SDCS-PIN-4B-COATED 3ADT316300R1510
DCS800 SDCS-PIN-4b Power Interface Board
SDCS-PIN-4b Power Interface Board SDCS-PIN-4B-COATED
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SDCS-PIN-4B-COATED 3ADT316300R1510 sdcs-pin-4b power interface board
Match 3ADT316300R1510 and SDCS-PIN-4b to the DCS800 converter size and onboard field arrangement. Confirm all connected power and measurement interfaces.
Check the documented auxiliary input at X99, the DO8 relay output at X96 and the applicable armature/field circuitry. Apply each voltage and current rating to its corresponding circuit.
Follow the DCS800 service procedure for wiring restoration and power checks. Validate current/voltage measurement, firing and diagnostics before enabling the drive.
Features:
- 115/230 V AC or documented 230 V DC auxiliary input
- Armature firing and measurement circuit interfaces
- DCS800 converter and onboard-field matching
The SDCS-PIN-4B-COATED 3ADT316300R1510 sdcs-pin-4b power interface board requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify SDCS-PIN-4B-COATED 3ADT316300R1510 sdcs-pin-4b power interface board
Compare the complete coated spare identity and the installed SDCS-PIN-4b revision. Verify the converter and field arrangement before replacing an earlier interface-board variant.
Record flat-cable and terminal allocation, auxiliary supply and protective connections. Follow the manufacturer isolation and stored-energy procedure.
After exchange, confirm auxiliary power, measurement scaling and firing behavior using the documented DCS800 checks. Retain the final parameter and wiring records.
Features:
- 3ADT316300R1510 coated spare identity
- Preserved flat cables and terminal allocation
- Auxiliary power and firing diagnostic checks
The SDCS-PIN-4B-COATED 3ADT316300R1510 sdcs-pin-4b power interface board requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- ABB DCS800 English hardware reference
- SDCS-PIN-4b layout and auxiliary-input table
- DO8 contact, buffering and leakage ratings
Documentation for the SDCS-PIN-4B-COATED 3ADT316300R1510 sdcs-pin-4b power interface board must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size25 × 23.3 × 4.2cm
-
Shipping weight0.70kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSwitzerland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SDCS-PIN-4B-COATED 3ADT316300R1510
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What ABB drive family uses this coated SDCS-PIN-4b article?
The documented spare belongs to compatible DCS800 converter arrangements. The service spare list identifies 3ADT316300R1510 for the onboard field arrangement up to 525 V AC. -
Which auxiliary AC supplies can SDCS-PIN-4b detect?
It automatically adapts to 115 or 230 V AC, within the specified -15%/+10% tolerance. -
Can SDCS-PIN-4b accept an auxiliary DC supply?
The hardware manual specifies 230 V DC for SDCS-PIN-4b, at the documented auxiliary input. -
What 230 V AC buffering is specified for the b-version?
The hardware manual lists at least 300 ms for SDCS-PIN-4b. -
What ratings apply to the DO8 relay contact?
The normally open relay contact is rated up to 250 V AC/3 A, or 24 V DC/3 A and 115/230 V DC/0.3 A. -
Do host-converter current ratings equal a board supply current?
No. Converter armature and field ratings apply to the configured power circuits. They must not be substituted for auxiliary-board input ratings. -
Which coated power-interface article and field details belong in an enquiry?
Quote SDCS-PIN-4B-COATED 3ADT316300R1510, DCS800 converter size, field arrangement, auxiliary supply and revision photographs. -
Which DCS800 power-board terminals should be inspected on arrival?
Check X99, X96, flat-cable connectors, PCB condition and the full coated spare marking against the removed SDCS-PIN-4b. Preserve the verified power-circuit configuration.
