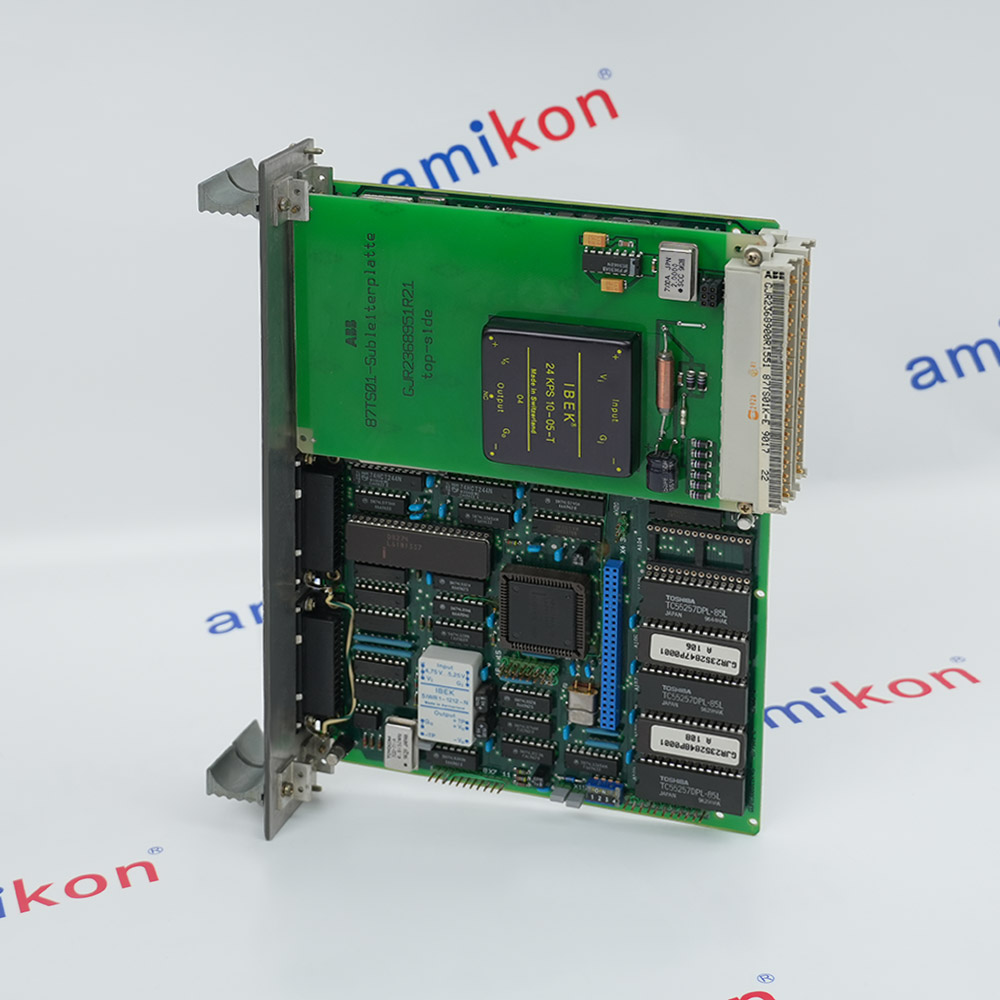

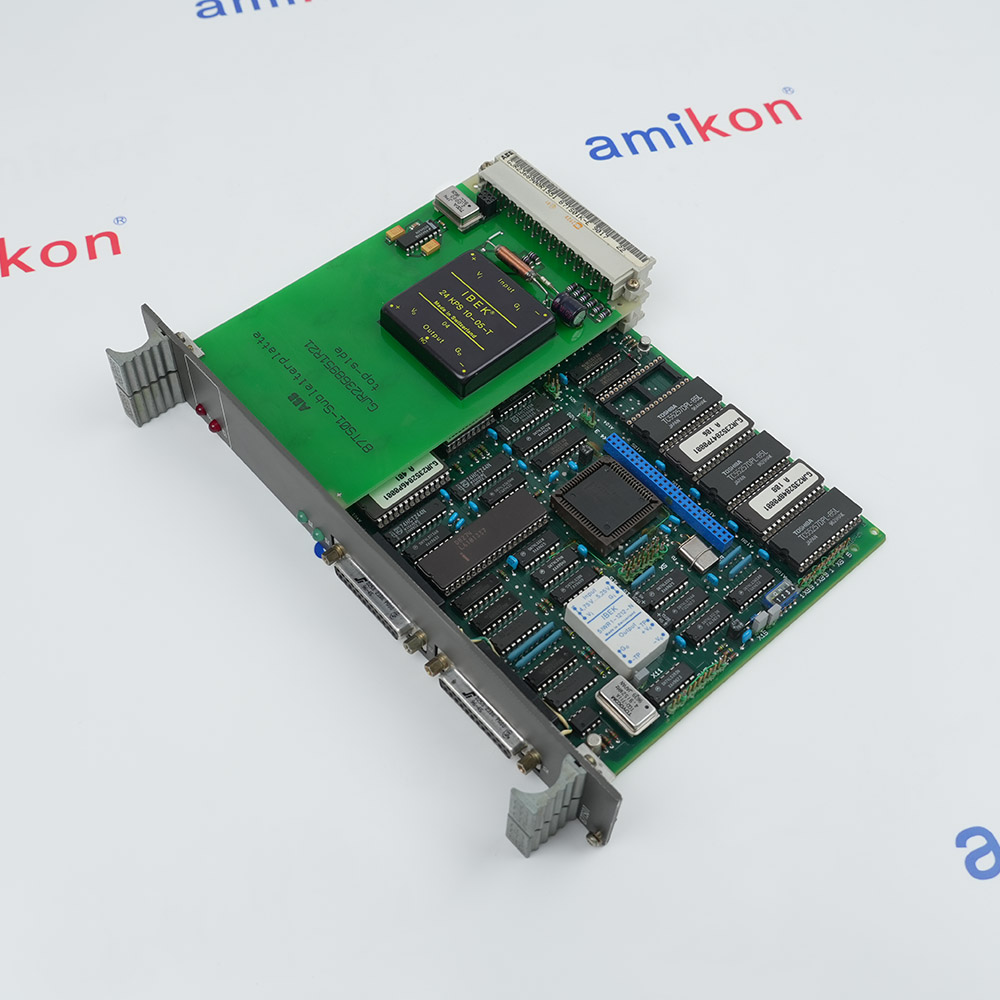

- GJR2368900R1551 87TS01K-E
In Stock
Ships by Tuesday, July 28
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for GJR2368900R1551 87TS01K-E
-
Product ModelGJR2368900R1551 87TS01K-E
-
Product ParametersCoupling Module
-
Tariff Code8537101190
-
Country of originSweden
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x19.8x26.1cm
-
ManufacturerABB
-
Weight0.2 kg
-
Power Supply24 VDC
-
Operating Temperature-25°C to +60°C
-
Storage Temperature-40°C to +70°C
-
Current consumption, typical340 mA
-
Power dissipation8.2 W
-
Typical Power Dissipation4 W
Description
The 87TS01K-E is a Coupling Module manufactured by ABB for the PROCONTROL distributed control system. The 87TS01K-E is designed for connecting computers or external systems to the PROCONTROL system. For this purpose, the 87TS01K-E is equipped with a serial interface type RS232c or RS422 through which a process operator station (POS), a programming, diagnosis and display system (PDDS), a control diagnosis station (CDS), or another computer can communicate with the PROCONTROL system. The module's scope of action of the 87TS01K-E extends over the entire PROCONTROL system, providing comprehensive connectivity across all stations in the distributed control architecture.
The 87TS01K-E can be used in any station belonging to the PROCONTROL bus system using a redundant 24 V module supply (starting with 89MS01/R0200 or 89MS02/R0100). The 87TS01K-E is equipped with a standard interface for the PROCONTROL station bus. The 87TS01K-E requires 2 divisions for mounting space and can be plugged into subrack slots with address wiring 1 through 58 for the station bus. The 87TS01K-E uses a standard interface for participating in data communication within the PROCONTROL system. The telegrams received from the station bus by the 87TS01 are checked for error-free transmission. Using a serial RS232c interface, the 87TS01K-E is capable of receiving instructions and data coming from a computer in accordance with a defined protocol, as well as transferring instructions and data to a computer.
The 87TS01K-E can be used in any station belonging to the PROCONTROL bus system using a redundant 24 V module supply (starting with 89MS01/R0200 or 89MS02/R0100). The 87TS01K-E is equipped with a standard interface for the PROCONTROL station bus. The 87TS01K-E requires 2 divisions for mounting space and can be plugged into subrack slots with address wiring 1 through 58 for the station bus. The 87TS01K-E uses a standard interface for participating in data communication within the PROCONTROL system. The telegrams received from the station bus by the 87TS01 are checked for error-free transmission. Using a serial RS232c interface, the 87TS01K-E is capable of receiving instructions and data coming from a computer in accordance with a defined protocol, as well as transferring instructions and data to a computer.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Rack Mounting
Features:
- RS232c and RS422 Serial Interface Connectivity
- System-Wide Communication Scope
- Redundant 24V DC Module Supply Compatibility
- Dual 25-Pole Connectors with Parallel Wiring
- Parallel Connection of Up to Five Modules
The 87TS01K-E operates from a 24 VDC system power supply with a typical current consumption of approximately 340 mA and power consumption of about 8.2 W. The module occupies two slots in an ABB PROCONTROL rack and supports station bus addressing from 1 to 58, allowing flexible integration into distributed automation architectures. Communication data exchanged through the station bus is monitored internally to verify transmission integrity and support reliable system operation.
The GJR2368900R1551 87TS01K-E ABB Coupling Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2368900R1551 87TS01K-E Coupling Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 87TS01K-E module uses a standard interface for participating in data communication within the PROCONTROL system. All telegrams received from the station bus are checked for error-free transmission before processing. Using the serial RS232c interface, the module is capable of receiving instructions and data from a computer in accordance with a defined protocol, as well as transferring instructions and data back to the computer.
The module requires 2 divisions for mounting space and can be plugged into subrack slots with address wiring 1 through 58 for the station bus. It is designed for use in any station belonging to the ProControl bus system using a redundant 24 V module supply (starting with 89MS01/R0200 or 89MS02/R0100).
- Power Generation: Primary home for Procontrol P14 in fossil/nuclear/hydro plants for boiler/turbine/auxiliary control
- Heavy Process Automation: Functions in petrochemical, chemical, and water treatment continuous infrastructure
- Heavy Extraction: Utilized in mining and metal refineries for material handling equipment
- Pulp/Paper: Applied in automated processing lines requiring consistent signaling and fault tolerance
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Rack Placement: The 87TS01K-E is a plug-in printed circuit board (PCB) module designed to be inserted into a standard equipment subrack or cabinet.
Alignment: Carefully align the module with the guide rails in the cabinet. Push it gently but firmly into the backplane connectors.
Securing: Once inserted, secure the module by tightening the locking screws on the top and bottom of the front panel to ensure a solid ground and prevent the board from vibrating loose.
Alternative Names
GJR2368900R1551 87TS0IK-E
GJR2368900R1551 87TSO1K-E
GJR2368900R1551 B7TS01K-E
GJR2368900R155I 87TS01K-E
GJR2368900RI551 87TS01K-E
GJR23689OOR1551 87TS01K-E
GJR236B900R1551 87TS01K-E
GJRZ368900R1551 87TS01K-E
GJR2368900R1551 87TS01K E
GJR2368900R1551 87TS0IK E
GJR2368900R1551 87TSO1K E
GJR2368900R1551 B7TS01K E
GJR2368900R155I 87TS01K E
GJR23689OOR1551 87TS01K E
GJR236B900R1551 87TS01K E
GJRZ368900R1551 87TS01K E
GJR2368900R1551 87TS01KE
Technical notes
The 87TS01K-E is widely deployed in power generation facilities, industrial process plants, and other applications where the ABB PROCONTROL system is installed. The 87TS01K-E provides the essential communication bridge between external systems and the PROCONTROL distributed control system, enabling operators and engineers to monitor, program, diagnose, and control industrial processes. The proven design and robust construction of the 87TS01 ensure reliable data exchange in demanding industrial environments where continuous communication is critical for operational efficiency and safety.
FAQs
-
What is the primary function of the 87TS01K-E module?
+The module acts as an interface between the ABB control system (like Procontrol) and external devices such as process operator stations (POS), programming/diagnostic systems, or other computers. It provides a serial interface (RS-232C or RS-422) to enable communication across the system. -
Are there specific firmware requirements?
+Yes. If you are using the module as a CDS (Control Diagnosis Station) Slave, the CDS Master and Slave modules must be running the exact same firmware version for the system to operate properly. -
Can I use this module as a direct replacement for other 87TS01K-E revisions?
+While the base architecture remains similar (87TS01K-E), different suffix codes (like R1551, R1313, or R1510) indicate different firmware or hardware revisions. It is crucial to verify the exact revision or consult the original system's blueprint to ensure complete compatibility. -
What is the difference between various 87TS01 module revisions?
+ABB categorizes variant distributions through the alphanumeric suffixes and specific GJR order codes While models like the 87TS01-E, 87TS01I-E, and 87TS01K-E perform the same core coupling work, variations indicate different firmware revisions, hardware backplane form factors, or distinct physical connection interfaces
