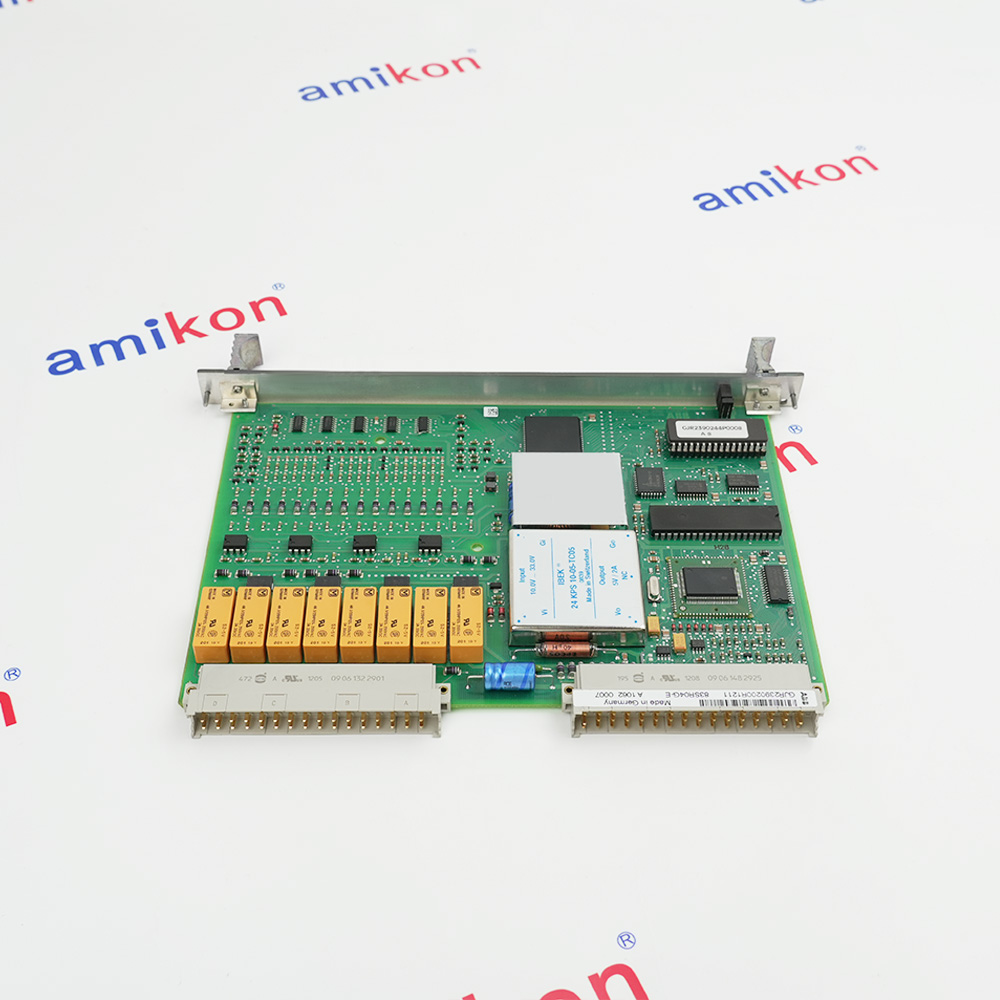

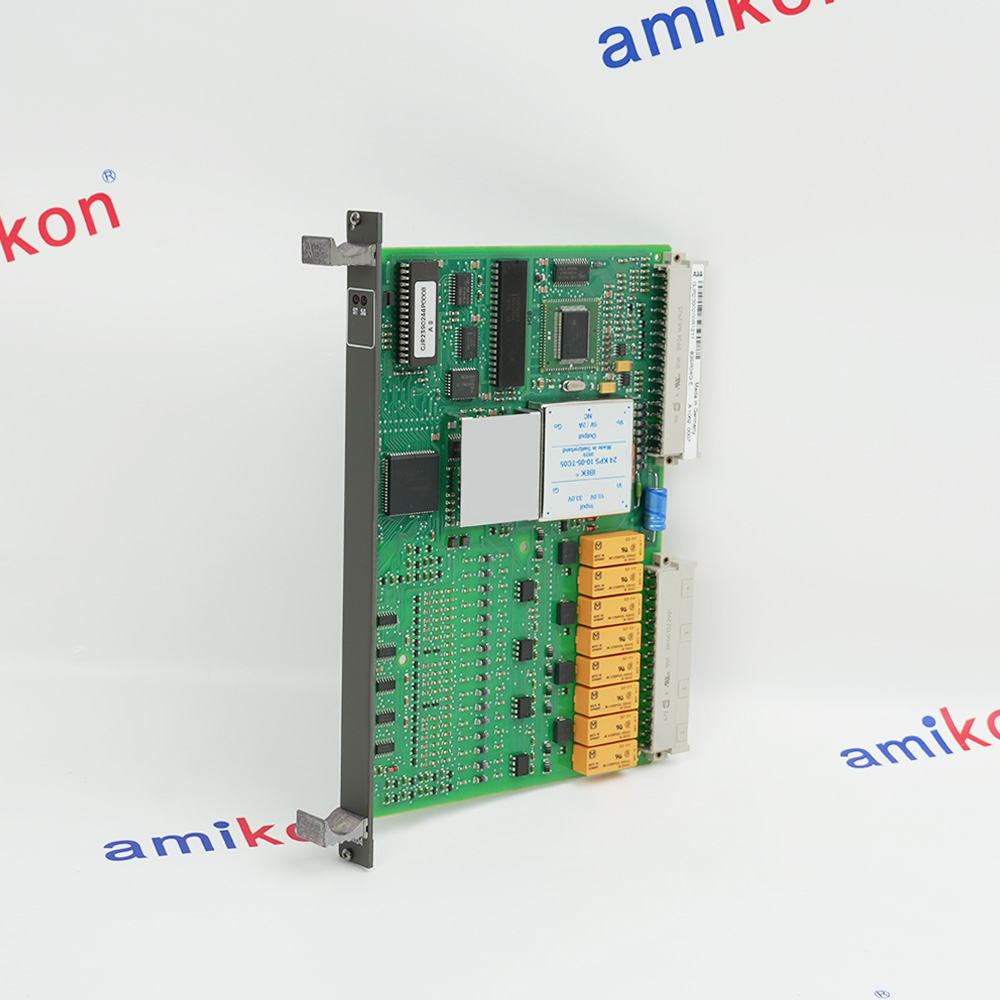

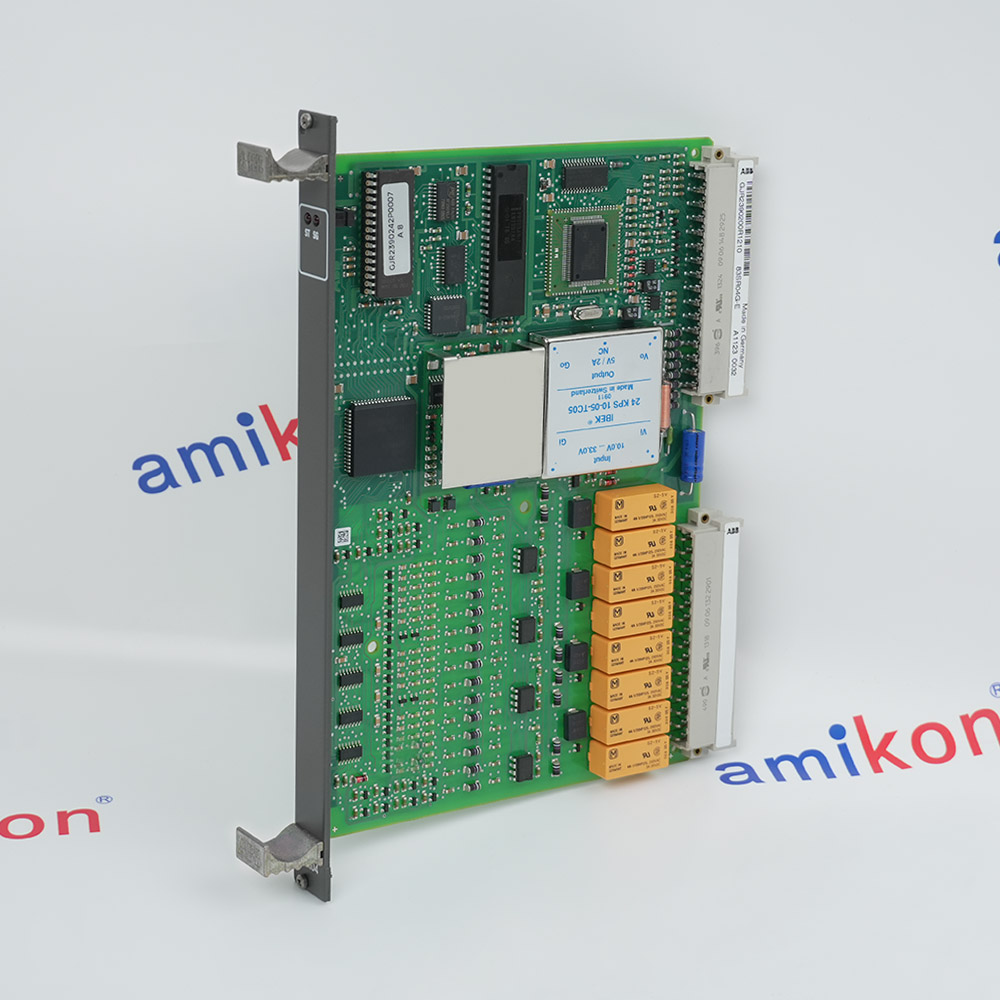

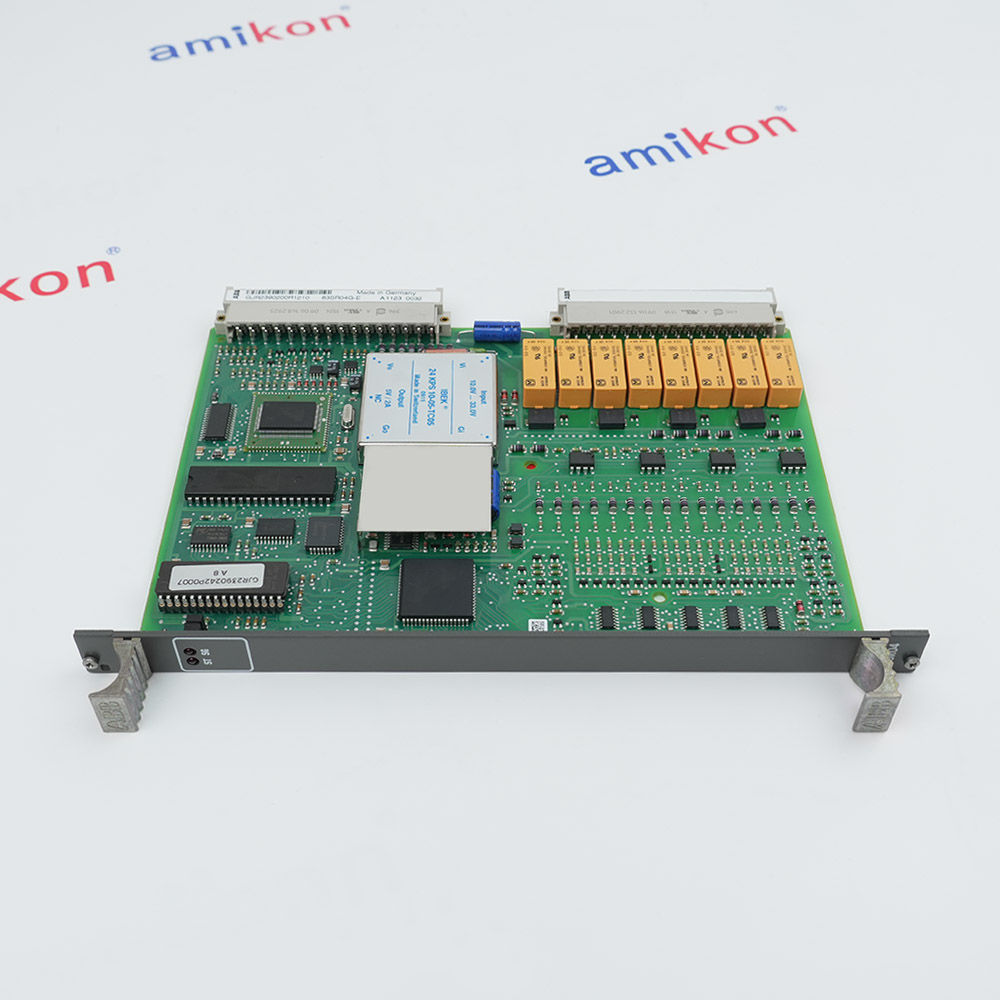

ABB GJR2390200R1210 is identified in the official PROCONTROL P application description as type 83SR04-E/R1210, a control module for binary control, analog control, and signal conditioning in a multi-purpose processing station.
ABB specifies three operating modes, four hardware interfaces, 24 V operating voltage, 145 mA current consumption plus output currents, and 3.5 W power dissipation. Connector X11 carries the station bus and USA/USB supplies; connector X21 carries all process inputs and outputs.
The page identifier includes 83SR04G-E, while the verified ABB document names type 83SR04-E/R1210 for order number GJR2390200R1210. Verify the complete module marking, programmed EPROM position number, station configuration, and current controlled ABB documentation before procurement or installation.
Technical specifications for GJR2390200R1210 83SR04G-E
-
Product ModelGJR2390200R1210 83SR04G-E
-
Spare Model83SR04
-
Product ParametersPROCONTROL P Control Module
-
Tariff Code8537101190
-
Country of originNot confirmed in official ABB document
-
Place of shipmentXiamen, China
-
In stock12 units
-
Estimated Shipping SizeNot published by manufacturer
-
ManufacturerABB
-
Weight0.55 kg
-
Order numberGJR2390200R1210
-
Official type designation83SR04-E/R1210
-
Product familyPROCONTROL P
-
Product typeControl Module
-
Operating modesBinary control, analog control, signal conditioning
-
Process interfacesFour hardware interfaces
-
Operating voltage24 V at USA/USB
-
Power dissipation3.5 W at 24 V
View all additional
Alternative Names
ABB GJR2390200R1210
83SR04-E/R1210 PROCONTROL P Control Module
GJR2390200R1210 83SR04G-E
Technical notes
Match the complete ABB order number and module marking before installation. Use the module in connection with the PROCONTROL P multi-purpose processing station. Connector X21 carries process inputs and outputs; connector X11 carries the station bus and USA/USB supplies. Connect X11/d18 to ZD once per subrack as stated by ABB. Verify 24 V operating power, process-interface voltages, programmed EPROM position number, user program, PDDS data, station configuration, wiring and current controlled ABB documentation.
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Product Applications
Compatibility
Features:
- PROCONTROL P control module for binary and analog control tasks
- Binary control, analog control and signal-conditioning operating modes
- Four hardware interfaces to switchgear and process equipment
- 24 V operating voltage and 3.5 W power dissipation
- X11 station-bus interface and X21 process connector
ABB lists drive, actuator and solenoid-valve control, binary function-group control, 3-step control and signal conditioning. The module is intended for use with the PROCONTROL P multi-purpose processing station.
The page identifier includes 83SR04G-E, while the verified ABB document names type 83SR04-E/R1210. Verify the complete module marking, programmed EPROM position number, station configuration and controlled ABB documentation before use.
ABB GJR2390200R1210 83SR04G-E PROCONTROL P Control Module Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon PDF documents are independent reference materials prepared from the verified ABB source. Use the current controlled ABB document for system engineering, installation and programming. Accessories, manuals, cables, software, certificates and other items are not included unless listed in the stock item description.
- Drive control of unidirectional drives
- Drive control of actuators
- Drive control of solenoid valves
- Binary function-group control for sequential and logic tasks
- 3-step control
- Signal conditioning
GJR2390200R1210 is the control-module component, not a standalone control system. Operation requires the compatible PROCONTROL P multi-purpose processing station, correct station-bus and process connections, the applicable user program and verified station engineering.
System: PROCONTROL P multi-purpose processing station.
Operating power: ABB specifies 24 V at USA/USB, 145 mA current consumption plus output currents, and 3.5 W power dissipation.
Connections: X11 is the 48-pin station-bus and operating-voltage connector; X21 is the 32-pin process connector. Connect X11/d18 to ZD once per subrack as stated in the ABB function diagram.
Programming: The user program is stored in EEPROM and is loaded or changed from the PDDS through the bus.
Version control: Verify the complete module marking, applicable programmed EPROM order number and position number, station configuration and current ABB document before replacement or installation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about GJR2390200R1210 83SR04G-E
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is ABB GJR2390200R1210 83SR04G-E?
ABB order number GJR2390200R1210 is identified in the official PROCONTROL P manual as type 83SR04-E/R1210, a control module for binary control, analog control and signal conditioning. -
Which applications are officially listed for GJR2390200R1210?
ABB lists unidirectional-drive control, actuator control, solenoid-valve control, binary function-group control, 3-step control and signal conditioning. -
Which system is specified for ABB GJR2390200R1210?
ABB states that the module is intended for use in connection with the PROCONTROL P multi-purpose processing station. -
What power data applies to ABB GJR2390200R1210?
The official manual specifies 24 V operating voltage, 145 mA current consumption plus output currents, and 3.5 W power dissipation. -
How are X11 and X21 used on the 83SR04-E/R1210 module?
Connector X11 carries the station-bus interface and USA/USB operating voltages. Connector X21 carries all process inputs and outputs. -
What is the official module weight for GJR2390200R1210?
ABB specifies an approximate weight of 0.55 kg. The verified manual does not publish product packaging dimensions or shipping weight.
