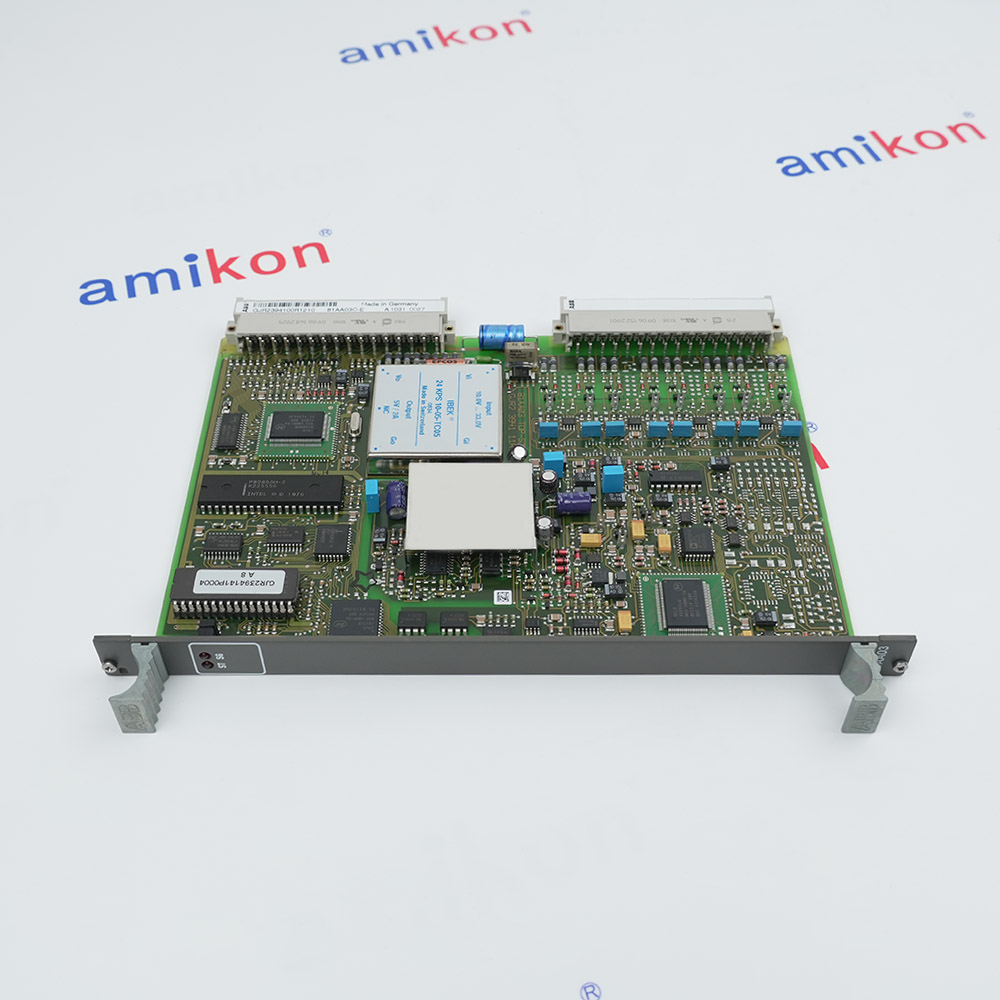

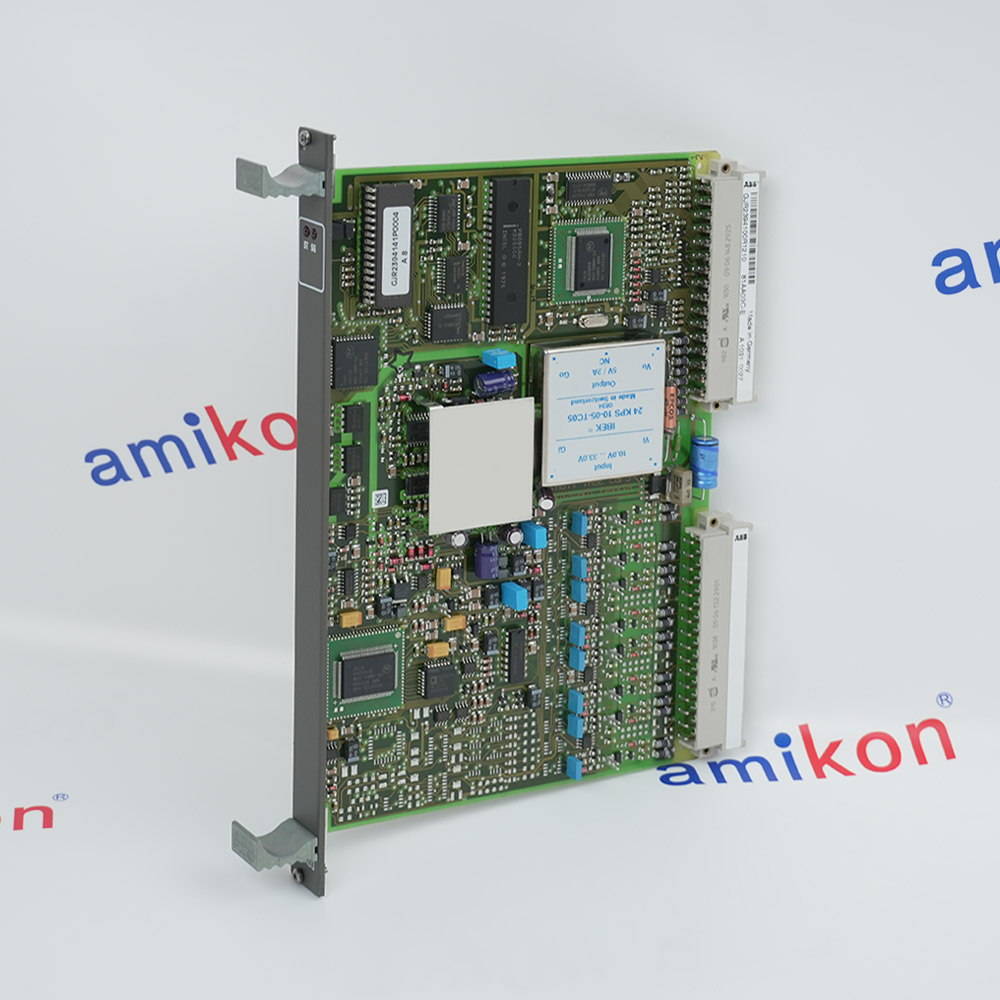

Technical specifications for GJR2394100R1210 81AA03C-E
-
Product ModelGJR2394100R1210 81AA03C-E
-
Product ParametersAnalog Output Module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x19.8x26.2cm
-
ManufacturerABB
-
Weight0.4 kg
-
Product Type8-channel
-
Source-type0-20 mA / 4-20 mA
-
Logic Supply24 V DC
-
Load Resistance≤ 750 Ω
-
Isolation500 V DC channel-to-bus
-
Operating Temperature–25 °C … +70 °C
-
Storage Temperature–40 °C … +85 °C
Description
81AA03
Procontrol P14
Analog Output Module
GJR2394100R1210
Current Mode: 250 Ω
Procontrol P14
Analog Output Module
GJR2394100R1210
Current Mode: 250 Ω
Information
Overview
Manuals
Technical notes
Product Applications
Circuit & Load Protection
Features:
- 81AA03R1210 Output Module Analog
- used to output analog signals in the signal ranges 0 to 20 mA or 4 to 20 mA.
- Procontrol P14 system
The GJR2394100R1210 81AA03C-E ABB Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2394100R1210 81AA03C-E Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB GJR2394100R1210 (Type 81AA03) is a high-precision analog output module used in the Procontrol P14 system, commonly found in power plant automation. Below are the key technical notes for its operation and installation,The module acts as an intelligent bridge, converting digital data from the Procontrol bus into 8 independent analog outputs,Each I/O module in the P14 system, including the 81AA03, contains its own processor for efficient signal acquisition and conditioning, reducing the load on central processing units.
- Power plant: Boiler feed pump speed control, steam turbine inlet valve regulation, induced draft fan/blowing fan frequency regulation.
- Petrochemical plant: Distillation tower pressure regulating valve, flow control valve.
- Metallurgy and steel plant: Heating furnace gas proportion regulation, continuous casting machine pulling speed control.
- Water treatment and paper mill: Dosage pump control, pulp concentration regulation.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Short-Circuit Protection: All 8 analog output channels are inherently short-circuit proof. If a field device or cable shorts, the module limits the current to prevent internal hardware damage.
Open-Circuit (Wire Break) Detection: When configured for the 4–20 mA range, the module constantly monitors the loop integrity. If the current drops below a specific threshold (typically <2 mA), it triggers a "Wire Break" error signal to the Procontrol P14 bus.
Overvoltage Protection: The output stages are protected against external voltage spikes and electromagnetic interference (EMI) common in industrial environments.
FAQs
-
What is the GJR2394100R1210?
+It is an ABB 81AA03 analog output module, designed for precise signal processing and control in industrial environments. -
Is this module compatible with older ABB systems?
+It is generally used as a replacement component in existing ABB automation systems. Contact suppliers to verify exact compatibility for your specific system version. -
What is the function of the GJR2394100R1210?
+It is an 81AA03 analog output module designed to convert digital control signals from a PLC/DCS system into analog signals to control field devices, like valves or actuators. -
Is this product brand new?
+Yes, ABB GJR2394100R1210 is brand new, original, unused, and factory sealed
