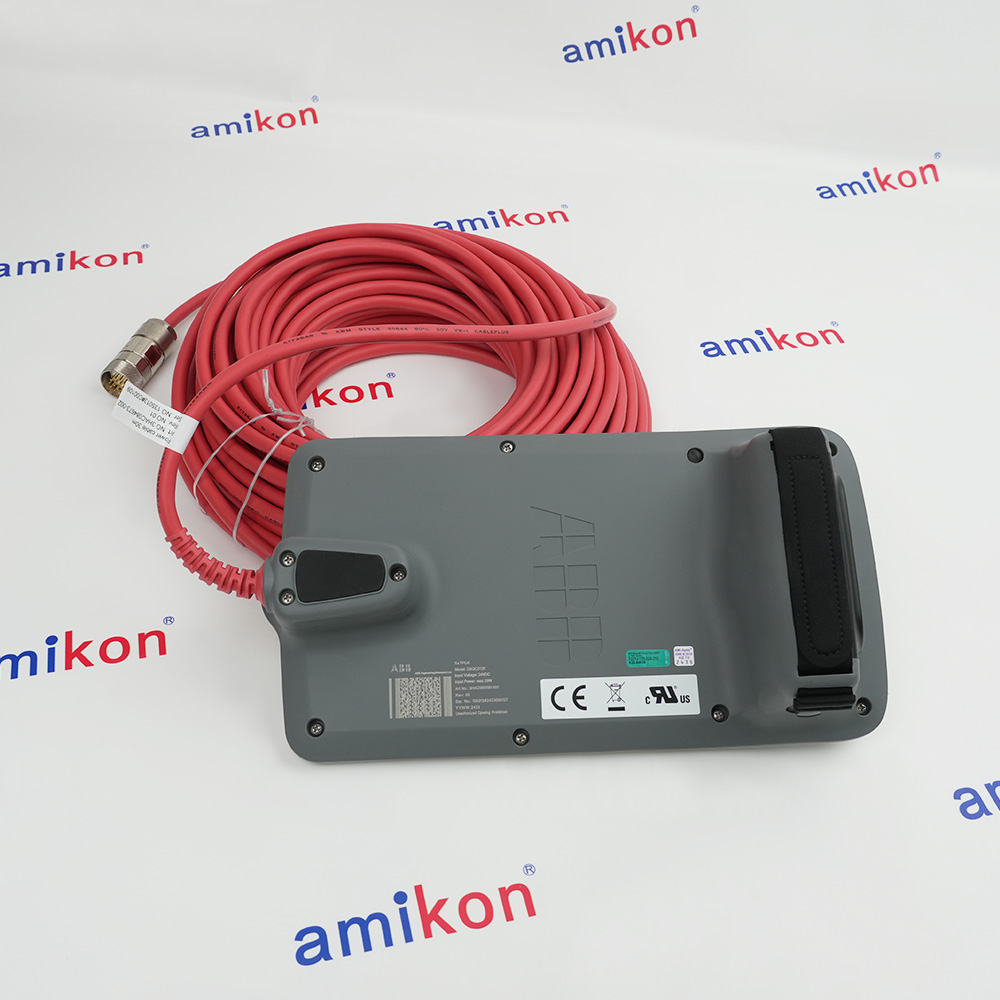

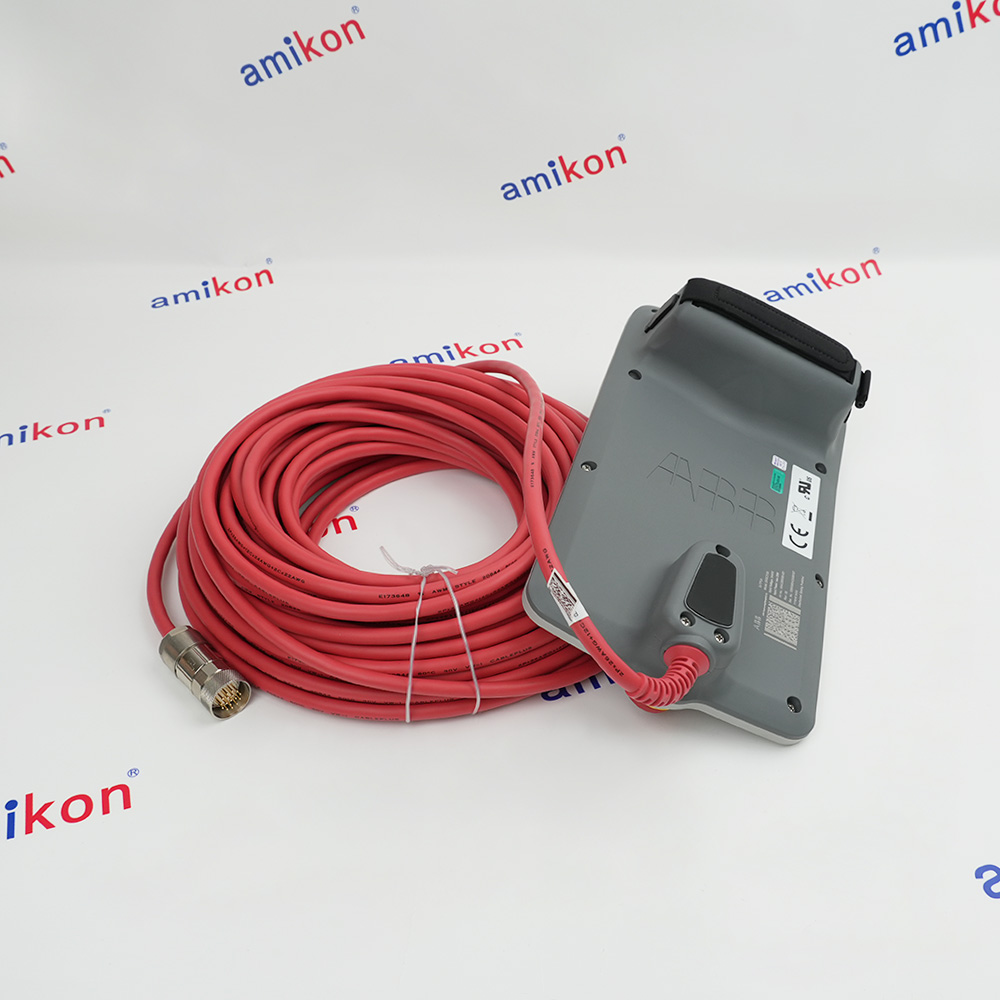

- 3HAC085590-001 DSQC3120
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3HAC085590-001 DSQC3120
-
Product Model3HAC085590-001 DSQC3120
-
Product ParametersTEACH PENDANT
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size35x30x17cm
-
ManufacturerABB
-
Weight4.5 kg
-
Supply Voltage24 V DC ±10 %
-
Typical Current Draw0.35 A @ 24 V
-
Power Consumption≤ 9 W
-
System Memory512 MB DDR3-800
-
Flash Storage4 GB e-MMC
Description
TEACH PENDANT
ROBOTIC CONTROLLER
IRC6
SXTPU4
KEYPAD / KNOB JOYSTICK
WITH CABLE
ROBOTIC CONTROLLER
IRC6
SXTPU4
KEYPAD / KNOB JOYSTICK
WITH CABLE
Information
Overview
Manuals
Technical notes
Product Applications
Physical Cable Connection
Features:
- High-Resolution Color Touchscreen Display
- Ergonomic Handheld Design with Customizable Soft Keys
- 3-Axis Precision Joystick for Multi-Mode Motion Control
- Integrated Safety Devices
The DSQC3120 3HAC085590-001 ABB Robot Teach Pendant may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DSQC3120 3HAC085590-001 Robot Teach Pendant Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At the core of the device is a 7-inch color TFT LCD touchscreen with an 800×480 pixel resolution, providing a bright, responsive interface for navigating the ABB RAPID programming language, configuring robot parameters, and monitoring process variables. The graphical user interface supports drag-and-drop operations and customizable soft keys, streamlining program creation for both novice and experienced robot programmers. Beneath the display, the pendant is driven by an embedded processing platform featuring 512 MB DDR3-800 system memory and 4 GB e-MMC flash storage, ensuring smooth execution of the pendant's operating system and application software
- Material Handling & Logistics:Picking, packaging & high-speed palletizing
- Machine Tending:Load/unload sequences for CNC & automated presses
- Precision Assembly:Mm-accurate paths for electronics & auto sub-assembly
- Welding Operations:High-path-accuracy for spot/arc welding cells
- Dispensing & Gluing:Real-time dosing for sealant, paint & glue paths
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off Safety: It is highly recommended to turn off the main controller cabinet switch before connecting or disconnecting the cable.
Align and Insert: Locate the round, multi-pin connector socket labeled TPU (Teach Pendant Unit) on the front interface panel of the controller cabinet.
Lock the Collar: Thread the metal connector collar clockwise until it locks securely into place. This completes the physical hardware loop for the safety gate system.
FAQs
-
What is the DSQC3120 3HAC085590-001？+The ABB DSQC3120 3HAC085590-001 is an advanced, highly ergonomic FlexPendant designed for programming and controlling ABB's modern industrial robot systems.
-
What robot systems are compatible with the DSQC3120?+The DSQC3120 (also referred to as the SxTPU4 FlexPendant) is engineered for integration with ABB's advanced robot controllers.
-
What are the primary technical specs of the unit?+It operates on a 24V DC power supply, utilizes EtherCAT and RS232 protocol interfaces for data connectivity.
-
What type of display does it use?+It integrates a high-resolution, keypad-assisted color touchscreen display designed for high visibility and fluid user interaction in rugged shop-floor settings
