Technical specifications for 3HNA006565-001
-
Product Model3HNA006565-001
-
Product ParametersVCD-02 valve control board
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size5.2x15.6x15.5cm
-
ManufacturerABB
-
Weight0.8 kg
-
Digital Output Type24 V DC control outputs
-
Output Channels16 digital outputs
-
Product StatusActive spare part
-
Operating Temperature-20°C to +60°C (per distributor specifications)
-
Storage Temperature-25°C to +60°C
Description

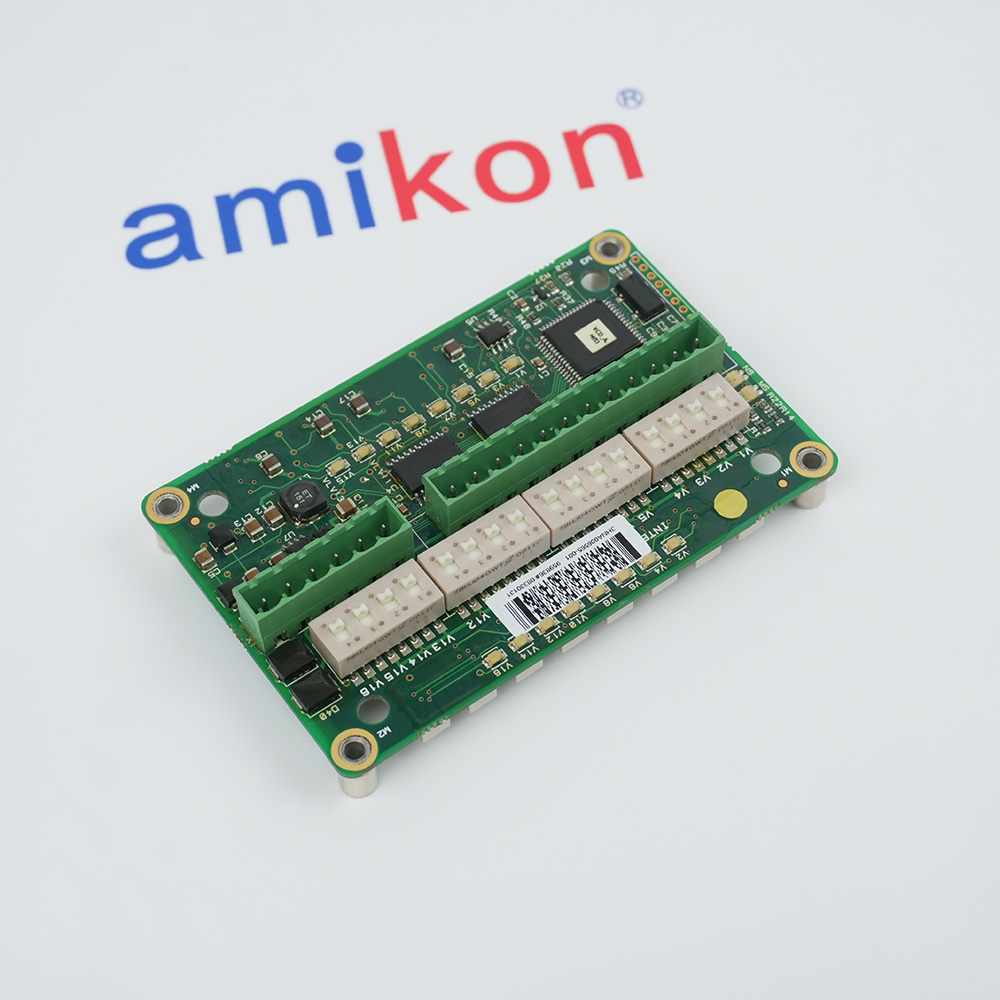

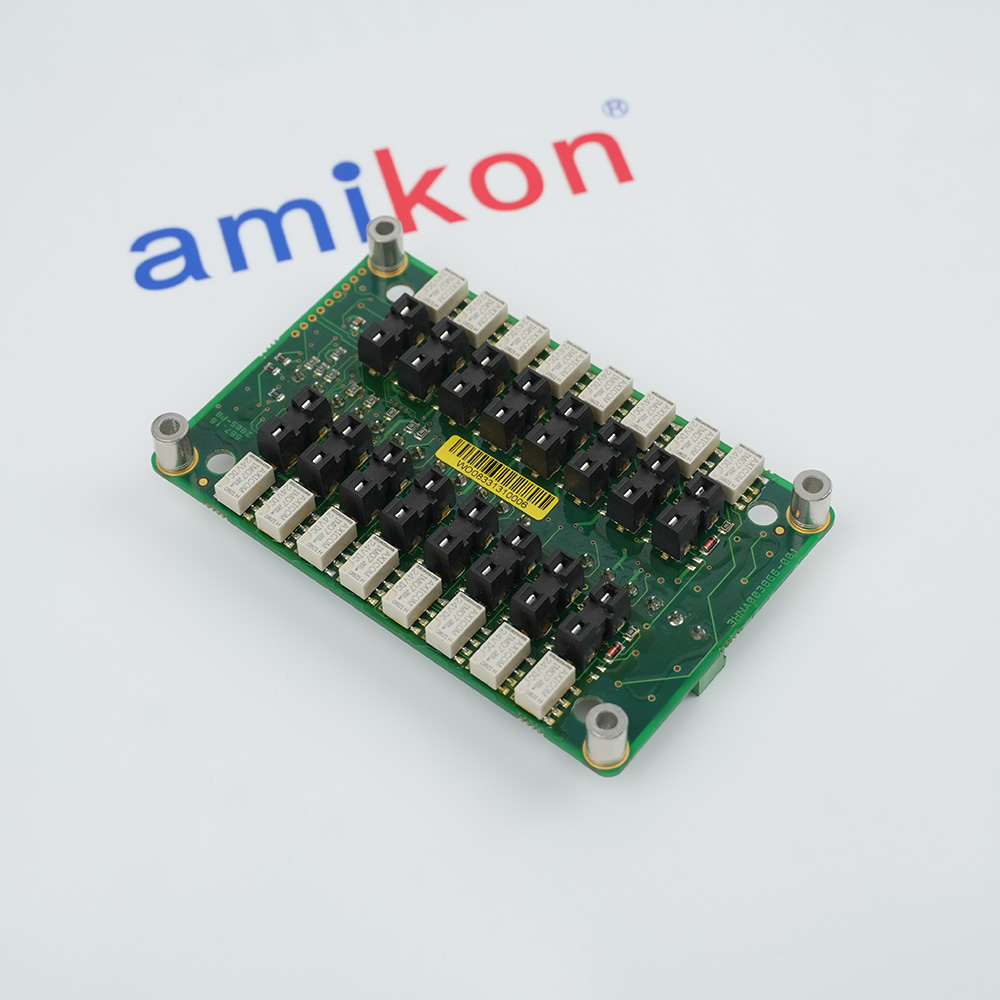

The ABB 3HNA006565-001 VCDI-02 Valve Control Board is a valve control spare module used in ABB industrial robot paint systems and robotic process control applications. The 3HNA006565-001 is identified as a VCDI-02 spare part and belongs to the ABB robot valve control module family. It provides the interface and control functions required for valve-related operations in ABB robotic systems.
The ABB 3HNA006565-001 VCDI-02 Valve Control Board is associated with the IPS (Integrated Process System) valve control driver architecture, where VCD boards provide digital output control channels for connected actuators and valve devices. The VCD interface supports valve and actuator control through configured digital outputs within the IPS control system.
The ABB 3HNA006565-001 VCDI-02 Valve Control Board is associated with the IPS (Integrated Process System) valve control driver architecture, where VCD boards provide digital output control channels for connected actuators and valve devices. The VCD interface supports valve and actuator control through configured digital outputs within the IPS control system.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion
Features:
- VCD-02 Valve Control Board for IRC5/IRC5P Painting Robot Controllers
- Pneumatic Valve Drive and Control Functionality
- Compact and Lightweight Design
- CE and UL Certified for Industrial Safety Compliance
The VCDI-02 board is a replacement component that supersedes several earlier part numbers including 3HNA003882-001, 3HNA003882-002, 3HNA006578-001, and 3HNE 03128-1. It is also supplied as part of the VCD Upgrade Kit (3HA003882-001/02), which includes additional components such as part numbers 13270591, 977589, and 13220051 for complete system upgrade.
The 3HNA006565-001 ABB VCDI-02 Valve Control Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3HNA006565-001 VCDI-02 Valve Control Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3HNA006565-001 carries CE and UL certifications, meeting stringent international safety and quality standards for industrial automation equipment. The 3HNA006565-001 is engineered for longevity and durability in harsh industrial environments, with construction designed to withstand the vibrations, temperature variations, and chemical exposure typical of automotive and industrial painting applications.
The 3HNA006565-001 is compatible with ABB's comprehensive paint robot ecosystem, including the IRB 5400, IRB 540, and IRB 580 series painting robots. The 3HNA006565-001 interfaces with the robot's main controller to execute valve switching commands with precise timing, coordinating pneumatic functions such as atomizer air, pattern air, and paint flow control.
- Automotive: Used in robotic arms for welding, painting, and precision assembly
- Electronics/SMT: Integrated into high-speed pick-and-place and component handling systems
- Process Industries: Used with analytical systems in petrochemical, oil/gas, and power plants
- Machinery/Plastics: Deployed in injection molding and textile processing machinery
